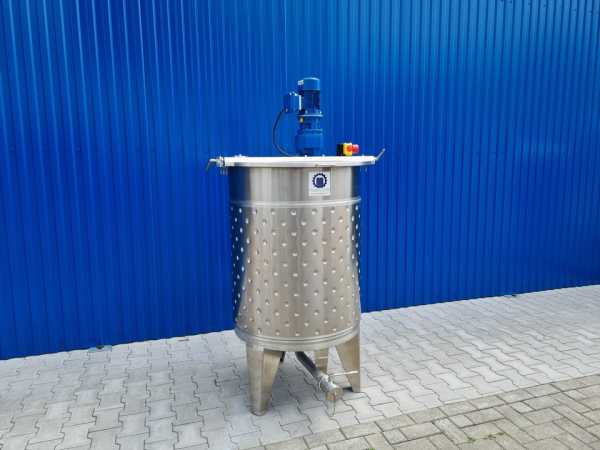

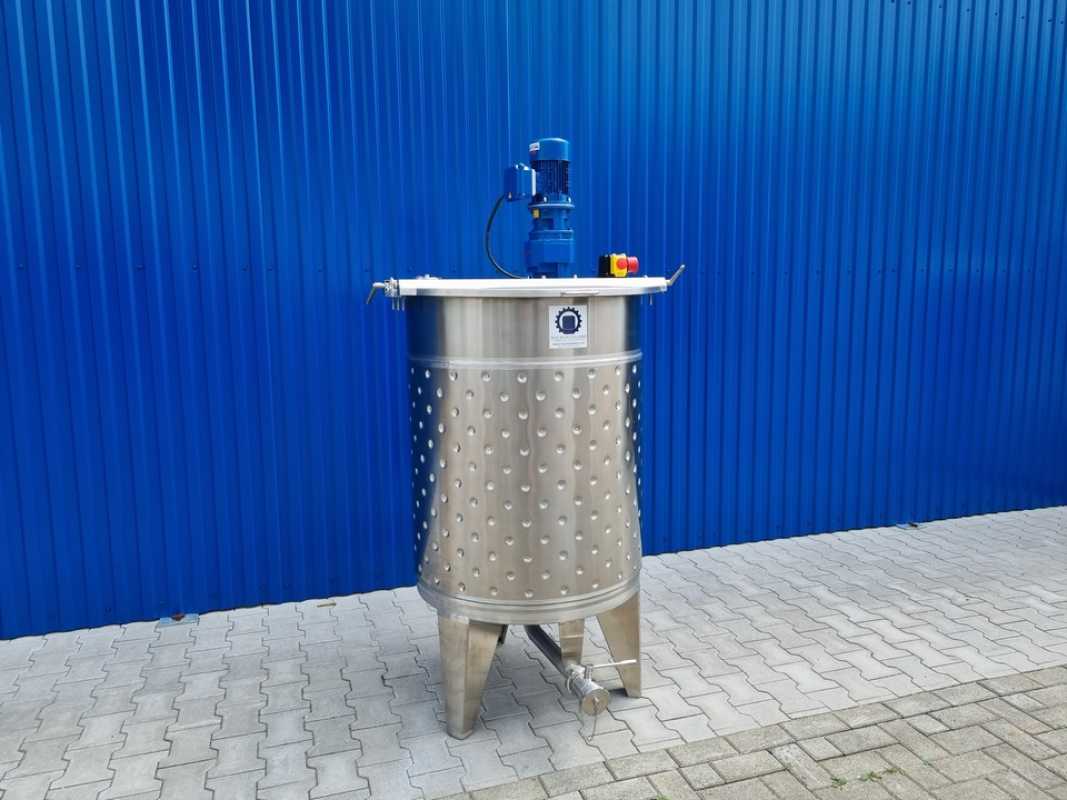

New stainless steel vessel with thermoplate and paddle mixer
Type: CILC500TPRWSA4
Volume: 510L
Type: Standing on three freet
Wall thickness: with thermoplates
Material: AISI316L stainless steel
Surfaces: Inside IIId/BA, outside SBR
Weldings inside: Flat grinded
Operating pressure: ATM
Operating presure thermoplate: +1,8Bar

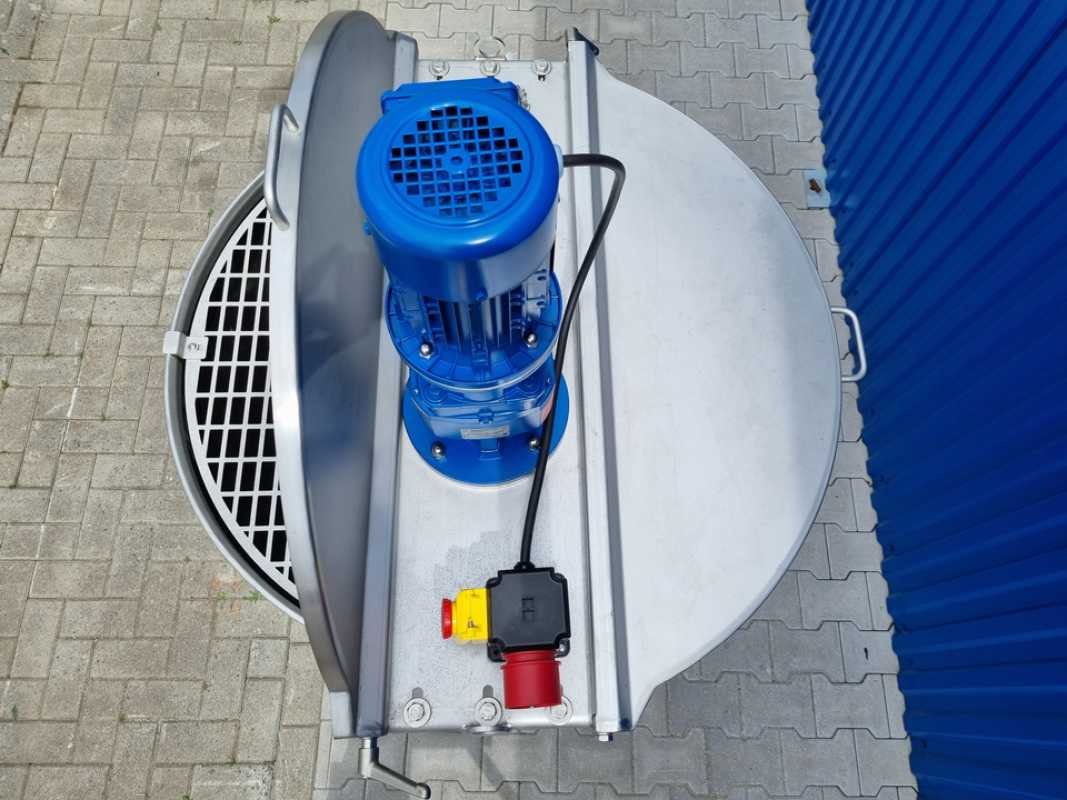

Top: Centric travers with 2pc folding lids
Bottom: Cone 15° with centric outlet and tube to the front
Dimensions:
Diameter: 790mm
Height: 1650mm (+ agitator motor)
Cyl. height: 1000mm
Height of feet: 330mm
Accessoirs:
-1x Outlet ball valve DN50 DIN11851, seal EPDM/PTFE
-Thermoplate on cylinder, in-/outlet 3/4"
-Thermoplate on bottom, in-/outlet 3/4"
-Folding lids on top with stainless steel grids, can be removed
-1x Nameplate

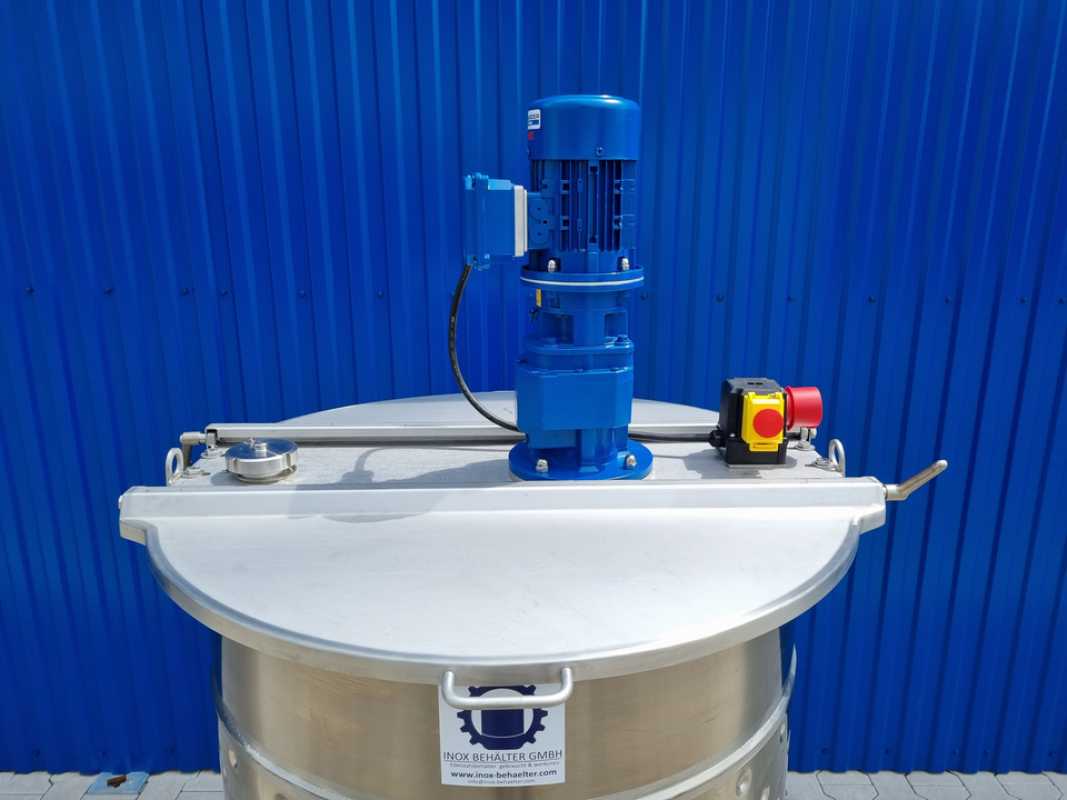

Agitator:

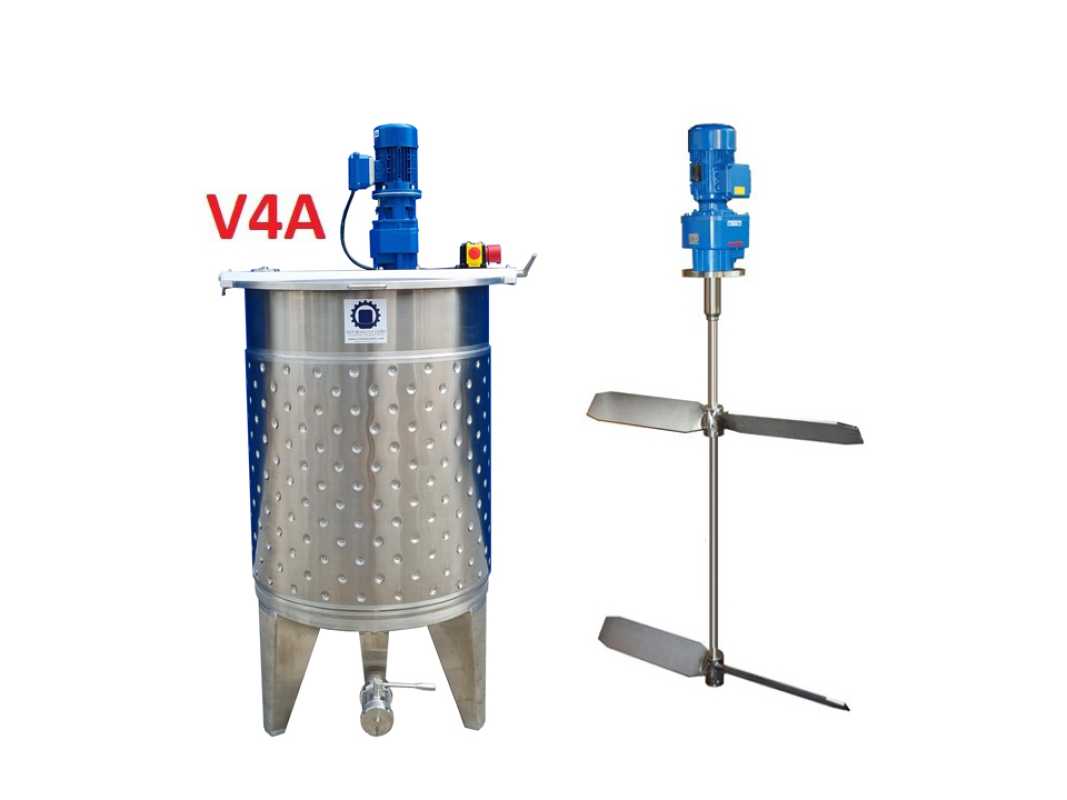

Paddle mixer
Type: SRTGSI63/0,75-190
Fabricate: Schwarzer Rührtechnik GmbH
Power: 0,75KW
RPM: 190
Voltage: 3PH 400V
-Motor and gear in latest aluminium technology, fabricated by Getriebebau NORD
-Massive shaft double balanced in the gear
-Shaft balanced for concentricity
-2pc 2-blade-stirrer height adjustable on the shaft, surface pickled and passivated
-Stainless steel flange with V-Ring seal
Control unit agitator:
CEE Switch-/plug unit on the vessel with on-/off switch, zero voltage release, emergency stop and phase changer
