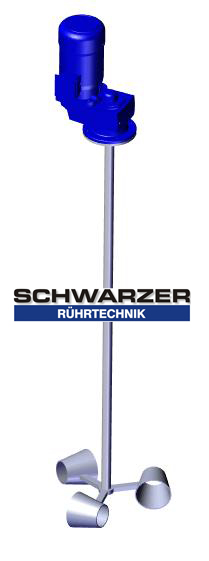

Cup Stirrer Agitator with Dynamic Pressure Mixing Principle

The cup stirrer agitator with an advanced dynamic pressure mixing principle ensures efficient, uniform, and gentle mixing even at low rotational speeds. This design provides reliable circulation while minimizing shear forces, making it ideal for sensitive and viscous media.

Efficient Mixing for 3000-Liter Tanks

Designed for tanks with a capacity of approximately 3000 liters, this flat gear agitator delivers consistent performance across a wide range of industrial applications, including chemical, pharmaceutical, and food processing industries.

Technical Specifications

• Agitator Type: Flat gear agitator SRTFGH/1.5-90/4
• Mixing Principle: Dynamic pressure cup stirrer
• Material: AISI 316 / 316L (product-contact parts)
• Tank Volume: Approx. 3000 liters
• Maximum Viscosity: Up to 5000 mPas
• Maximum Density: Up to 1.2 kg/liter

Drive and Motor Configuration

• Power: 1.5 kW
• Motor: 400 V, 3-phase, 50 Hz
• Protection Class: IP55
• Efficiency Class: IE3
• Motor Protection: 3 PTC thermistors for on-site FI operation
• Gear Type: Flat gear drive with double-bearing hollow shaft

Stirrer Shaft and Impeller

• Plug-in Stirrer Shaft Diameter: Ø 45 mm
• Available Shaft Length: Up to 2200 mm (up to lower edge of cup stirrer)
• Impeller: 1-piece cup stirrer
• Impeller Diameter: Ø 600 mm

Construction and Finish

All welding seams are chiseled and passivated to ensure excellent corrosion resistance and hygienic design. A robust protective flange made of AISI 304 with V-ring sealing provides additional operational safety.

• Total Agitator Weight: Approx. 125 kg

Flange Dimensions

• Outer Diameter (AØ): 250 mm
• Bolt Circle Diameter (LKØ): 215 mm
• Bore Holes: 4 × Ø 14 mm
• Center Bore (ZØ): Smooth

Your Benefits

• Gentle and efficient mixing at low speeds
• Reliable circulation for viscous products
• High-quality stainless steel construction
• Energy-efficient IE3 motor
• Durable and maintenance-friendly design

This cup stirrer agitator is the ideal solution for demanding industrial mixing applications where process reliability, product protection, and efficiency are essential.

With sintered liter scale in 100 liter steps.

Worm Gear Container Agitator for 1000 L IBC

Item number: IBC-0260

The worm gear container agitator for 1000-liter IBCs is designed for powerful and controlled mixing of high-viscosity liquids in demanding industrial applications. This heavy-duty IBC agitator is suitable for liquids with viscosities of up to 20,000 mPas and a maximum density of 1.2 kg/l.

The agitator is driven by a 2.2 kW electric motor with a variable speed range from 0 to 300 rpm, allowing precise adjustment of the mixing process. The drive operates on 3-phase 400 V / 50 Hz (IE3).

The motor and worm gear unit, manufactured by Getriebebau NORD, feature the latest aluminum housing technology and ensure high efficiency, long service life, and reliable continuous operation.

A solid plug-in agitator shaft is mounted directly in the hollow shaft gear unit. The shaft is precisely balanced to ensure smooth, concentric operation across the entire speed range. All product-contact components are made of stainless steel 1.4404 (AISI 316L).

At the end of the agitator shaft, a cup stirrer type IBC-BEC-600 (Ø 600 mm) is securely screwed in. The stirring arms can be removed without tools for fast and hygienic cleaning. There are no screws or threaded connections in the product area.

The agitator is designed to fit through standard Ø 140 mm IBC container openings, ensuring compatibility with common 1000 L IBC containers.

Speed control is handled by a compact NORD frequency inverter (IP55), preprogrammed specifically for agitator operation. A built-in potentiometer allows continuous speed adjustment from 0–300 rpm (0–50 Hz).

For safe handling and transport, the agitator is equipped with a stainless steel forklift traverse made of 1.4301 (AISI 304). The traverse includes two forklift openings, two tension hooks (not made of AISI 304 / AISI 316), and four side plastic handles.

A CEE plug switch mounted on the traverse features zero-voltage release and a phase inverter, ensuring safe and reliable operation.

Important notice: The supply line requires an all-current-sensitive PRDC (RCD type B / B+).

Your Benefits at a Glance

• Worm gear IBC agitator for 1000-liter containers
• For high-viscosity liquids up to 20,000 mPas
• Powerful 2.2 kW motor
• Variable speed control from 0 to 300 rpm
• High-quality gear unit by Getriebebau NORD
• Frequency inverter IP55, preprogrammed for agitator operation
• Product-contact parts made of stainless steel AISI 316L
• Tool-free removable stirring arms for easy cleaning
• No screws in the product area
• Fits through Ø 140 mm IBC openings
• Stainless steel forklift traverse with hooks and plastic handles
• CEE plug switch with zero-voltage release and phase inverter

Technical Data

Worm Gear Container Agitator for 1000 L IBC

Item number: IBC-0195-2023

The worm gear IBC container agitator for 1000-liter IBCs is designed for efficient mixing of medium to high-viscosity liquids in industrial applications. This robust IBC agitator is suitable for liquids with viscosities of up to 3000 mPas and a maximum density of 1.2 kg/l.

Equipped with a 1.1 kW electric motor and a reduced speed of 142 rpm, the agitator ensures gentle yet powerful mixing performance. The drive unit operates on 3-phase 400 V / 50 Hz (IE3) and meets modern energy efficiency requirements.

The motor and worm gear unit, manufactured by Getriebebau NORD, feature the latest aluminum housing technology and are filled with food-grade gear oil, making the agitator suitable for sensitive industrial environments.

The solid plug-in agitator shaft is mounted directly in the hollow shaft gear unit and is precisely balanced to ensure smooth, concentric operation across the entire speed range. All product-contact components are made of stainless steel 1.4404 (AISI 316L).

At the end of the agitator shaft, a cup stirrer type IBC-BEC-600 (Ø 600 mm) is securely screwed in. The stirring arms can be dismantled without tools for fast and easy cleaning. No screws or threaded connections are located in the product area.

The agitator is designed to fit through container openings with a diameter of Ø 140 mm, making it compatible with standard 1000 L IBC containers.

For safe handling and transport, the agitator is equipped with a stainless steel forklift traverse (model 2023, AISI 304). The traverse includes two forklift openings, two tension hooks for secure fixation on the IBC, and four side handles.

A CEE plug switch mounted on the traverse features zero-voltage release, phase inverter, and integrated motor protection, ensuring maximum operational safety.

Your Benefits at a Glance

• Worm gear IBC agitator for 1000-liter containers
• For liquids up to 3000 mPas and 1.2 kg/l density
• Powerful 1.1 kW motor with 142 rpm
• High-quality gear unit by Getriebebau NORD
• Food-grade gear oil filling
• Product-contact parts made of stainless steel AISI 316L
• Tool-free removable stirring arms for easy cleaning
• No screws in the product area
• Fits through Ø 140 mm IBC openings
• Stainless steel forklift traverse with tension hooks and handles
• CEE plug switch with motor protection and phase inverter

Technical Data

IBC High Speed Mixer / Container Agitator for 1000 Litre IBC

Article number: IBC-0110-2PK

Powerful. Flexible. Safe.

The IBC high speed mixer IBC-0110-2PK has been specifically designed for turbulent yet controlled mixing of low-viscosity liquids up to 600 mPas (density up to 1.2 kg/l).

Its sophisticated design, high-quality materials and powerful drive technology make this container agitator perfectly suited for standard 1000-litre IBC containers.

Technical Highlights

Drive Unit

• Powerful 0.75 kW IE3 three-phase motor
• Speed: 1,415 rpm – ideal for fast and uniform mixing
• Voltage: 3-phase, 400 V, 50 Hz – energy-efficient IE3 motor

Agitator Shaft

• Solid, removable stainless steel agitator shaft with robust coupling
• Precisely balanced for smooth operation, even during continuous use

Mixing Technology

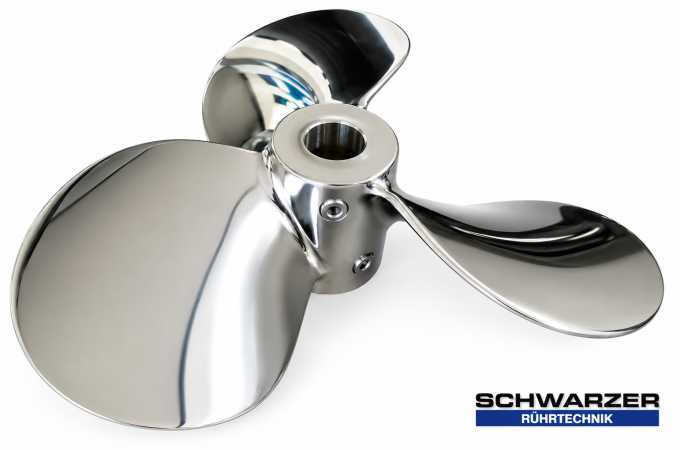

• Two 3-blade mixing propellers, Ø 138 mm
• Second propeller height-adjustable on the shaft
• Significantly faster and more uniform incorporation of floating additives – a clear advantage over mixers with only one propeller at the shaft end
• Both propellers made of high-gloss polished stainless steel casting
• Hygienic, robust and easy to clean

Design & Safety

Product-Contact Parts

• Stainless steel 1.4404 (V4A)
• Corrosion-resistant and easy to clean

Support Frame

• Manufactured from stainless steel AISI304
• 2 galvanized steel clamping hooks
• Galvanized fastening bolts for clamping hooks, carrying handles and agitator
• 4 ergonomic plastic carrying handles for comfortable handling

Safety Features

• CEE plug switch with no-voltage release
• Integrated motor protection and phase inverter
• Maximum operational safety according to current standards

Applications

Ideal for mixing, transferring or homogenizing:

• Water-based solutions
• Liquid chemicals
• Cleaning agents
• Liquids with additives (dispersing, dissolving, mixing in)

Key Benefits at a Glance

• ✔ Powerful industrial motor for high mixing performance
• ✔ Dual propeller technology for uniform flow and efficient additive incorporation
• ✔ Height-adjustable second propeller – highly effective for floating additives
• ✔ Quick assembly and disassembly – ideal for changing locations
• ✔ High-quality materials AISI316/316L/304 for long service life
• ✔ Industrial-grade safety – plug & play thanks to CEE switch

✔ Free delivery within Germany – included!

IBC High-Speed Mixer Agitator for 1000-Liter IBC Containers

Article number: IBC-0110-400V

The IBC high-speed mixer for 1000-liter containers is a reliable solution for turbulent mixing of low-viscosity liquids in industrial applications. This powerful IBC mixer agitator features a robust stainless steel design, high mixing performance and maximum operational safety.

With a motor power of 0.75 kW and a speed of 1420 rpm, the agitator ensures uniform and reproducible mixing results. It is suitable for liquids with a viscosity of up to 600 mPas and a maximum density of 1.2 kg/l.

The precisely balanced stirring shaft made of stainless steel 1.4404 ensures smooth and low-vibration operation across the entire speed range. An optional shaft coupling is available. At the end of the shaft, a high-gloss polished 3-blade mixing propeller (Ø 138 mm), manufactured from a single casting, provides short mixing times and efficient flow inside the IBC.

For safe handling and easy transport, the mixer is equipped with a robust stainless steel forklift traverse made of material 1.4301. It includes two forklift pockets, two galvanized clamping hooks for secure fixation on the IBC container, and side carrying handles.

An integrated plug-in switch with undervoltage release and motor protection ensures maximum safety for both the operator and the motor.

Your Benefits at a Glance

• Suitable for 1000-liter IBC containers
• Turbulent mixing of low-viscosity liquids
• For media up to 600 mPas and 1.2 kg/l
• Powerful 0.75 kW motor with 1420 rpm
• Product-contact parts made of stainless steel 1.4404
• Stirring shaft optionally available with coupling
• 3-blade mixing propeller Ø 138 mm, high-gloss polished
• Stainless steel forklift traverse with galvanized clamping hooks
• Plug-in switch with undervoltage release and motor protection
• Robust, maintenance-free and durable
• Free delivery within Germany

Technical Data
