Worm gear container agitator for 1000L IBC.
Item number: IBC-0195-2023
For liquids up to 3000 mPas in 1000L IBC. Density max. 1,2 KG / Litre
Power: 1,1 kW
Speed: 142 rpm
Voltage: 3PH 400V 50Hz. IE3
Material in contact with product: 1.4404 stainless steel (AISI316L)
Motor and gear unit in latest aluminium technology, manufactured by Getriebebau NORD.
Gear with life food technical oil filling.
Solid plug-in agitator shaft mounted in the hollow shaft gear unit.
Agitator shaft balanced for concentricity in the speed range.
1 piece cup stirrer IBC-BEC-600 Ø 600mm screwed in at the end of the agitator shaft.
Stirring arms can be dismantled without tools for easy cleaning. No screws in the product space.
Fits through Ø=140mm container openings.
Forklift traverse stainless steel Modell 2023 (AISI304) 4mm thickness
with 2 openings for forklift forks, 2 tension hooks and 4 side handles.
CEE plug switch
on the traverse with zero voltage release and phase inverter. Integrated motor protection.

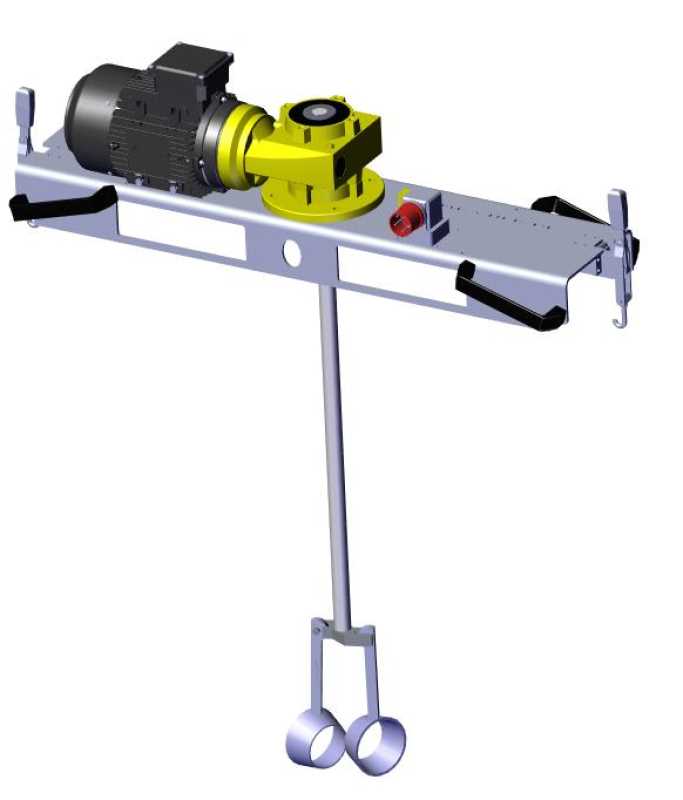

.jpg "Container agitator type IBC-0195-2023 suitable for liquids with up to 3000 mPas in an 1000 liter IBC for life food.")

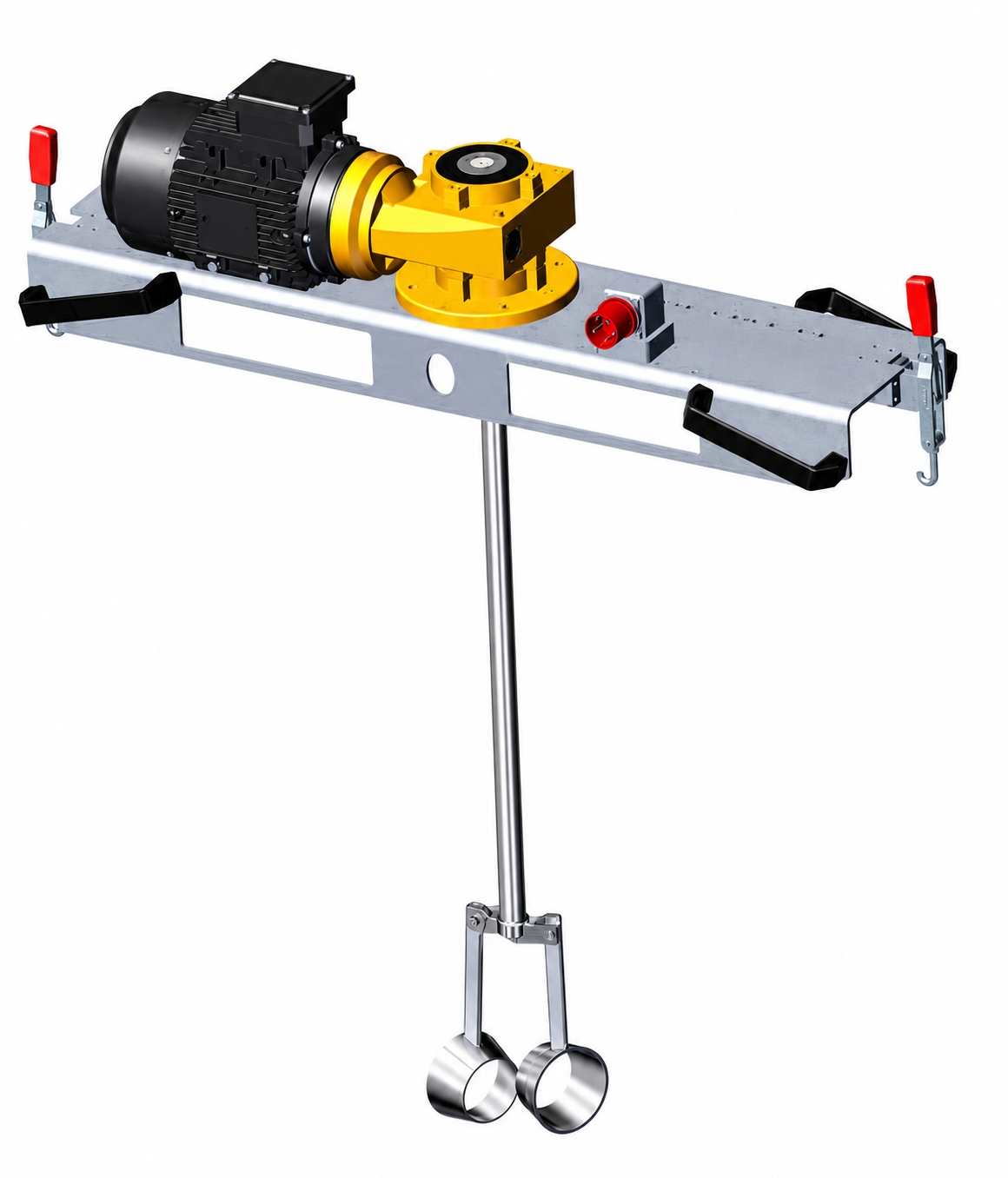

.jpg "Preview: Container agitator type IBC-0195-2023 suitable for liquids with up to 3000 mPas in an 1000 liter IBC for life food.")

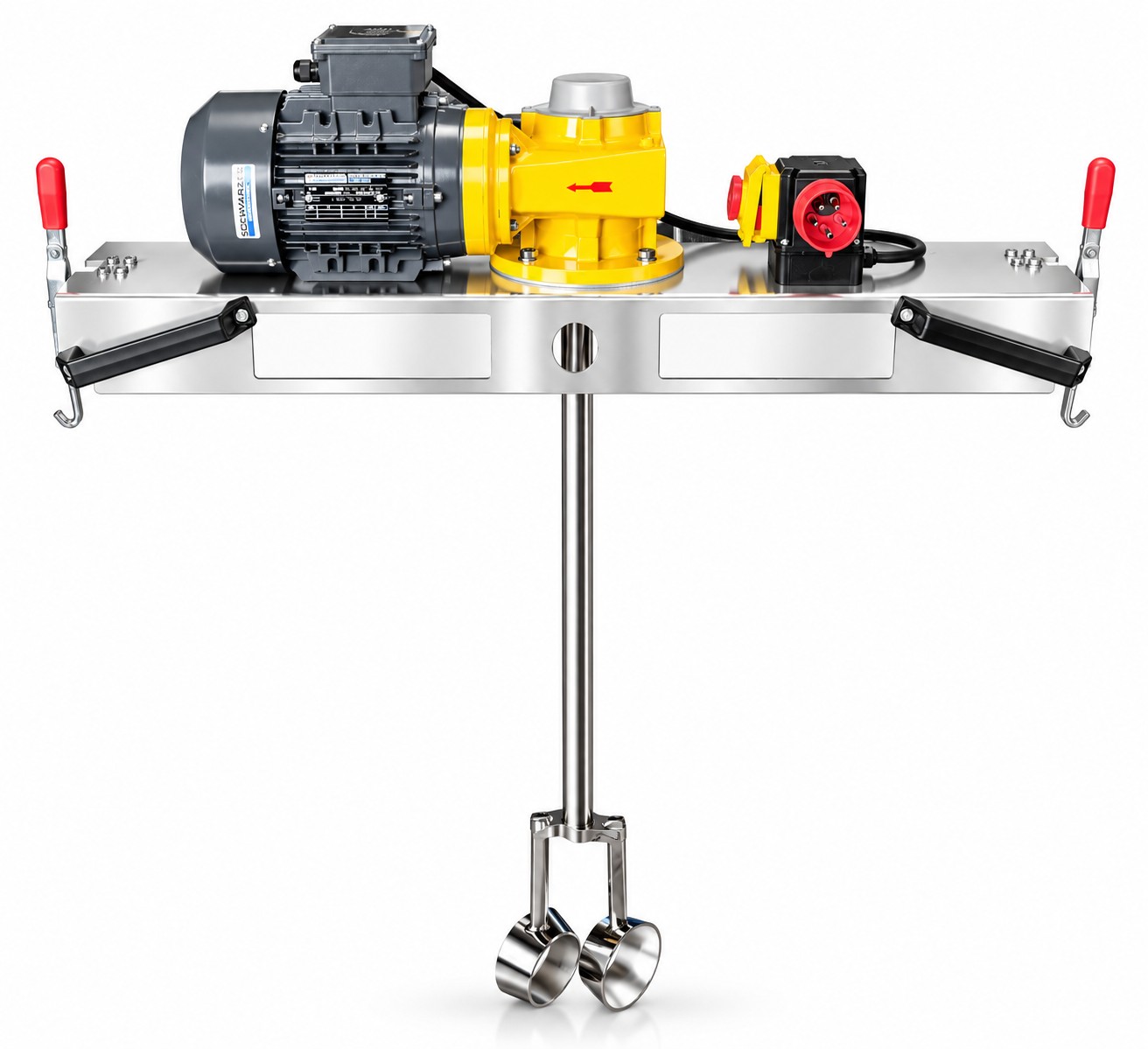

.jpg "Container agitator type IBC-0195-2023 suitable for liquids with up to 3000 mPas in an 1000 liter IBC for life food.")
