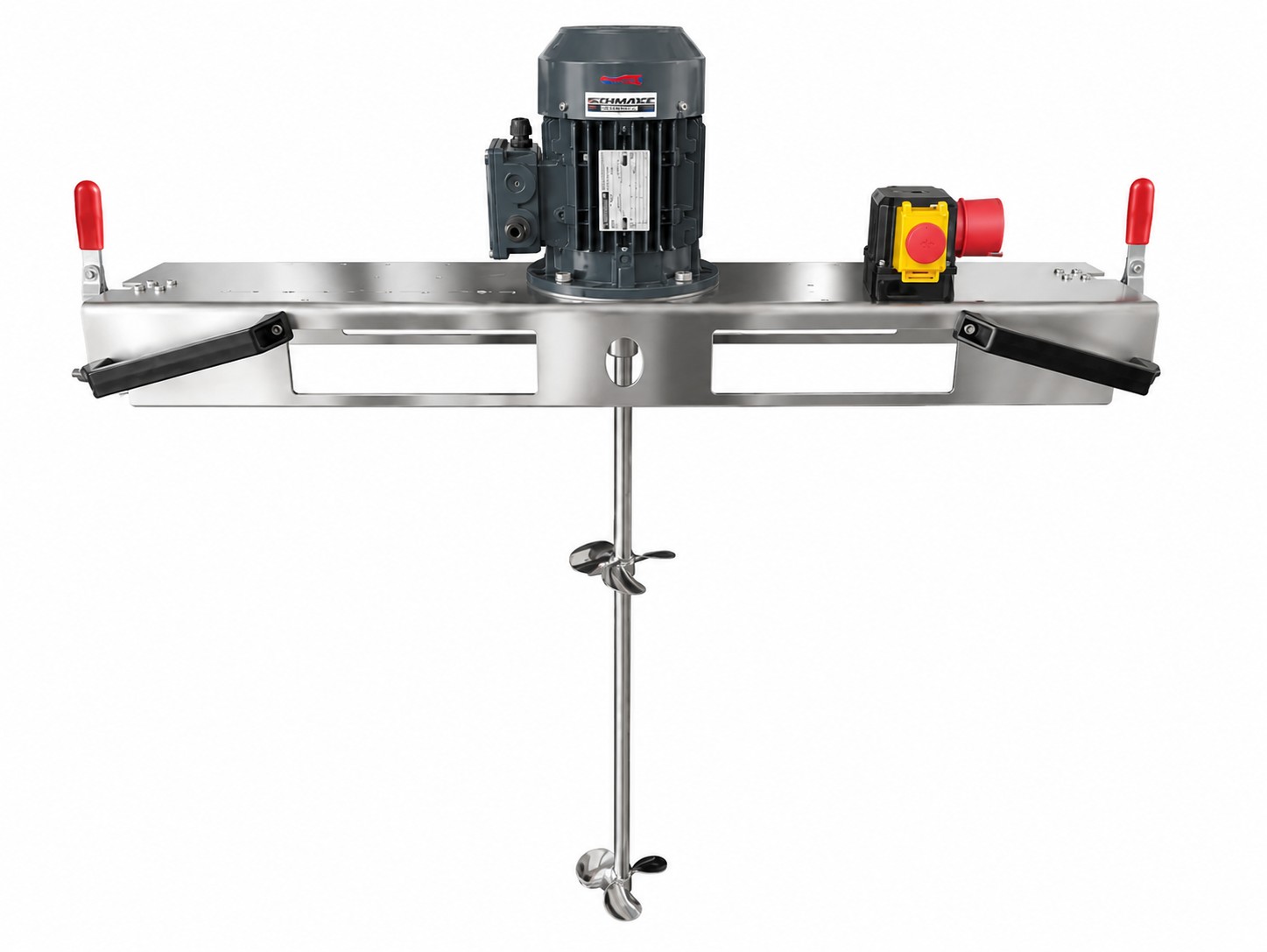

IBC high-speed mixer container agitator
Item number: IBC-0110-2PK
For liquids up to 600 mPas and a density of up to 1.2 kg/l in an 1000L IBC.
Turbulent mixing of low viscosity liquids.
Power: 0,75 kW
Speed: 1415 rpm
Voltage: 3PH 400V 50Hz IE3
Motor with 3 thermistors (PTC)
Material in contact with product: 1.4404 stainless steel (AISI316L)
High-speed mixer with solid, non-removable agitator shaft, balanced for concentricity in the rotational speed range.
1 piece 3-blade mixing propeller Ø=138mm screwed in at the end of the agitator shaft.
1 piece 3-blade mixing propeller Ø=138mm adjustable in height on the shaft.
Mixing propeller made of one piece, mirror finish polished.
Forklift traverse stainless steel 1.4301 (AISI304) 4mm thickness
with 2 openings for forklift forks, 2 tension hooks and 4 side handles.
CEE plug switch
on the traverse with zero voltage release and phase inverter. Integrated motor protection.
