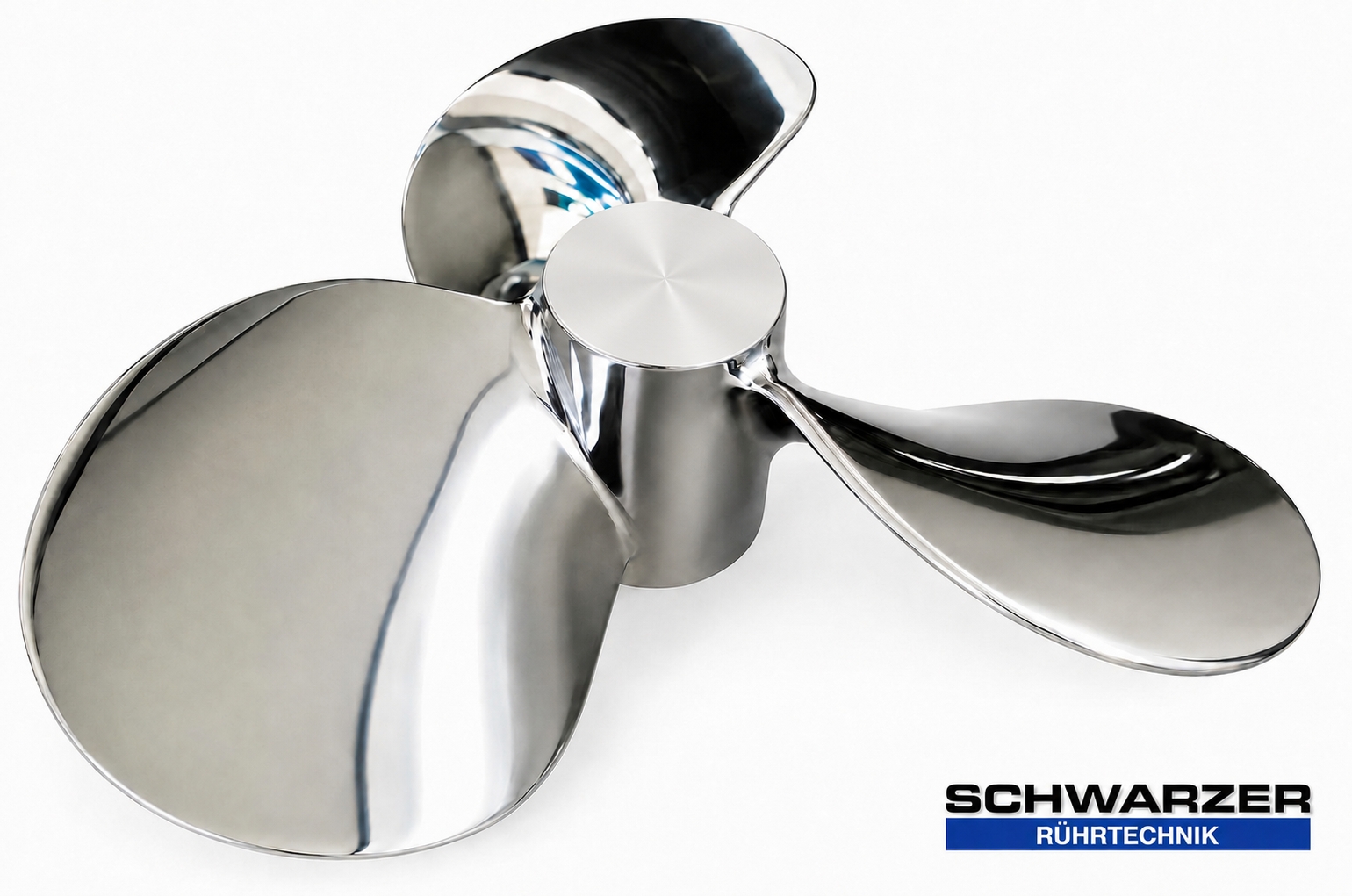

3-wing mixing propeller 1.4404 mirror finish polished
3- blade wing mixing propeller cast propeller marine propeller AISI316 mirror finish polished
Polished propellers are the clear choice wherever an extremely smooth surface finish is required.
Ideal for pharmaceutical, food and other sanitary applications.
The design produces downward fluid motion with clockwise rotation as viewed from above.
Our sanitary grade propellers are investment cast, finish machined to tight tolerances, polished and buffed.

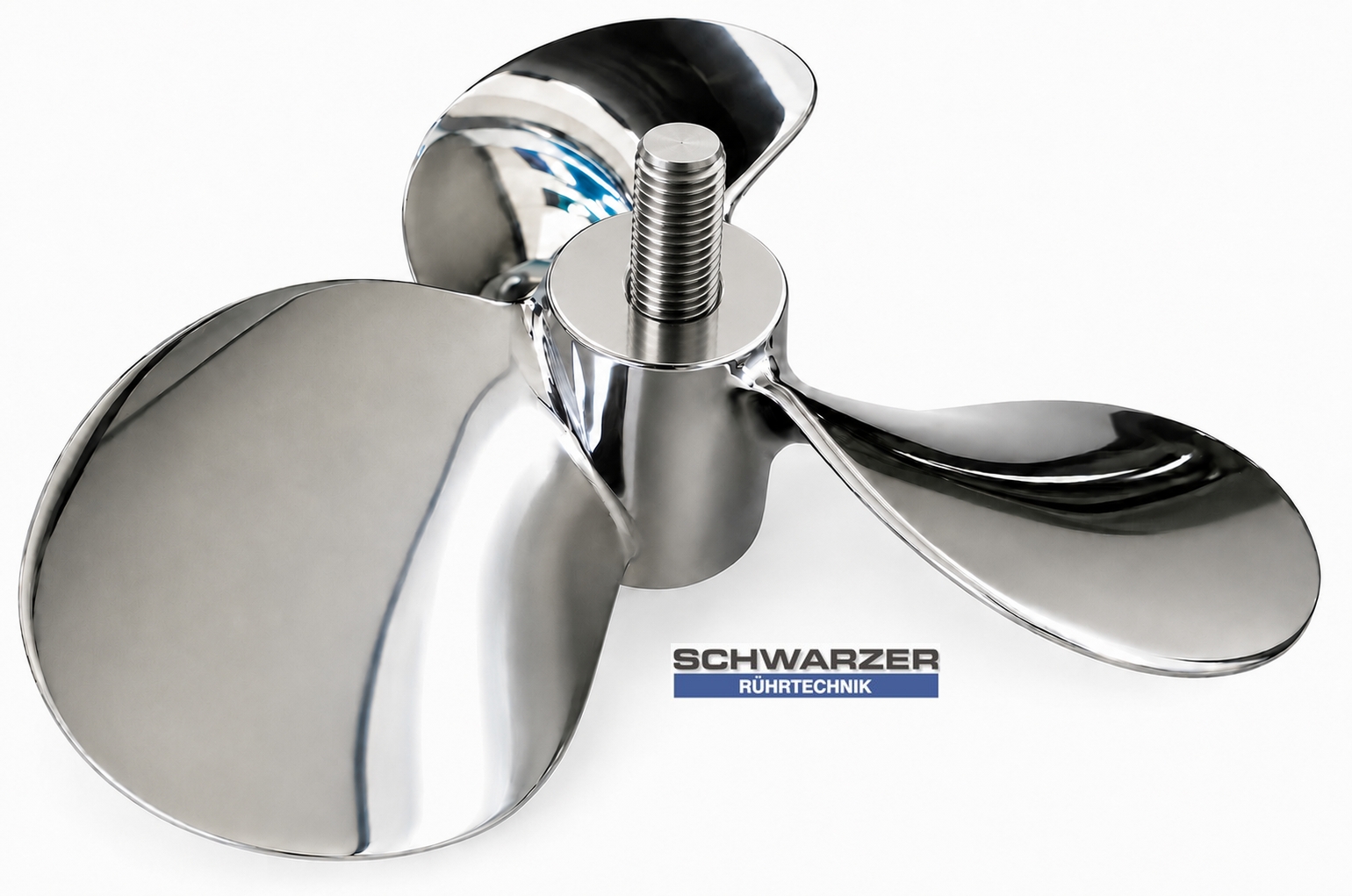

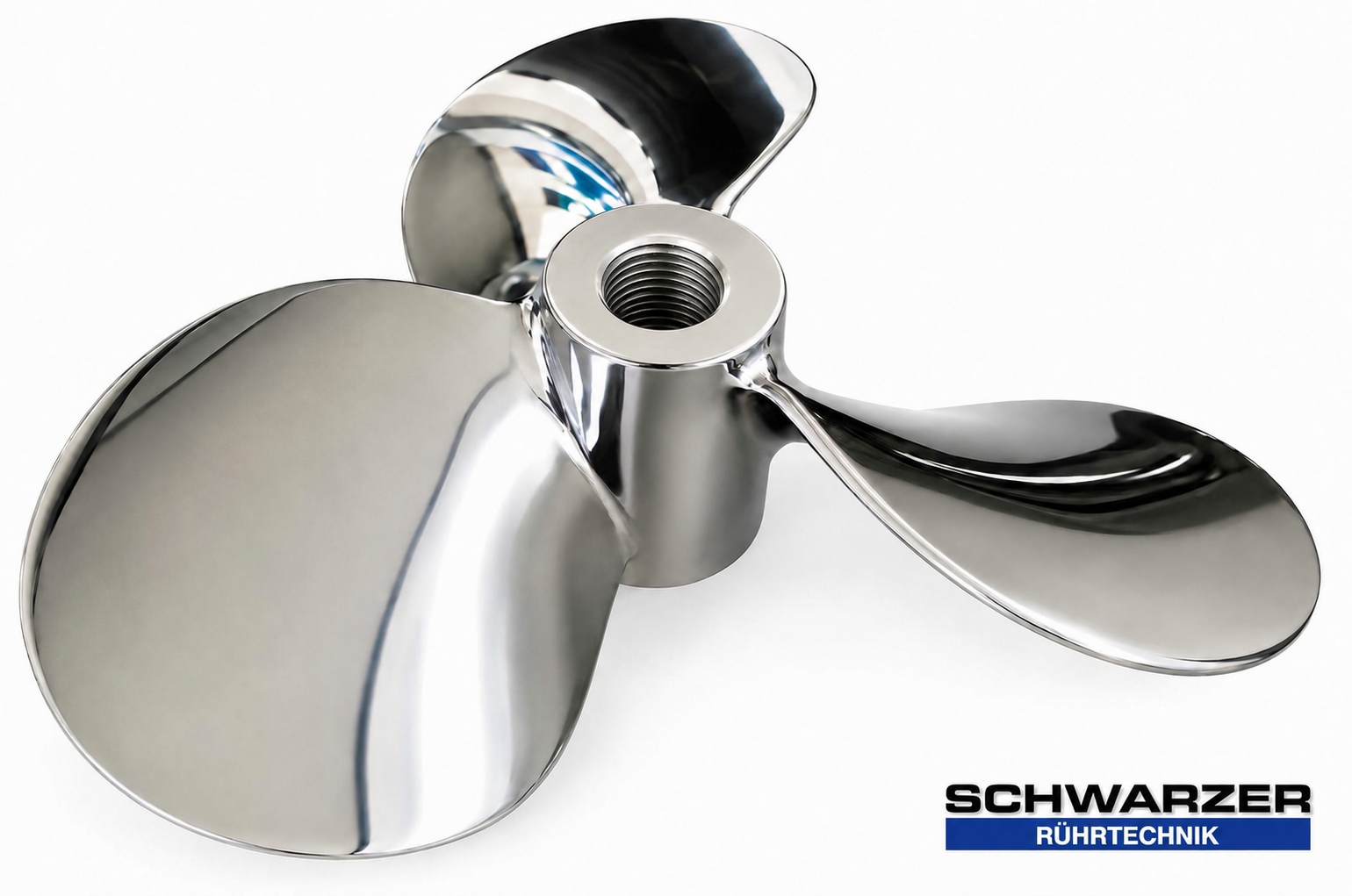

Mirror finish polished propellers for screws at the end of shaft. Also aviable with hole.
Available as blank, with a thread or with a fitting after arrangement.
Polished propellers are the clear choice wherever an extremely smooth surface finish is required.
Ideal for pharmaceutical, food and other sanitary applications.
The design produces downward fluid motion with clockwise rotation as viewed from above.
Our sanitary grade propellers are investment cast, finish machined to tight tolerances, polished and buffed.
Mirror finish polished propellers for screws at the end of shaft. Also aviable with hole.
Available as blank, with a thread or with a fitting after arrangement.
| Propeller Ø | Weight ca. | Hub measures ca. | Standard thread |
| 100mm | 265g | Ø 27 x 34mm | M10 or M16 |
| 125mm | 285g | Ø 28 x 36mm | M10 or M16 |
| 138mm | 325g | Ø 28 x 36mm | M10 or M16 |
| 150mm | 365g | Ø 28 x 36mm | M10 or M16 |
| 175mm | 785g | Ø 34 x 50mm | M16 or M20 |
| 200mm | 1100g | Ø 38 x 60mm | M16 or M20 |
| 225mm | 1420g | Ø 42 x 70mm | M16 or M20 |
