Mischpropeller_V4A_AISI316L_Edelstahl_Propelle

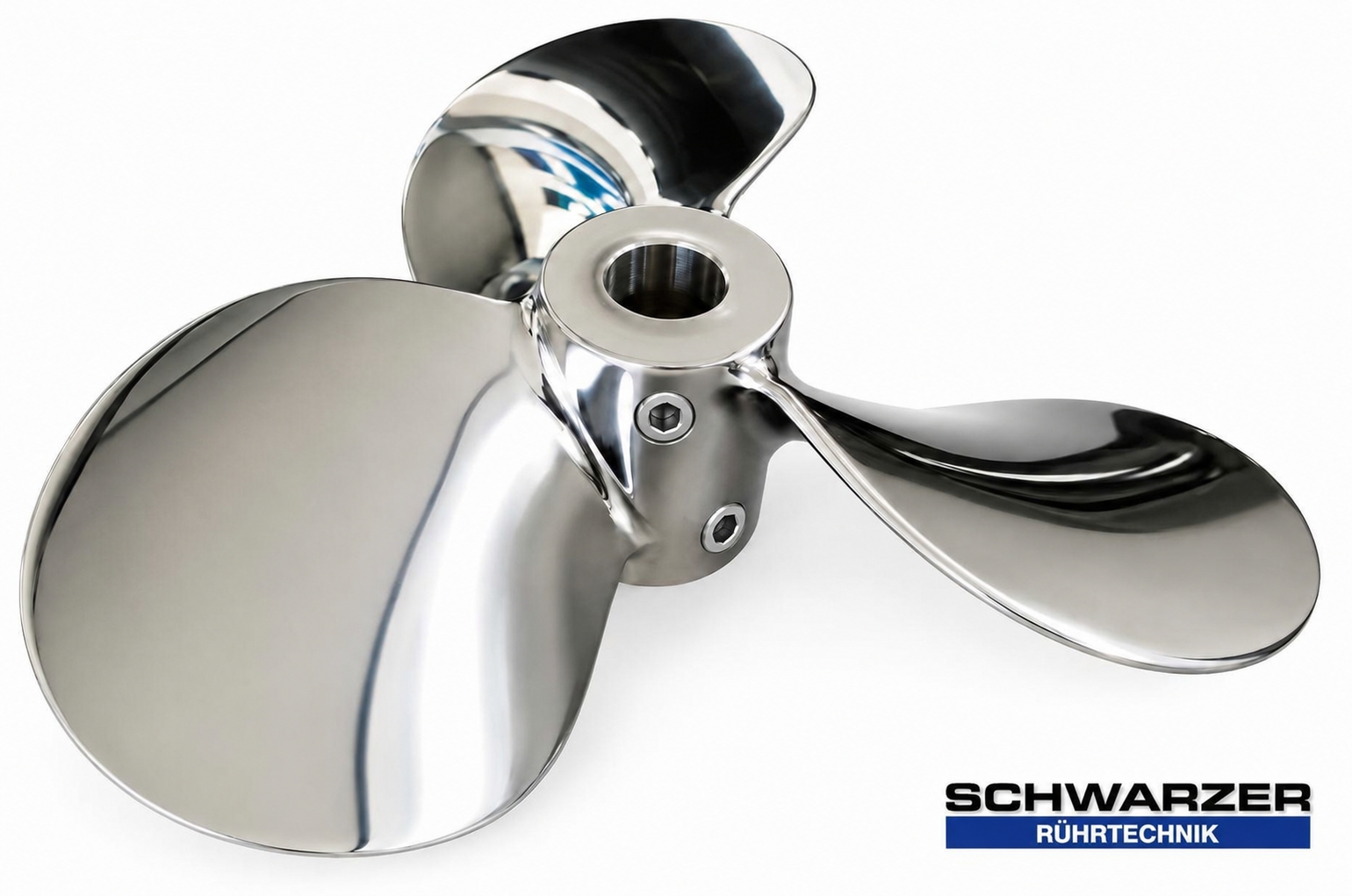

3-wing mixing propeller with drilling 1.4404 mirror finish polished
Mischpropeller_V4A_AISI316L_Edelstahl_Propelle
TOP

3-wing mixing propeller with drilling 1.4404 mirror finish polished

Product No.:
HV_Mischpropeller_1.4404
Unkown shippingtime
from 228,00 EUR

excl. Shipping costs

Add to wish list
Ask about product
Description
3-blade mixing propeller for stirrer shafts height-adjustable stirrer propeller 1.4404 polished
For sliding onto existing stirrer shafts. Fastening by grub screws on the side.

Propeller Ø Weight approx. Max. hole Ø
100mm 265g Ø 18mm
125mm 285g Ø 20mm
138mm 325g Ø 20mm
150mm 365g Ø 20mm
175mm 785g Ø 25mm
200mm 1200g Ø 28mm
225mm 1420g Ø 35mm

This product is similar to:

Rührpropeller Mischpropeller Propellerstirrer
TOP
3-wing mixing propeller 1.4404 mirror finish...
3- blade wing mixing propeller cast propeller marine propeller AISI316 mirror finish polished
Polished propellers are the clear choice wherever an extremely smooth surface finish is required.
Ideal for pharmaceutical, food and other sanitary applications.
The design produces downward fluid motion with clockwise rotation as viewed from above.
Our sanitary grade propellers are investment cast, finish machined to tight tolerances, polished and buffed.
Mirror finish polished propellers for screws at the end of shaft. Also aviable with hole.
Available as blank, with a thread or with a fitting after arrangement.

from 129,00 EUR
