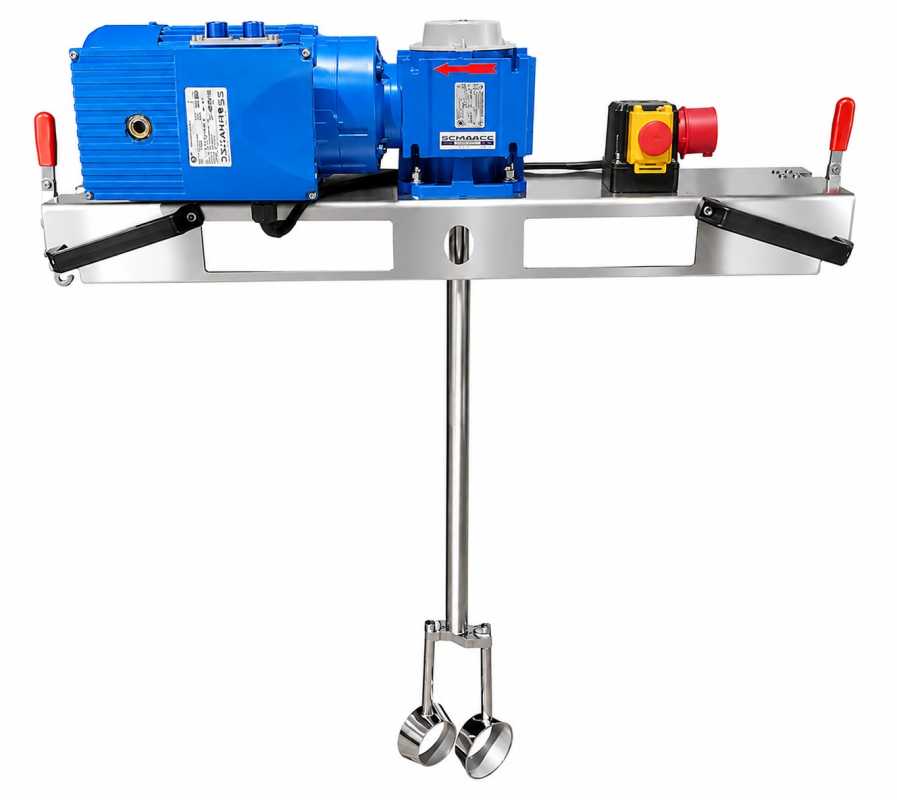

IBC agitators

Stirring, homogenizing, dispersing - directly in the IBC delivery container.
The IBC agitators from Schwarzer Rührtechnik GmbH are universal and versatile due to their mobile and uncomplicated design.
In doing so, we set priorities: A well thought-out design of the agitators, in connection with modern agitating technology, ensure effectiveness and simple operation. With an intuitive quick-clamping device, the IBC agitators can be mounted or dismounted with just a few hand movements. Fast delivery times, competent advice and flexibility are the hallmarks of us and our product range. Which agitator is suitable for my application?
The viscosity of the product is important to make the right choice. For the agitators, guideline values for maximum viscosities are shown. This is an easy orientation to help you choose the right agitator. The liquid must be able to flow in any case. Tixotropic liquids or liquids that settle strongly (lime, sand etc.) may not be transported from the corners of the IBC. We would be pleased to advise you by telephone.
ibc-container-ruehrwerke
Modern, stable lifting system - for stirrers / agitators for 1000 liter containers. (Standard IBC)
TOP
Stand SRTSPHS1000VA for agitators for 1000 liter containers. (Standard IBC)
Maximum agitator weight 120 KG.
Type SRTSPHS1000VA
Price without agitator.

Stand version in stainless steel 1.4301.
The agitator is lifted and lowered by the spindle lifting system.
The lifting speed is about 60mm per second.
(Corresponds to approx. 20 seconds per lift at 980mm lifting height.
The maximum load capacity for the agitator is 120 KG.
The stand is mounted on an H-shaped foot on 4 wheels for easy movement within the company site.
(Alternatively it can be delivered at the same price without wheels for stationary floor mounting)
Inner foot width 1050mm. Lifting height 1000mm. Total height 2500mm.
2 fixed wheels are mounted at the front of the H-shaped foot, 2 steering wheels with parking brake at the rear. The housing is made of stainless steel.
The agitator has a safety shut-off. The agitator switches off automatically when lifting.
The container recognition is done by inductive sensor recognition.  There is a 15mm distance to the metal frame.
The release recognition is indicated by an LED control light.
(Only suitable for IBC 1000 litres with metal frame)
Starting is only possible in the lowest position and with the container underneath.
The agitator does not restart automatically when the agitator has been lowered again.
Automatic switch-off of the agitator at the upper limit stop and at the lowest position.
The upper and lower limit stop is not adjustable.
Emergency stop switch. Main switch. Button/toggle lifting/lowering. Reset button.
Weight without agitator: 300 KG
Documentation:
Operating and assembly instructions according to the Machinery Directive
Circuit diagram
CE Declaration of Conformity
13.900,00 EUR

IBC-parking station 1000
TOP
-14%
Parking station steel painted RAL 5010
for depositing the IBC agitator with traverse after lifting it out of the 1000 liter container
A floor fixing is possible by drilling holes in the feet.
Consisting of square tube or angle steel.
Normal list price 444,00 EUR
special price now 382,00 EUR

IBC-parking AISI 304 station 1000
NEW
Parking station AISI304 for IBC agitator
545,00 EUR

IBC 1000 liters on plastic pallet
IBC 1000 liters on plastic pallet NON UN

Suitable for our mixers.

Discharge tap firmly integrated, additional discharge bend (NW 50 mm)

Standard version: no approval for dangerous goods

Material: inner container: polyethylene, UV-stabilised.

Frame: Tubular steel frame. Weather and chemical resistant.

Standard opening: DN 150 (140mm)
249,00 EUR

IBC 600 liters on plastic pallet
NEW
IBC 600 liters on plastic pallet NON UN


Suitable for our mixers.

Discharge tap firmly integrated, additional discharge bend (NW 50 mm)

Standard version: no approval for dangerous goods

Material: inner container: polyethylene, UV-stabilised.

Frame: Tubular steel frame. Weather and chemical resistant.

Standard opening: DN 150 (140mm)
239,00 EUR

Digital countdown timer for agitators, container stirrers.
Sequence - timer - power current for container agitators COUNT-DOWN-TIMER
Industrial and commercial execution.
Made in Germany

Housing: Wall mounted ABS plastic halogen free
Size: Height: 290mm Width: 225mm Depth: 130mm

Input: CEE plug 16A-400V ca, 1 meter 5x2.5 qmm
Output: CEE socket 16A-400V
Switching capacity: 9 KW

Built-in German quality timer. Type: TC 14
Data: Easily adjustable expiration time up to maximum
9 hours - 59 minutes - 59 seconds
Also available with 59 hours - 59 minutes - 59 seconds !
Setting accuracy: 1 second.
Repetition accuracy: 100%.

An external large external pushbutton on the front panel facilitates
Start - Stop function.
Optical and acoustic signal after the set time has elapsed.

With the position OFF at the main switch all functions are switched off.
The set data of the clock are retained.
Data security of the E-PROM
Operating instructions are enclosed.
Tested according to VDE 0701 and BGV A3.

The timer is also available in the version 32A-400V with a
Switching capacity of 15 KW available (please ask by mail)
399,00 EUR
