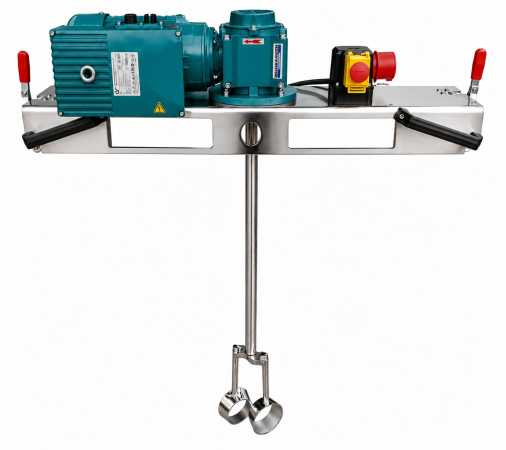

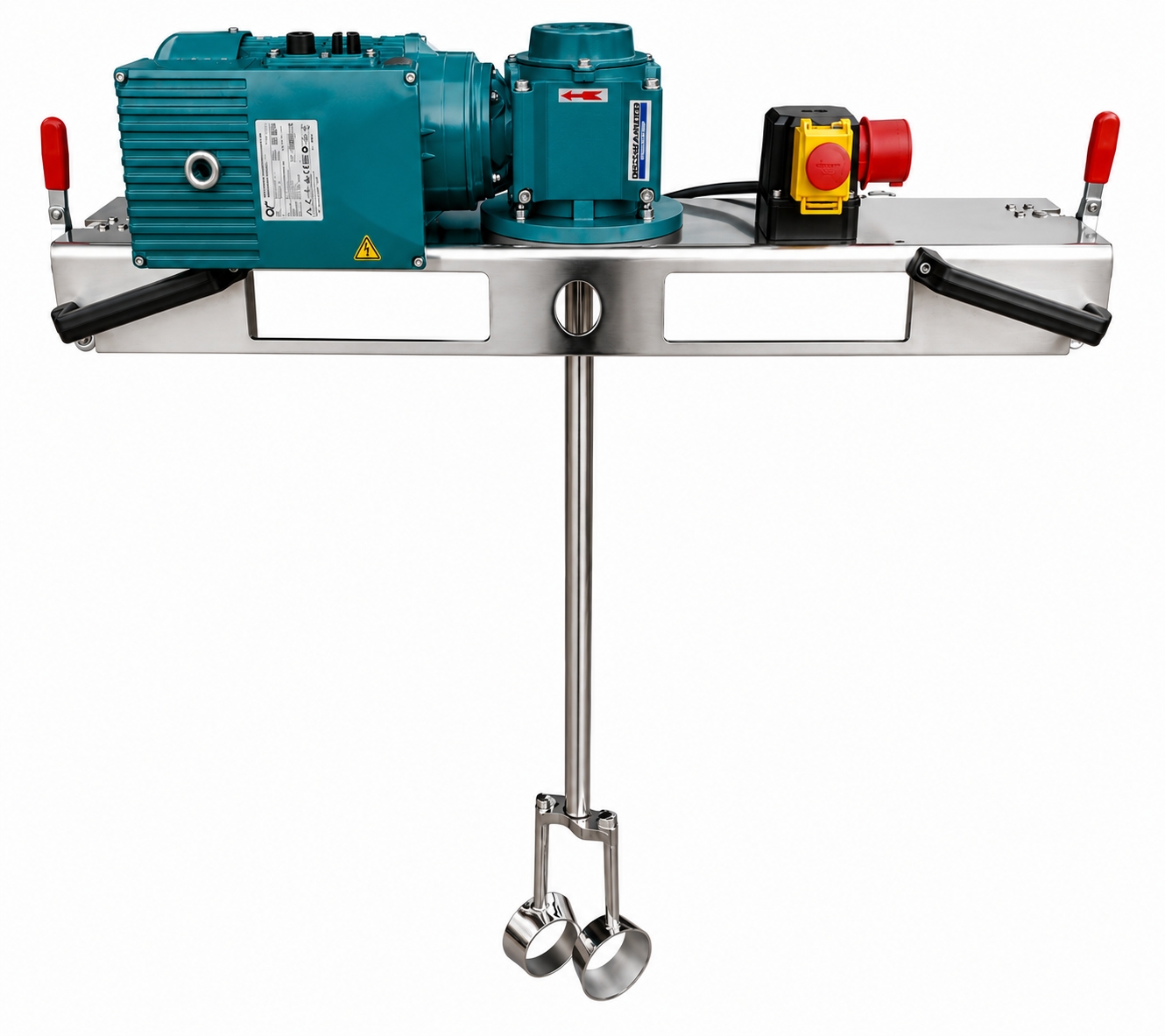

Worm gear container agitator for 1000L IBC
Item number: IBC-0250
For liquids up to 10000 mPas in 1000L IBC, density max. 1,2 kg / Liter
Power: 1,5 kW
Speed: 0-290 rpm
Voltage: 3 PH 400 V 50 Hz. IE3
Material in contact with product: 1.4404 stainless steel (AISI316L)
Motor and gear unit in latest aluminium technology, manufactured by Getriebebau NORD
Solid plug-in agitator shaft mounted in the hollow shaft gear unit, agitator shaft balanced for concentricity in the speed range
1 piece cup stirrer IBC-BEC-600 Ø 600mm screwed in at the end of the agitator shaft
Stirring arms can be dismantled without tools for easy cleaning, no screws in the product space
Fits through Ø=140mm container openings
Compact frequency inverter IP 55 NORD
Input 3 PH 400 V 50 Hz. potentiometer for variable speed control
1,5 kW 0-290 (0-50 Hz) rpm
Preprogrammed for agitator operation
Forklift traverse stainless steel 1.4301 (AISI304)
with 2 openings for forklift forks, 2 tension hooks and 4 side handles
CEE plug switch
on the traverse with zero voltage release and phase inverter
Zuleitung benötigt allstromsensitiven PRDC (FI B/B+).
Supply line requires all-current-sensitive PRDC (FI B/B+).
