An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:

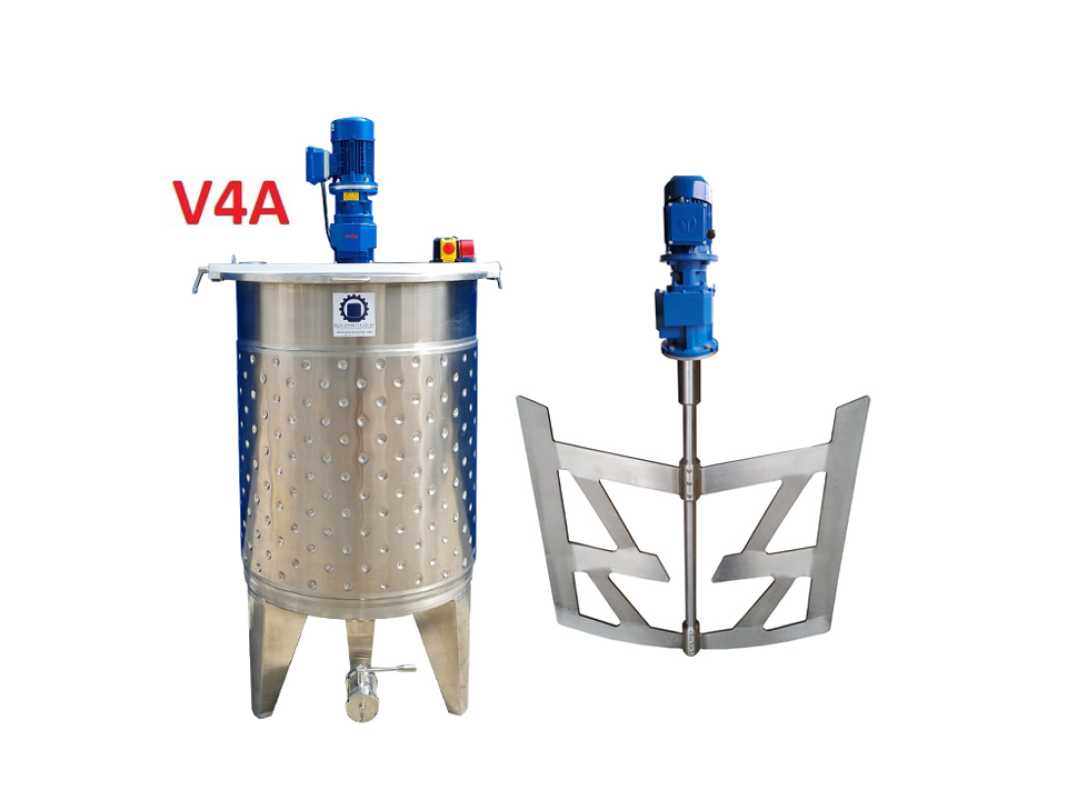

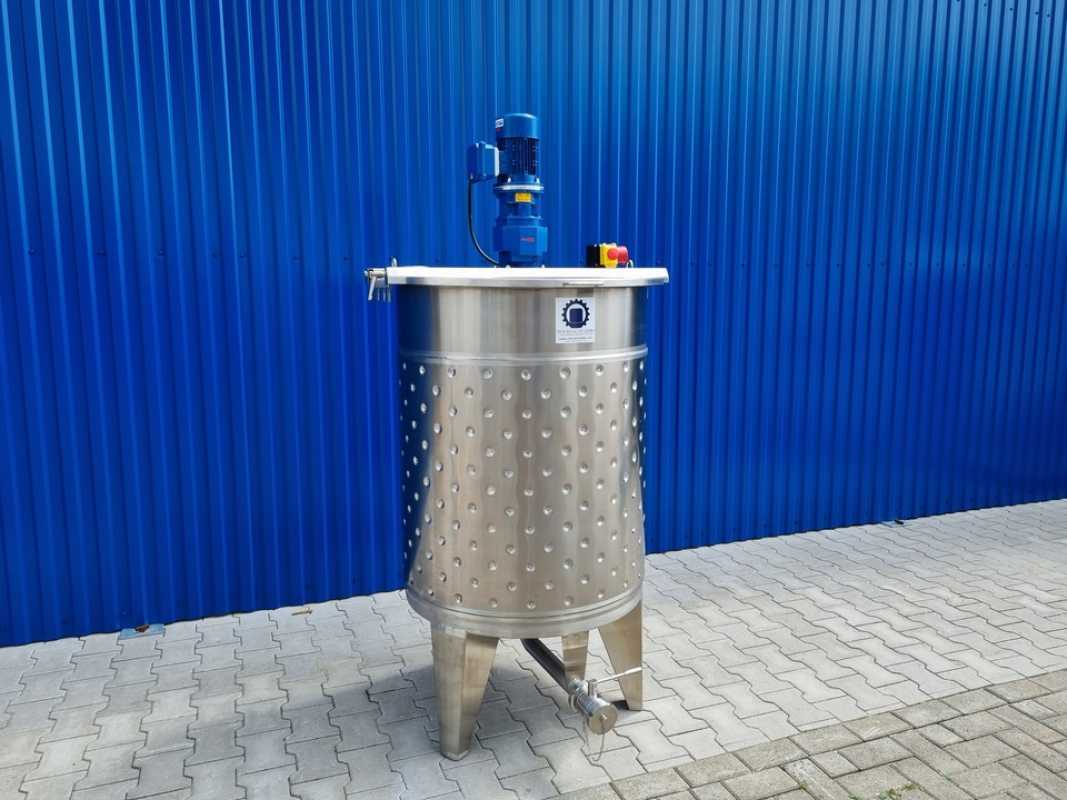

https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp New heat-/coolable stainless steel mixing tank
Type: CILC500TPRWAA4
Volume: 510L
Type: Standing on three feet
Single-wall with thermoplate
Material in contact with product: AISI316 stainless steel
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Hinge lid, 1/2 can be opened, 1/2 fixed
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 790mm
Height: 1650mm (+ agitator motor)
Cyl. height: 1000mm
Height of feet: 330mm
Accessoires:
-1x thermoplate H=750mm around the cylinder, in-/outlet 3/4" male
- 1pc thermoplate on bottom, in-/outlet 3/4"

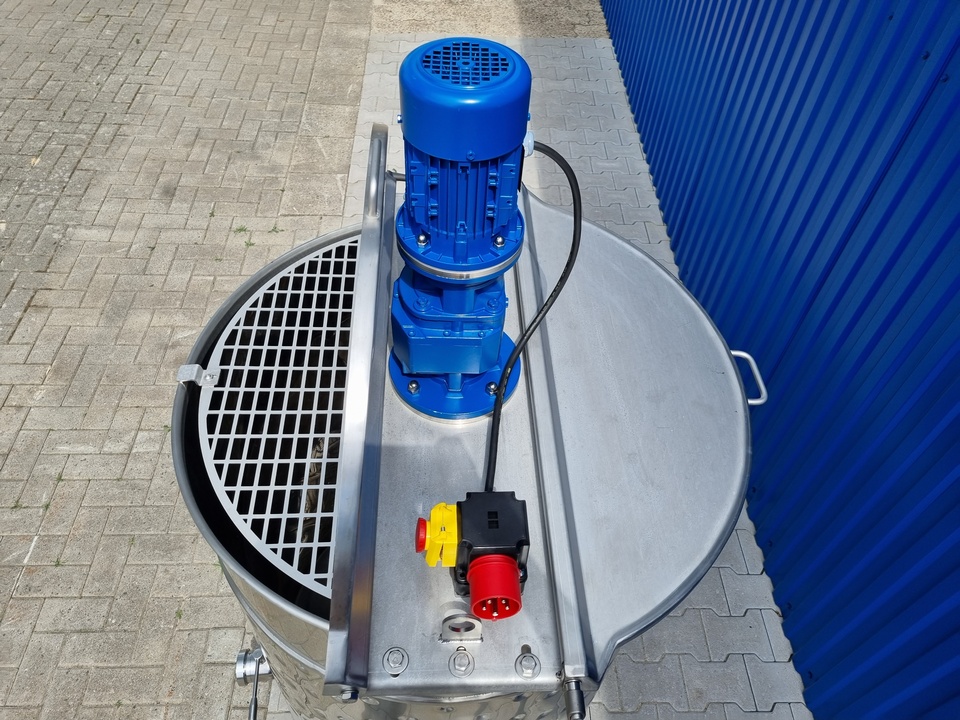

-1/2 hinge lid, 1/2 can be opened, 1/2 screwed to the tank, stainless steel grid under the lid
-Outlet 1x Ball valve DN50 DIN11851
-1x nameplate

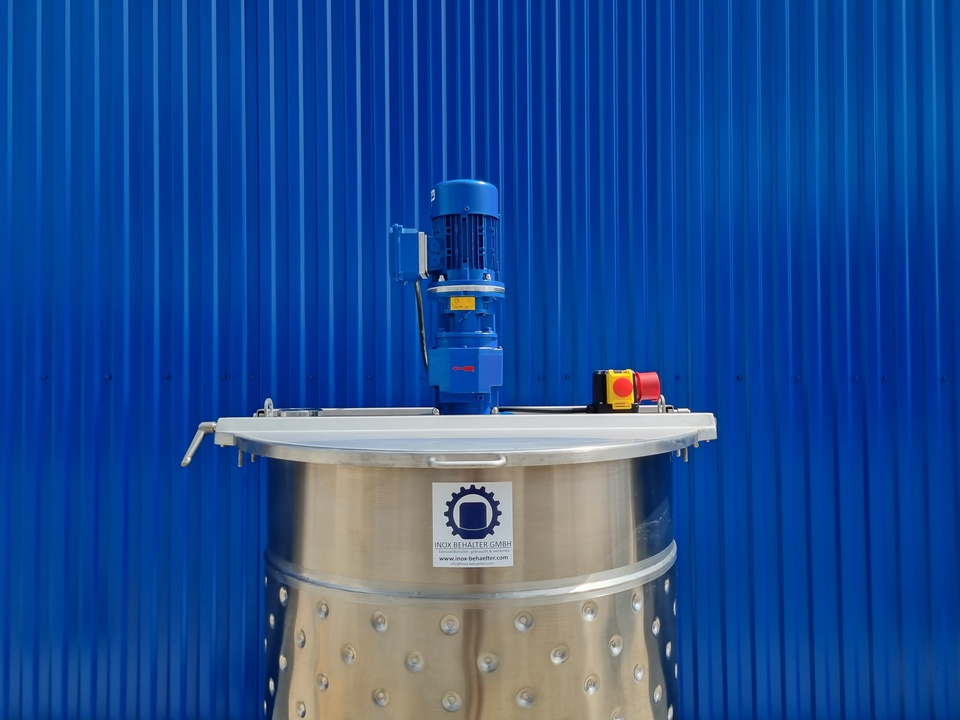

Agitator:
Anchor agitator
Typ: SRTGMK/0,37-23
Fabricate: Schwarzer Rührtechnik GmbH
Power: 0,37KW
RPM: 23
Voltage: 3PH 400V
-Motor and gear fabricated by Getriebebau NORD
-Massive shaft mounted to the gear with coupling
-Shaft balanced for concentricity
-Anchor stirrer, welded type, weldings brushed
-Stainless steel flange with V-Ring seal, EPDM
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
