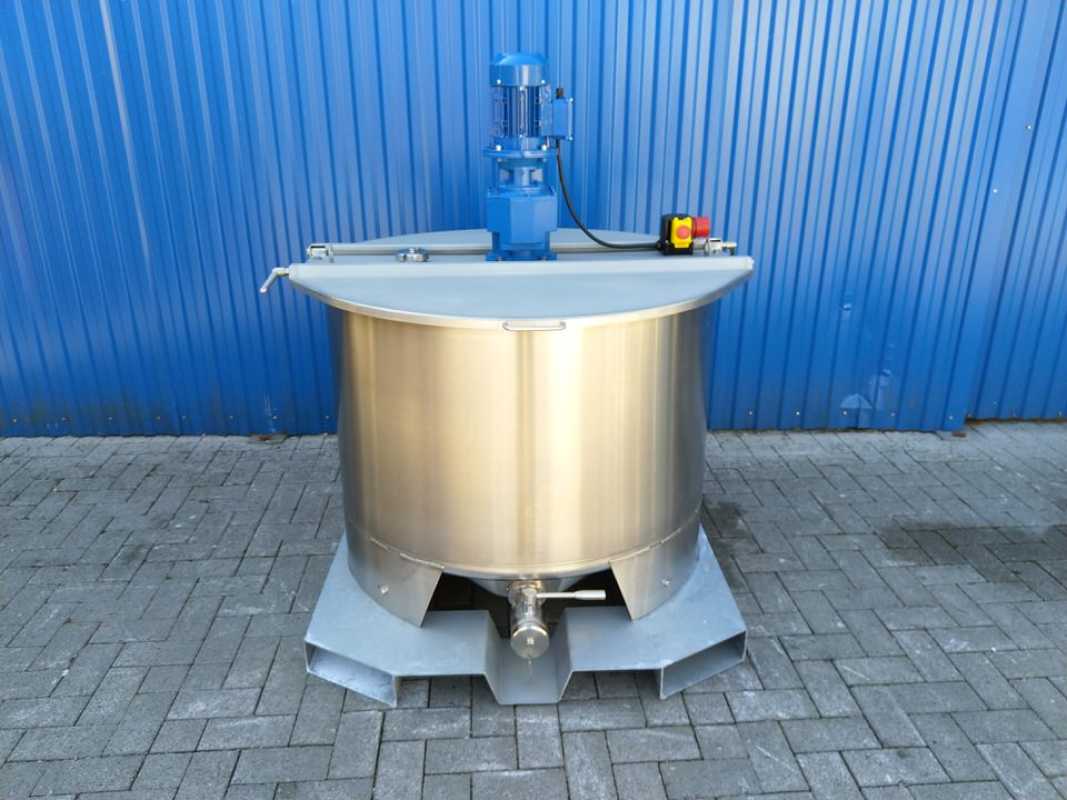

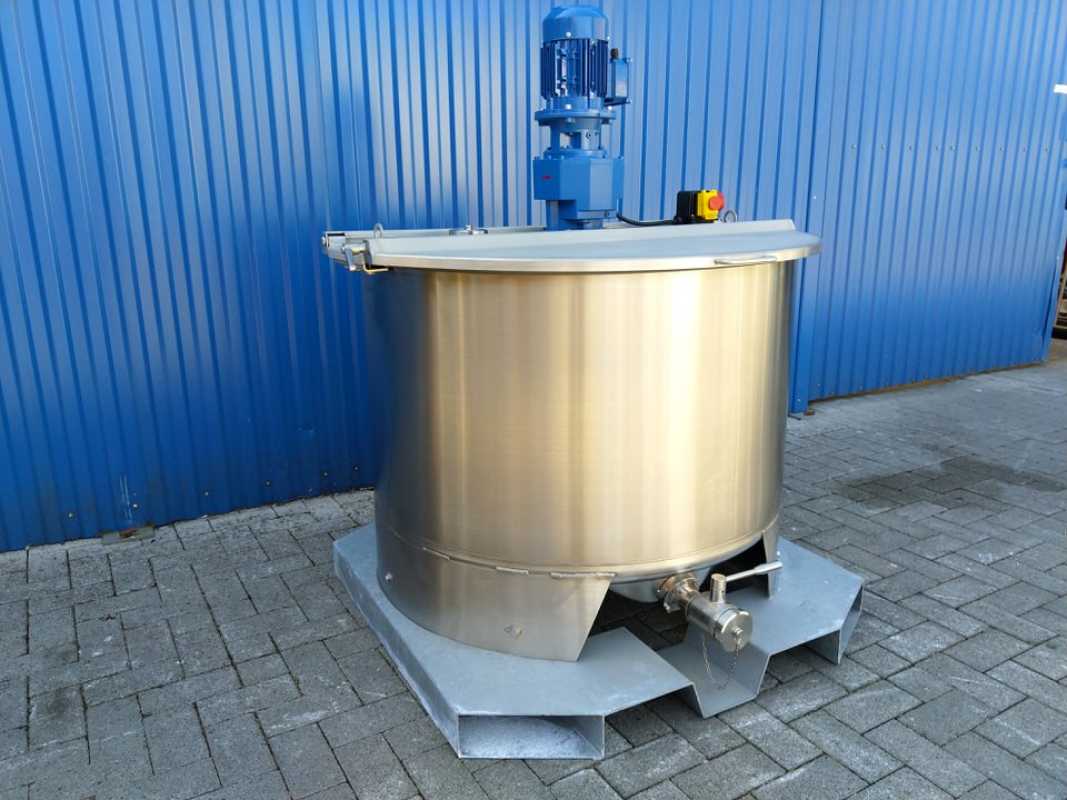

New stainless steel transport and agitator vessel
Type: SBPA650RWA
Volume: 653 Liters
Type: Standing on galvanized pallet
Single jacket
Material: AISI304 stainless steel
Surface: Outside satinated, inside BA
Weldings inside: Pickled, passivated and brushed
Operating pressure: ATM
Top: centric travers with 2pc folding lids
Bottom: Dished bottom with drainage
Dimensions:
Tank diameter: 1080mm
Total height: 945mm (+ agitator motor)
Palett: 1150 x 1200mm
Accessoirs:

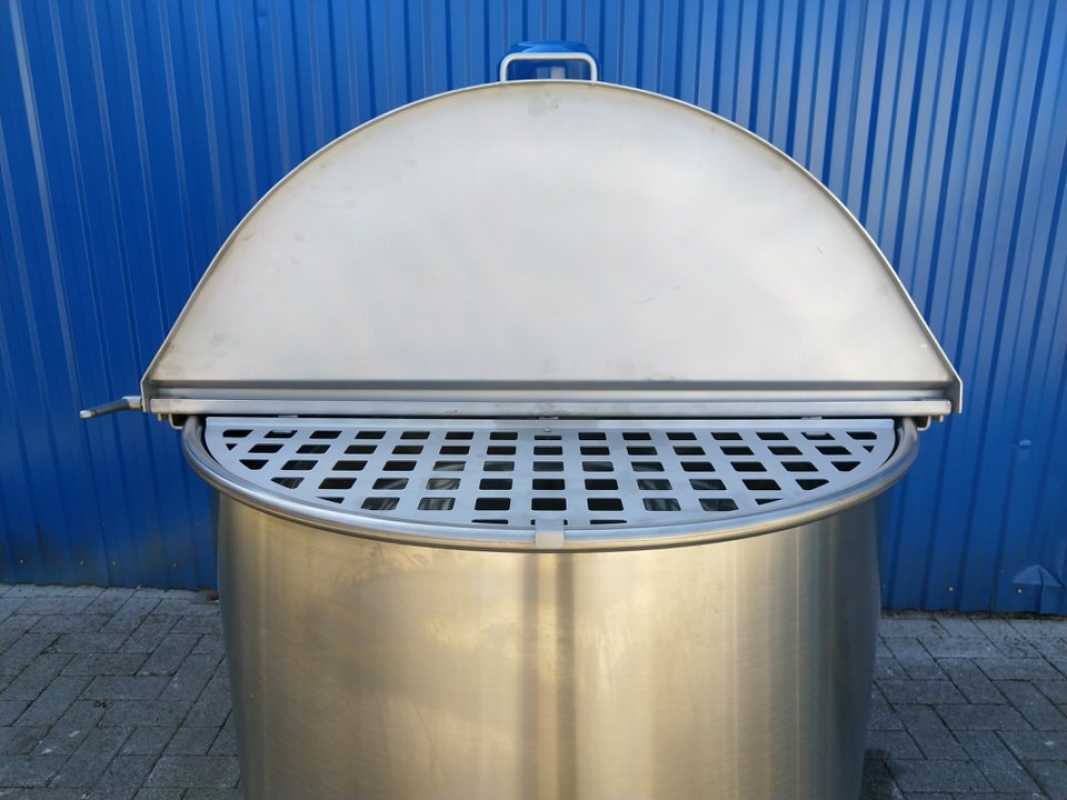

Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
Outlet DN50 DIN11851 ball valve
Galvanized transport pallet
Nameplate

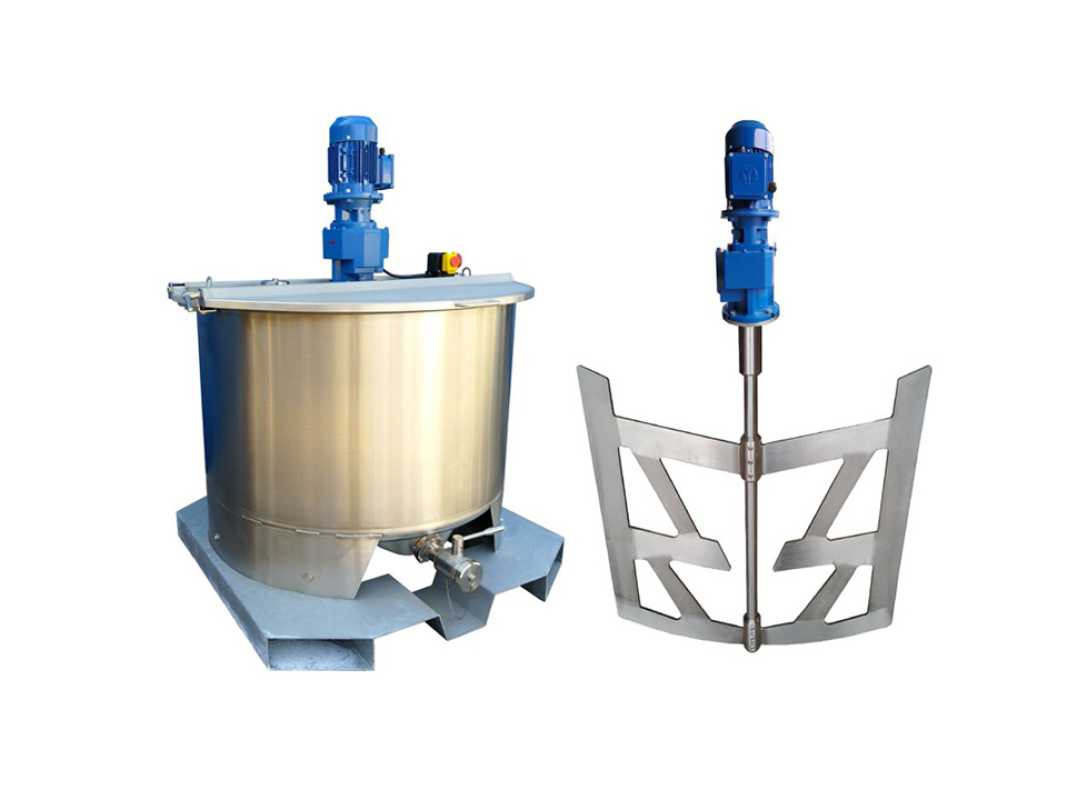

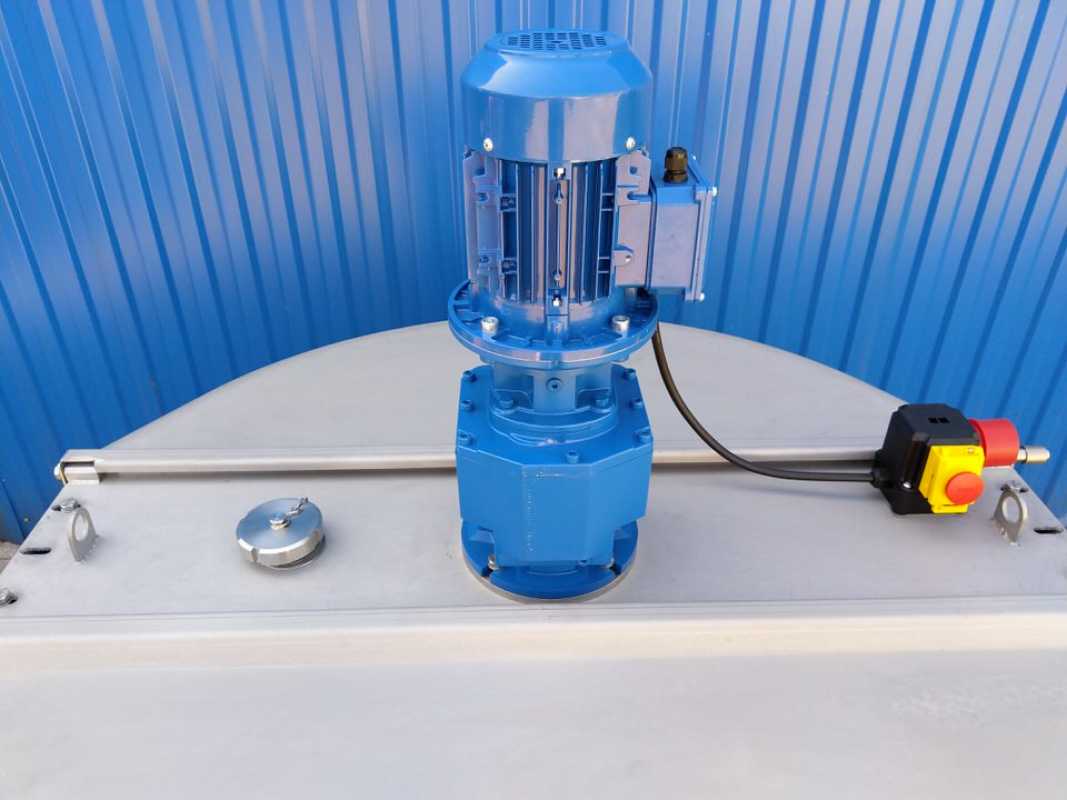

Agitator:
Anchor agitator
Typ:SRTGMK/0,75-13
Fabricate: Schwarzer Rührtechnik GmbH
Power: 0,37KW
RPM: 23
Voltage: 3PH 400V
-Motor and gear fabricated by Getriebebau NORD
-Massive shaft mounted to the gear with coupling
-Shaft balanced for concentricity
-Anchor stirrer, welded type, weldings brushed
-Stainless steel flange with V-Ring seal, EPDM
Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop Shipping by transport company! Freight and packing charges will be offered separately!
