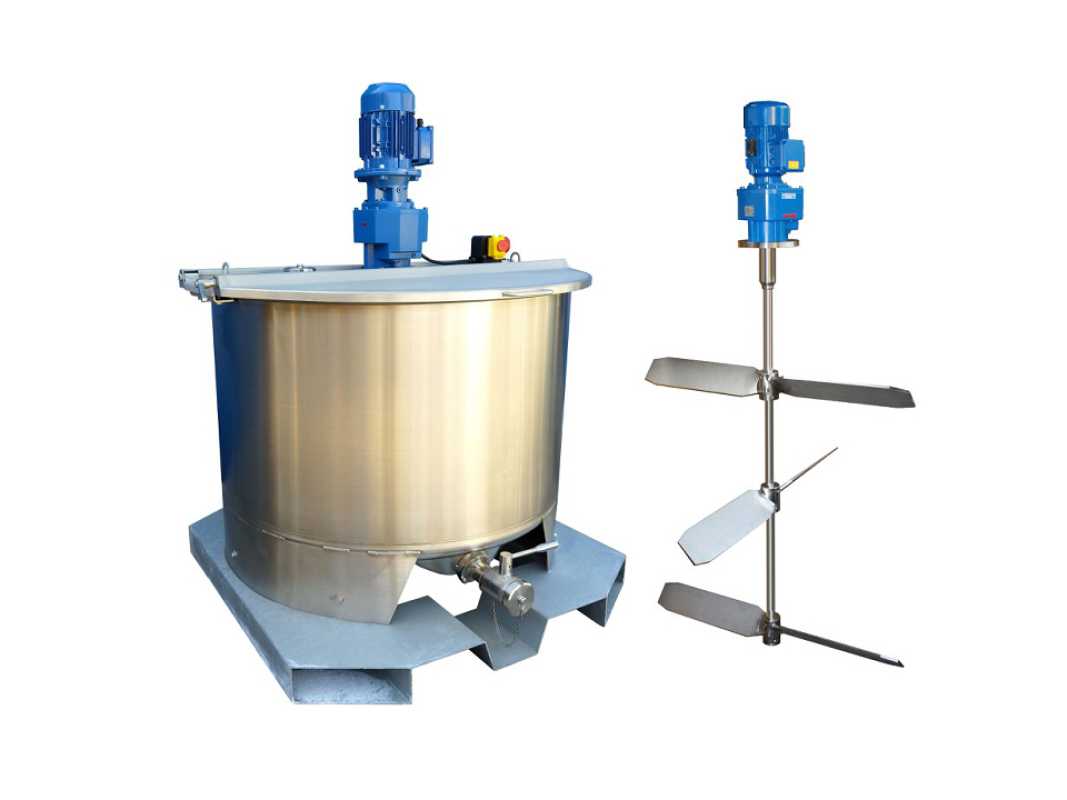

New stainless steel transport and agitator vessel
Type: SBPA650RWS
Volume: 653 Liters
Type: Standing on galvanized pallet
Single jacket
Material: AISI304 stainless steel
Surface: Outside satinated, inside BA
Weldings inside: Pickled, passivated and brushed
Operating pressure: ATM
Top: centric travers with 2pc folding lids
Bottom: Dished bottom with drainage
Dimensions:
Tank diameter: 1080mm
Total height: 945mm (+ agitator motor)
Palett: 1150 x 1200mm
Accessoirs:
Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
Outlet DN50 DIN11851 ball valve
Galvanized transport pallet
Nameplate
Agitator:
Paddle agitator
Fabricate: Schwarzer Rührtechnik GmbH
Type:SRTGSI/0,75-190
Power: 0,75KW
RPM: 190
Voltage: 3PH 400V
-Motor and gear fabricated by Getriebebau NORD
-Massive shaft mounted to the motor with coupling
-Shaft balanced for concentricity
-2 pieces 2-blade-stirrer height adjustable on the shaft
-Stainless steel flange with V-Ring sealing, EPDM
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
Shipping by transport company! Freight and packing charges will be offered separately!
