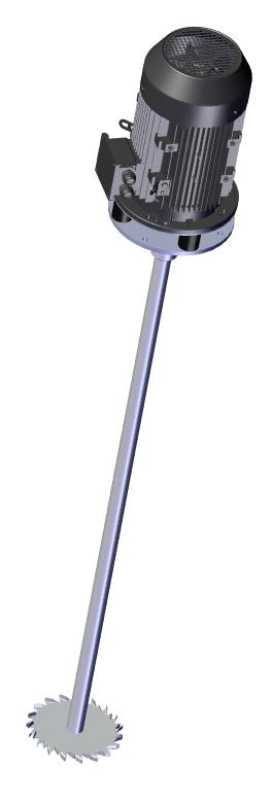

Dissolver mixer | dissolver agitator 1.4404 11,0 KW 1500 UPM

Dissolver mixer | dissolver agitator 1.4404 11,0 KW 1500 UPM
Power/speed: 11,0 KW 1410 UPM
Suitable for media up to 8000 m/Pas at density up to 1.2 KG/liter.
Agitator shaft with grooved sleeve coupling Ø 65mm.(removable).
Shaft Ø 40mm. Maximum length 1800mm.
Solid, polished, balanced.
1 piece dissolver disc Ø 300mm screwed on the shaft end.
Total agitator weight: ca.125 KG.
Power: 11,0 KW, speed:1410 UPM.
Voltage:400V/50/60Hz/Iso.F/IP55/S1/IE2
Motor with 3 PTC thermistors, suitable for operation on frequency converter.
Motor oscillating on neoprene rubber buffers.
Flange 1.4301: Ø 300mm / bolt circle Ø 265mm / 4 x Ø 14mm.
