Drum mixer 0,25 kW for PE drums 60/120/220 liter
Drum agitator for PE clamping ring drums
For water-like media with a viscosity of up to 600 m/Pas and a density of up to 1.2 kg/cm³
Type: SRTPE-0-25-0-37-1500
Power: 0.25 kW 60 liter / 0.37 KW 120/220 liter drum
Speed: 1330 rpm
Voltage: 3PH 400V 50Hz. or 1PH 230V 50Hz.
Material in contact with product: Stainless steel 1.4404
Maximum medium temperature: 60°C
High-speed mixer with solid, non-removable agitator shaft, balanced for smooth running in the speed range
1 3-blade mixing propeller PP screwed into the end of the agitator shaft
Cover for PE clamping ring drum incl. clamping ring and welded mounting plate
Agitator weight approx.: 12 kg

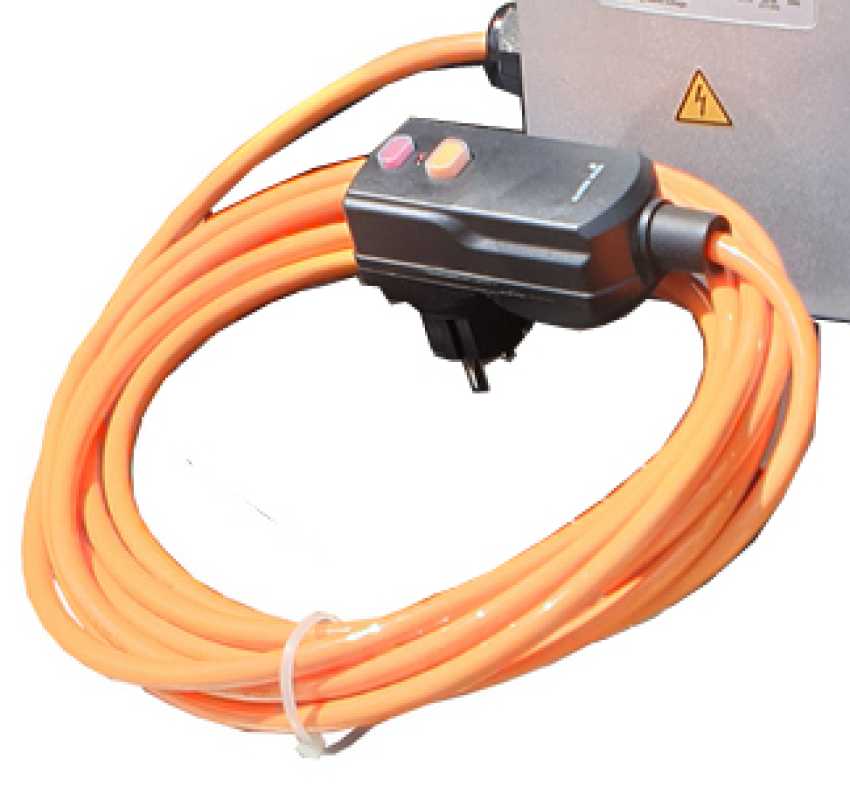

Without supply line
