Drum agitator high-speed mixer for PE drums Wide neck drums

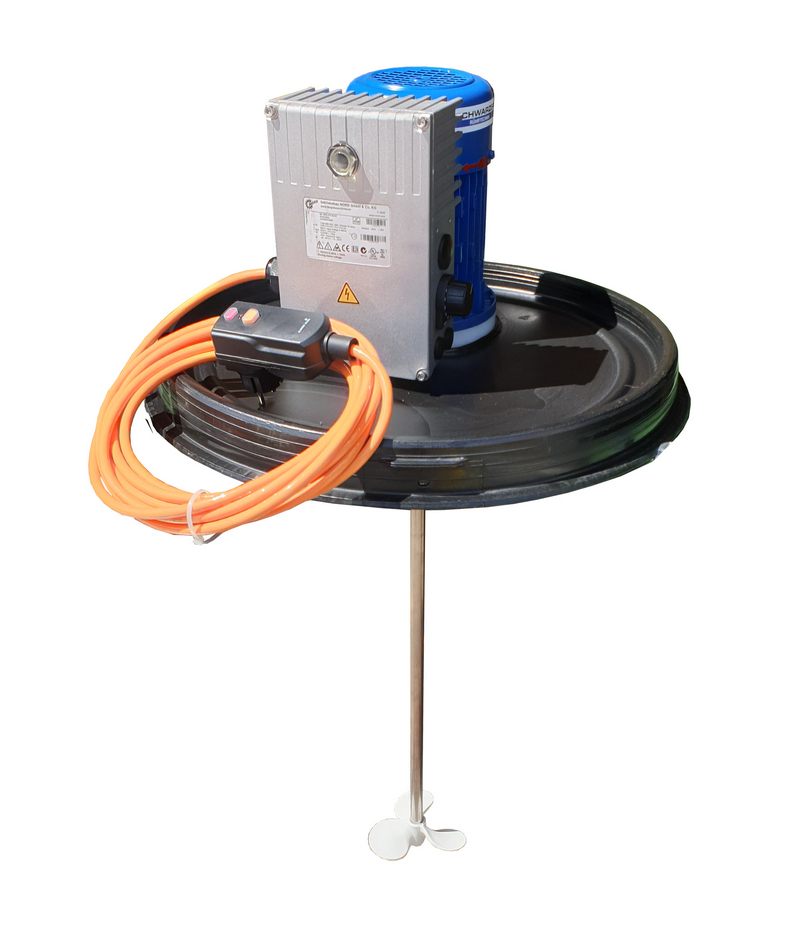

Drum agitator high-speed mixer for PE drums
For liquids up to 600 m/Pas.
Type: SRTPE-0-37-1500VARI
Power: 0,37 kW
Speed: 0-1410 rpm
Voltage: 1 phase 230 V 50 Hz
Material agitator shaft: 1.4404 stainless steel
High-speed mixer with solid, non-removable agitator shaft
Agitator shaft balanced for concentricity in the speed range
1 piece 3-blade plastic mixing propeller PP Ø 100mm at the end of the agitator shaft
PE clamping ring lid for PE drum incl. clamping ring, with welded-on PE mounting plate
Agitator weight approx.: 12 Kg
Compact frequency inverter IP 55 brand Getriebebau Nord
Variable speed control.
Input 1 PH 230 V 50 Hz.
Potentiometer for variable speed control.
(15-50 Hz) 0,37 KW 0-1410 RPM.
5m cable with plug switch, zero-voltage release and FI personal protection.
