An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/mtlrw/

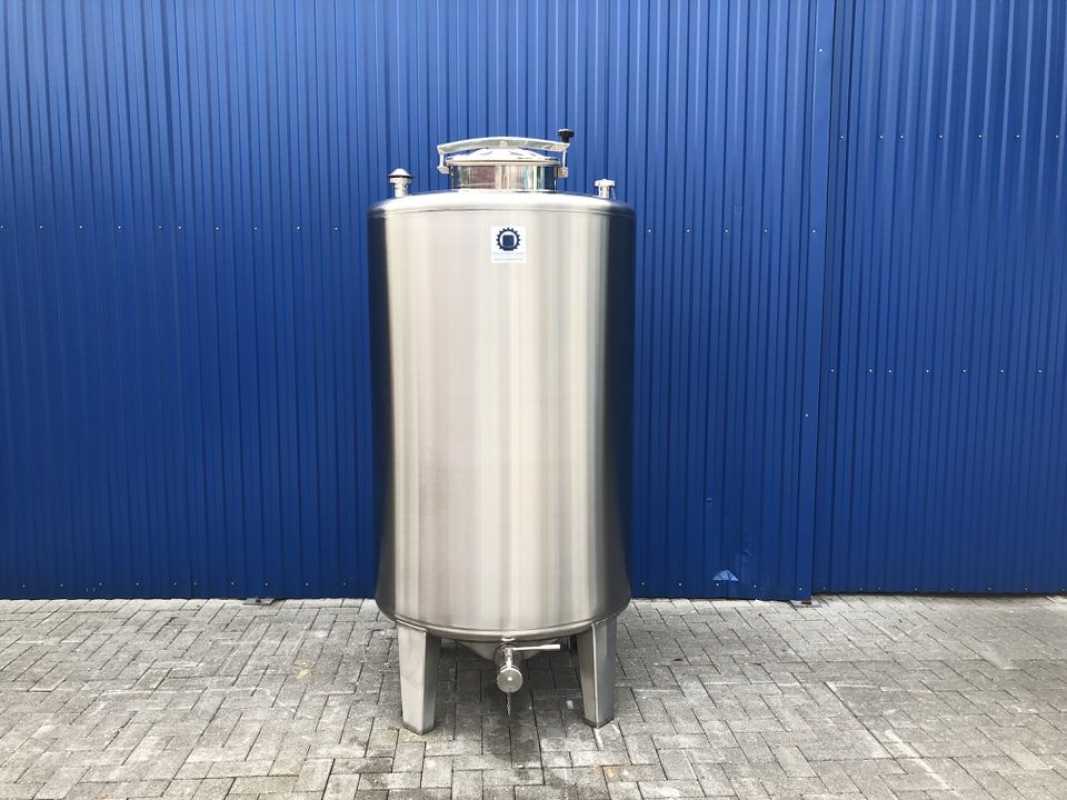

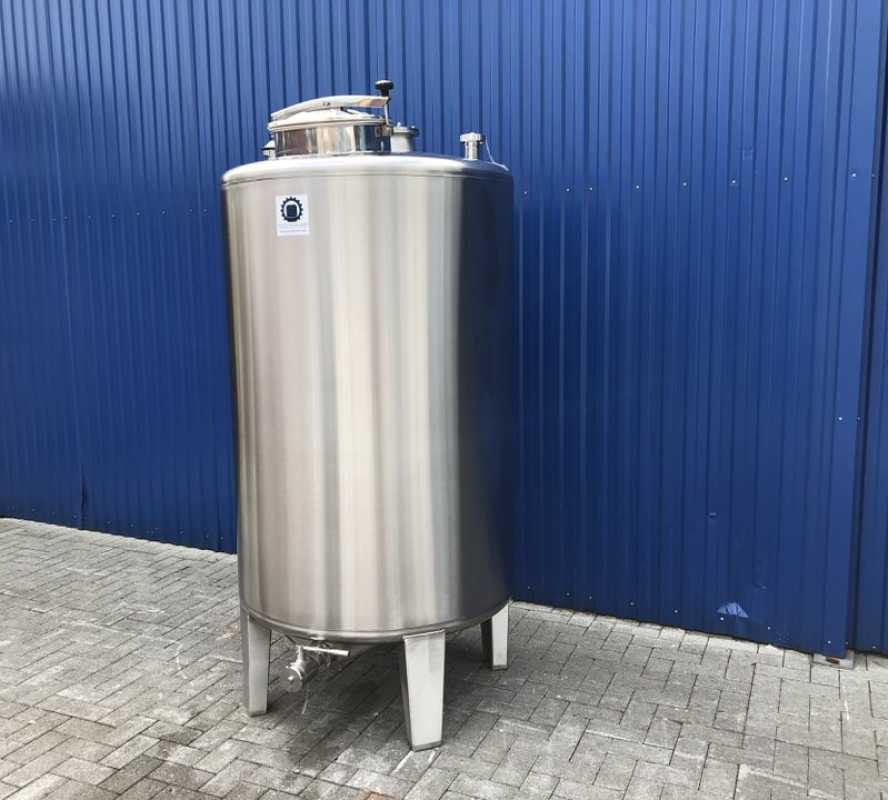

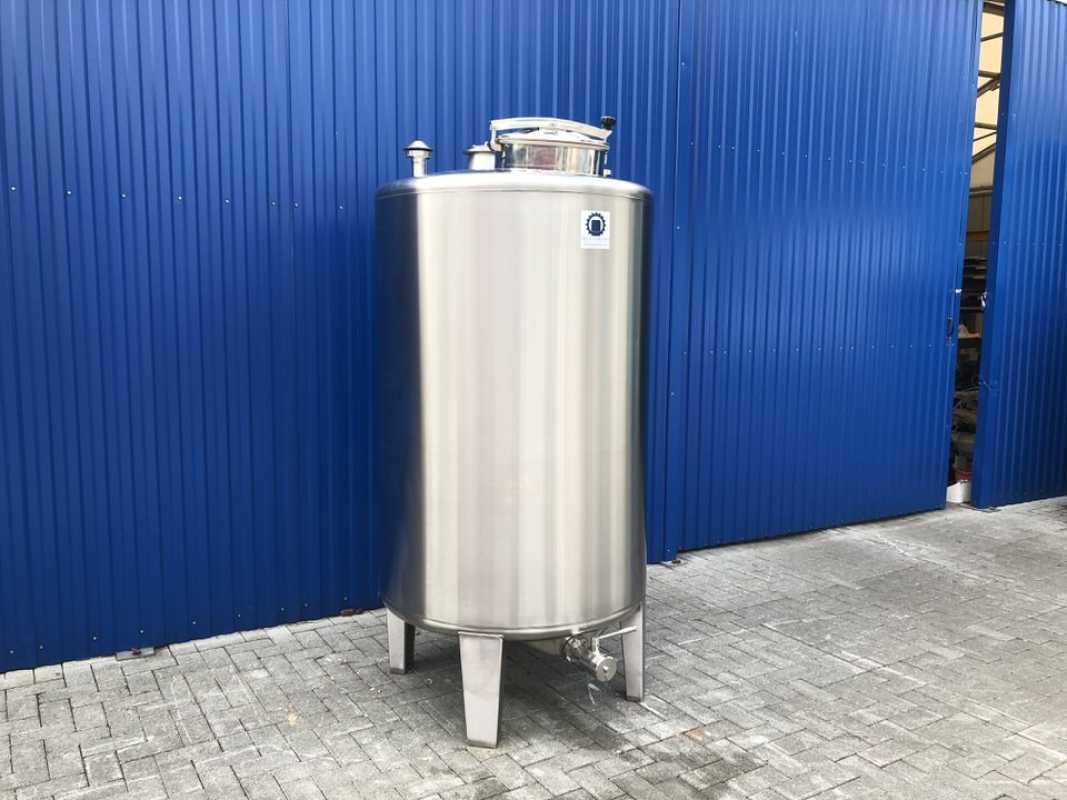

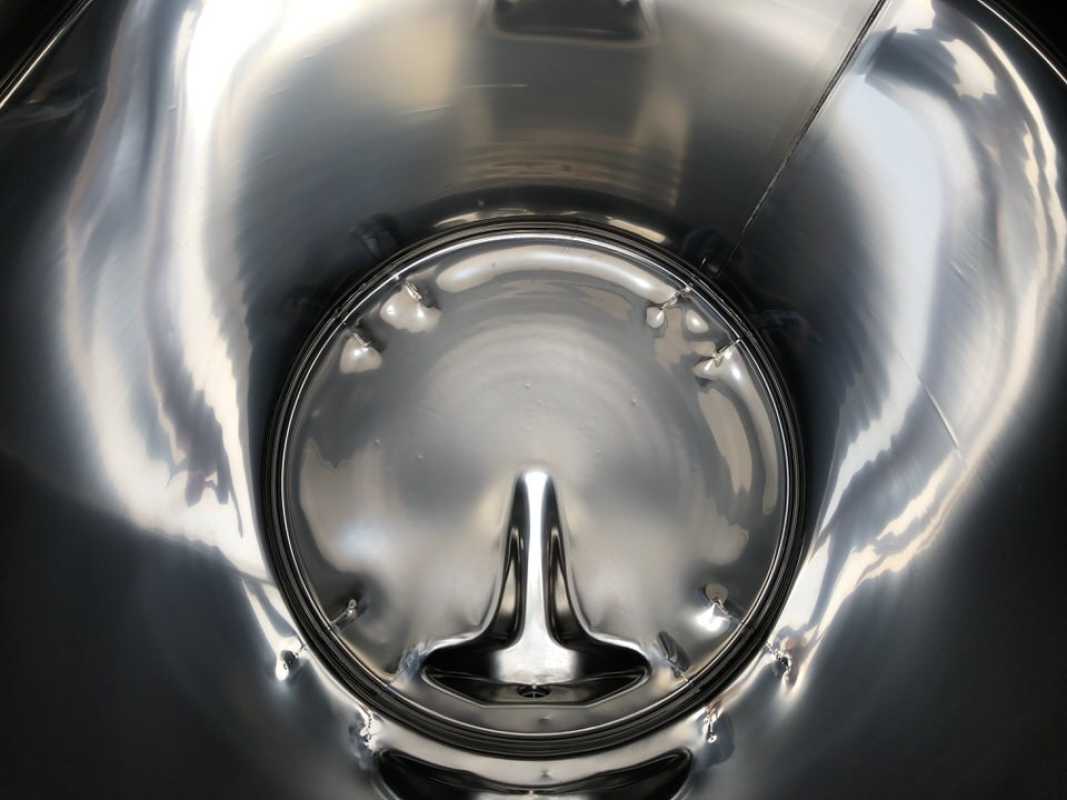

New stainless steel vessel
Type: MTL1500RW
Volume: 1533L
Type: Standing on 4pc feet
Single jacket
Material: AISI304 stainless steel
Surfaces: Outside SBR, inside IIId
Weldings inside: Pickled and passivated
Operating pressure: ATM
Top: Dished
Bottom: Dished with side-outlet
Dimensions:
Diameter: 1080mm
Height: 2255mm
Height of feet: 425mm
Accessoirs:

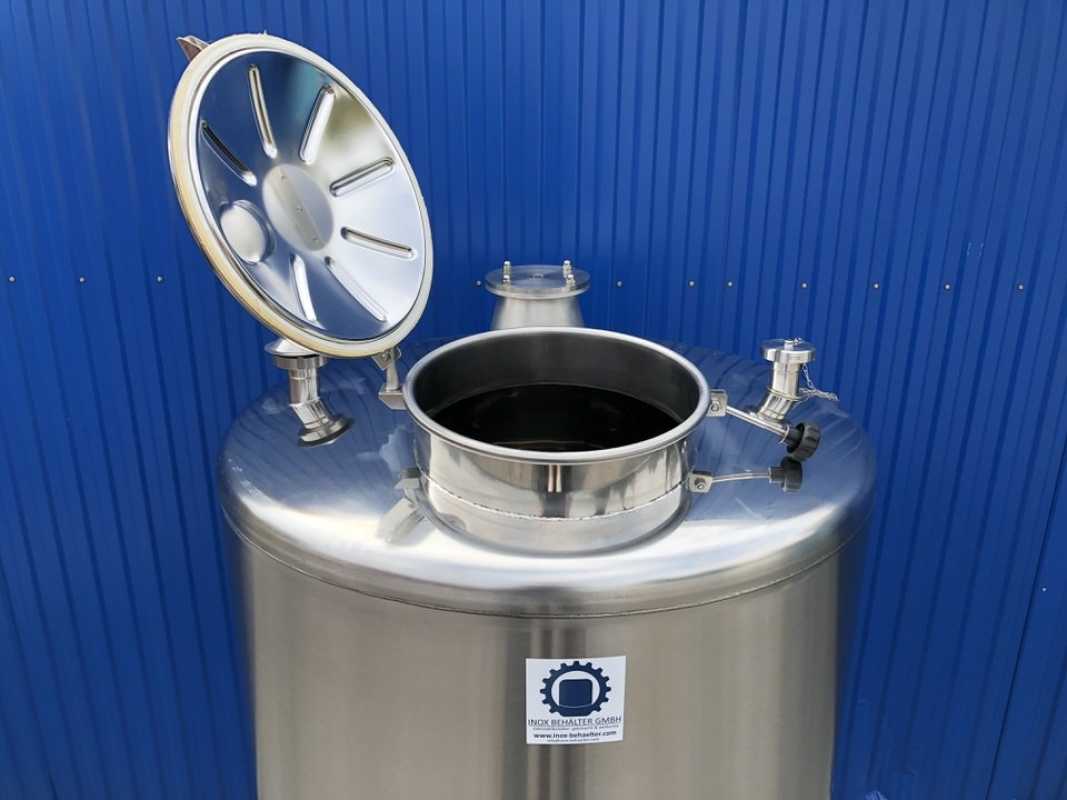

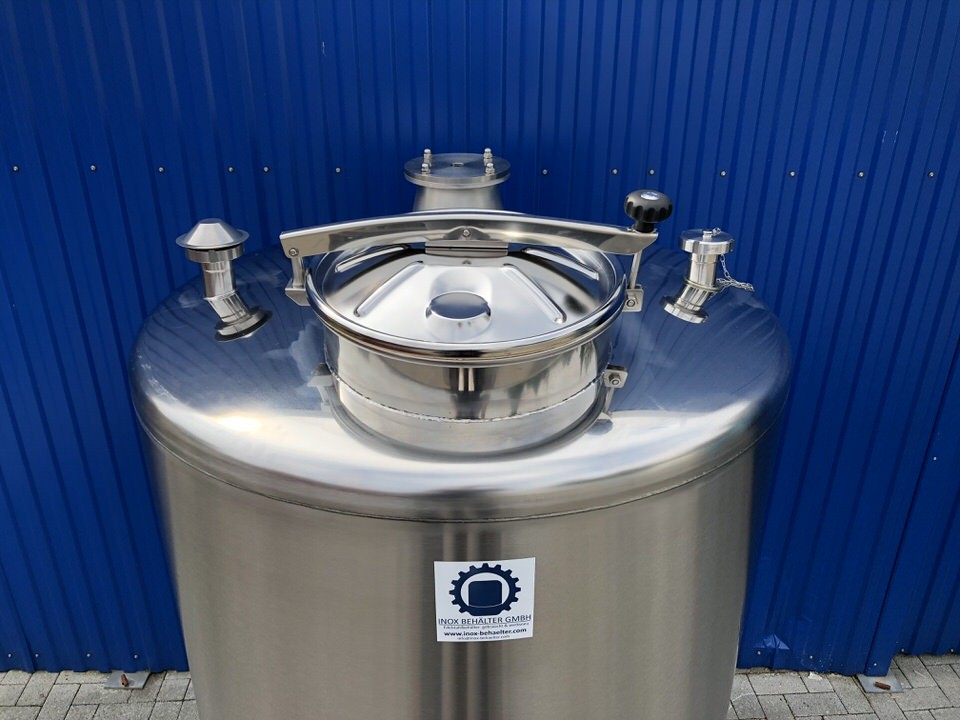

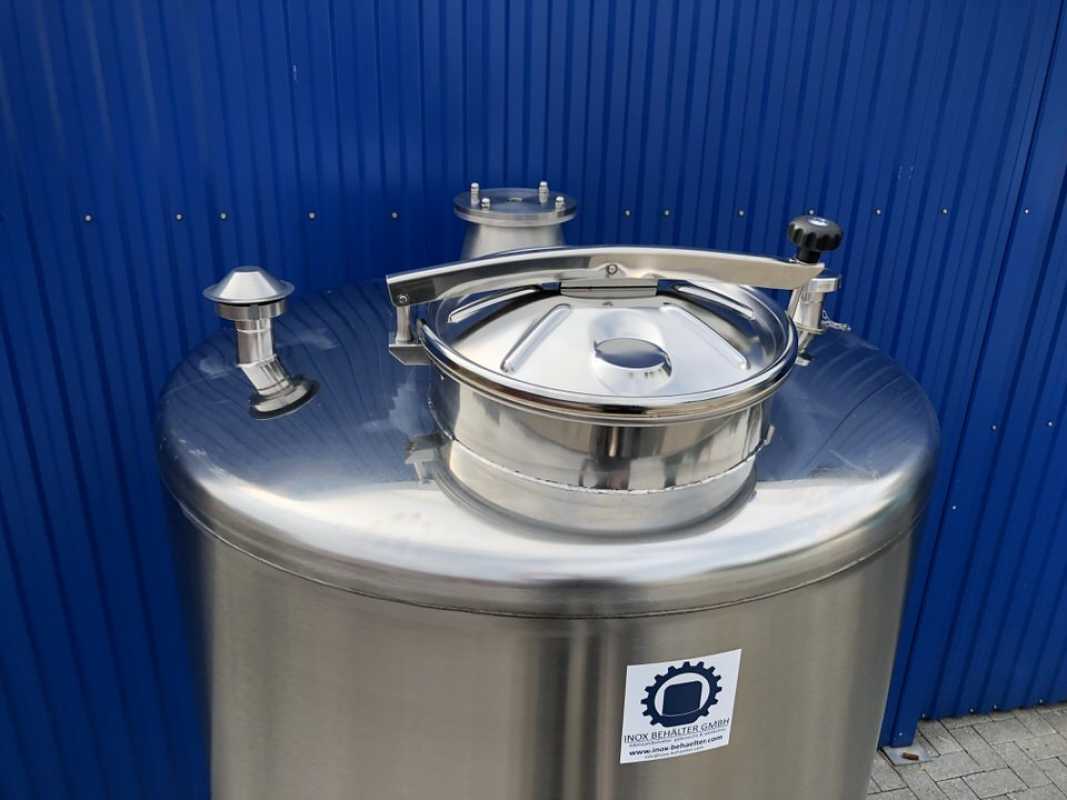

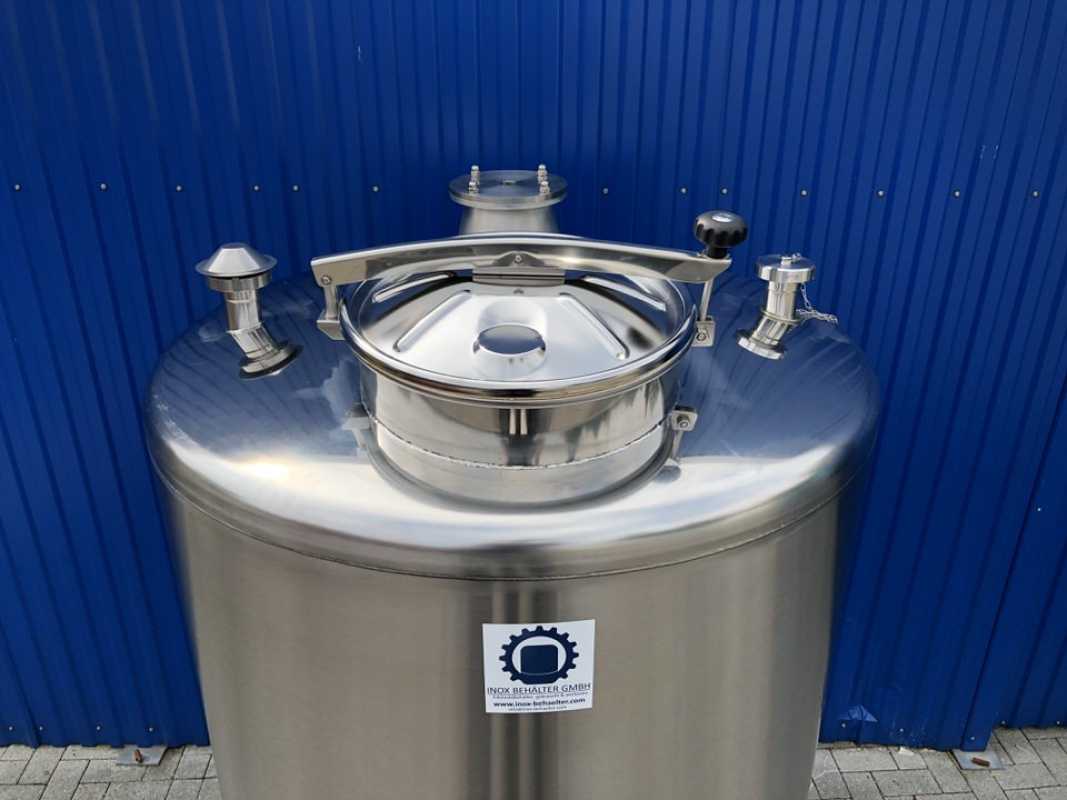

-1x Ø 400mm lid excentric on top with seal EPDM

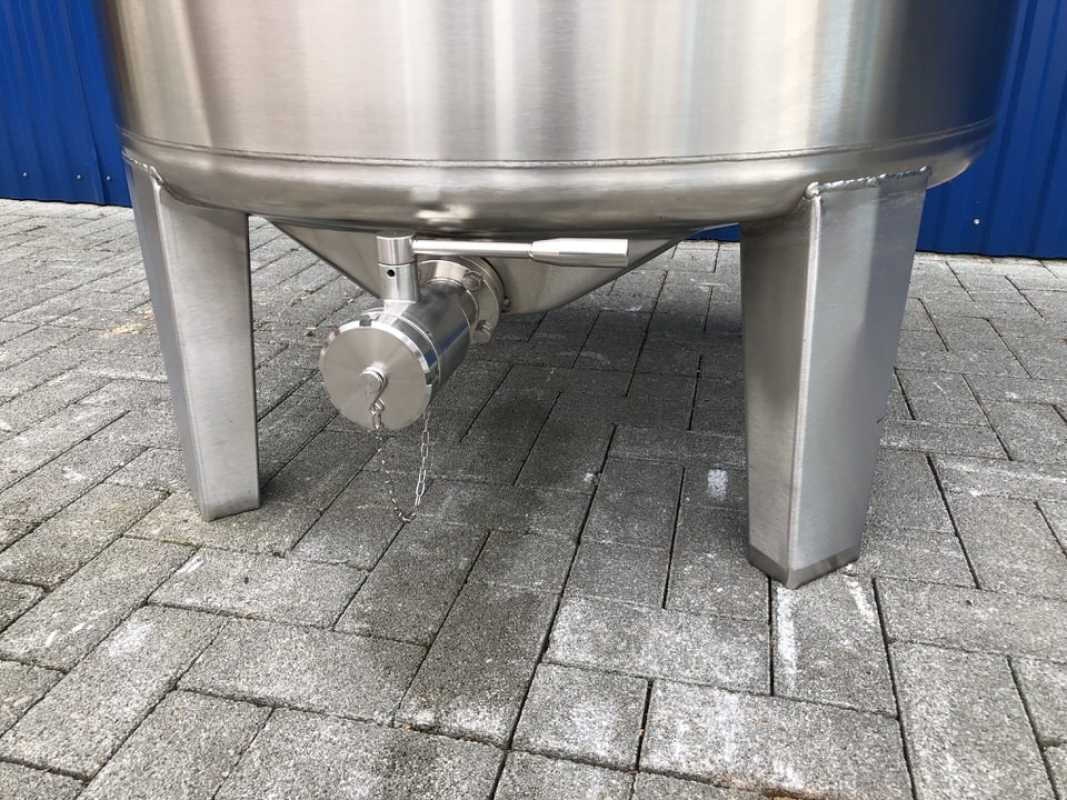

-1x outlet ball valve DN50 DIN11851, seal PTFE
-1x stainless steel ventilation valve DN50 on top
-1x DN50 DIN11851 male on top with blind cap
-1x agitator flange with reinforcements IEC200
-1x nameplate
Shipping by transport company! Freight and packing charges will be offered separately!
