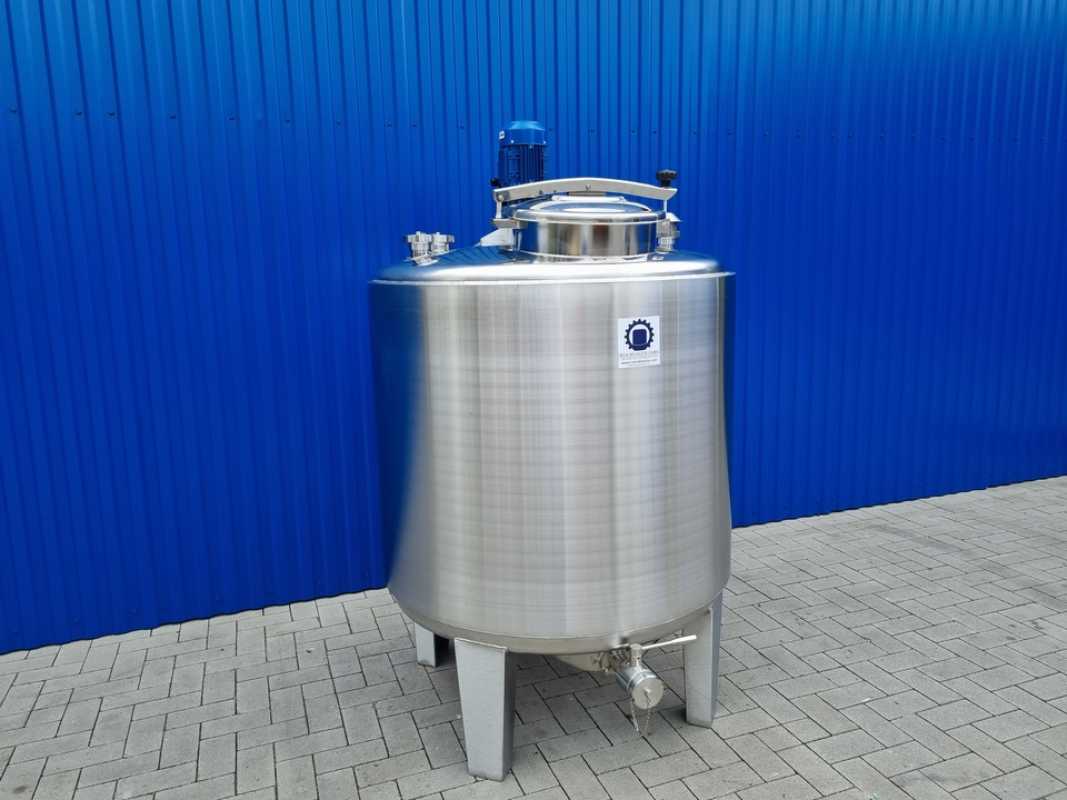

1000L heat-/coolable stainless steel mixing tank with insulation and dissolver

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/mtlrw/

New heat-/coolable stainless steel mixing tank with insulation
Type: MTL1000TPISORWDA4
Volume: 1000L
Type: Standing on for stainless steel feet
With thermoplate and insulation
Material in contact with product: AISI316L stainless steel
Surface: Outside satinated, inside IIId
Weldings inside: Grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +3Bar
Top: Dished

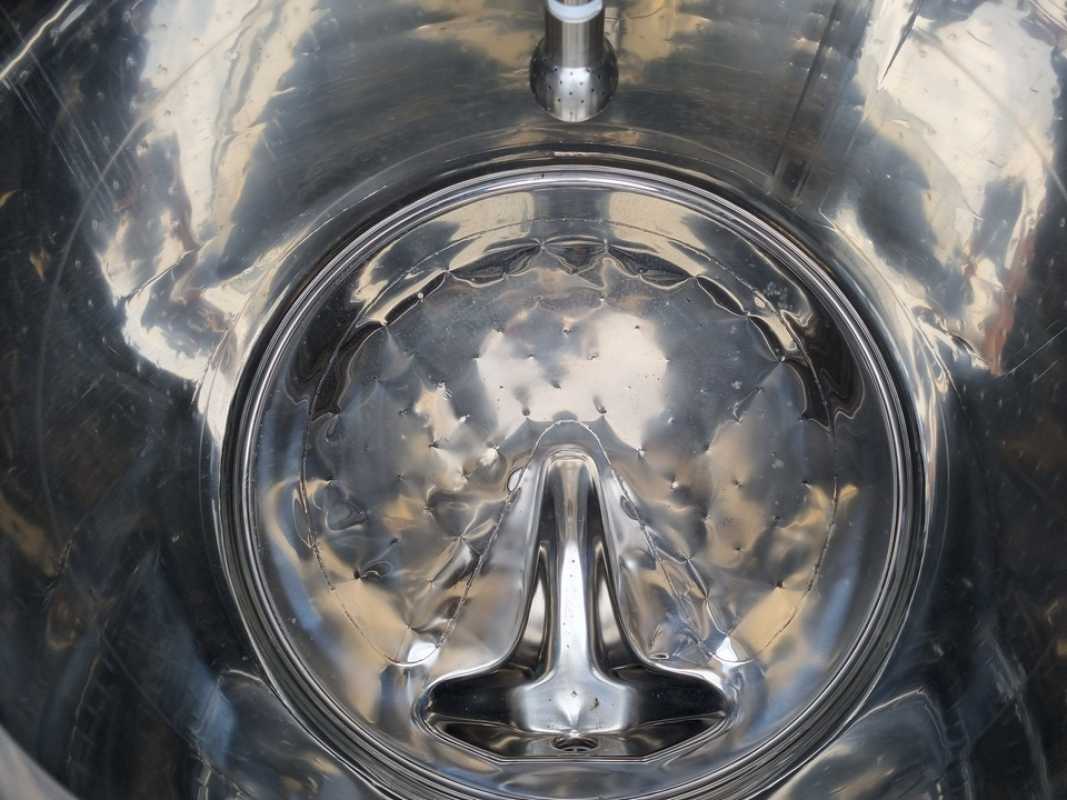

Bottom: Dished with side outlet

Dimensions tank:
Inside diameter: 1080mm
Outside diameter: 1140mm
Height: 1570mm (+ agitator motor)
Height of feet: 425mm

Accessoires:

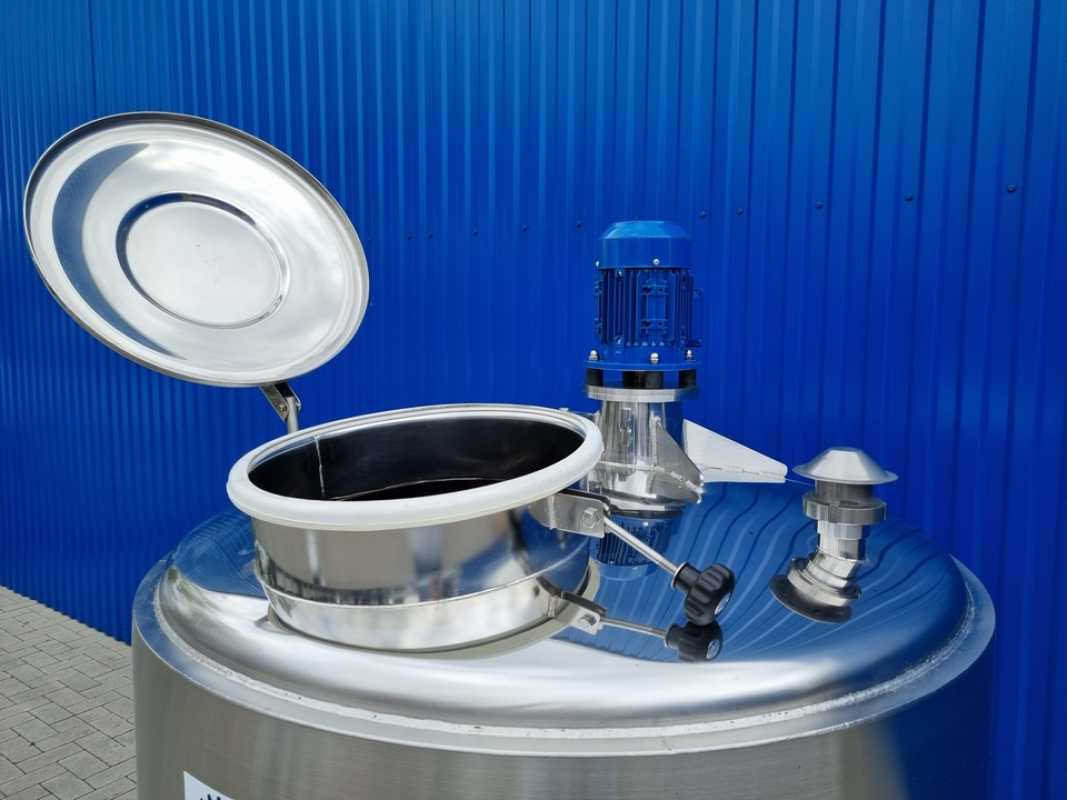

-1pc lid Ø 400mm on top with EPDM seal

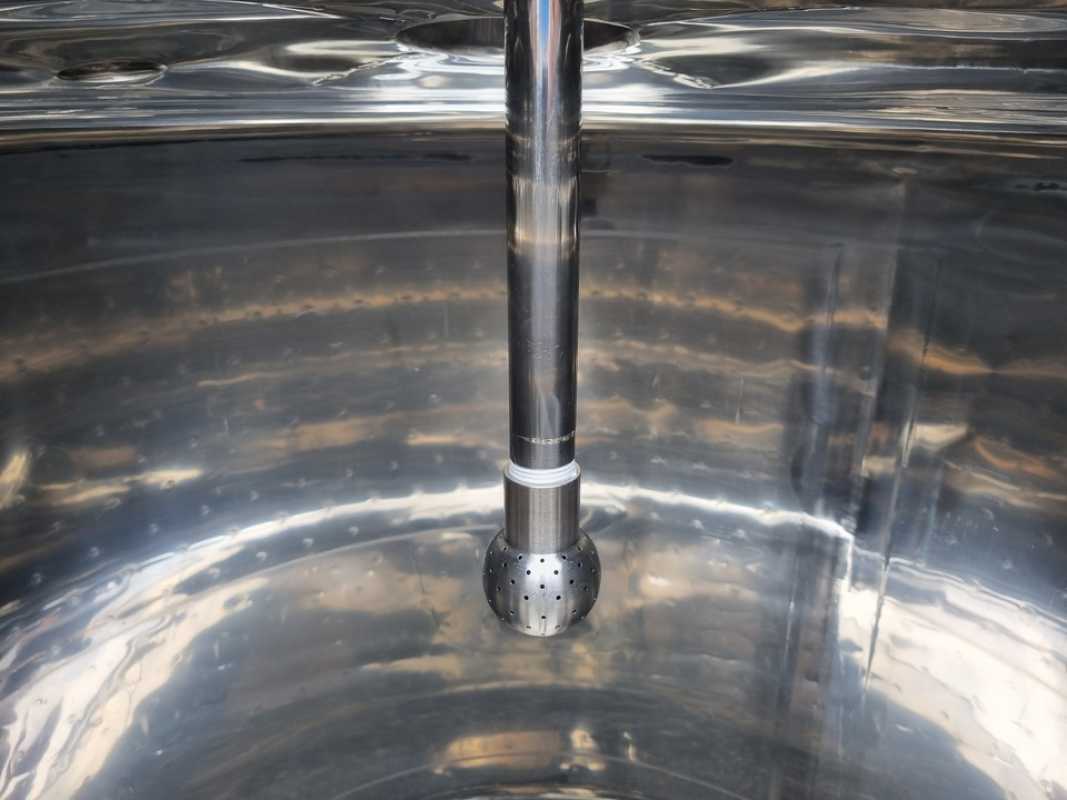

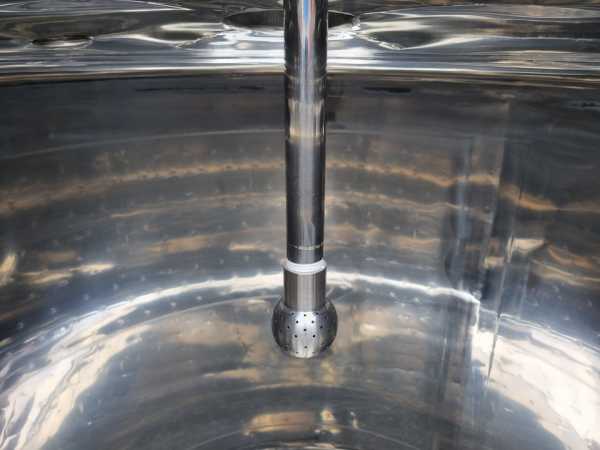

-1pc DN65 DIN11851 on top with spray ball 360°
-2pc DN50 DIN11851 on top wit blind cap
-1pc flange connection for agitator on top with reinforcements
-1pc Thermoplate H=900mm around the cylinder, in-/outlet 3/4" Female
-1pc thermoplate on bottom, in-/outlet 3/4"

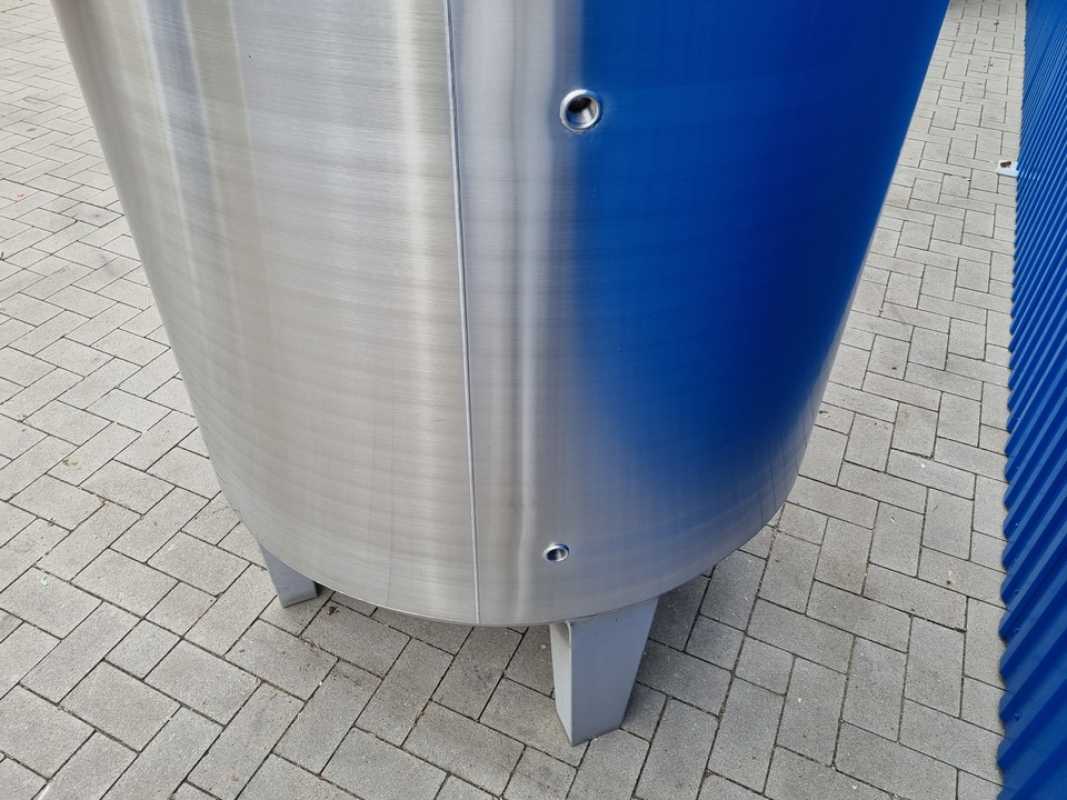

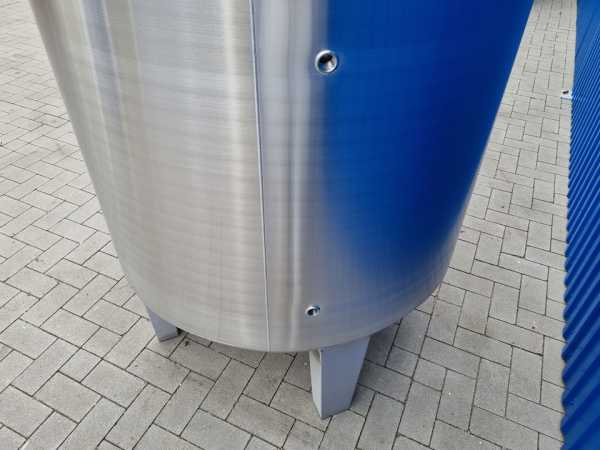

-1pc insulation t=30mm polyurethane for cylinder and bottom, welded AISI304 stainless steel jacket
-Outlet 1pc Ball valve DN50 DIN11851, seal PTFE
-1x nameplate

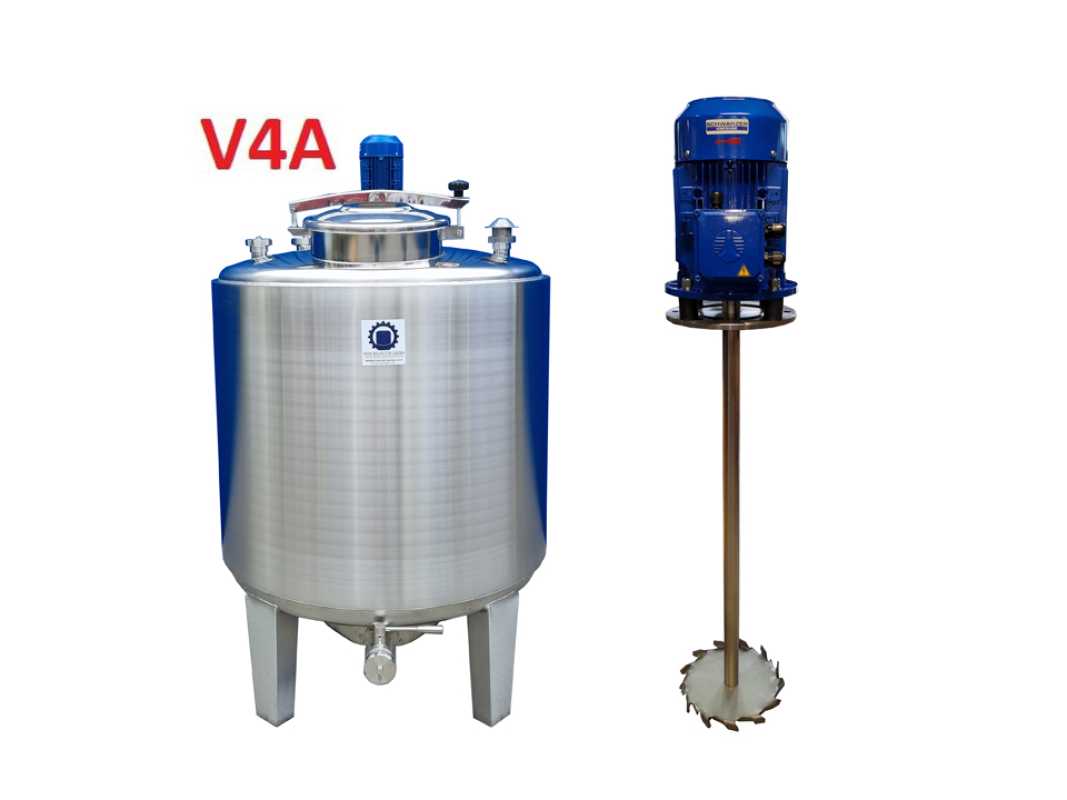

Agitator:
Dissolver
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTDMK4,0-1500
Power: 4,0KW
RPM: 1410
Voltage: 3PH 400V
Material in contact with product: AISI316L stainless steel

-Massive shaft mounted to the motor with coupling
-Shaft balanced for concentricity
-1 piece dissolverdisc at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neoprene rubber buffers

Shipping by transport company! Freight and packing charges will be offered separately!
