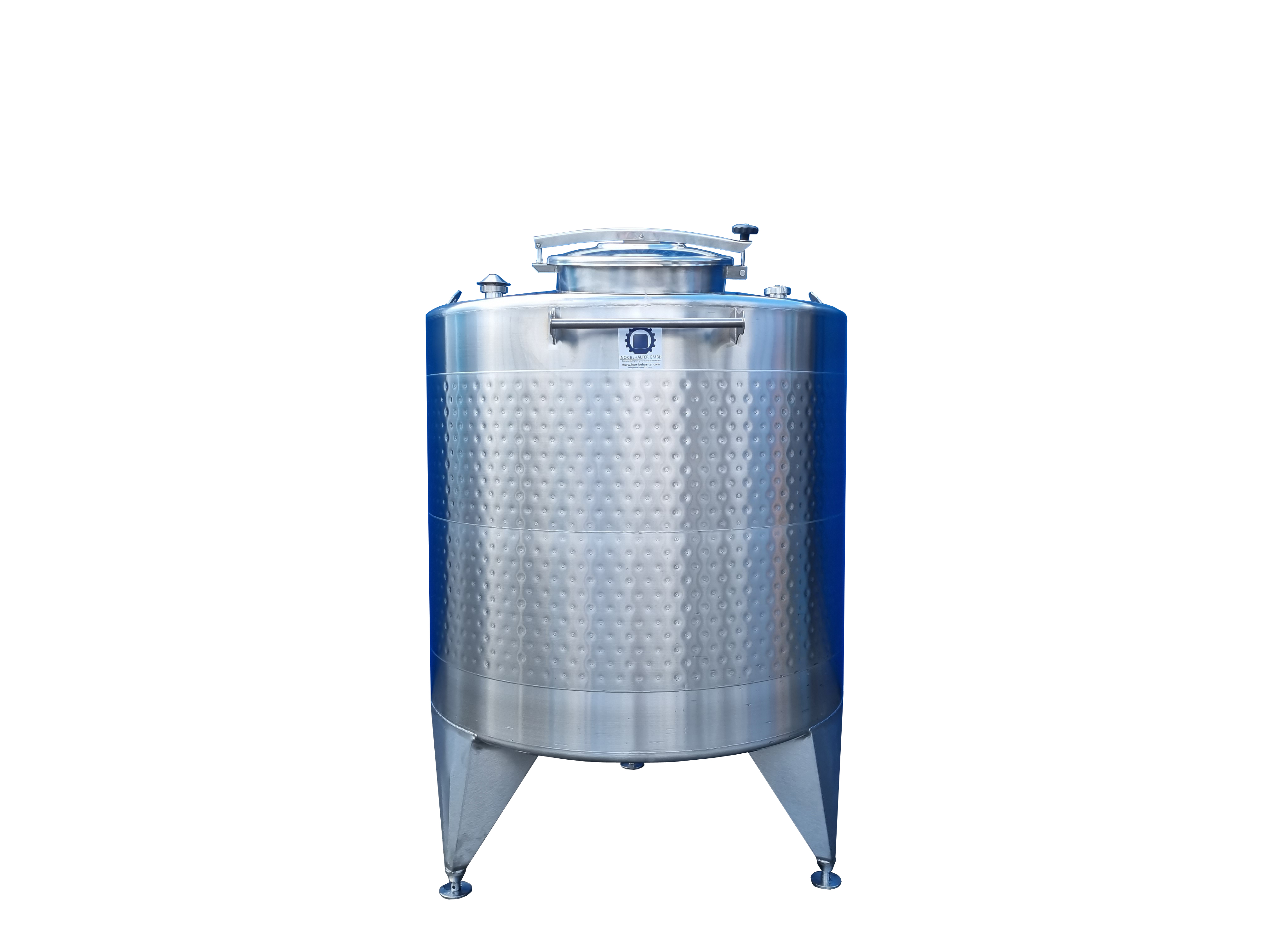

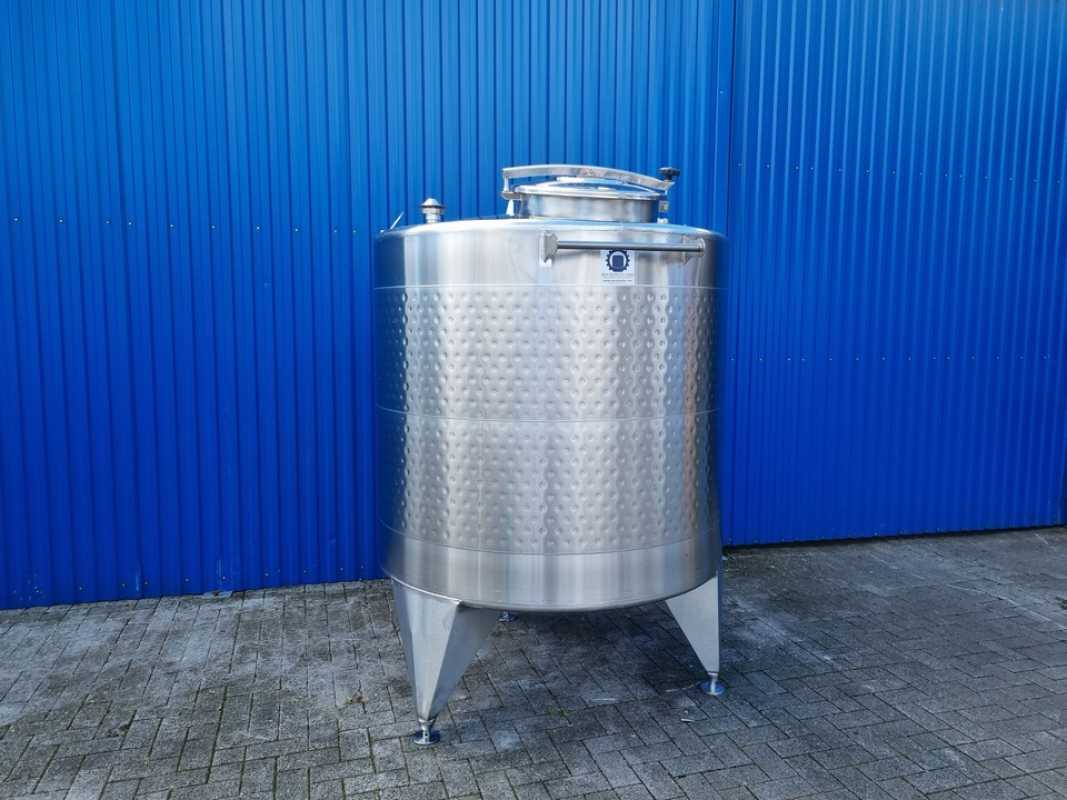

2266L heat-/coolable stainless steel vessel
An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/stoc-stehende-behaelter100-40000l/
New heat-/coolable stainless steel vessel
Type: STOC2200TPRW
Volume: Aprox. 2266 Liter
Type: Standing on three height adjustable feet
Material: 1.4301 AISI304 stainless steel
Surface: Outside SBR, inside IIId
Weldings inside: Pickled, passivated and brushed
Operating pressure max.: ATM
Operating pressure thermoplate max:: 3Bar
Operating temperature max.: 95°C
Top: Cone 15°
Bottom: Cone 15° with centric outlet DN50 DIN11851
Dimensions:
Diameter: 1430mm
Cyl. height: 1250mm
Overall height: 2160mm
Height of feet: 500mm
Accessoirs

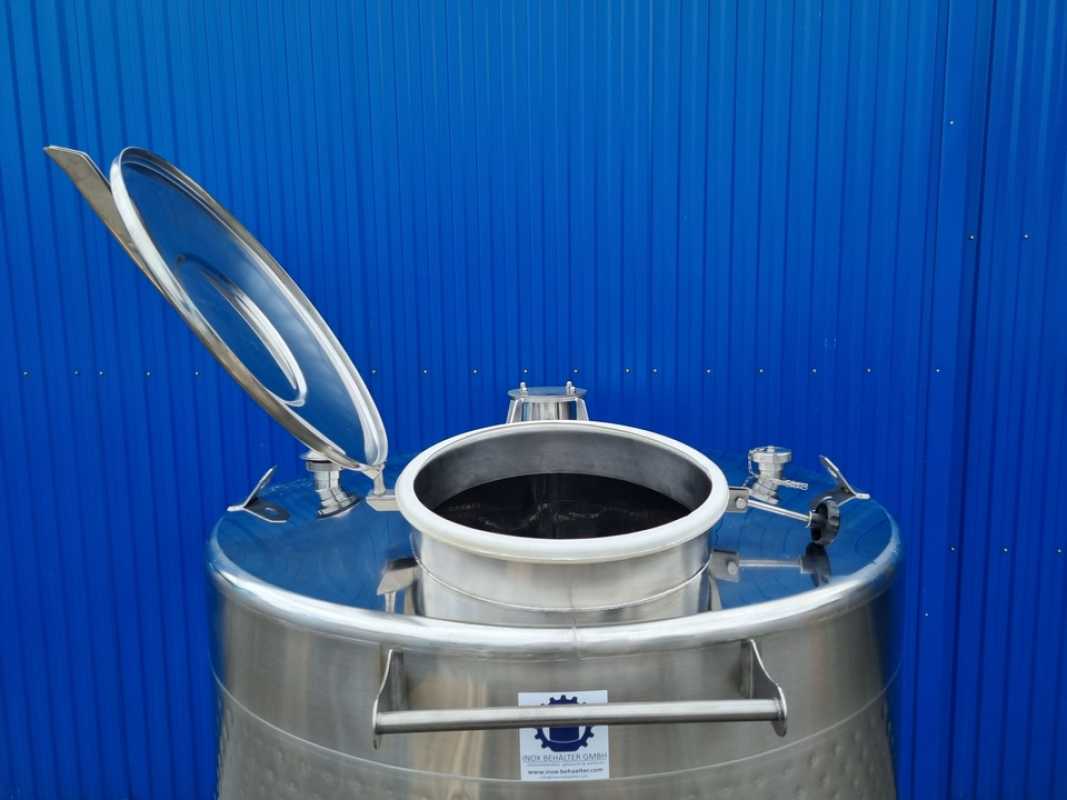

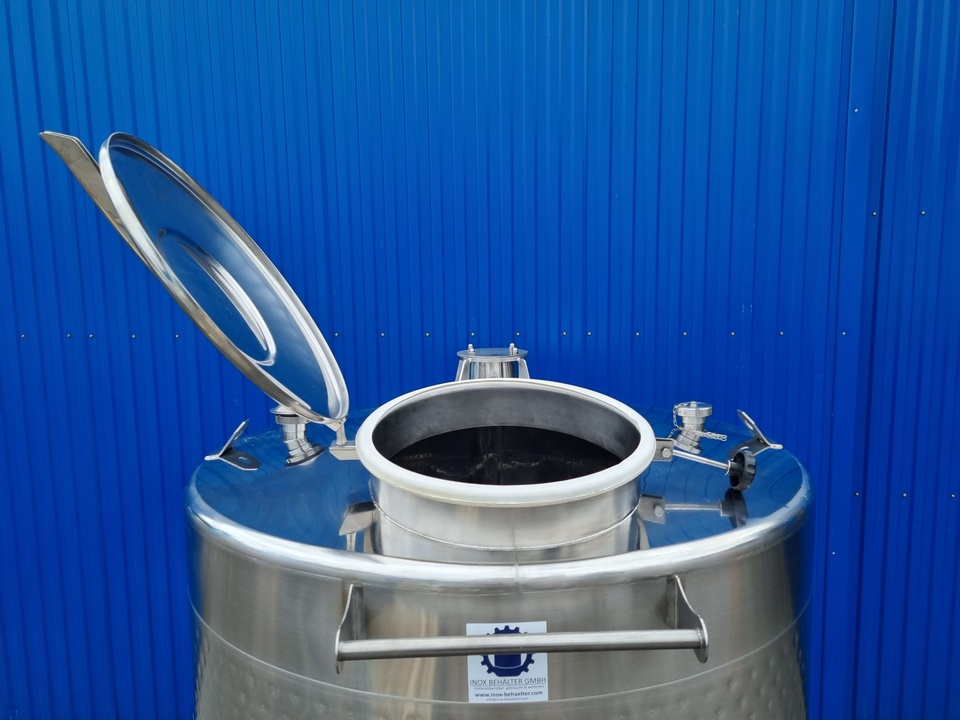

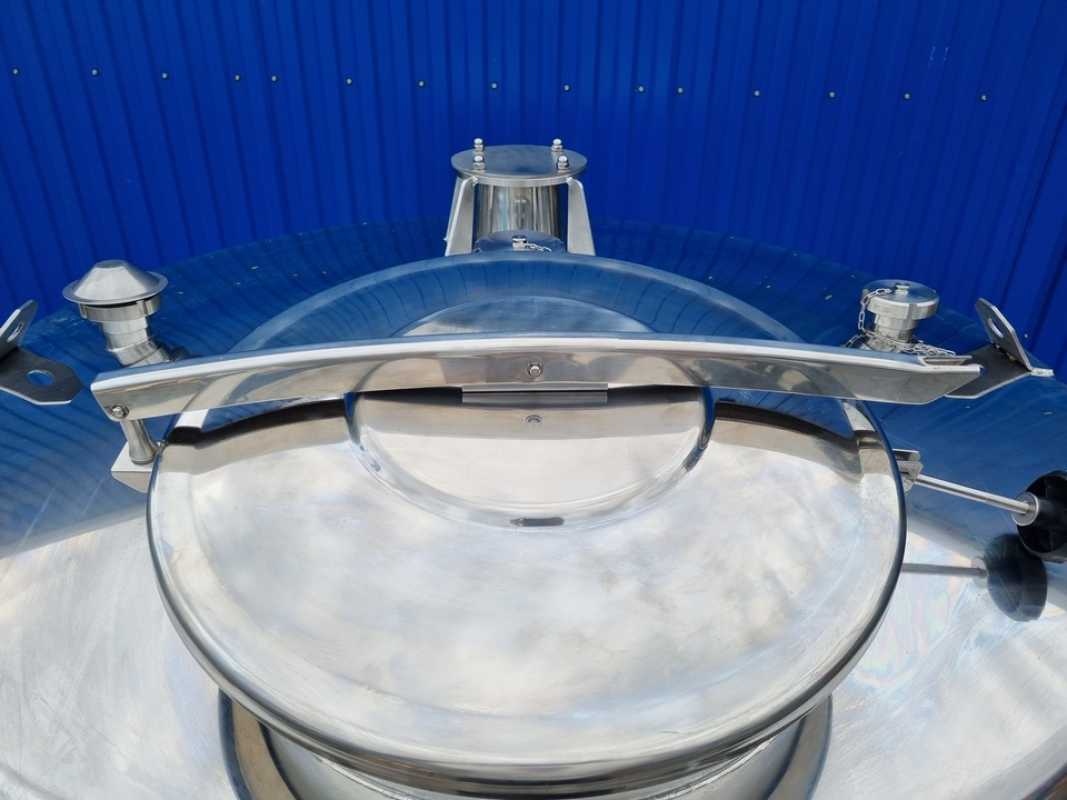

1pc Ø 500mm lid on top with hinge, seal EPDM
1pc agitator flange IEC200 with reinforcements on top
3pc height adjustable feet
1pc thermoplate on cylinder with in-/outlets 3/4" male
1pc DN50 ventilation valve on top
1pc DN50 DIN11851 male on top with blind cap
1pc DN65 DIN11851 male on top with blind cap
1pc DN50 DIN11851 male outlet in bottom centec
2pc crane hooks on top
1pc ladder support on cylinder
1pc name plate
Shipping by transport company! Freight and packing charges will be offered separately!
