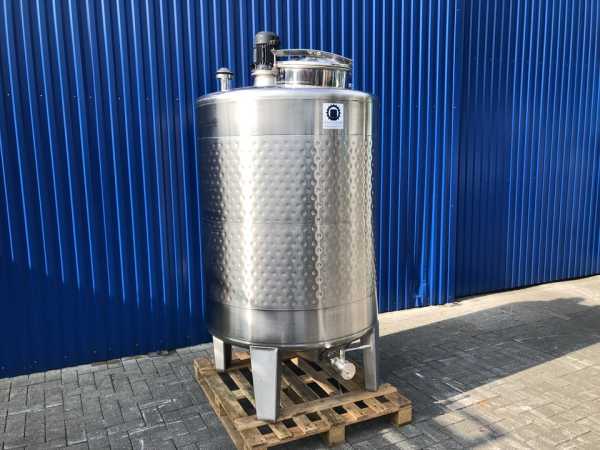

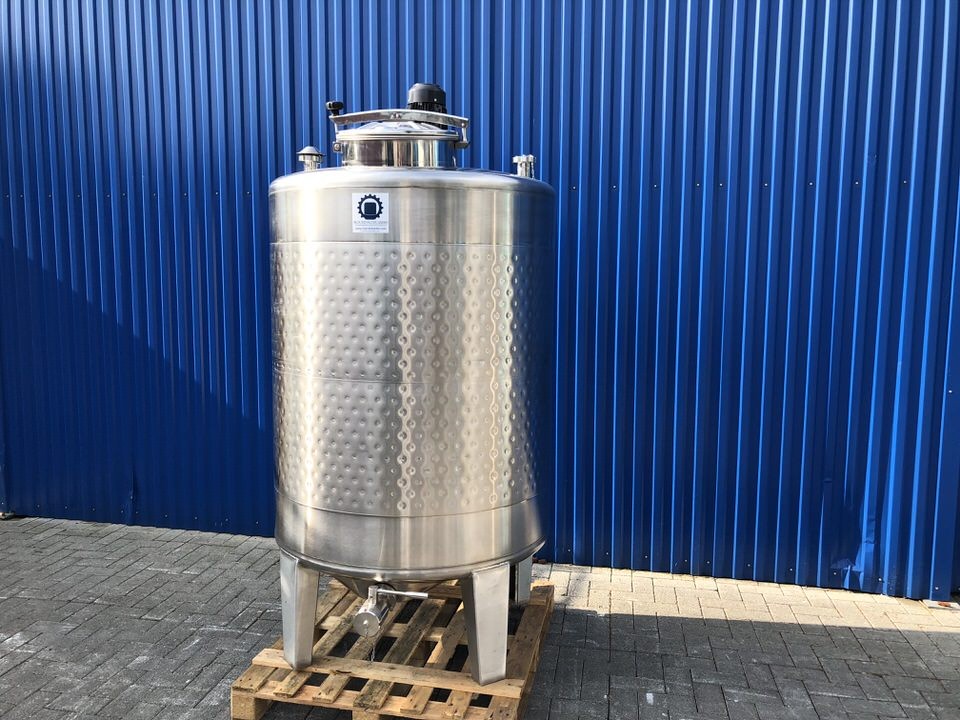

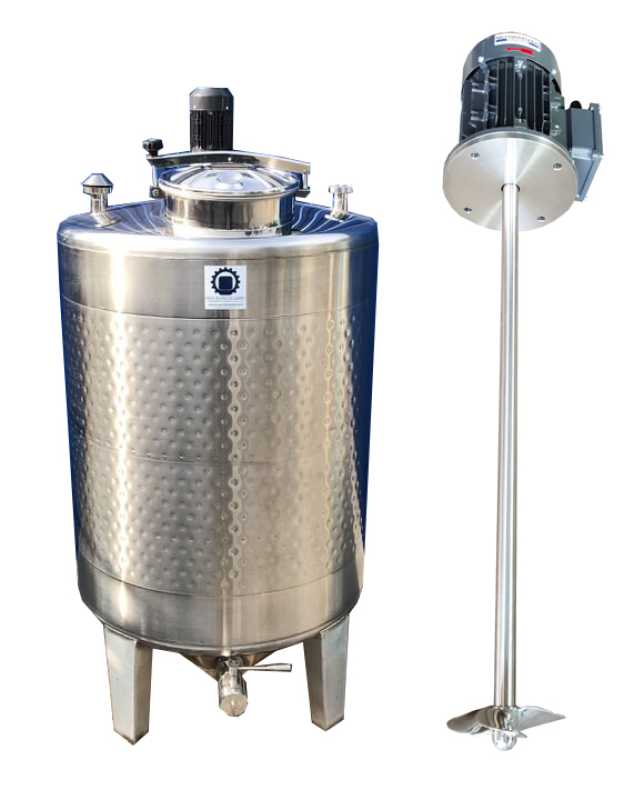

New heat-/coolable stainless steel mixing tank with agitator and thermoplate
Type: MTL1250TPRWP
Volume: 1305L
Type: Standing on 4 feet
with thermoplate on cylinder
Material: AISI304 stainless steel
Surface: Outside satinated, inside IIId
Weldings inside: Pickled, passivated and brushed
Operating pressure: ATM
Operating pressure thermoplate: Max. +3Bar
Operating temperature: Max. +95°C
Top: Dished
Bottom: Dished with side outlet
Dimensions:
Diameter: 1080mm
Height: 2005mm (+ agitator motor)
Height of feet: 425mm
Accessoirs:
-1x Thermoplate H=900mm around cylinder, in-/outlet 3/4" male

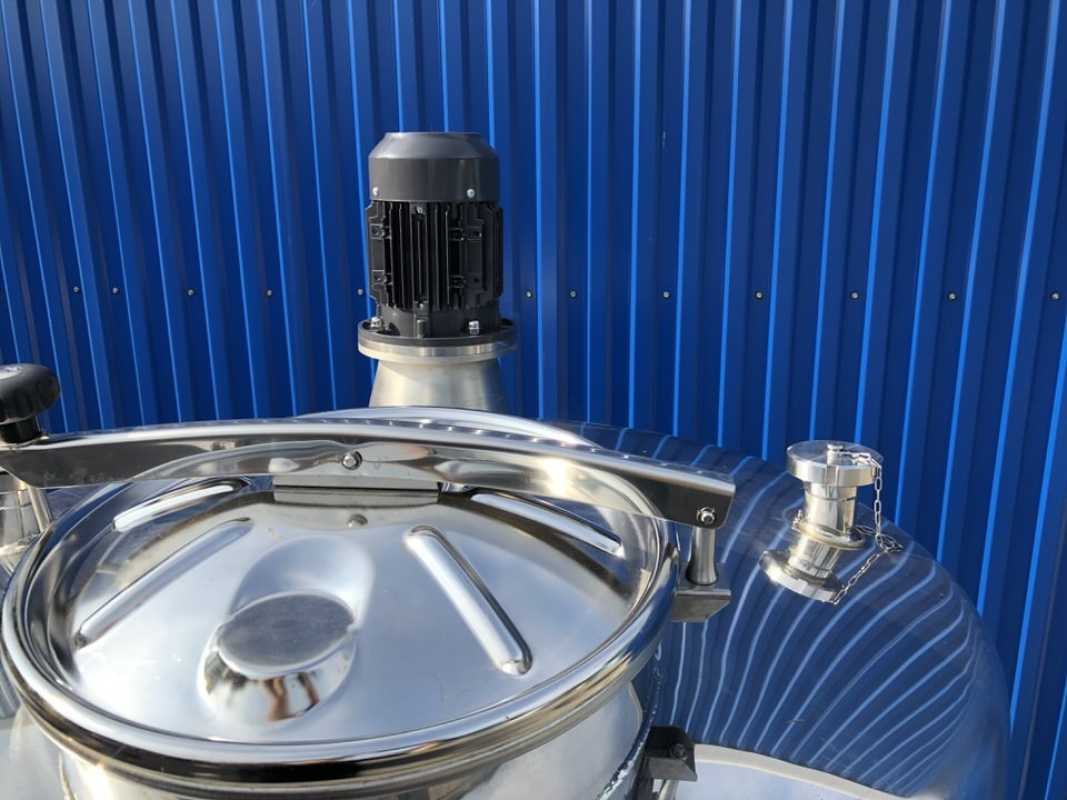

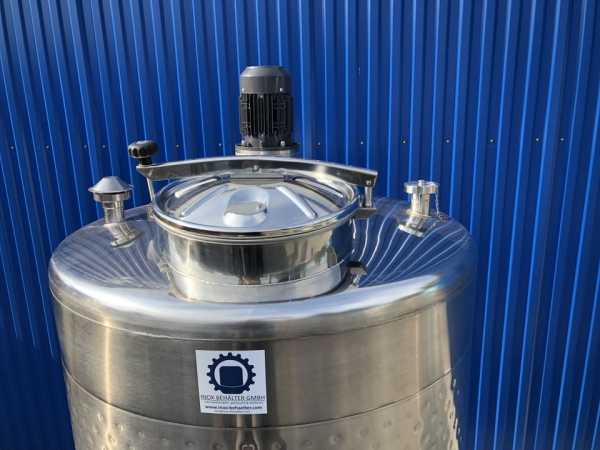

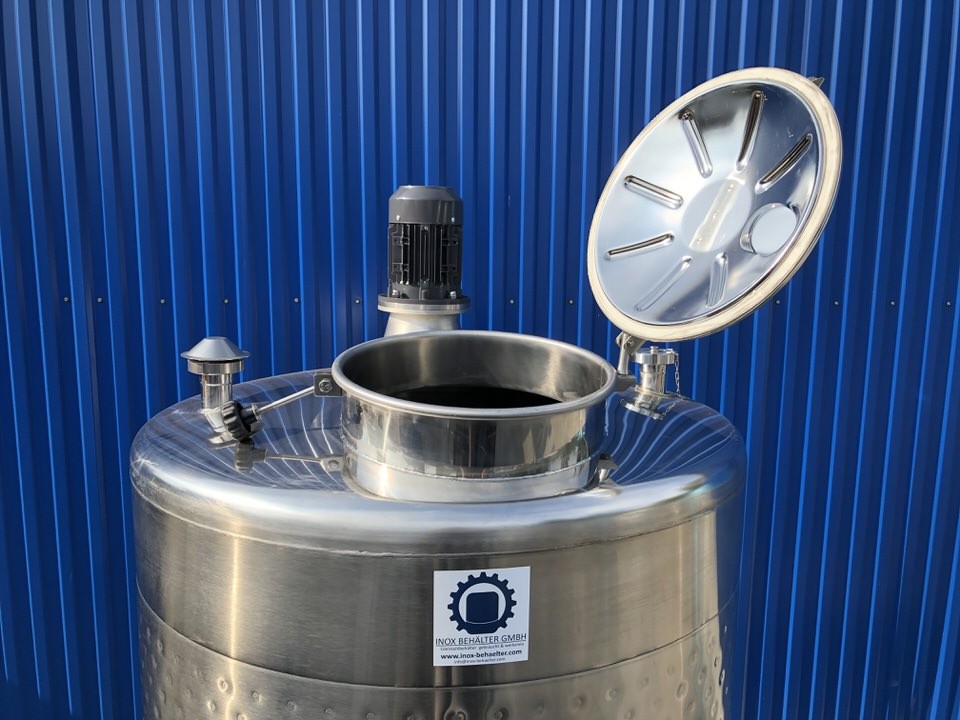

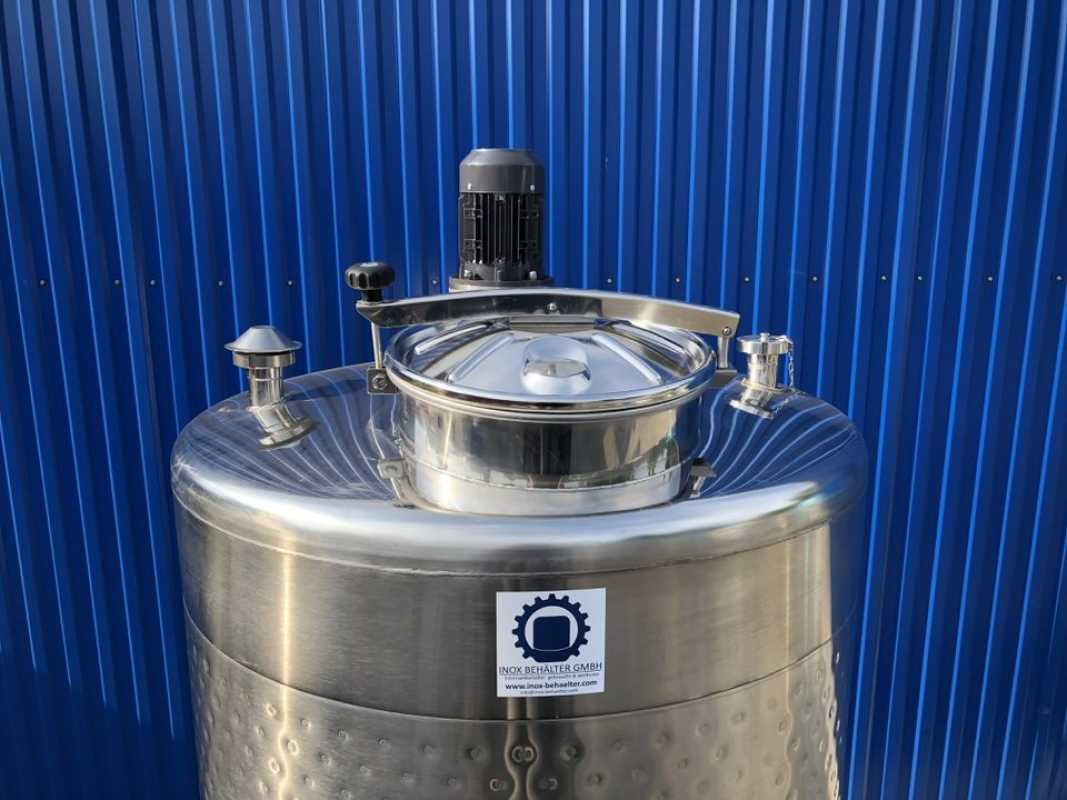

-1x Ø 400mm manhole Art. 414 excentric on top with sealing EPDM

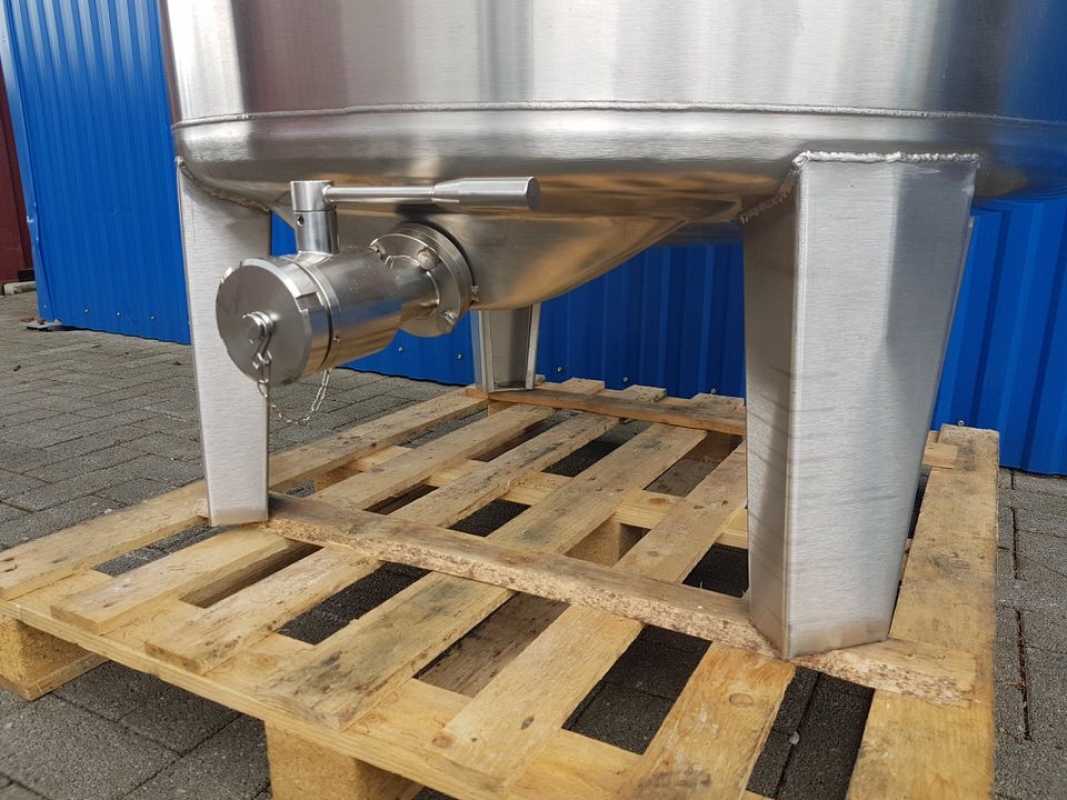

-1x outlet DN50 DIN11851 ball valve
-1x ventilation valve on top DN50
-1x DN50 DIN11851 male on top
-1x flange for agitator IEC200
-1x Nameplate
Agitator
Propeller mixer
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRT8-1500
Power: 0,75KW
RPM: 1410
Voltage: 3PH 400V
-Massive, solid shaft fixed on the motor (can not be dismounted)
-Shaft balanced for concentricity

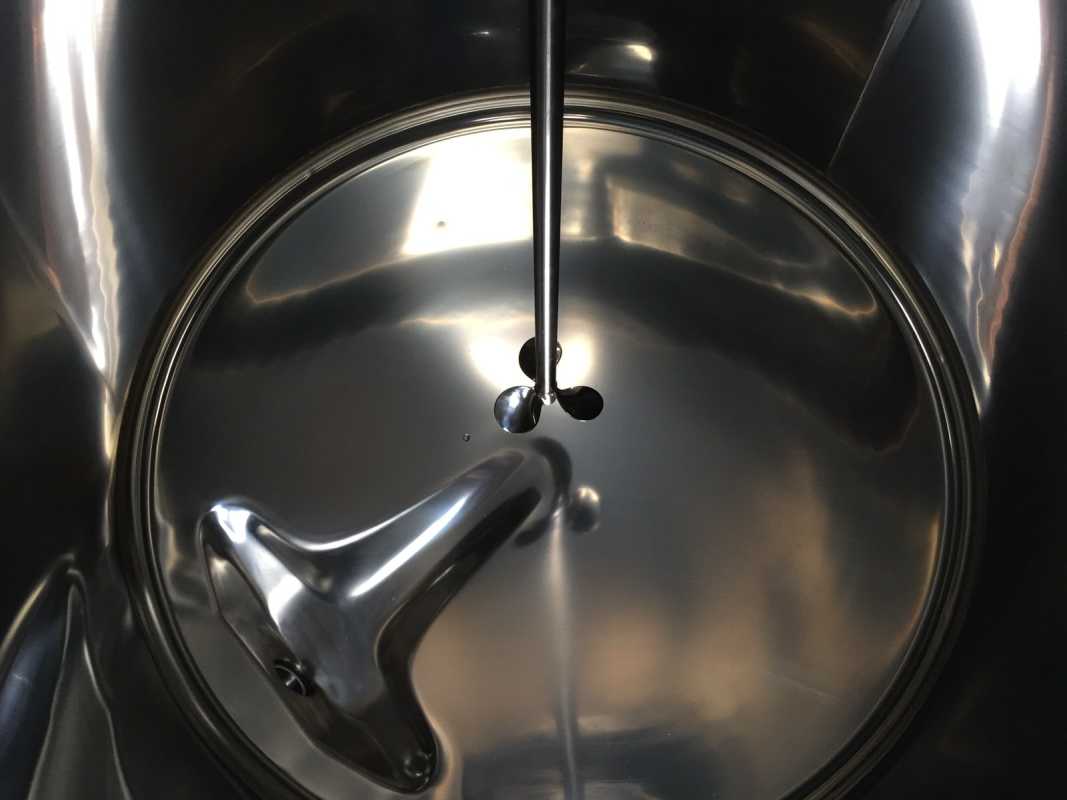

-1pc 3-blade-mixing propeller at the end of the shaft, surface mirror polished
-stainless steel flange with V-Ring seal and O-Ring seal, EPDM
-Motor beared on 4pc neoprene rubber buffers
Shipping by transport company! Freight and packing charges will be offered separately!
