Custom-Made Disc Agitators

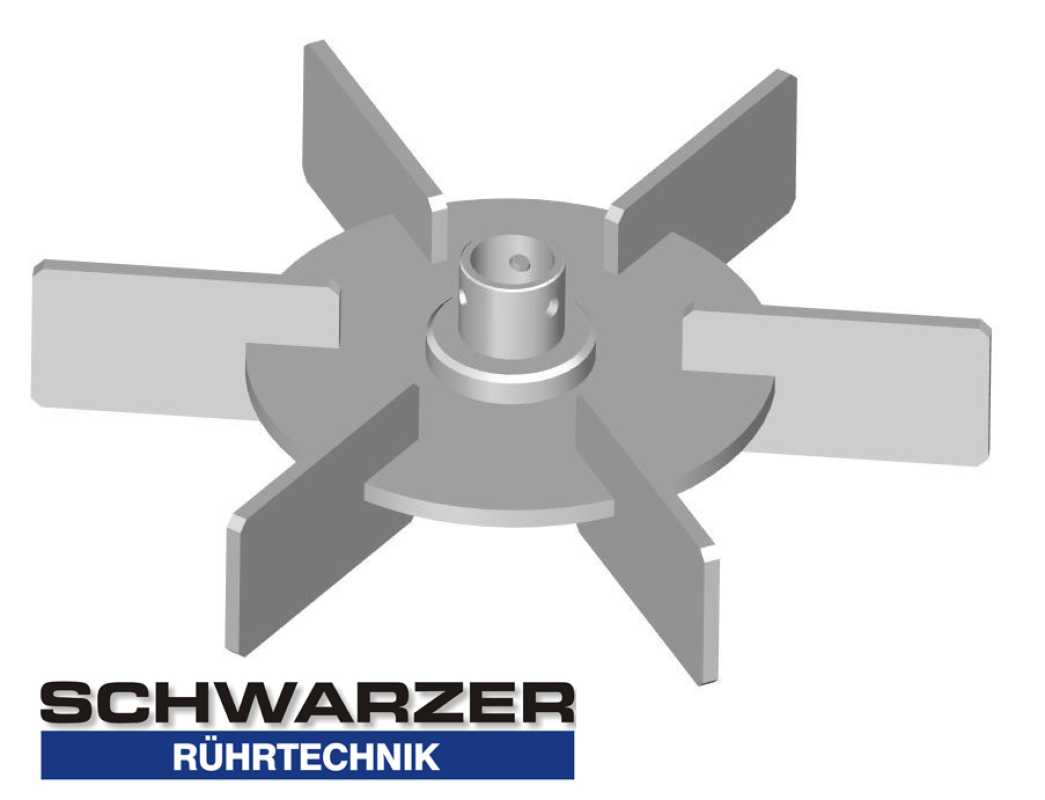

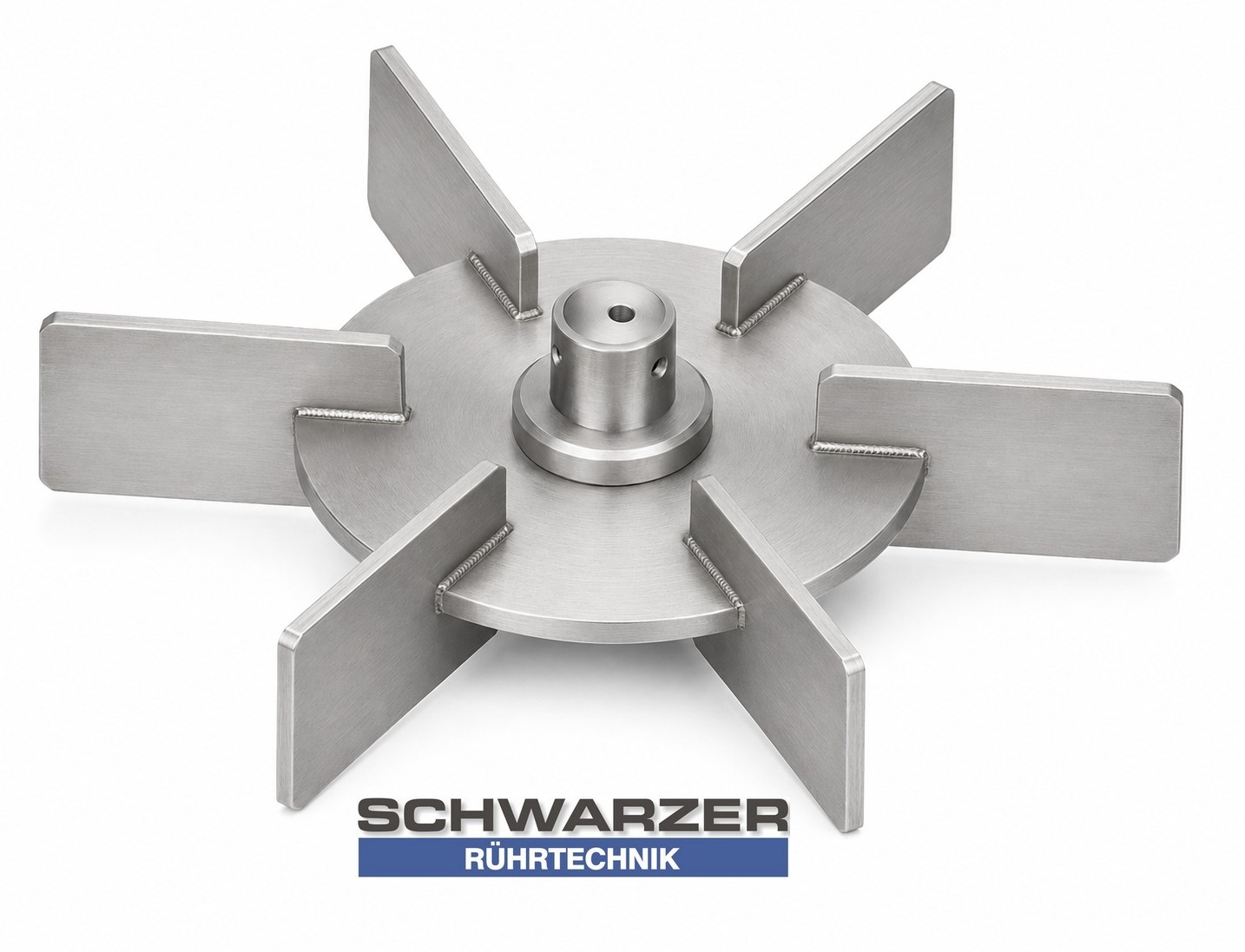

We manufacture disc agitators according to customer specifications. The disc agitator is a versatile and high-performance mixing impeller, ideally suited for demanding applications in industrial mixing technology.
Efficient Mixing Technology with High Shear
Our disc agitators generate turbulent flow with high shear forces and are perfectly suited for stirring, dispersing and mixing liquids with low to medium viscosity.
Axial intake from both top and bottom, combined with radial discharge, ensures uniform mixing throughout the entire vessel.
Technical Specifications
- Peripheral speed: approx. 4 – 8 m/s
- Viscosity range: < 10,000 mPa·s
- 6 blades with a blade angle of 90°
- Radial flow impeller design
- Standard design for mounting on an agitator shaft (height-adjustable)
- Impeller diameter proportional to the vessel diameter
High-Quality Materials
Our disc agitators are available in the following stainless steel grades:
- Stainless steel AISI 304
- Stainless steel 1AISI 316L
This makes them ideal for use in the chemical, pharmaceutical, food, and process industries.
Your Benefits
- Custom design tailored to your application
- High efficiency and reliable mixing performance
- Durable, corrosion-resistant stainless steel construction
- Optimized for industrial mixing processes
