An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/stoc-stehende-behaelter100-40000l/

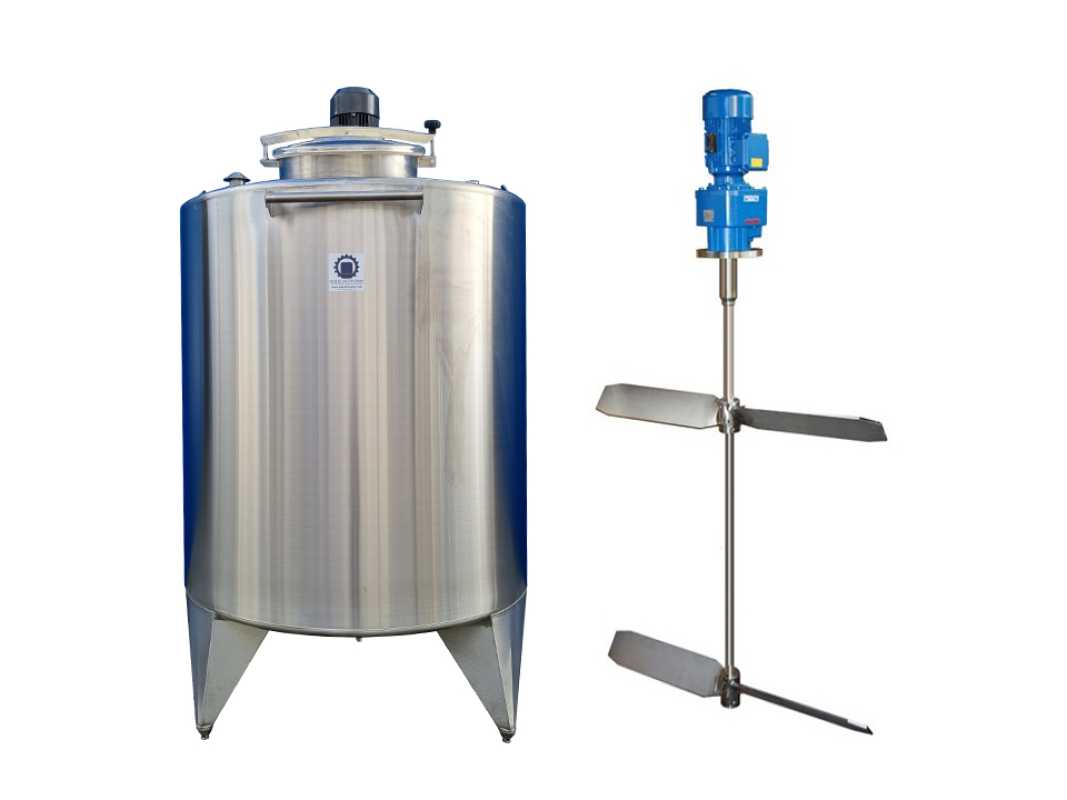

New stainless steel vessel with agitator
Type: STOC2600RWS
Volume: 2609 Liter
Type: Standing on three height adjustable feet
Material: 1.4301 AISI304 stainless steel
Surface: Outside SBR, inside IIId
Weldings inside: Pickled, passivated and brushed
Operating pressure max.: ATM
Operating temperature max.: 95°C
Top: Cone 15°
Bottom: Cone 15° with centric outlet DN50 DIN11851
Dimensions:
Diameter: 1360mm
Cyl. height: 1500mm
Overall height: 2300mm + Agitator
Height of feet: 500mm
Accessoirs:
1pc Ø 500mm lid on top with hinge, seal EPDM
1pc agitator flange IEC200 with reinforcements on top
3pc height adjustable feet
1pc DN50 ventilation valve on top
1pc DN50 DIN11851 male on top with blind cap
1pc DN65 DIN11851 male on top with blind cap
1pc DN50 DIN11851 male outlet in bottom centec
2pc crane hooks on top
1pc name plate
Agitator:
Paddle agitator
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTFGH/1,5-100
Power: 1,5KW
RPM: 100UPM
Voltage: 3PH 400V
-Motor and gear unit in latest aluminium technology, make Getriebebau NORD
-Massive agitator shaft fixed to the agitator motor with sleeve coupling
-Agitator shaft balanced for concentricity in the speed range
-2 pieces 2-blade stirrer height adjustable on the shaft, weld seams stained, passivated and brushed
-Stainless steel flange, sealing V-ring, EPDM
Shipping by transport company! Freight and packing charges will be offered separately!
