An offer from INOX Behälter GmbH
www.inox-behaelter.com

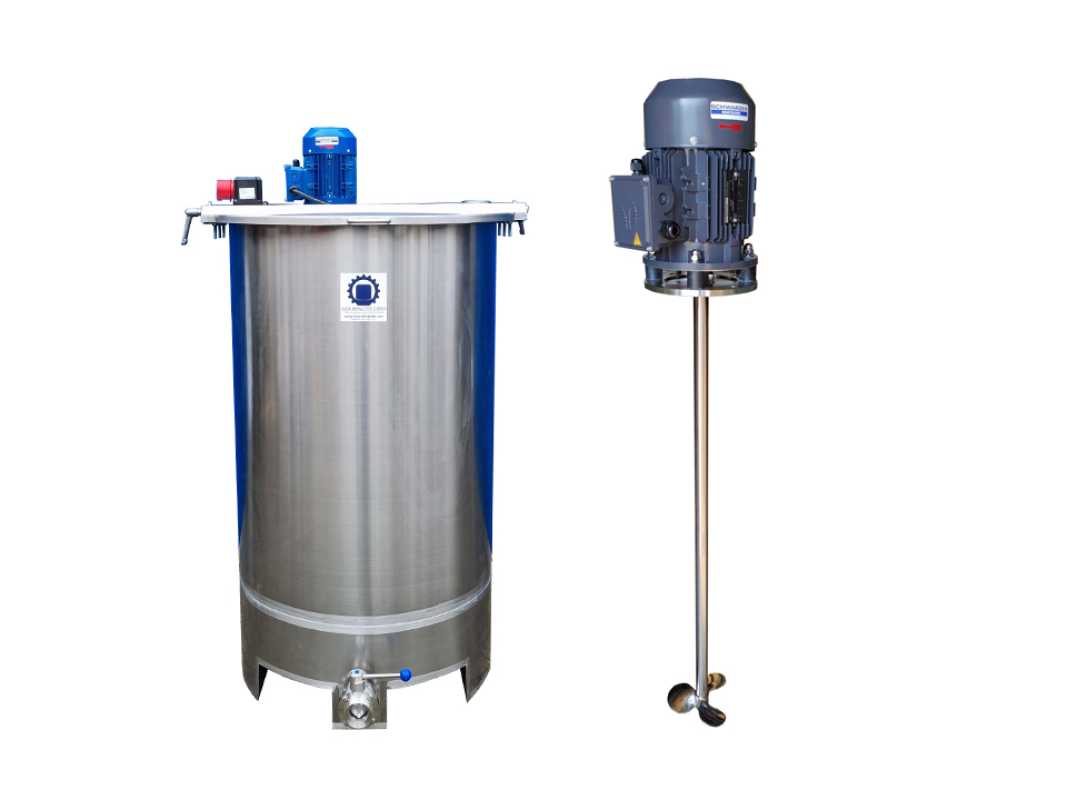

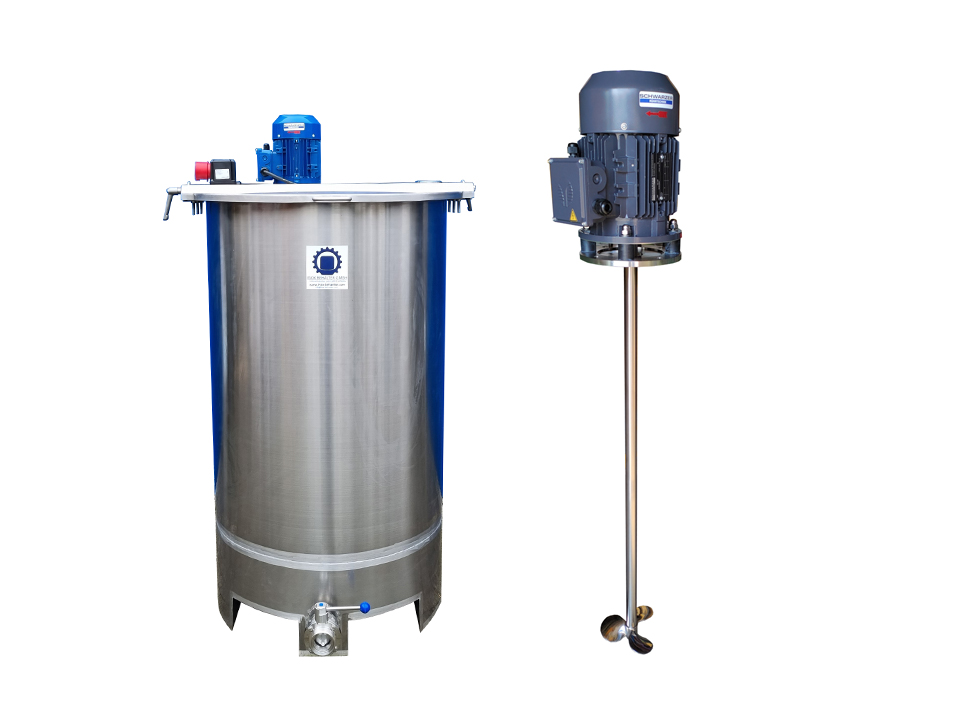

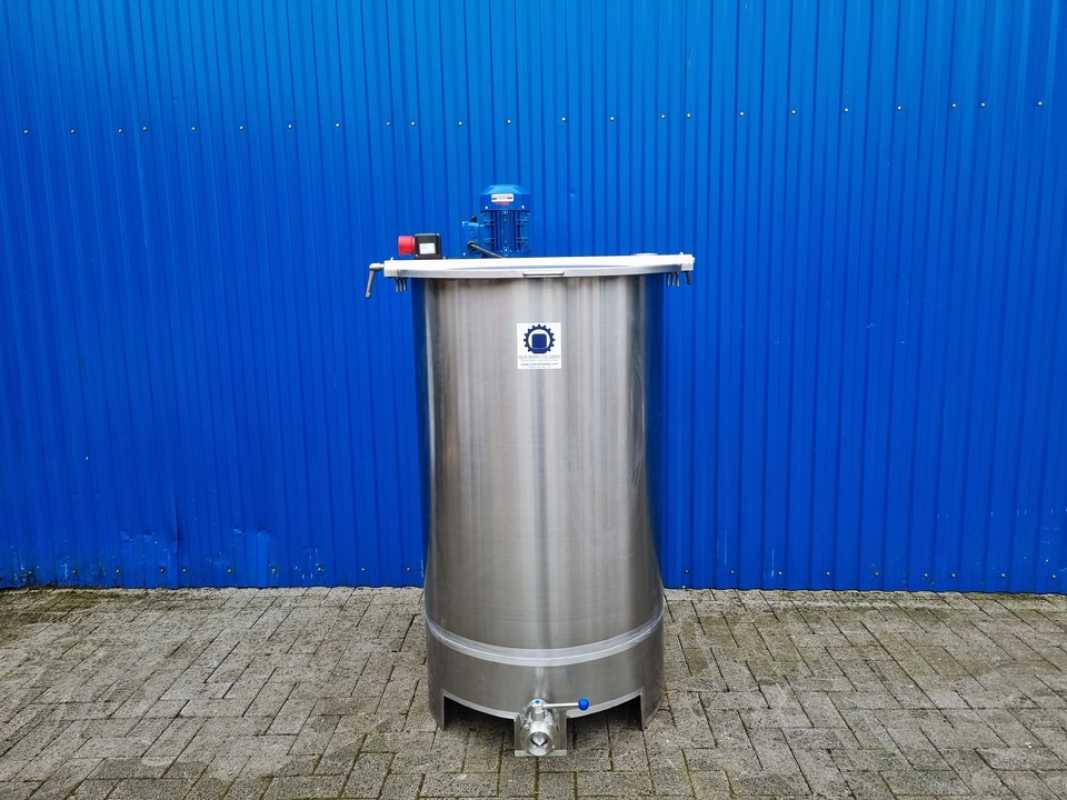

Information about this series: https://inox-behaelter.com/standardisierte-behaelter/transportbehaelter-typ-sbpa-130-2150l-einfaches-rohstoffhandling/ New stainless steel vessel with agitator
Type: SLA550RWP
Volume: 550L
Type: Standing on forklift base
Single-wall
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Top: Open with reinforced edge
Bottom: Dished with side outlet
Dimensions tank:
Diameter: 650mm
Height: Aprox. 1400mm (+ agitator motor)
Cyl. height: 1100mm
Height of feet: 300mm
Accessoires:

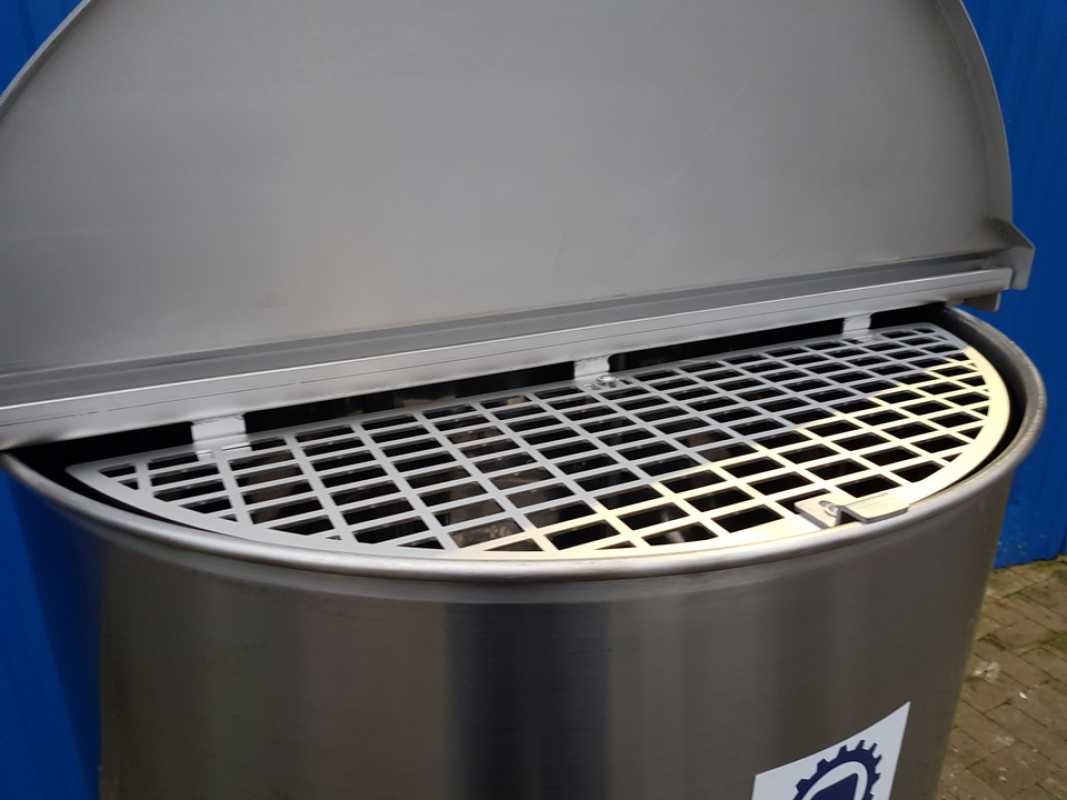

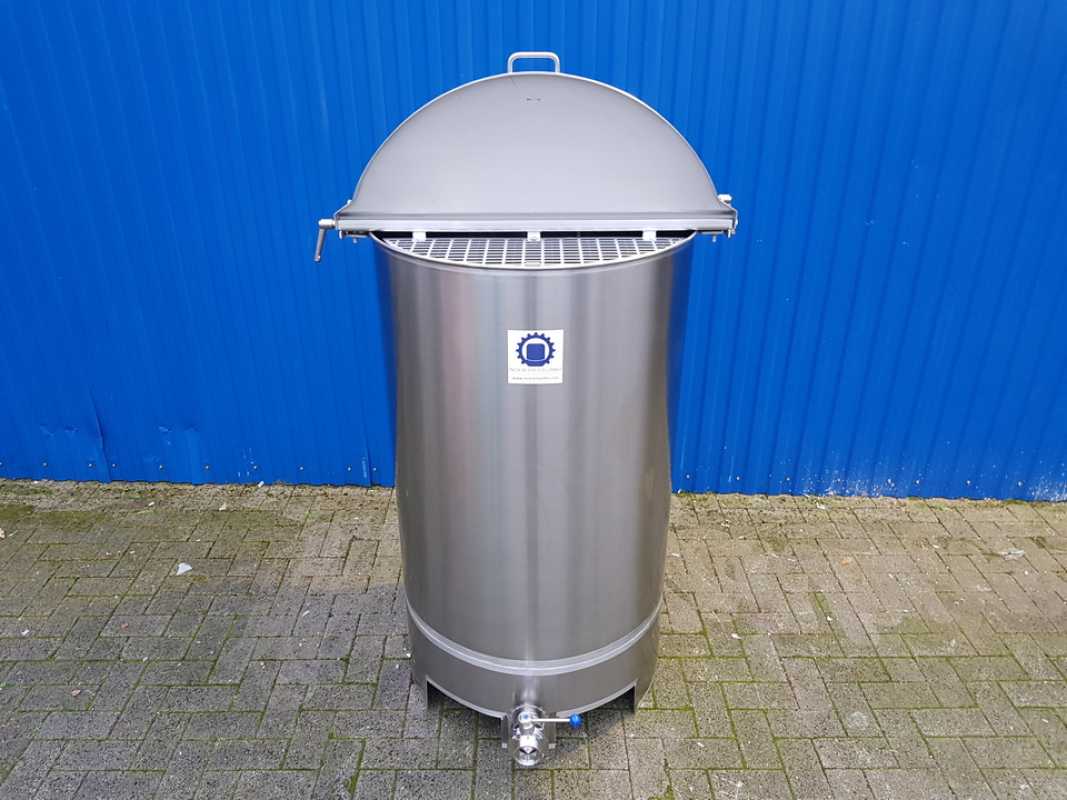

Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
-Outlet 1x butterfly valve with EPDM seal
-1x nameplate
Agitator:
Type: SRT8-1500
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 1410 rpm
Voltage: 3PH 400V
-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller at the end of the agitator shaft
Mixing propeller made of cast stainless steel, highly polished
-Stainless steel flange, sealing V-ring, EPDM
Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop
Shipping by transport company! Freight and packing charges will be offered separately!
