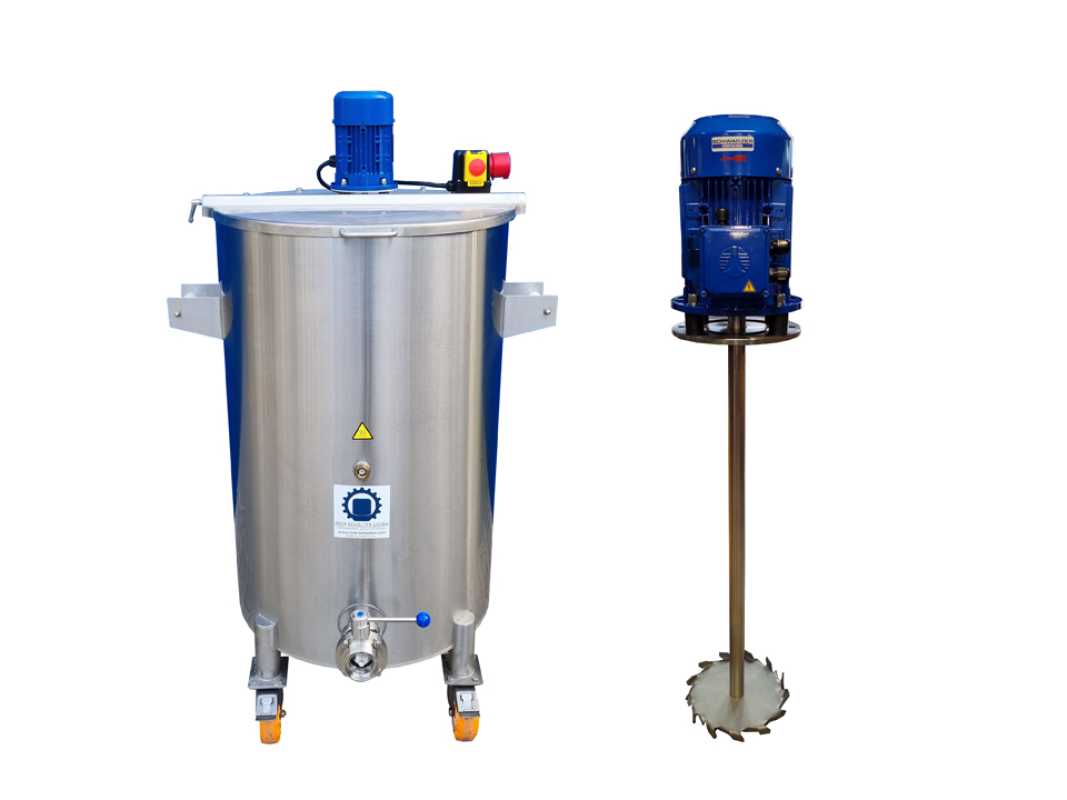

Brand new electrically heated stainless steel steel mixing tank
EBB250RWD
Volume: 250L
Dimensions aprox.: Ø 595mm x cyl. height 900mm
Total height: 1240mm + agitator motor
Surface: IIIc / 2B
Weldings grinded
Operating temperature max.: 110°C
Operating pressure max.: ATM
-Standing on three feet with wheels
-Top: Lid with 1x grip
-Bottom: Flat bottom with side outlet DN50 DIN11851 with butterfly valve
-2x grip on the sided
-1x nameplate
Heating system:
Indirectly heated
Double jacket around the cylinder filled with glycerin.
Heating through electric heating element in the double jacket, thermostat starting at 60°C
Power: 6KW
Voltage: 3PH 400V
Including cable and plug 32A CEE
Agitator:
Dissolver
Type: SRTD/2,2-1500
Fabricat: Schwarzer Rührtechnik GmbH
Power: 2,2KW
RPM: 1410
Voltage: 3PH 400V
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece dissolverdisc at the end of the shaft, seal EPDM
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neoprene rubber-buffers
Control unit agitator:
CEE switch/plug on the tank, On-/Off switch, zero voltage release, emergency shut-off
