An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw/ebbrw-elektrisch-beheizte-ruehrwerksbehaelter-auf-rollen-60-500l/

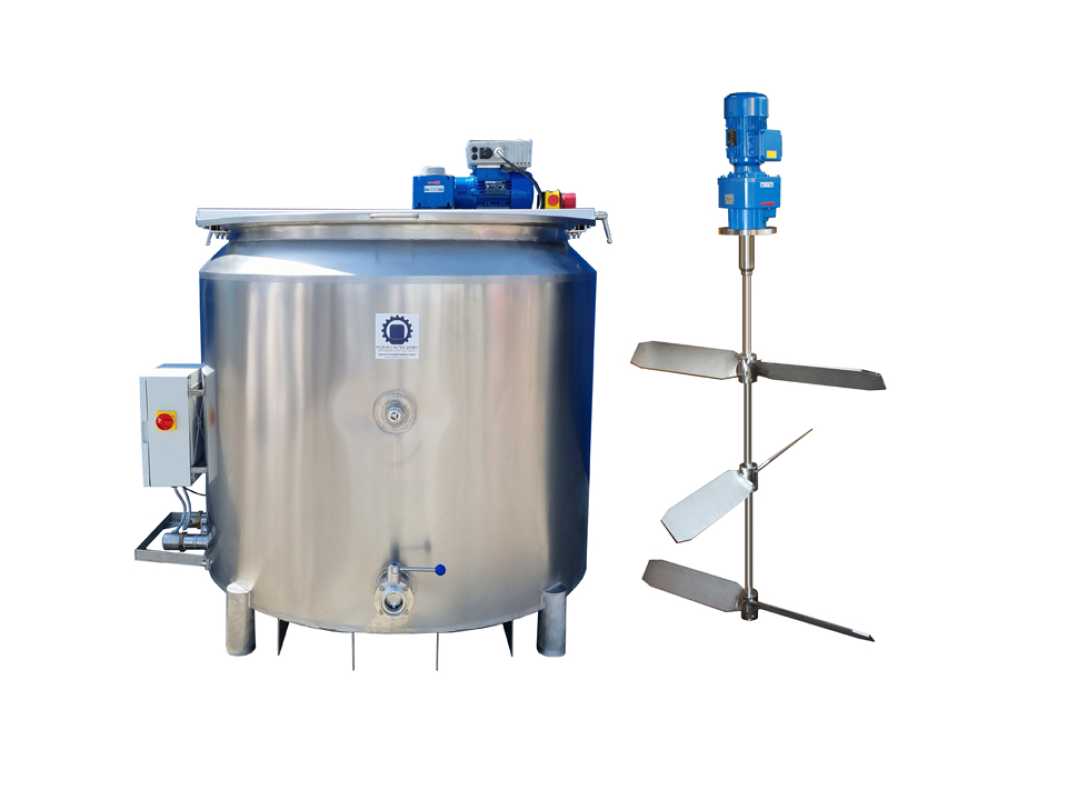

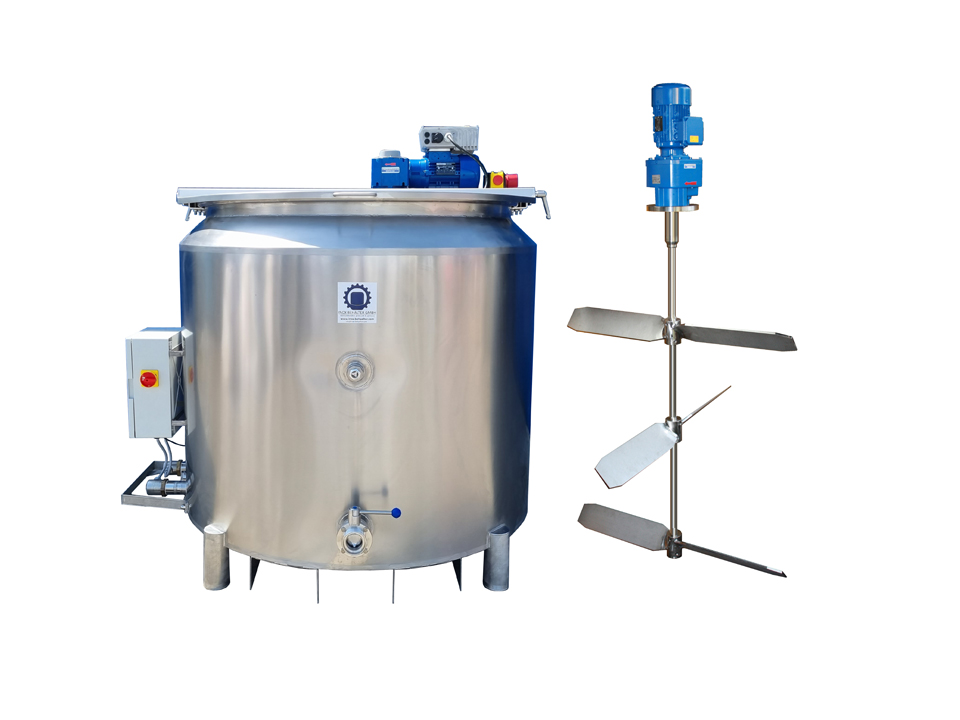

New electrically heated stainless steel vessel with insulation and agitator
Type: EBB1150RWS
Volume: 1150L
Dimensions aprox.: Inside-Ø 1190mm x cyl. Height 1000mm
Outside-Ø 1390mm
Total height: Aprox 1300mm + agitator motor
Surface: IIIc / 2B
Weldings inside grinded
Operation temperature max.: 110°C
Operating pressure max.: ATM
-Standing vessel on tube feet with forklift tunnel
-Top: Open with reinforced edge
-Bottom: Flat in ankle to the outlet, outlet DN50 DIN11851 male with butterfly valve with EPDM seal
-Insulation t=50mm rock wool around cylinder with welded AISI304 jacket
-Dust cover lid stainless steel with 1x grip
-1x nameplate
Heating system:
Indirect electric heating via thermal oil filling in the double jacket. (thermal oil not included)
Aprox. 2/3 of cylinder and bottom heated.
Heating by electrical heating elements in the double jacket bottom.
Controlled by plastic switch cabinet on the site of the vessel with digital display of the temperature.
Control is carried out via product temperature.
Power: 21KW
Voltage: 3PH 400V
Supply line: 32A CEE conection
Agitator:
Paddle agitator
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTGSI63/0,75-189
Power: 0,75KW
RPM: 189UPM
Voltage: 3PH 400V

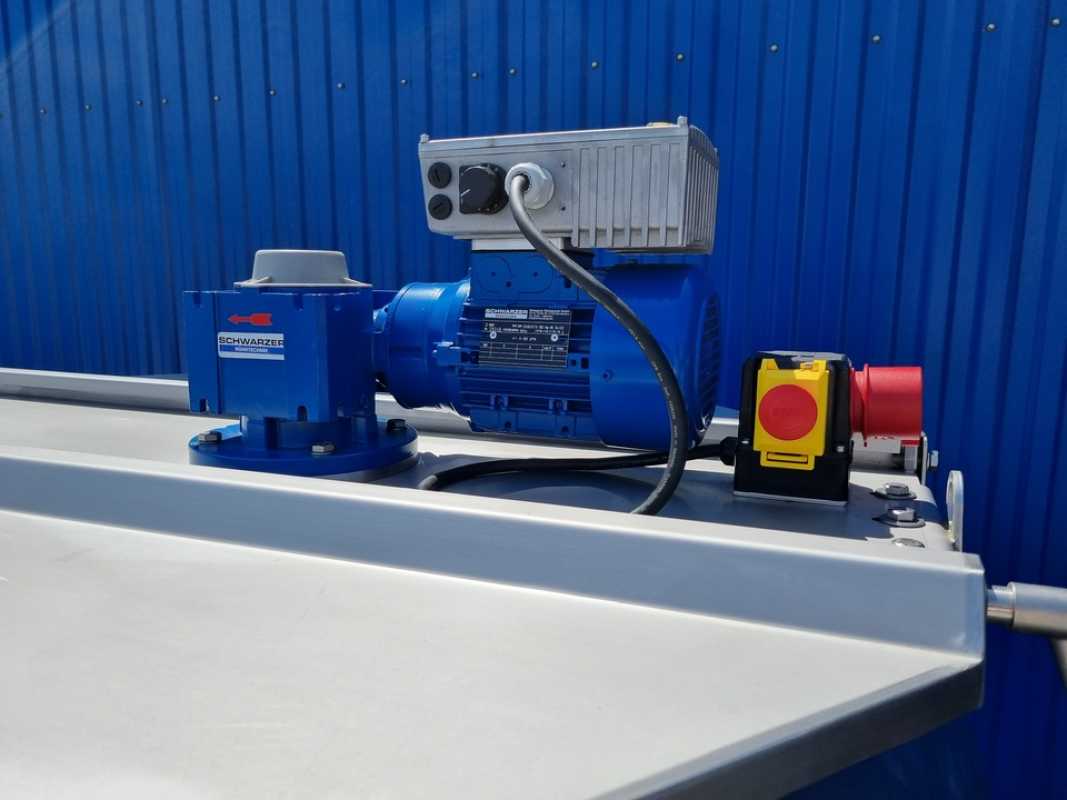

-Motor and gear unit in latest aluminium technology, make Getriebebau NORD
-Massive agitator shaft fixed to the agitator motor with sleeve coupling
-Agitator shaft balanced for concentricity in the speed range

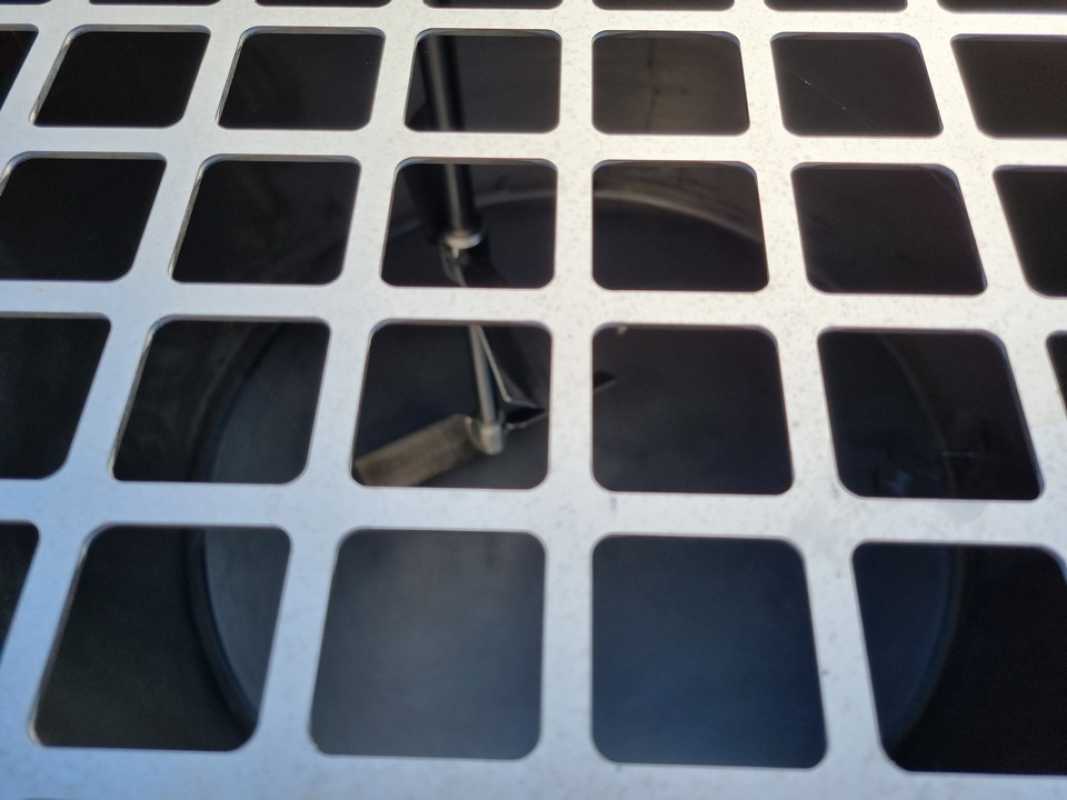

-2 pieces 2-blade beam stirrer height adjustable on the shaft, weld seams stained, passivated and brushed
-Stainless steel flange, sealing V-ring, EPDM
Control unit agitator:

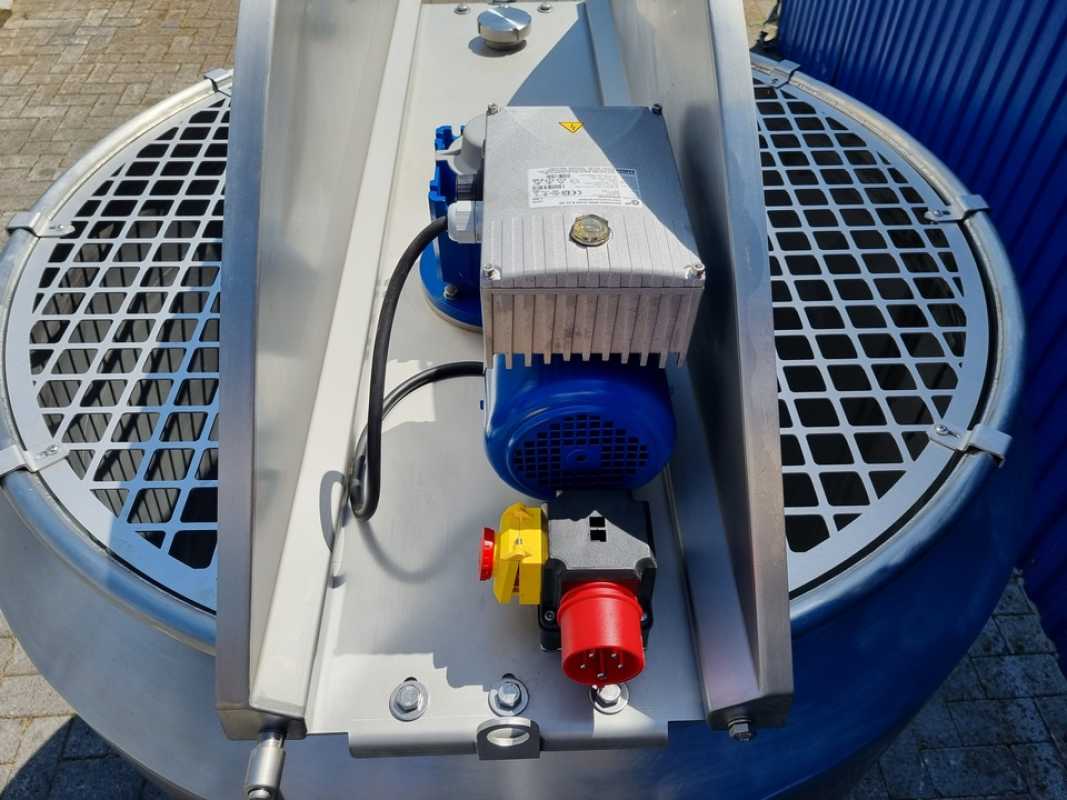

CEE switch/plug on the tank, On-/Off switch, zero voltage release, emergency shut-off
