Information about this series:

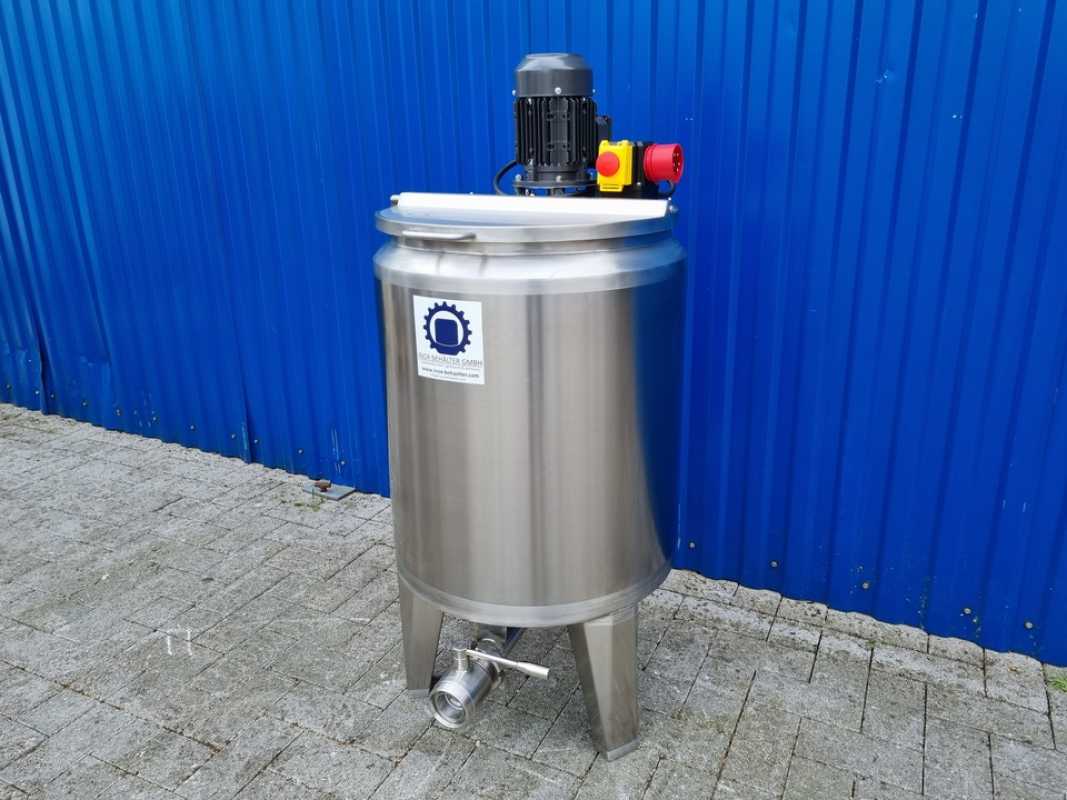

https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp New heat-/coolable stainless steel mixing tank with insulation
Type: CILC100BTPISORWDA4
Volume: 109L
Type: Standing on three feet
With thermoplate and insulation
Material in contact with product: AISI316L stainless steel
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Hinge lid, 1/2 can be opened, 1/2 fixed

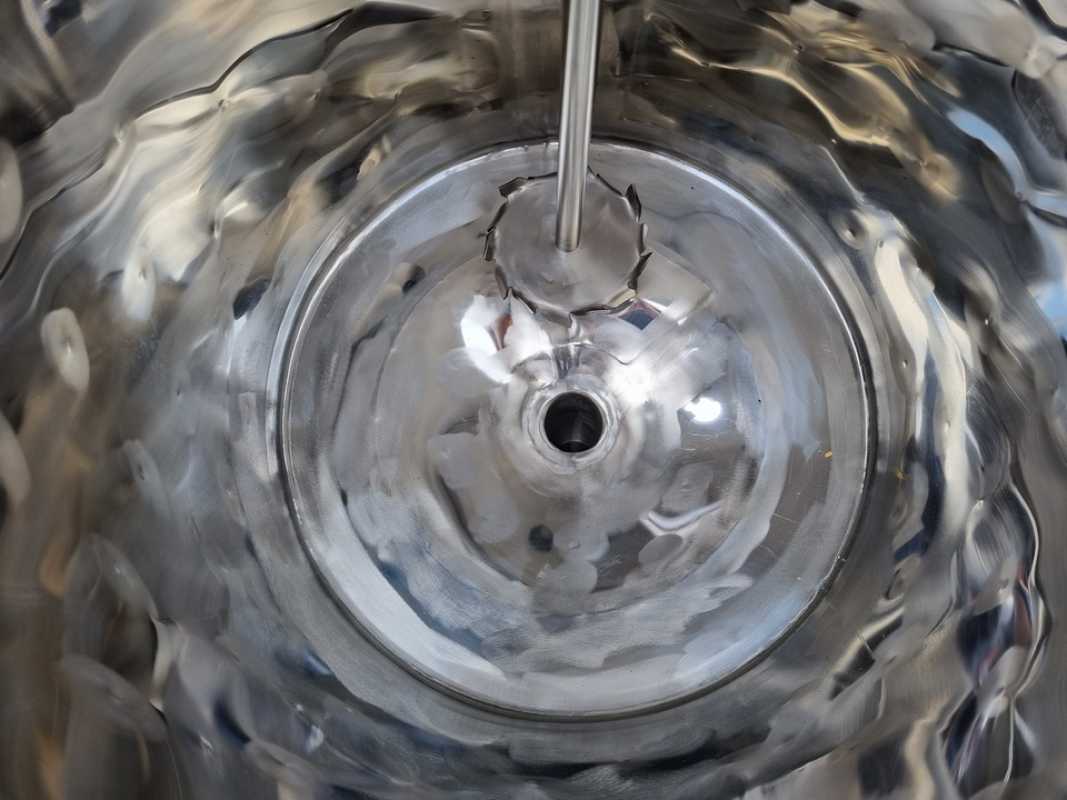

Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 477mm
Outside diameter: 537mm
Height: 930mm (+ agitator motor)
Cyl. height: 600mm
Height of feet: 330mm
Accessoires:

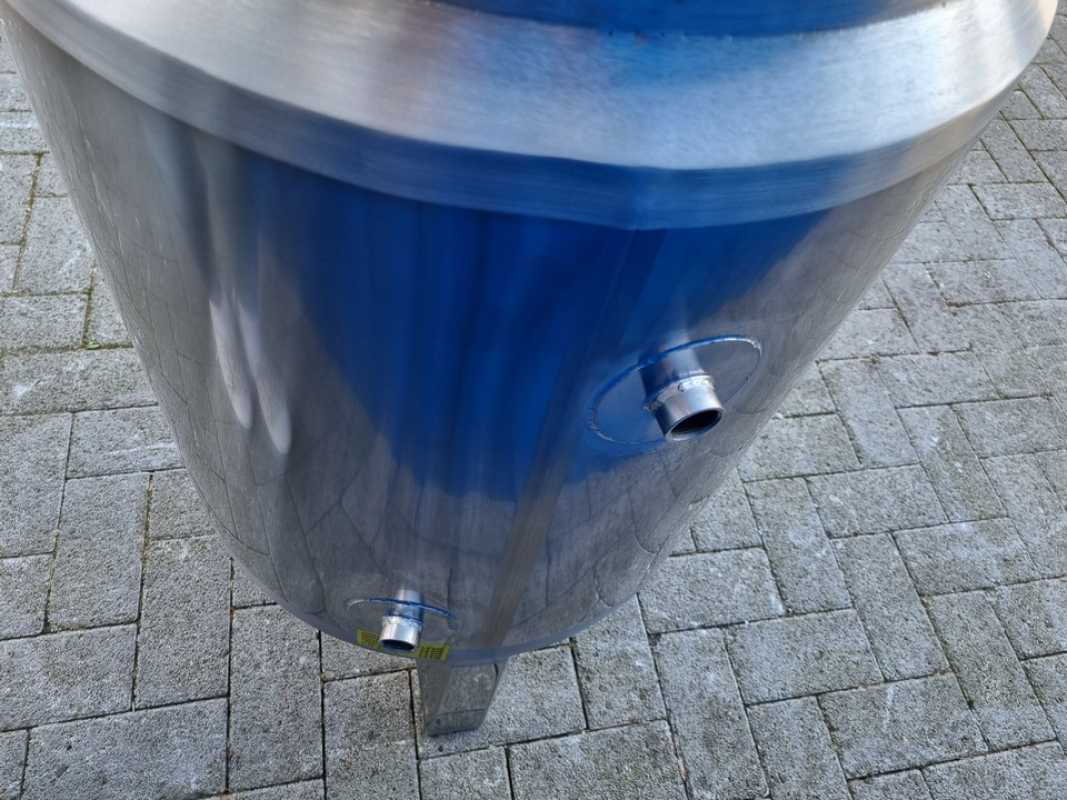

-1x Thermoplate around the cylinder, in-/outlet 3/4" female

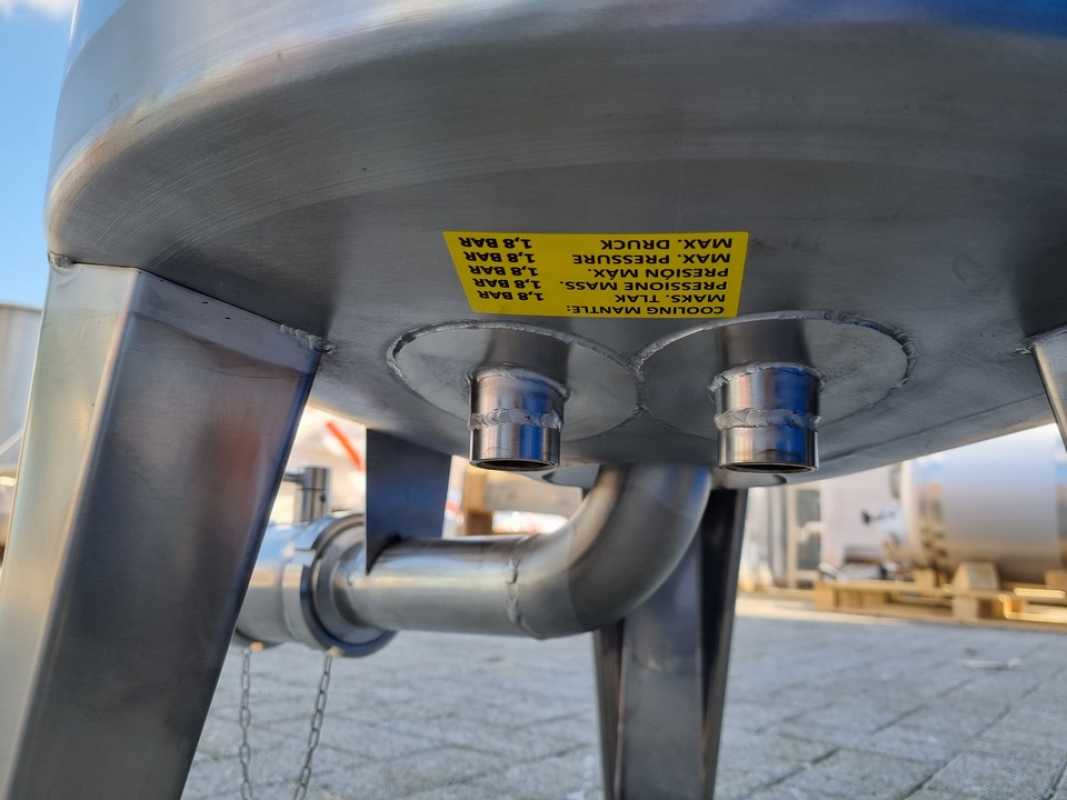

-1x Thermoplate on bottom, in-/outlet 3/4" female

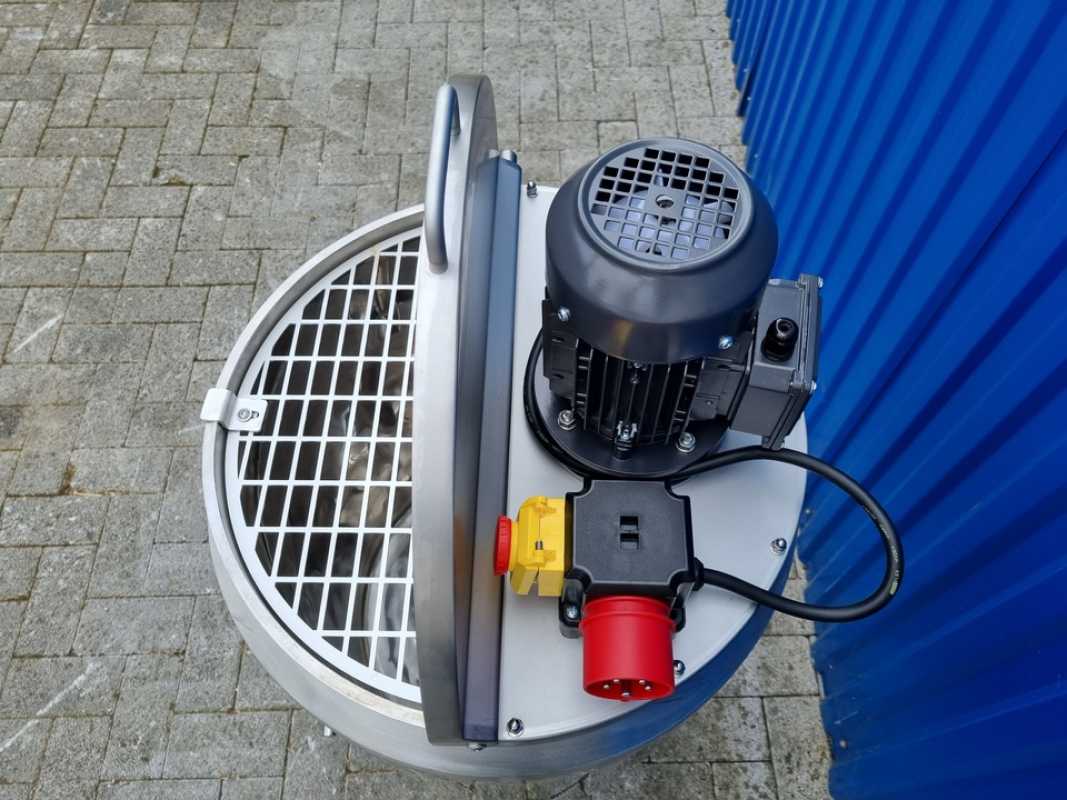

-1/2 hinge lid, 1/2 can be opened, 1/2 screwed to the tank, stainless steel grid under the lid
-Outlet 1x Ball valve DN25 DIN1185, seal EPDM/PTFE
-1x nameplate

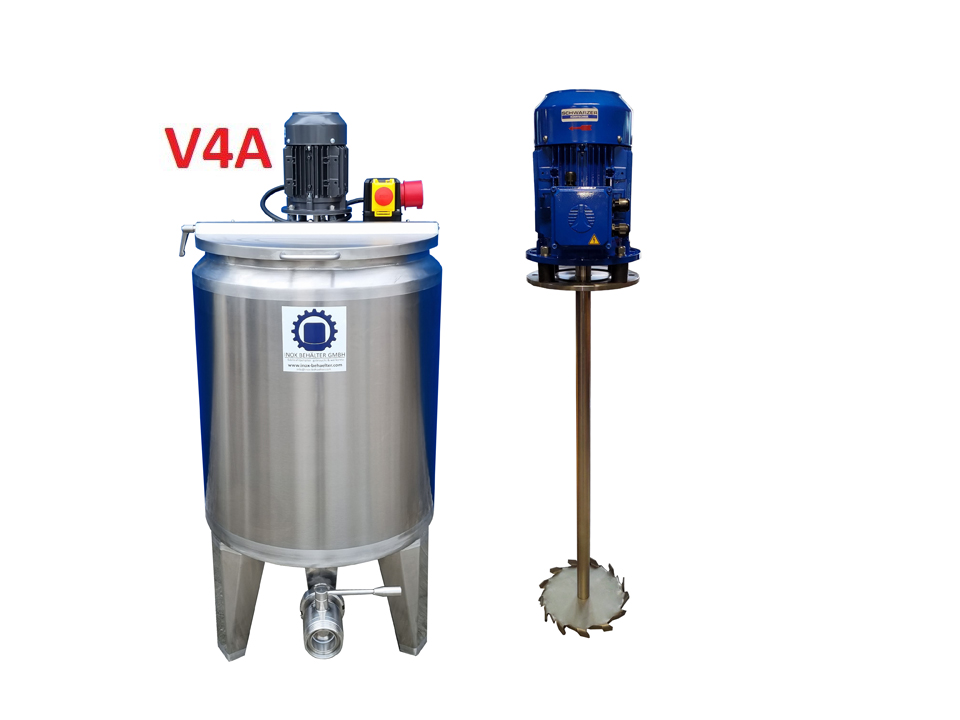

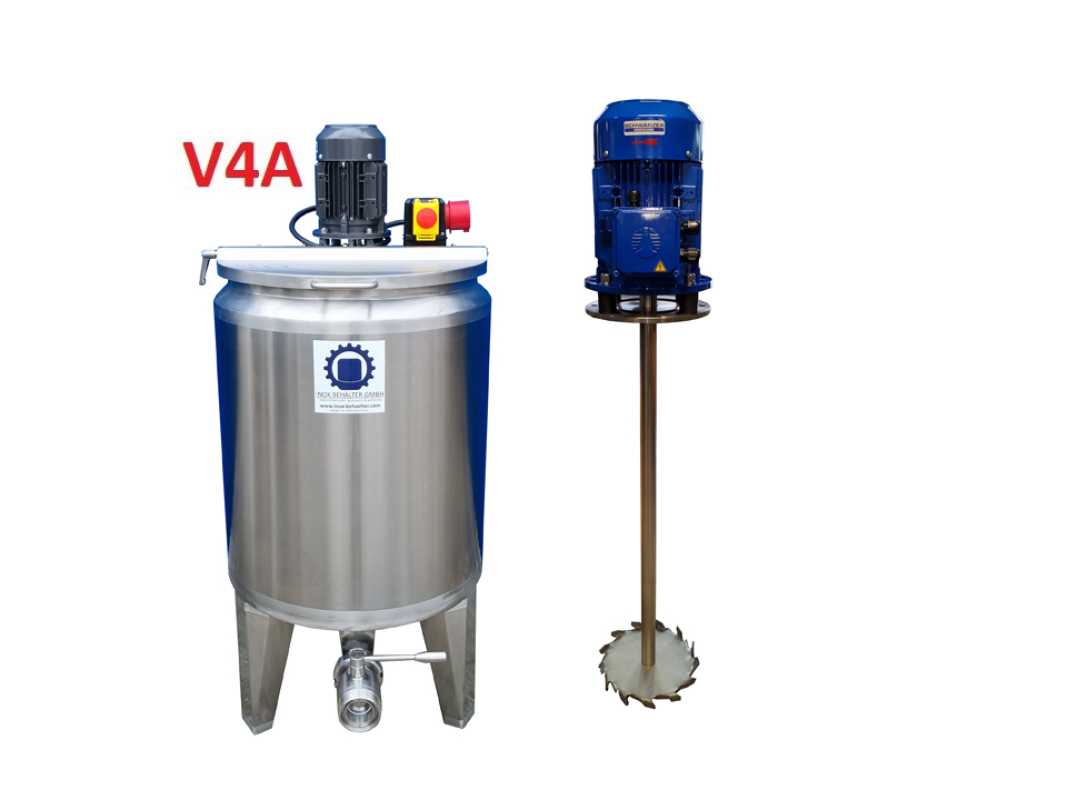

Agitator:
Dissolver
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRT7P-1000
Power: 0,55KW
RPM: 1410
Voltage: 3PH 400V
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece dissolverdisc at the end of the shaft,
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neopren rubber-buffers
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
