An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/cilc-stehende-standgefaesse

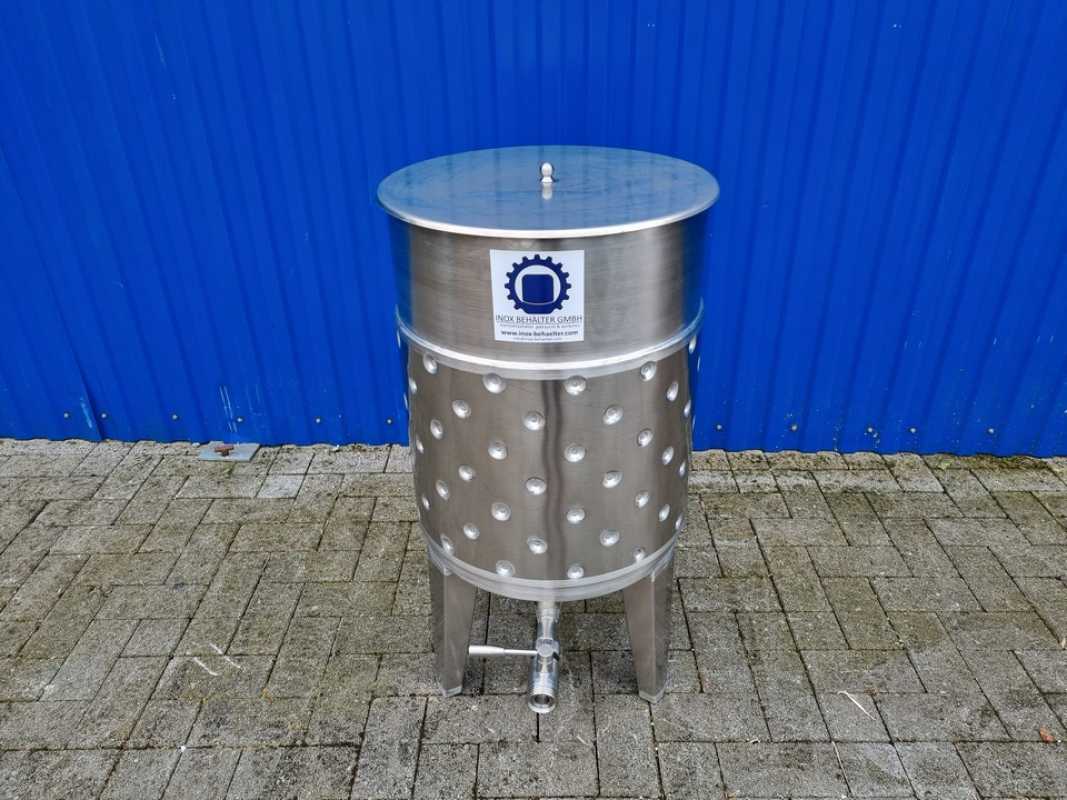

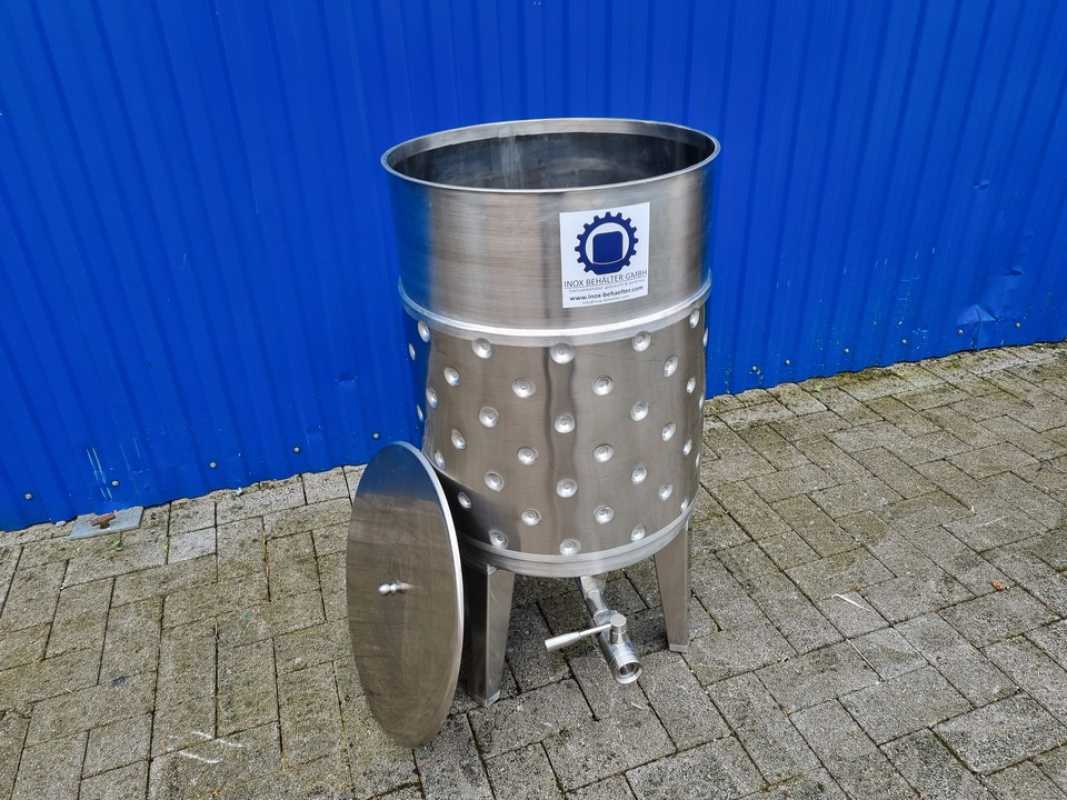

New heat-/coolable stainless steel tank
Type: CILC100BTPA4
Volume: 109L
Type: Standing on three feet
Single-wall with thermoplate
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Open with reinforced edge
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 477mm
Height: 930mm
Cyl. height: 600mm
Height of feet: 330mm
Accessoires:
-1x thermoplate H=400mm around the cylinder, in-/outlet 3/4" male
- 1pc thermoplate on bottom, in-/outlet 3/4"
-Outlet 1x Ball valve DN25 DIN11851
-1x nameplate
