97L electrically heated stainless steel mixing tank with cup stirrer

Product No.:: EBB90RWB
Shipping time:: *aprox. 1-2 weeks (abroad may vary)
Stock:: pieces

Material:

Speed control by frequency inverter:

from 4.965,00 EUR

excl. Shipping costs

Description

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw/ebbrw-elektrisch-beheizte-ruehrwerksbehaelter-auf-rollen-60-500l/

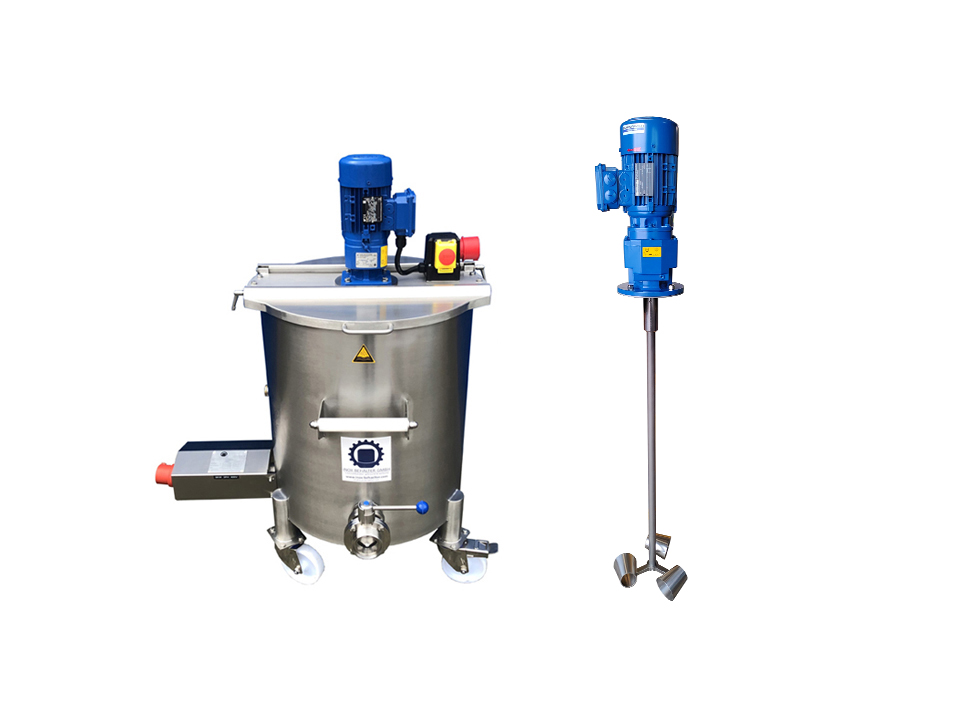

Brand new electrically heated stainless steel mixing tank
EBB90RWB
Volume: 97L
Dimensions aprox.: Ø 540mm x cyl. height 625mm
Total height: 910mm (+agitator motor)
Surface: Inside and outside brushed
Weldings grinded
Operating temperature max.: 110°C
Operating pressure max.: ATM
-Standing on three feet with wheels
-Top: Hinge lid, 1/2 screwed to the tank, 1/2 can be openend, stainless steel grid under the lid (can be removed)
-Bottom: Flat bottom with side outlet DN50 DIN11851 with butterfly valve
-Agitator flange on top
-2x grip on the side
-1x nameplate

Heating system:
Indirectly heated
Double jacket around the cylinder filled with glycerin.
Heating through electric heating element in the double jacket.
Thermostat starting at 60°C
Power: 6KW
Voltage: 3PH 400V
Including cable and plug 16A CEE

Agitator:
Cup stirrer
Type: SRTGMK/0,37-180
Fabricat: Schwarzer Rührtechnik GmbH
Power: 0,37KW
RPM: 180
Voltage: 3PH 400V

-Motor and gear fabricated by Getriebebau NORD
-Food conform oil filling in the gear "Klüber"
-Massive shaft mounted to the motor with coupling
-Shaft balanced for concentricity
-1pc 3-arm cup stirrer at the end of the shaft, welded type, pickled and passivated
-Stainless steel flange with shaft sealing, EPDM/NBR

Control unit agitator:
CEE switch/plug on the tank, On-/Off switch, zero voltage release, emergency shut-off
