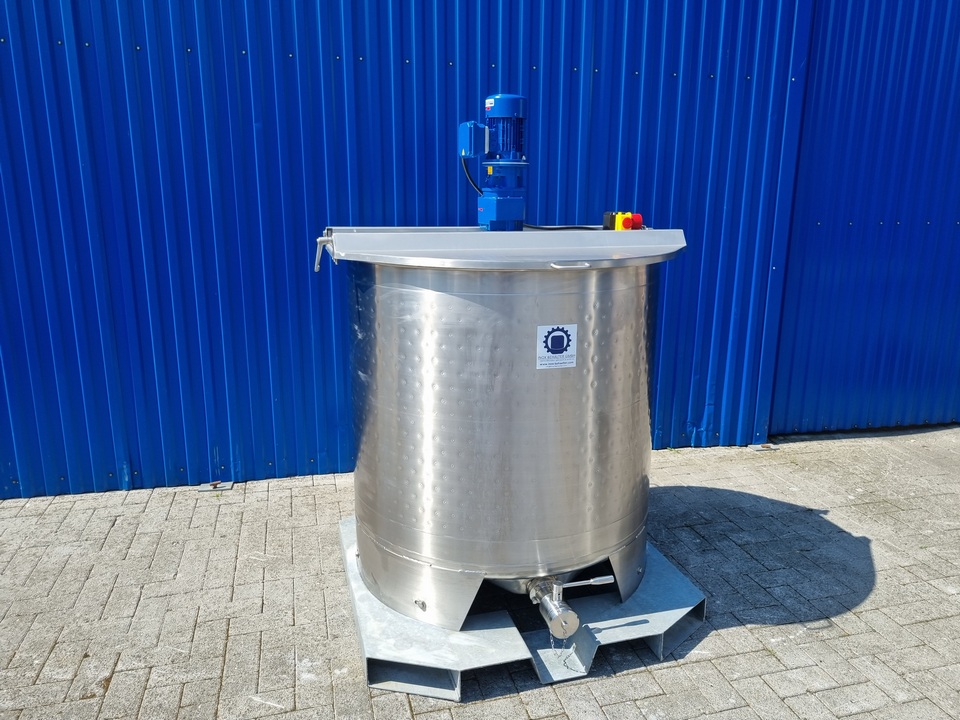

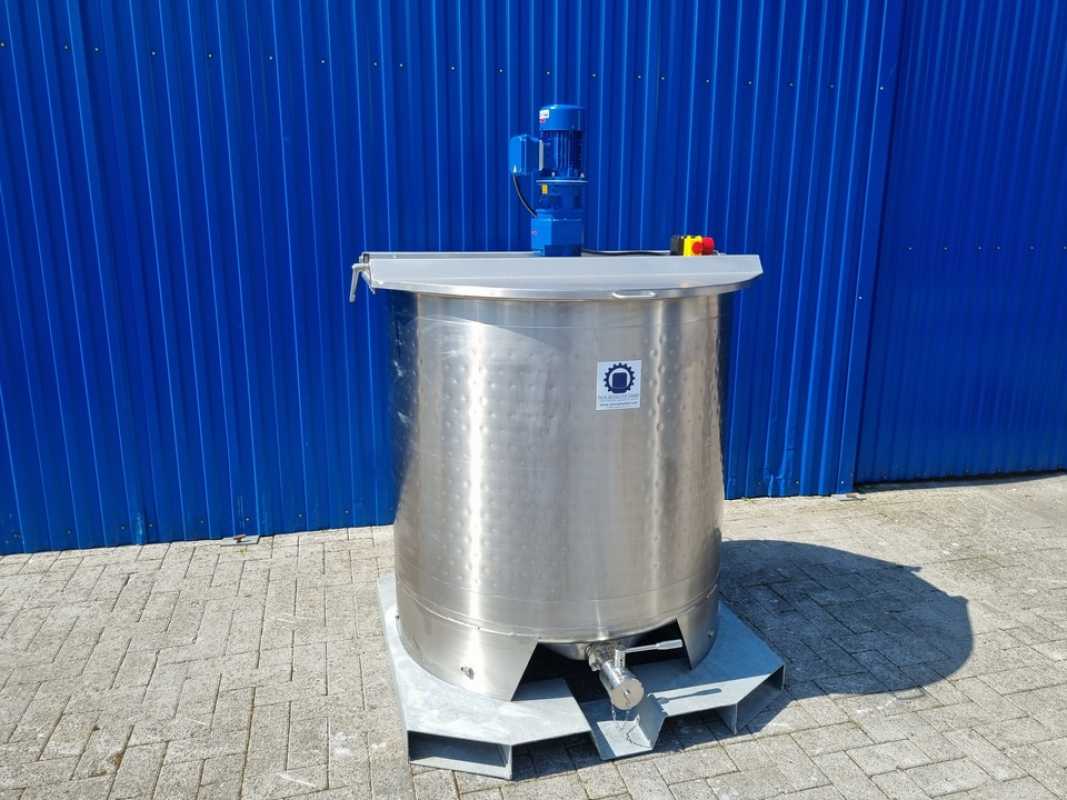

907L heat-/coolable stainless steel transport with cup stirrer agitator

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/transportbehaelter-typ-sbpa-130-2150l-einfaches-rohstoffhandling/

New heat-/coolable stainless steel transport and agitator vessel
Typ: SBPA1000TPRWB
Volume: 907 Liters
Type: Standing on galvanized pallet
Single-wall with thermoplate
Material: AISI304 stainless steel
Surface: Outside satinated, inside BA
Weldings inside: Pickled, passivated and brushed
Opeerating pressure thermoplate: Max. 3Bar
Top: Open with reinforced edge
Bottom: Dished bottom with drainage

Dimensions:
Tank diameter: 1080mm
Total height: 1230m (+ agitator motor)
Palett: 1150 x 1200mm

Accessoirs:
1x thermoplate H=400mm around the cylinder, in-/outlet 3/4" male
Lid AISI304 with 2 grips

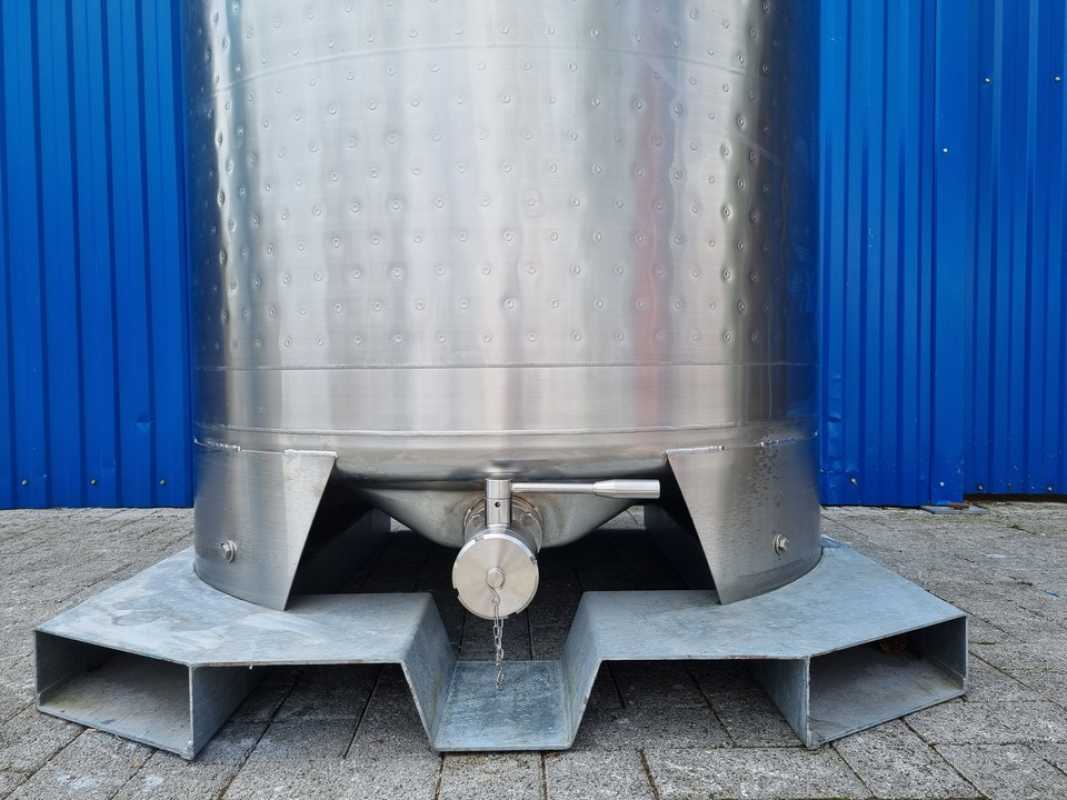

Outlet DN50 DIN11851 ball valve
Galvanized transport pallet
Nameplate

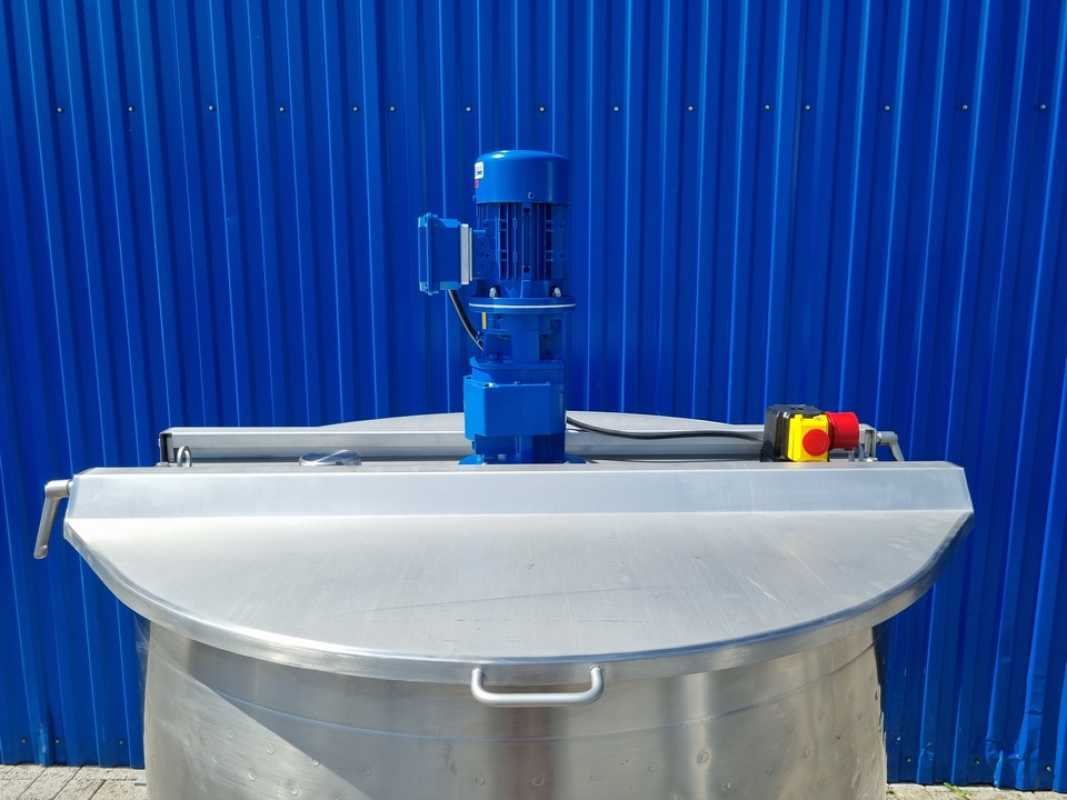

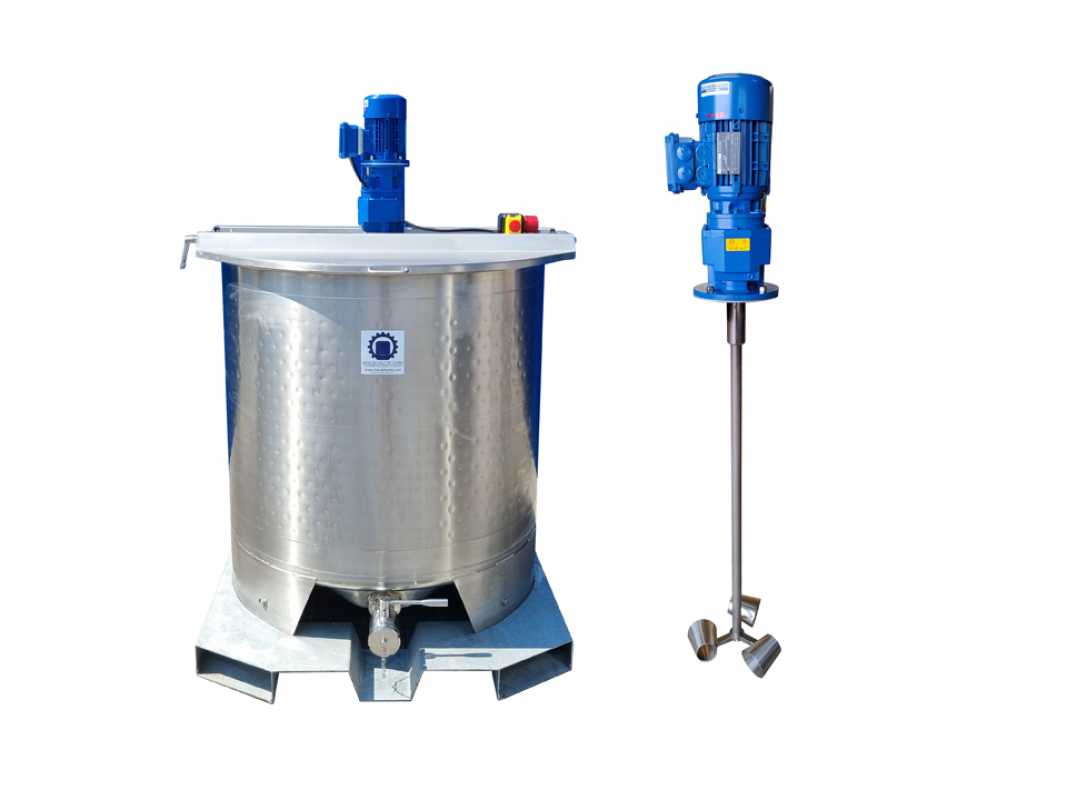

Agitator:
Type: SRTGSI50/0,75-190
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 190 rpm
Voltage: 3PH 400V

-Motor und Getriebe in neuester Aluminiumtechnologie, Fabrikat Getriebebau NORD
-Massive Rührwelle doppelt im Getriebemotor gelagert
-Rührwelle ausgewuchtet für Rundlauf im Drehzahlbereich
-1 Stück Becherrührer am Ende der Rührwelle, Oberfläche gebeizt und passiviert
-Edelstahl Flansch, Dichtung V-Ring, EPDM

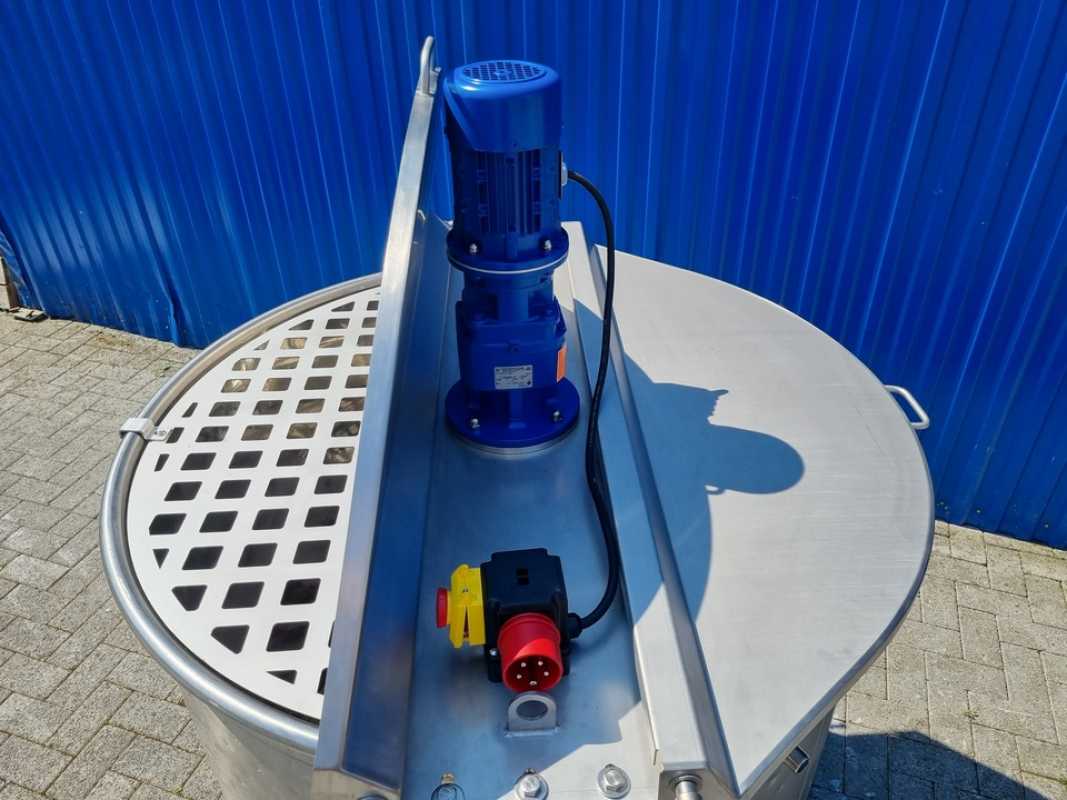

Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop

Shipping by transport company! Freight and packing charges will be offered separately!
