907L heat-/coolable stainless steel transport with anchor agitator

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/transportbehaelter-typ-sbpa-130-2150l-einfaches-rohstoffhandling/

New heat-/coolable stainless steel transport and agitator vessel
Type: SBPA1000TPRWA
Volume: 907 Liters
Type: Standing on galvanized pallet
Single-wall with thermoplate
Surface: Outside satinated, inside BA
Weldings inside: Pickled, passivated and brushed
Opeerating pressure thermoplate: Max. 3Bar
Top: Open with reinforced edge
Bottom: Dished bottom with drainage

Dimensions:
Tank diameter: 1080mm
Total height: 1230m (+ agitator motor)
Palett: 1150 x 1200mm

Accessoirs:

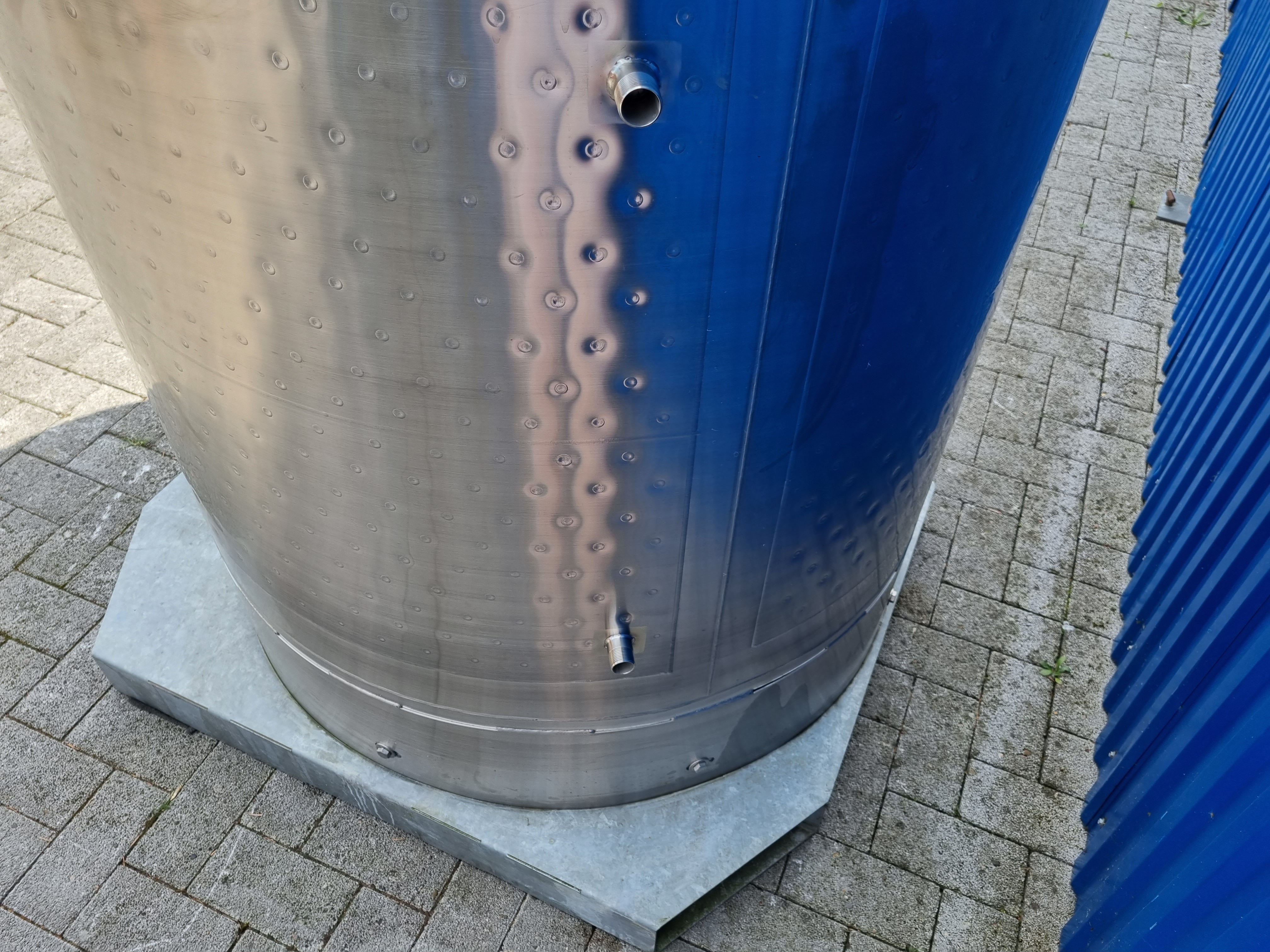

1x thermoplate H=400mm around the cylinder, in-/outlet 3/4" male
Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
Outlet DN50 DIN11851 ball valve
Galvanized transport pallet
Nameplate

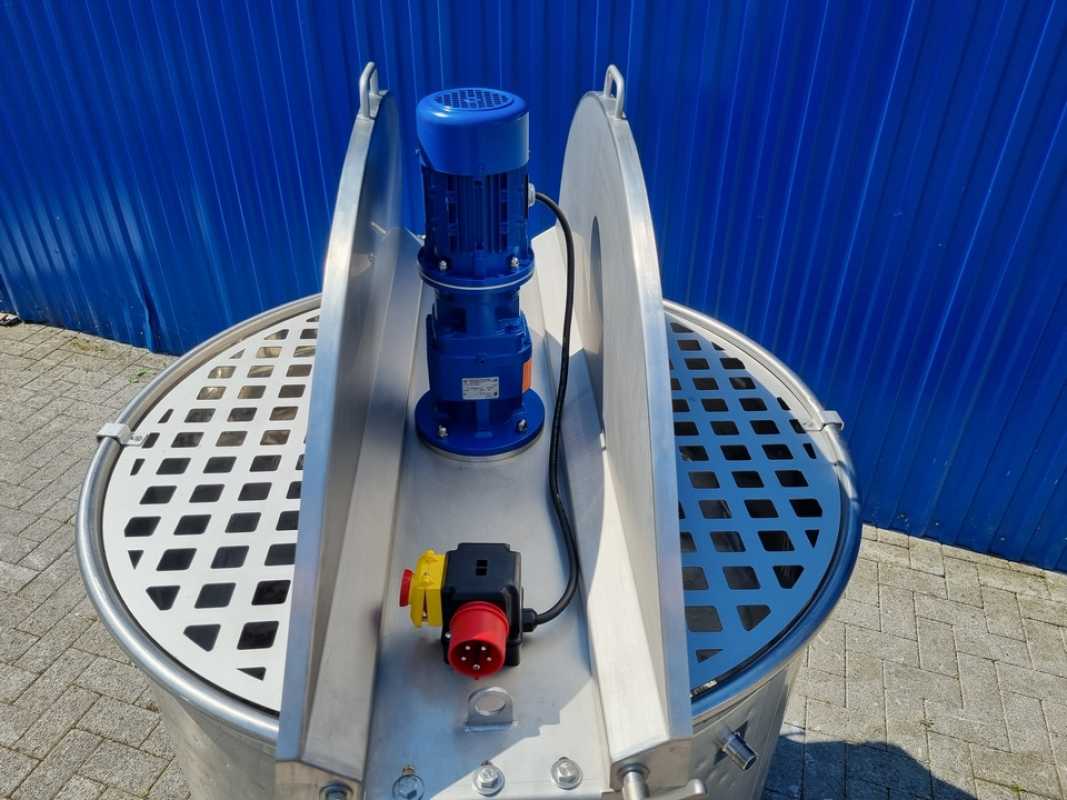

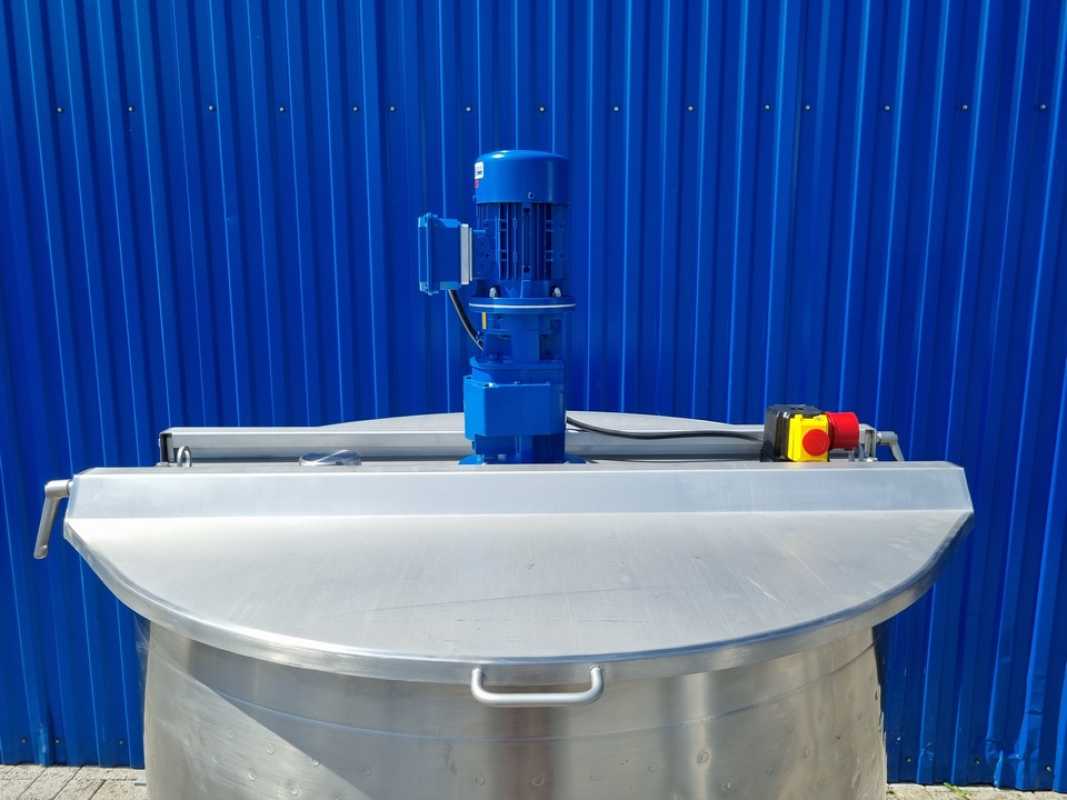

Agitator:

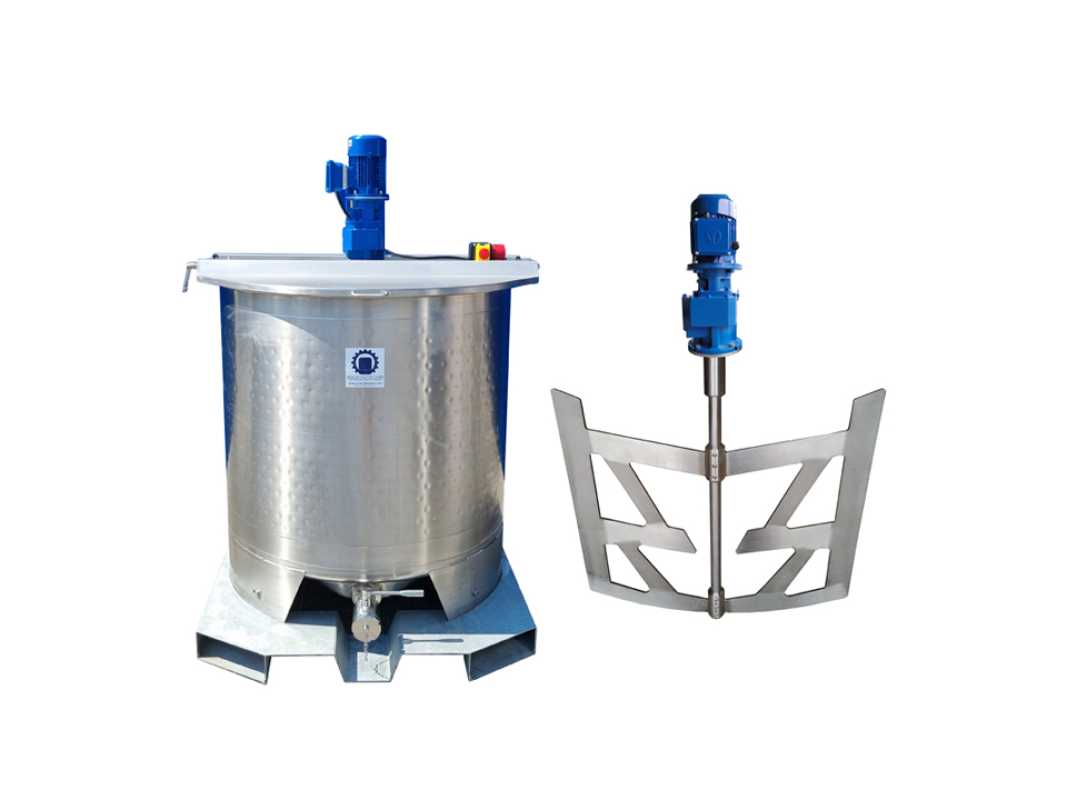

Anchor agitator
Typ:SRTGMK/0,75-13
Fabricate: Schwarzer Rührtechnik GmbH
Power: 0,75KW
RPM: 13
Voltage: 3PH 400V

-Motor and gear fabricated by Getriebebau NORD
-Massive shaft mounted to the gear with coupling
-Shaft balanced for concentricity
-Anchor stirrer, welded type, weldings brushed
-Stainless steel flange with V-Ring seal, EPDM

Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop

Shipping by transport company! Freight and packing charges will be offered separately!
