Name: 550L stainless steel transport vessel with cup stirrer agitator
SKU: SLA550RWB
Price: 5310.00 EUR
Availability: InStock

Main page » Stainless steel transport container 150-2000L » 550L stainless steel transport vessel with cup stirrer agitator

Preview: 550L stainless steel transport vessel with cup stirrer agitator

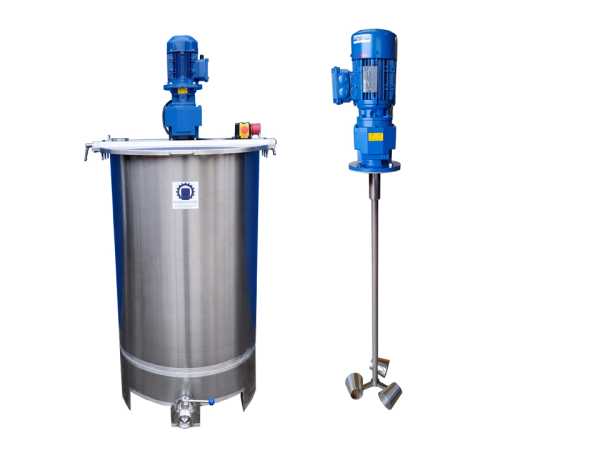

550L stainless steel transport vessel with cup stirrer agitator

Mobile Preview: 550L stainless steel transport vessel with cup stirrer agitator

Description

Description

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/transportbehaelter-typ-sbpa-130-2150l-einfaches-rohstoffhandling/

New stainless steel vessel with agitator Type: SLA550RWB
Volume: 550L
Type: Standing on forklift base
Single-wall
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Top: Open with reinforced edge
Bottom: Dished with side outlet

Dimensions tank:
Diameter: 650mm
Height: Aprox. 1400mm (+ agitator motor)
Cyl. height: 1100mm
Height of feet: 300mm

Accessoires:
Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
-Outlet 1x butterfly valve with EPDM seal
-1x nameplate

Agitator:
Type: SRTGSI/0,75-190
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 190 rpm
Voltage: 3PH 400V

-Motor and gear fabricated by Getriebebau NORD
-Massive shaft mounted to the motor with coupling
-Shaft balanced for concentricity

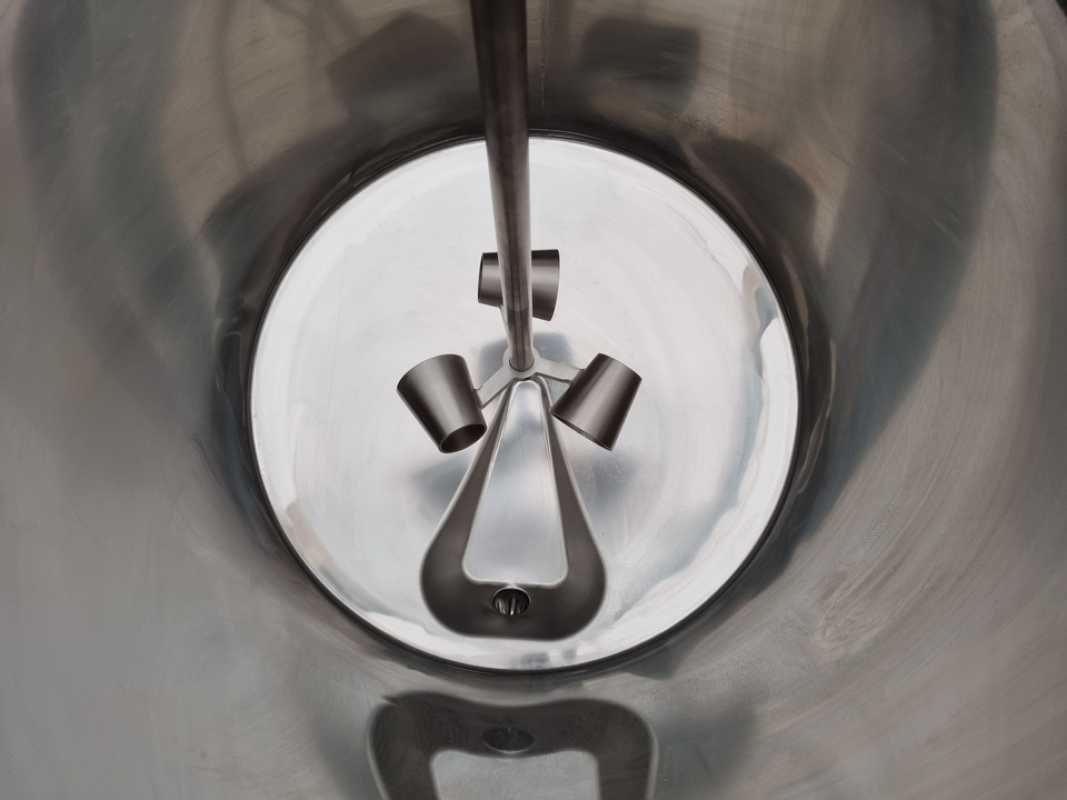

-1 piece cup stirrer at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM

Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop

Shipping by transport company! Freight and packing charges will be offered separately!

For more information, please visit the home page for this product.
