An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:

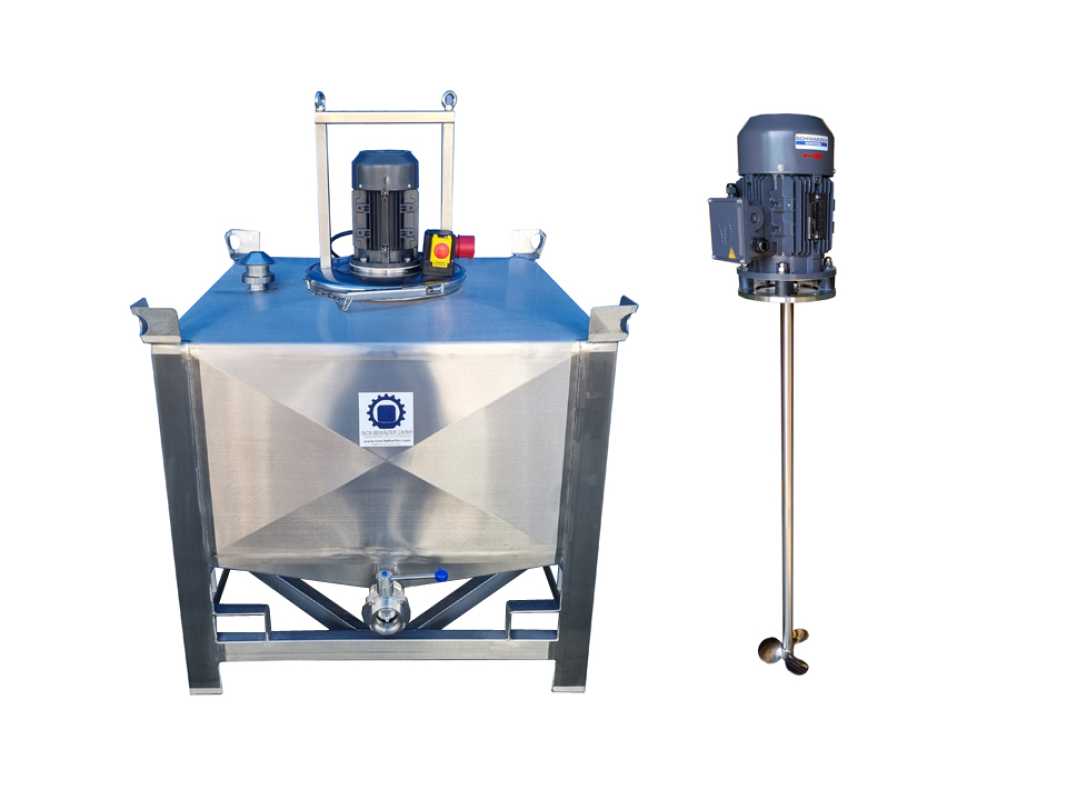

https://inox-behaelter.com/ruehrwerksbehaelter-500-1500l-typ-plrw/ New stainless steel vessel with propellermixer
Type: KC500RWP
Volume: 500L
Type: Standing in stainless steel frame
Single-wall
Surface: Outside satinated, inside BA
Weldings: Inside pickled and passivated, outside satinated
Operating pressure tank: ATM
Top: Flat
Bottom: Flat
Dimensions tank:
Total width: 1050 mm
Tank Diameter: 1000mm
Tank Height: 1000mm (+ agitator motor)
Accessoires:
1x Ø 400mm lid in the center
1x DN50 DIN11851 Ball valve or butterlfy valve (choose)
1x DN50 stainless steel ventilation valve
1x nameplate
Agitator:
Propellermixer
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRT8-1500
Power: 0,75KW
RPM: 1410
Voltage: 3PH 400V
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece mixing propeller at the end of the shaft, surface mirror polished
-Stainless steel lid with flange, sealing V-Ring, EPDM
-Motor beared on 4x neoprene rubber buffers
Shipping by transport company! Freight and packing charges will be offered separately!
