An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/transportbehaelter-typ-sbpa-130-2150l-einfaches-rohstoffhandling/

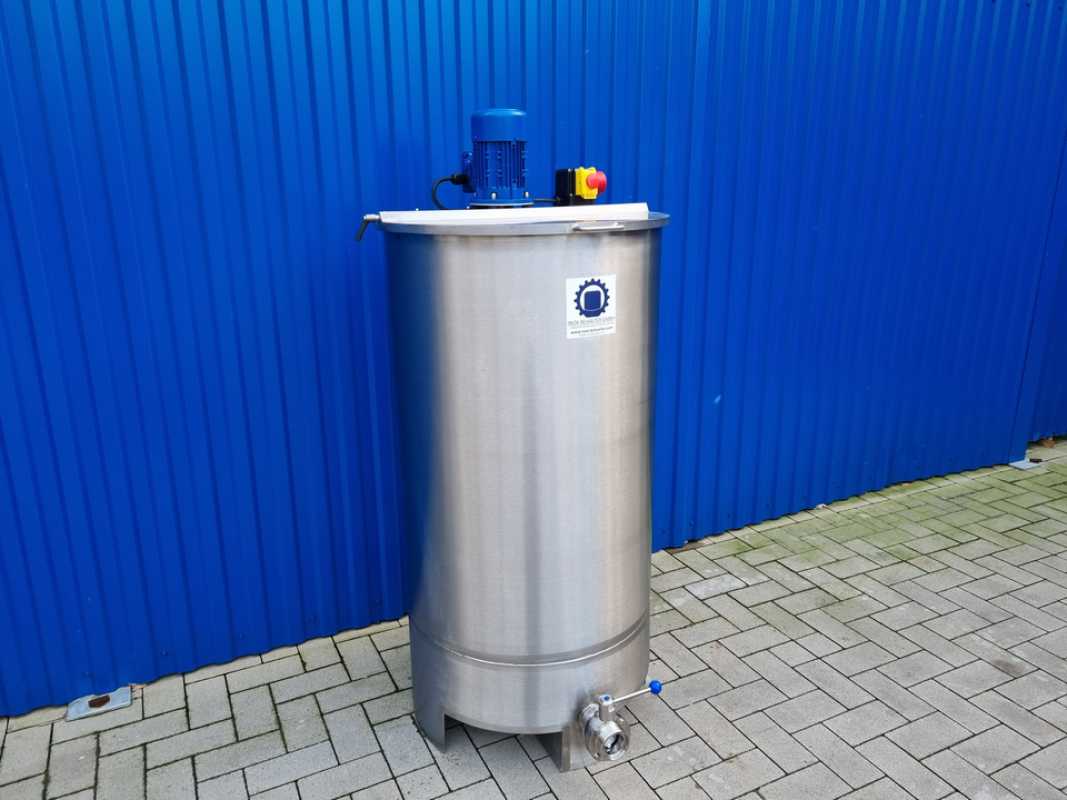

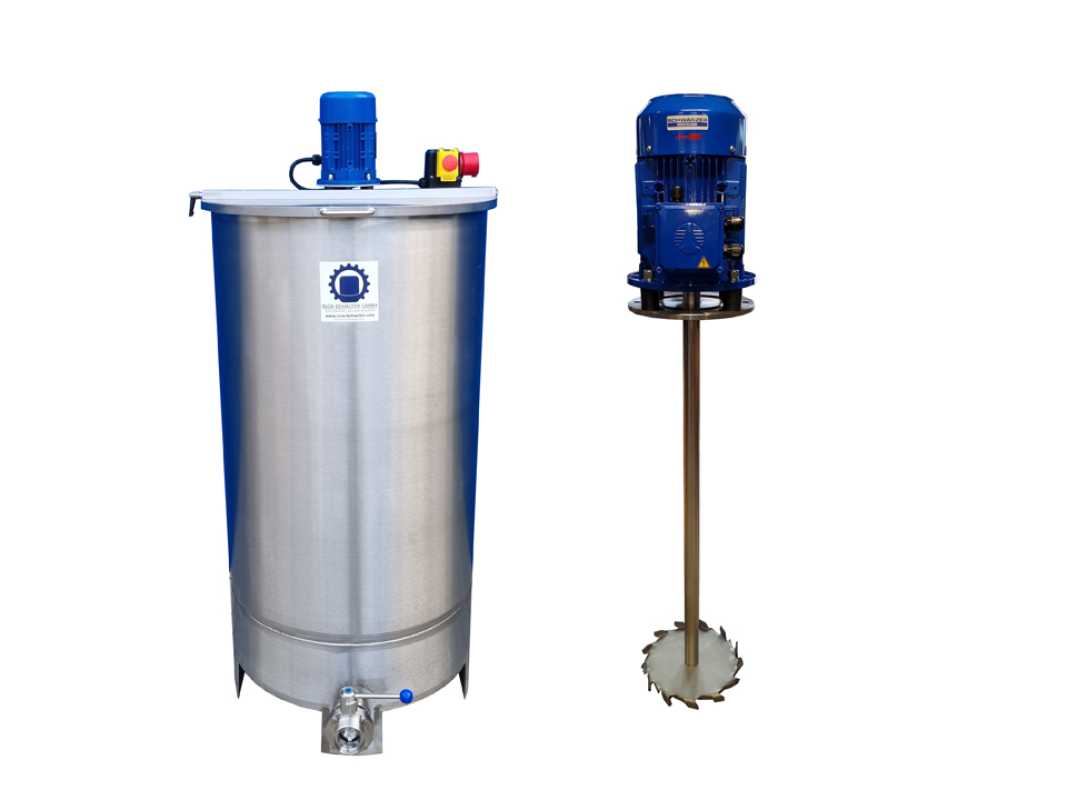

New stainless steel vessel with agitator
Type: SLA300RWD
Volume: 337L
Type: Standing on forklift base
Single-wall
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Top: Open with reinforced edge
Bottom: Dished with side outlet
Dimensions tank:
Diameter: 650mm
Height: Aprox. 1300mm (+ agitator motor)
Cyl. height: 1100mm
Height of feet: 300mm
Accessoires:

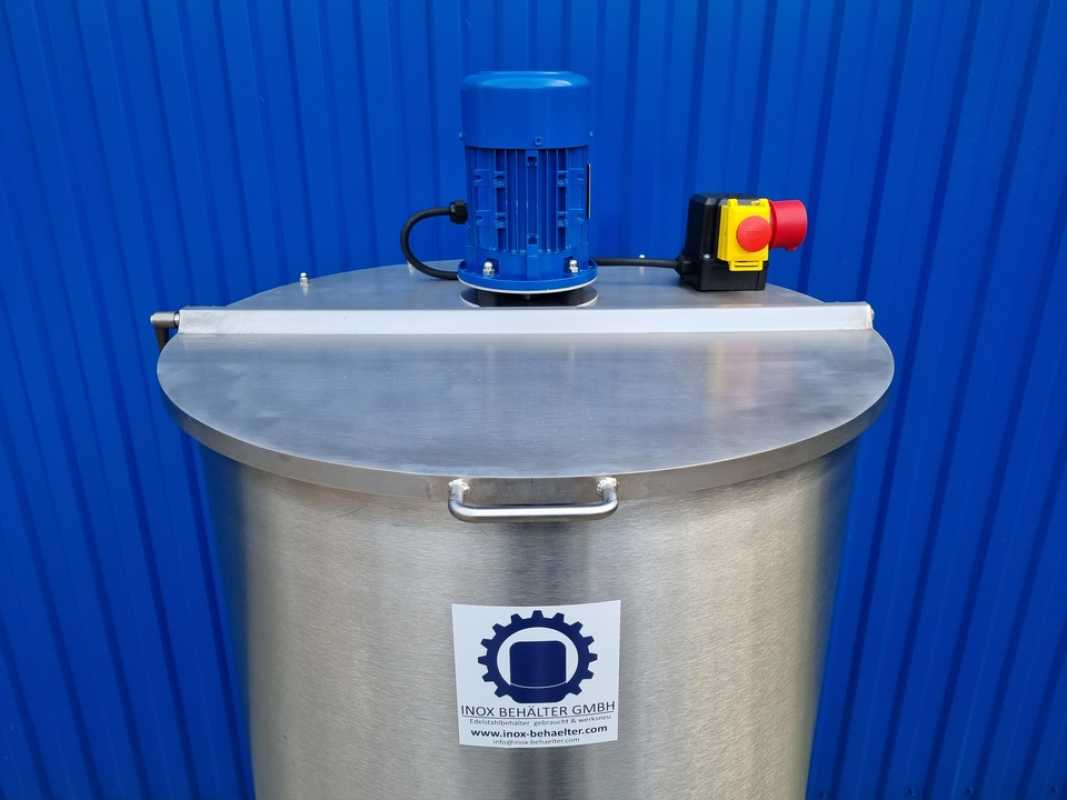

Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
-Outlet 1x butterfly valve with EPDM seal
-1x nameplate
Agitator:
Dissolver
Type:SRTDMK/4,0-1500
Make: Schwarzer Rührtechnik GmbH
Power: 4,0 kw
Speed: 1410 rpm
Voltage: 3PH 400V
-Massive shaft mounted to the motor mit coupling, can not be dismounted
-Shaft balanced for concentricity

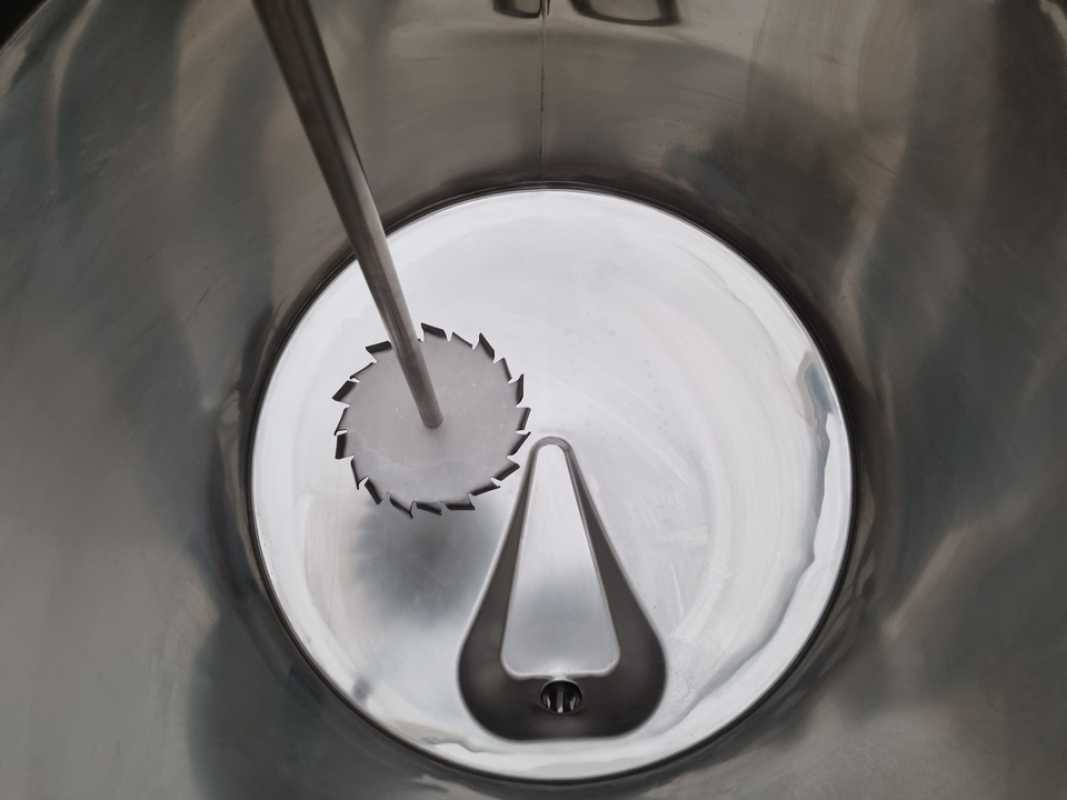

-1 piece Dissolverdisc at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neoprene rubber buffers
Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop
Shipping by transport company! Freight and packing charges will be offered separately!
