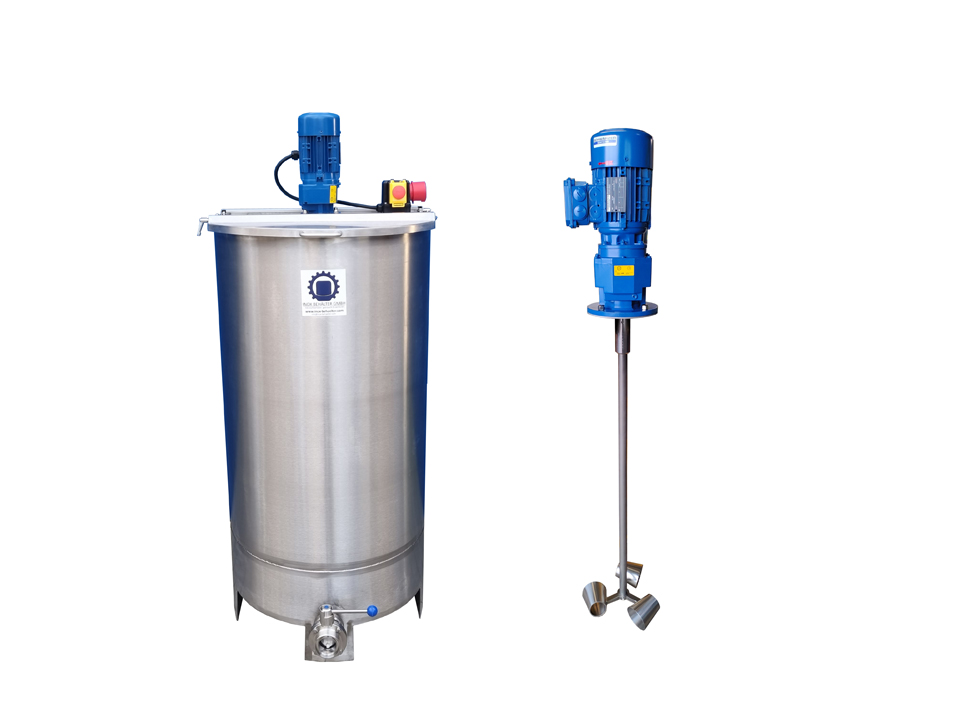

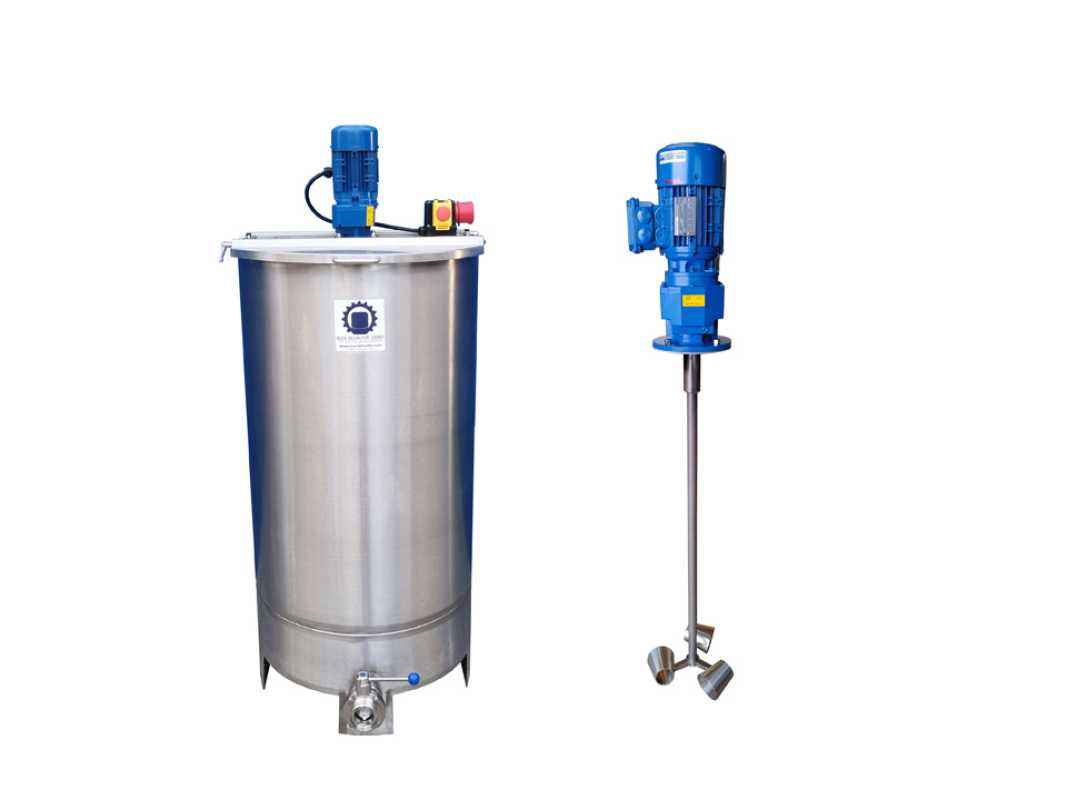

New stainless steel vessel with agitator
Type: SLA300RWP
Volume: 337L
Type: Standing on forklift base
Single-wall
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Top: Open with reinforced edge
Bottom: Dished with side outlet
Dimensions tank:
Diameter: 650mm
Height: Aprox. 1300mm (+ agitator motor)
Cyl. height: 1100mm
Height of feet: 300mm
Accessoires:
Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
-Outlet 1x butterfly valve with EPDM seal
-1x nameplate
Agitator:
Type:SRTGSI/0,75-190
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 190 rpm
Voltage: 3PH 400V
-Motor and gear fabricated by Getriebebau NORD
-Massive shaft mounted to the motor with coupling
-Shaft balanced for concentricity
-1 piece cup stirrer at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM
Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop
Shipping by transport company! Freight and packing charges will be offered separately!
