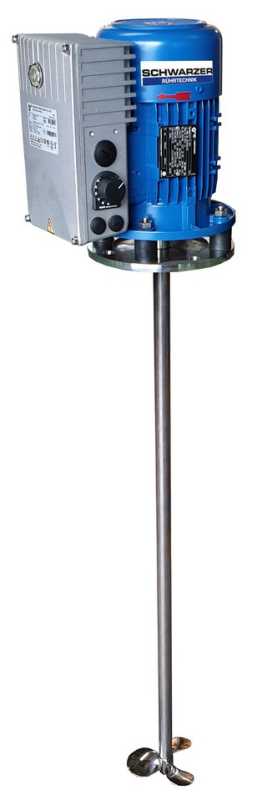

3,0 KW agitator with frequency converter IP55 | High-speed mixer
3,0 KW agitator with frequency converter IP55 | High-speed mixer
3,0 KW agitator with frequency converter IP55 | High-speed mixer

3,0 KW agitator with frequency converter IP55 | High-speed mixer

Product No.:
SRT3-0-1500-SK200E-carton on palet BG100/112
Approx.3-4 weeks Approx.3-4 weeks (abroad may vary)
from 2.528,00 EUR

excl. Shipping costs

Add to wish list
Description
High speed mixer / Propeller agitator for liquids similar to water.
Suitable for up to 5000 liter tank volume for turbulent mixing.**
With mounted frequency converter IP55
With stainless steel protection flange​
With coupling for shaft
  • Power: 3,0 KW
  • Speed: 0-1410 rpm infinitely variable
  • Spannungseingang Frequenzumrichter: 3 phases 400 V 50/60 Hz
  • Rotary control: 0-100%
  • Motor mit 3 thermistors (PTC)
  • Material in contact with product: 1.4404 stainless steel (AISI316)
  • Maximum liquid temperature: 60°C
  • High-speed mixer with solid, non-removable agitator shaft
  • Maximum shaft length: 1600mm
  • Agitator shaft balanced for concentricity in the speed range
  • 1 piece 3-blade mixing propeller Ø=225mm screwed in at the end of the agitator shaft
  • Mixing propeller made of cast stainless steel, mirror finish polished​
  • Flange dimensions: AØ=250mm/LKØ=215mm(4xØ=14mm)/ZØ=flat
PP/PVDF coating only immersed parts up to coupling.

** Depending on viscosity, density, container shape and arrangement.

This product is similar to:

SRT3-0-1500 High-speed mixer / Propeller agitator
SRT3-0-1500 High-speed mixer / Propeller...
High-speed mixer / Propeller agitator
Type: SRT3-0-1500
Power: 3,0 kW
Speed: 1400 rpm
Voltage: 3PH 400V 50/60 Hz
Motor with 3 thermistors (PTC)
Material in contact with product: 1.4404 stainless steel (AISI316L)
Maximum liquid temperature: 60°C
High-speed mixer with solid, non-removable agitator shaft.
Maximum shaft length: 1600mm
Agitator shaft balanced for concentricity in the rotational speed range.
1 piece 3-blade mixing propeller Ø=200mm screwed in at the end of the agitator shaft.
Mixing propeller made of a stainless steel casting, mirror finish polished.
Flange dimensions: AØ=250mm/LKØ=215mm(4xØ=14mm)/ZØ=180mm

Protection flange stainless steel:
Flange cover for motor with 10mm stainless steel flange (AISI304)
Stainless steel protective swing flange:
stainless steel flange (mounting flange). Motor on 4 rubber buffers. Therefore suitable for passage operation. (Filling/Draining while the agitator is in operation).
Reduces critical speed ranges during inverter operation.
Protection flange PP:
Motor flange cover with 20mm polypropylene flange.
from 912,00 EUR
