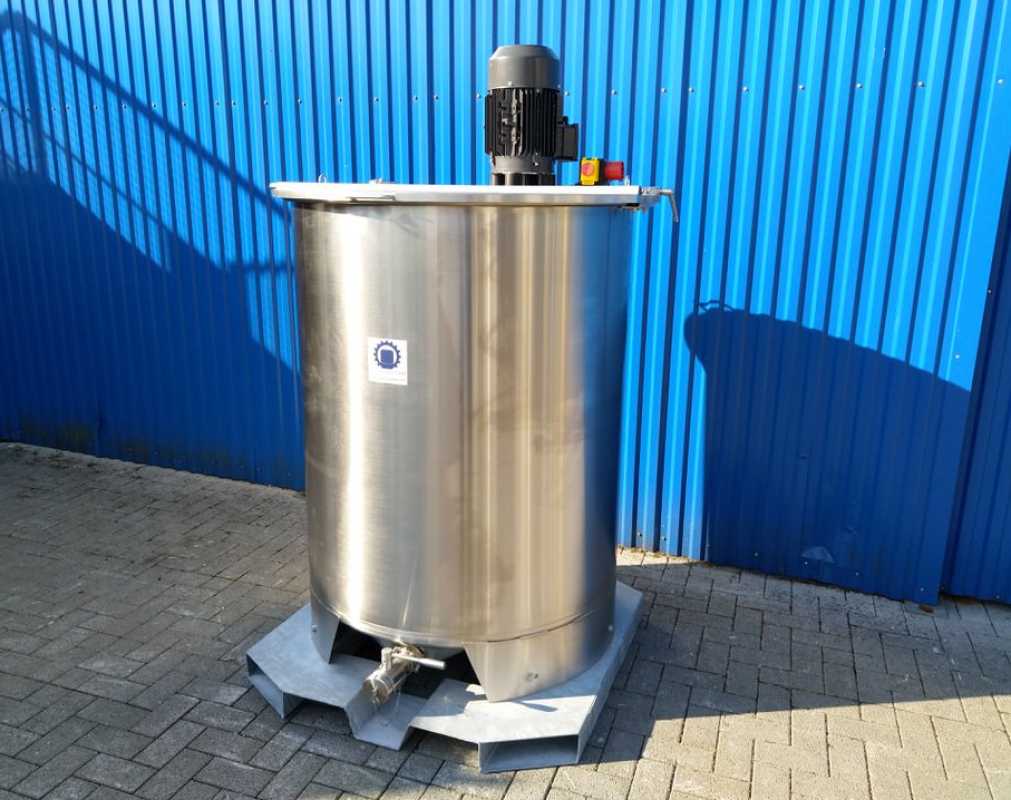

New stainless steel transport vessel with propeller mixer
Type: SBPA1250RWP
Volum: 1224L
Type: Standing on galvanized pallet
Single-wall
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Top: Open with reinforced edge

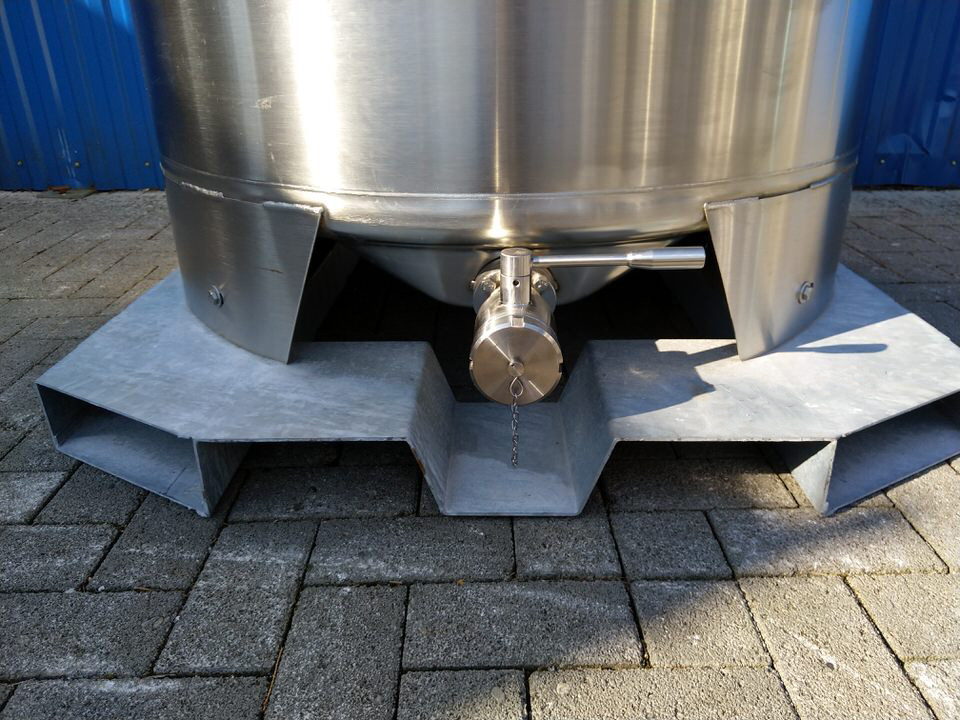

Bottom: Dished with side outlet
Dimensions tank:
Diameter: 1080mm
Pallet dimension: 1150x1200mm
Height: 1570mm
Accessoires:
-Outlet 1x Ball valve DN50 DIN11851, seals PTFE
-Galvanized transport pallet

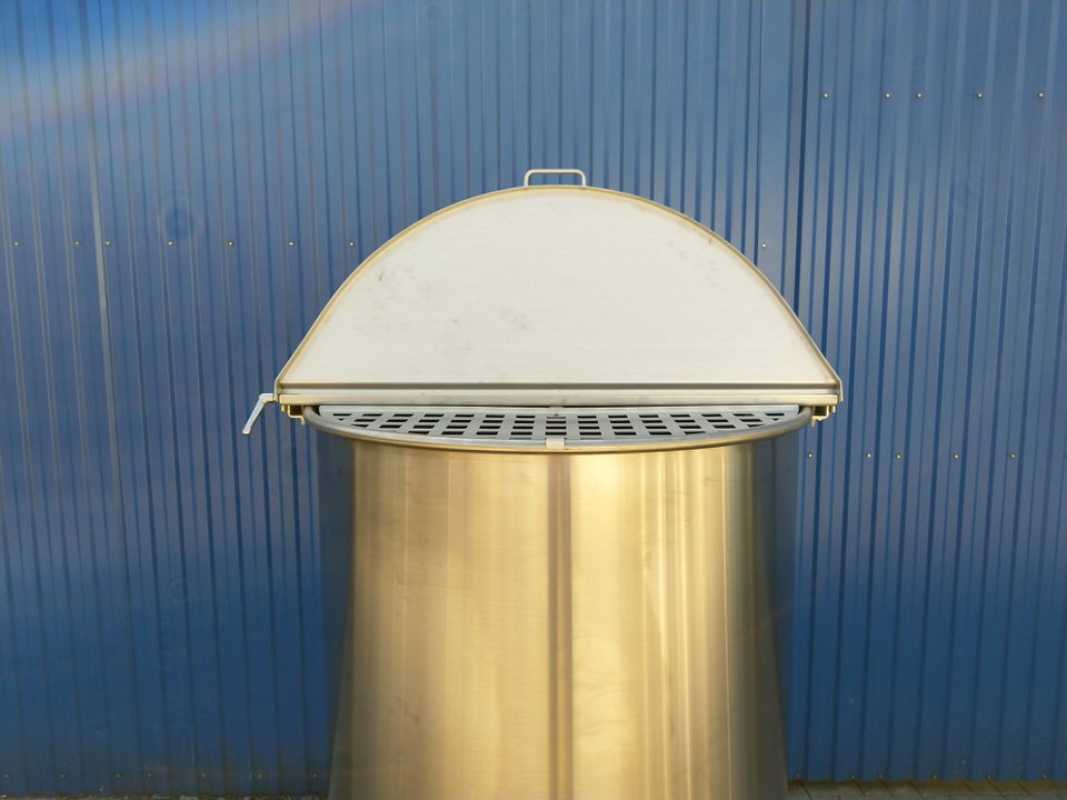

-1pc dust cover lid, stainless steel
-1x nameplat

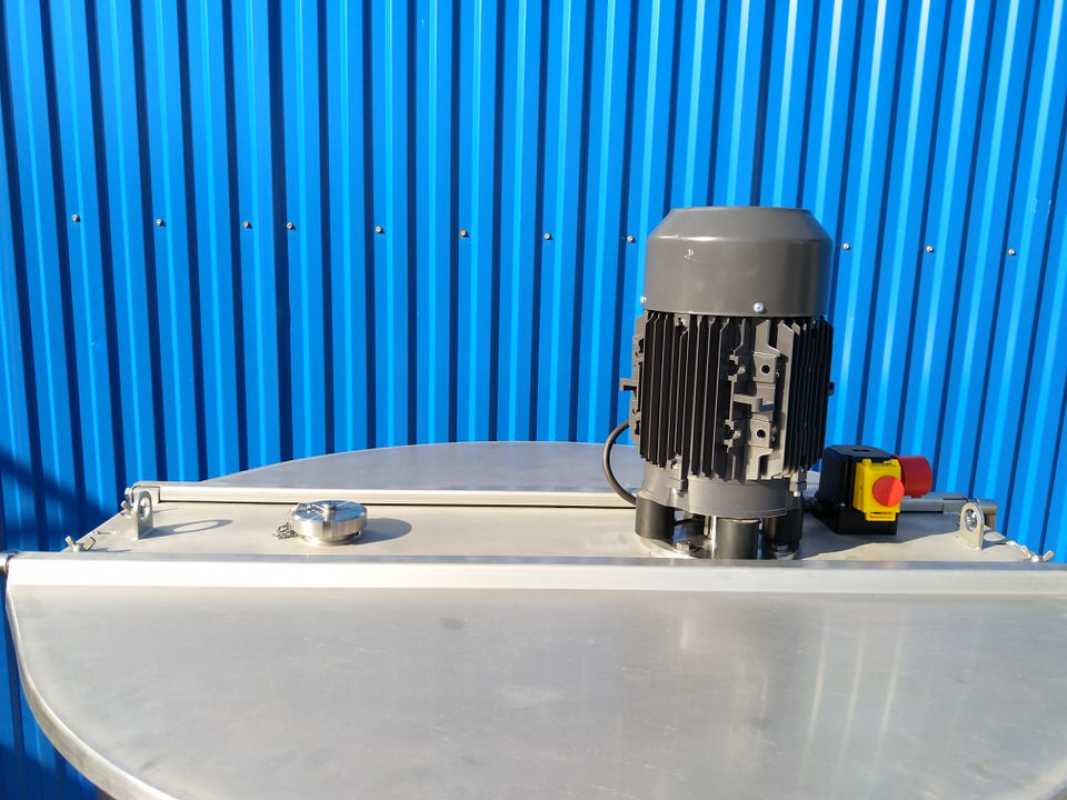

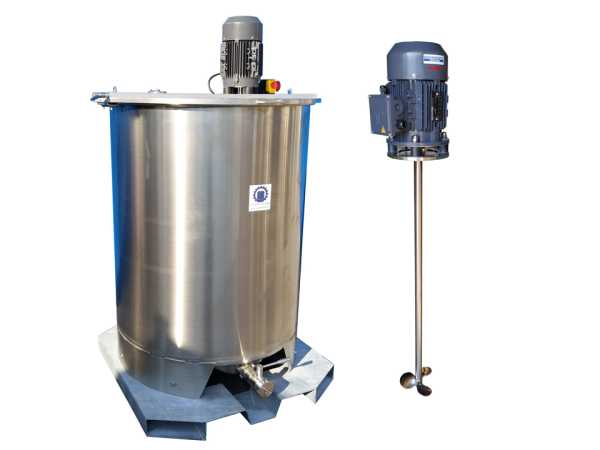

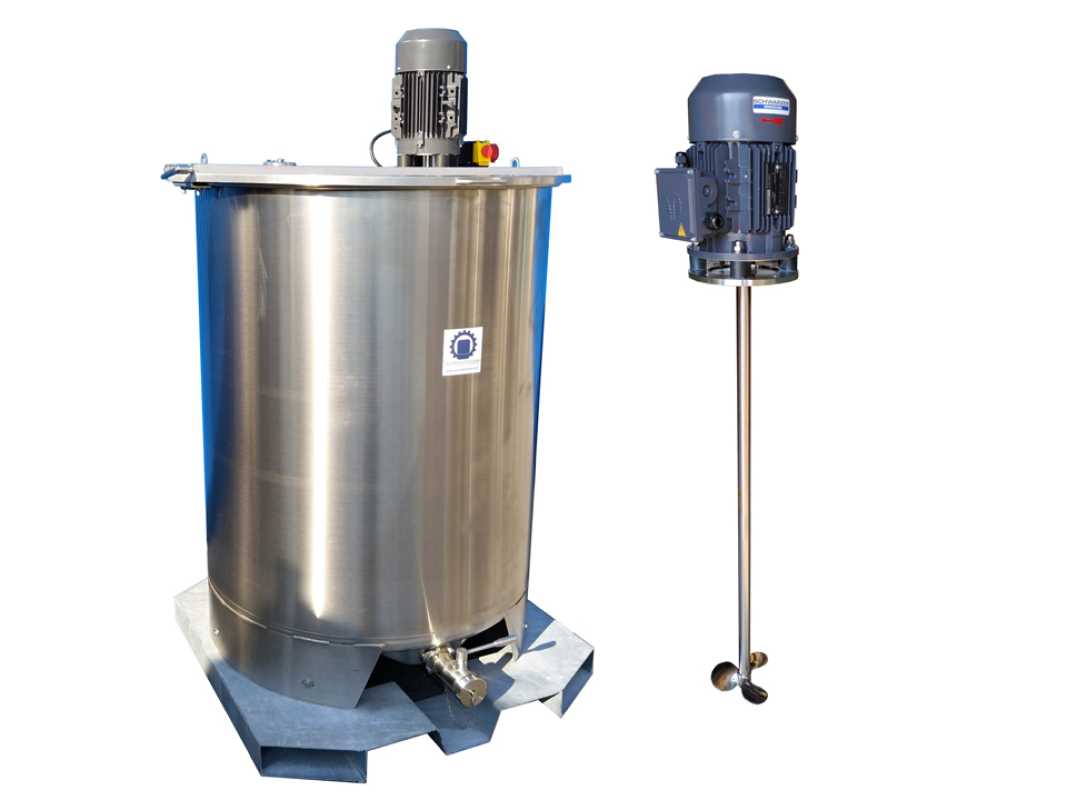

Agitator:
Type: SRT8-1500
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 1410 rpm
Voltage: 3PH 400V
-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range
-1 piece 3-blade mixing propeller at the end of the agitator shaft
Mixing propeller made of cast stainless steel, highly polished
-Stainless steel flange, sealing V-ring, EPDM
Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop
Shipping by transport company! Freight and packing charges will be offered separately!
