An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/stoc-stehende-behaelter100-40000l/

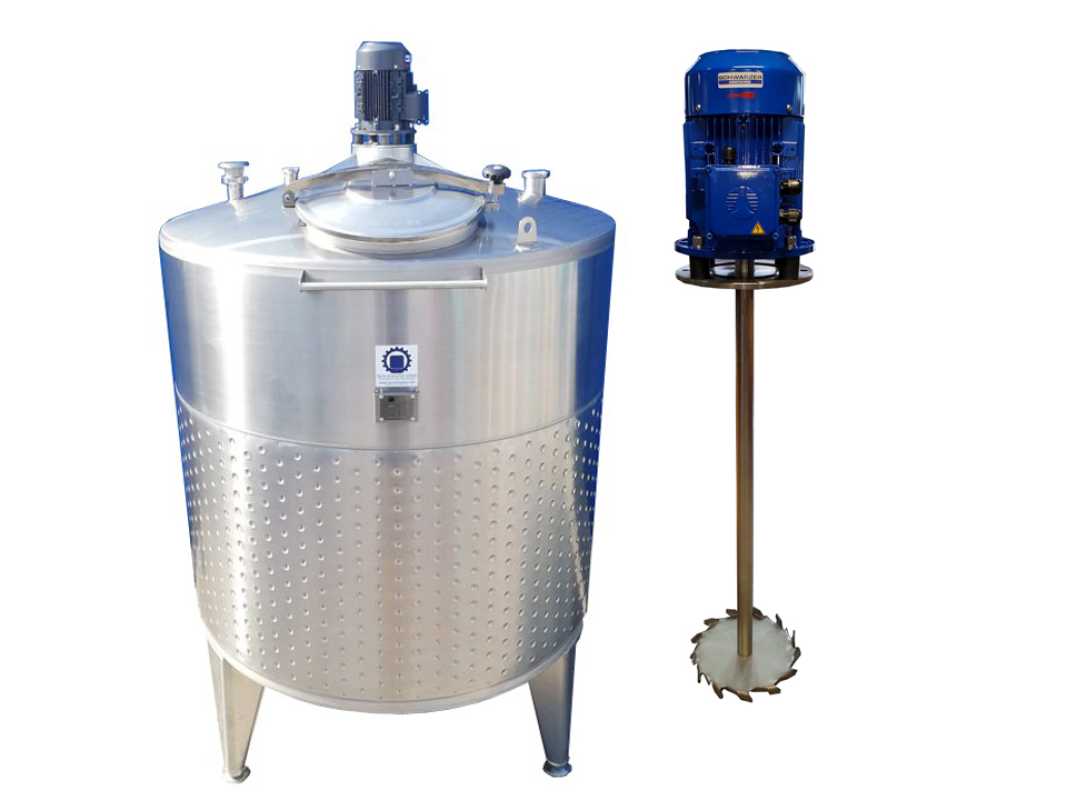

New stainless steel vessel with thermoplate with dissolver
Type: STOC3300TPRWD
Volume: Aprox. 3300L
Type: Standing on three height adjustable feet
Wall thickness: thermoplate on cylinder
Material in contact with product: AISI304 stainless steel
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Operating pressure thermoplate: Max. 1,8Bar
Top: Cone 15°
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 1600mm
Height: 2430mm + agitator motor
Cyl. height: 1500mm
Accessoires:
-1pc Ø 500mm lid on top, seal EPDM
-1pc ladder support welded to cylinder
-1pc thermoplate on cylinder H=900mm, In-/outlet 3/4"
-1pc agitator flange IEC250 on top with reinforcements
-1pc DN50 ventilation valve on top
-1pc DN50 DIN11851 male on top
-1pc DN65 DIN11851 male on top
-Outlet DN50 DIN11851 male
-1x nameplate
Shipping by transport company! Freight and packing charges will be offered separately!
