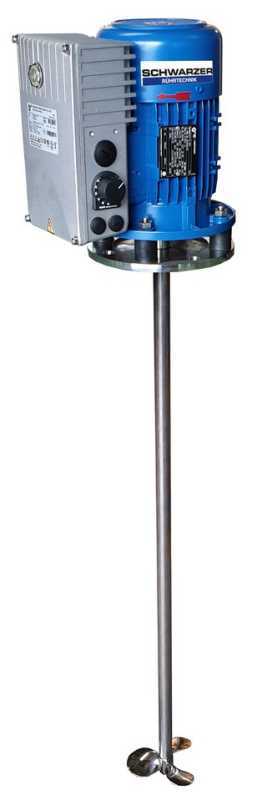

SRT2-2-1500 High-speed mixer / Propeller agitator
High-speed mixer / Propeller agitator
Type: SRT2-2-1500
Power: 2,2 kW
Speed: 1400 rpm
Voltage: 3PH 400V 50/60 Hz
Motor with 3 thermistors (PTC)
Material in contact with product: 1.4404 stainless steel (AISI316L)
Maximum liquid temperature: 60°C
High-speed mixer with solid, non-removable agitator shaft.
Maximum shaft length: 1600mm
Agitator shaft balanced for concentricity in the rotational speed range.
1 piece 3-blade mixing propeller Ø=200mm screwed in at the end of the agitator shaft.
Mixing propeller made of a stainless steel casting, mirror finish polished.
Flange dimensions: AØ=250mm/LKØ=215mm(4xØ=14mm)/ZØ=180mm
Protection flange stainless steel:
Flange cover for motor with 10mm stainless steel flange (AISI304)
Stainless steel protective swing flange:
10mm stainless steel flange (mounting flange). Motor on 4 rubber buffers. Therefore suitable for passage operation. (Filling/Draining while the agitator is in operation).
Reduces critical speed ranges during inverter operation.
Protection flange PP:
Motor flange cover with 20mm polypropylene flange.
