An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/mtlrw/

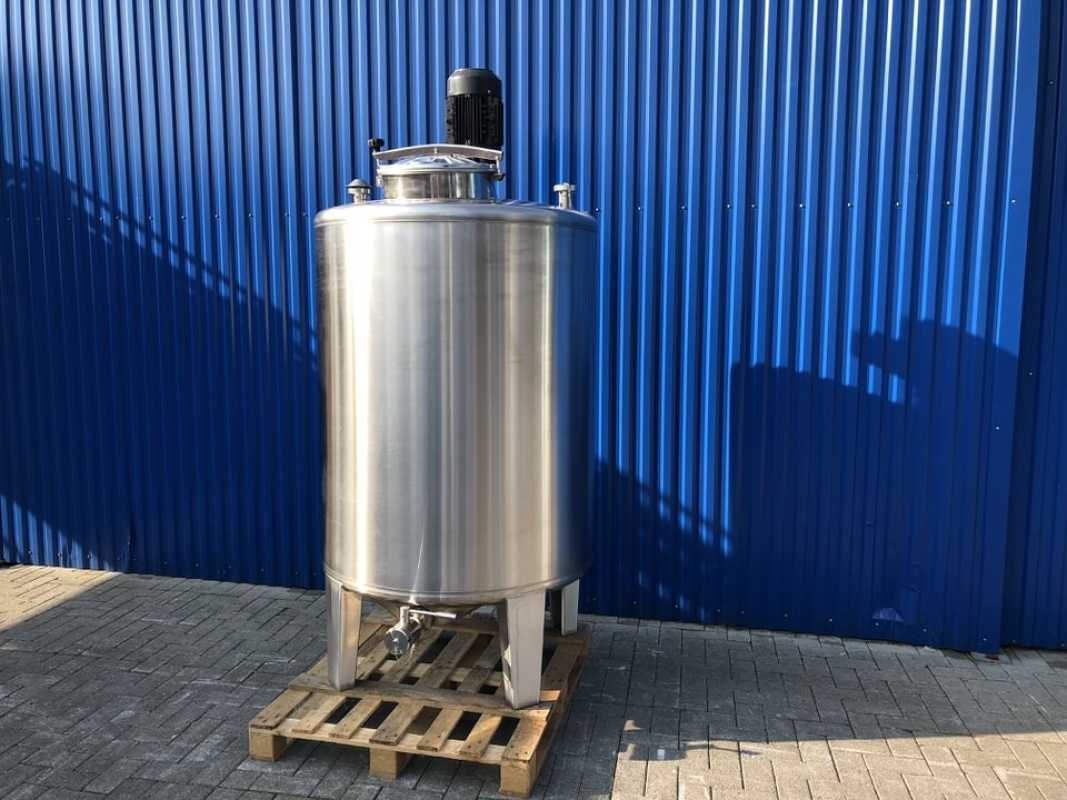

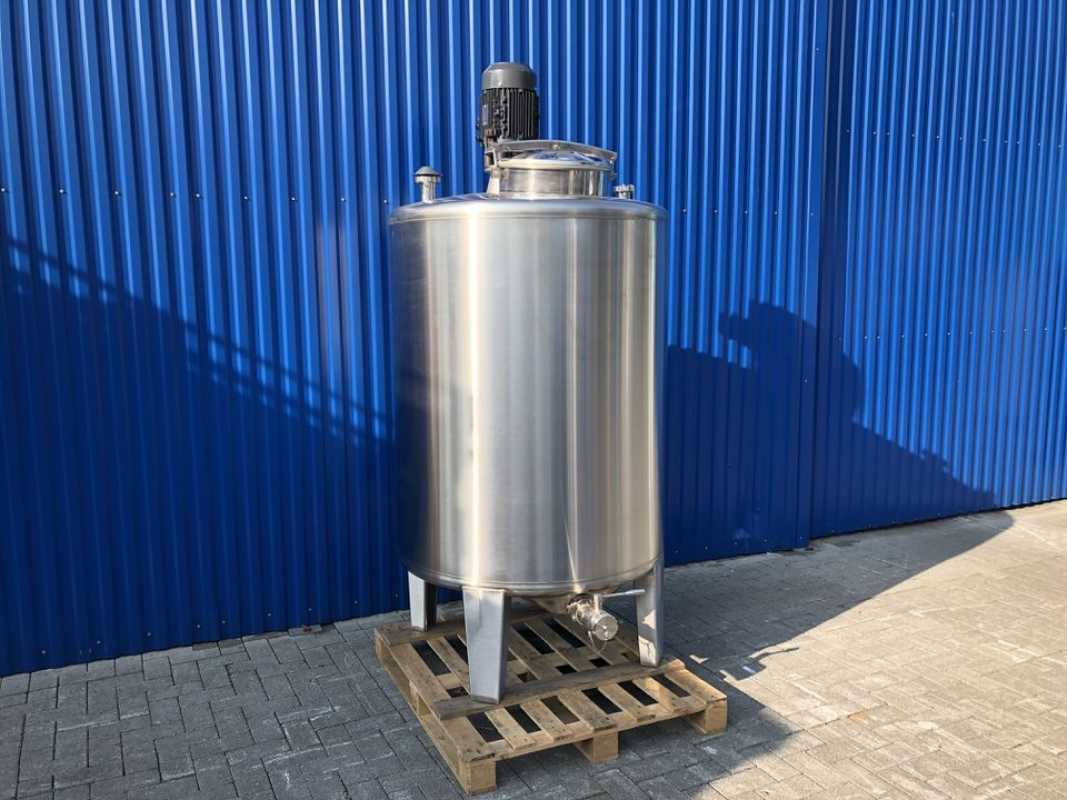

New stainless steel vessel with dissolver
Type: MTL1250RWD
Volume: 1305L
Type: Standing on 4pc feet
Single jacket
Material: AISI304 stainless steel
Surfaces: Outside SBR, inside IIId
Weldings inside: Pickled and passivated
Operating pressure: ATM
Top: Dished
Bottom: Dished with side-outlet
Dimensions:
Diameter: 1080mm
Height: 2005mm (+ agitator)
Height of feet: 425mm
Accessoirs:

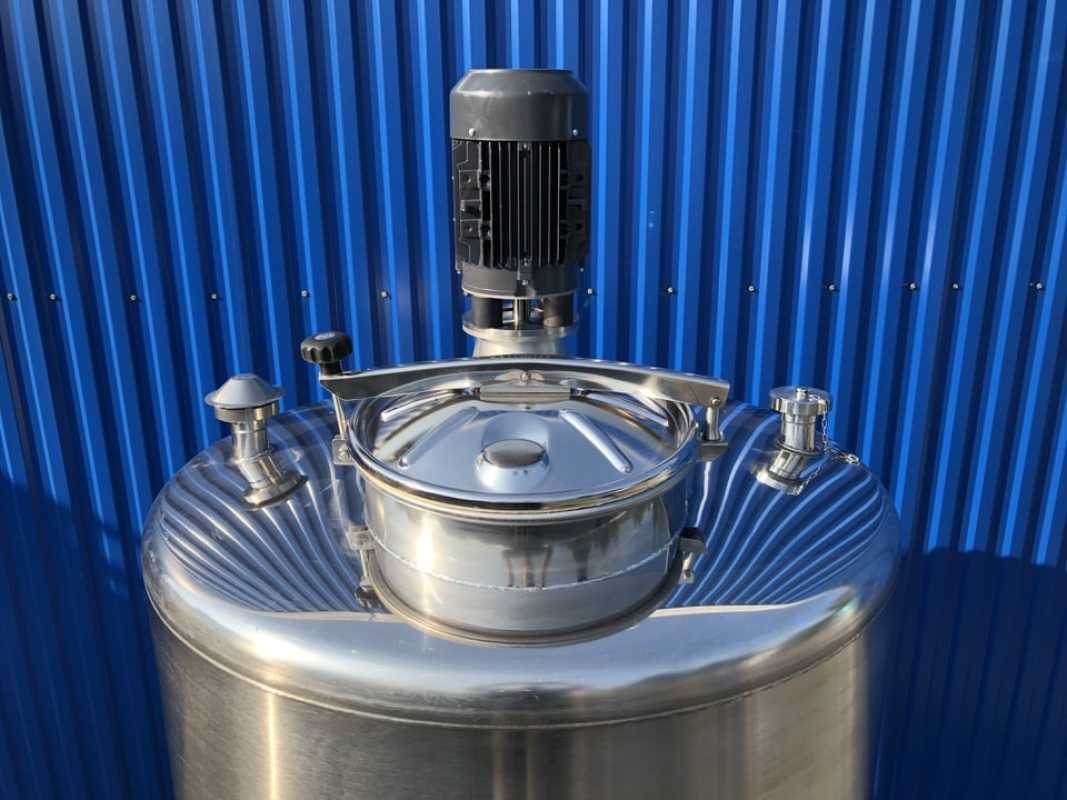

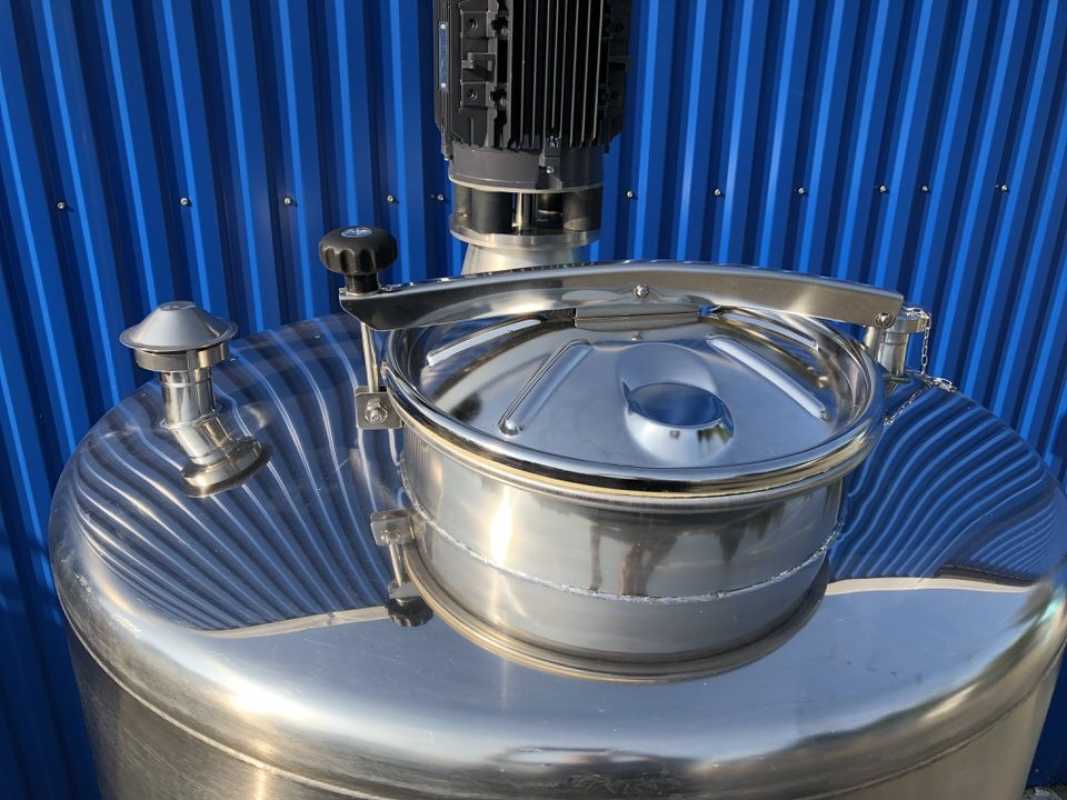

-1x Ø 400mm lid excentric on top with seal EPDM
-1x outlet ball valve DN50 DIN11851, seal PTFE
-1x stainless steel ventilation valve DN50 on top
-1x DN50 DIN11851 male on top with blind cap
-1x agitator flange with reinforcements IEC200
-1x nameplate

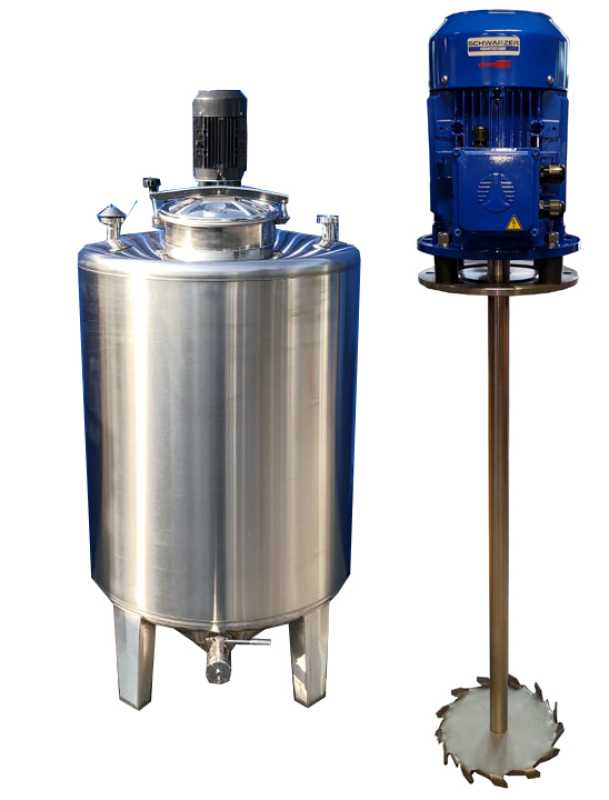

Agitator:
Dissolver
Type: SRTPD/5,5-1500
Fabricat: Schwarzer Rührtechnik GmbH
Power: 5,5KW
RPM: 1410
Voltage: 3PH 400V
Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity

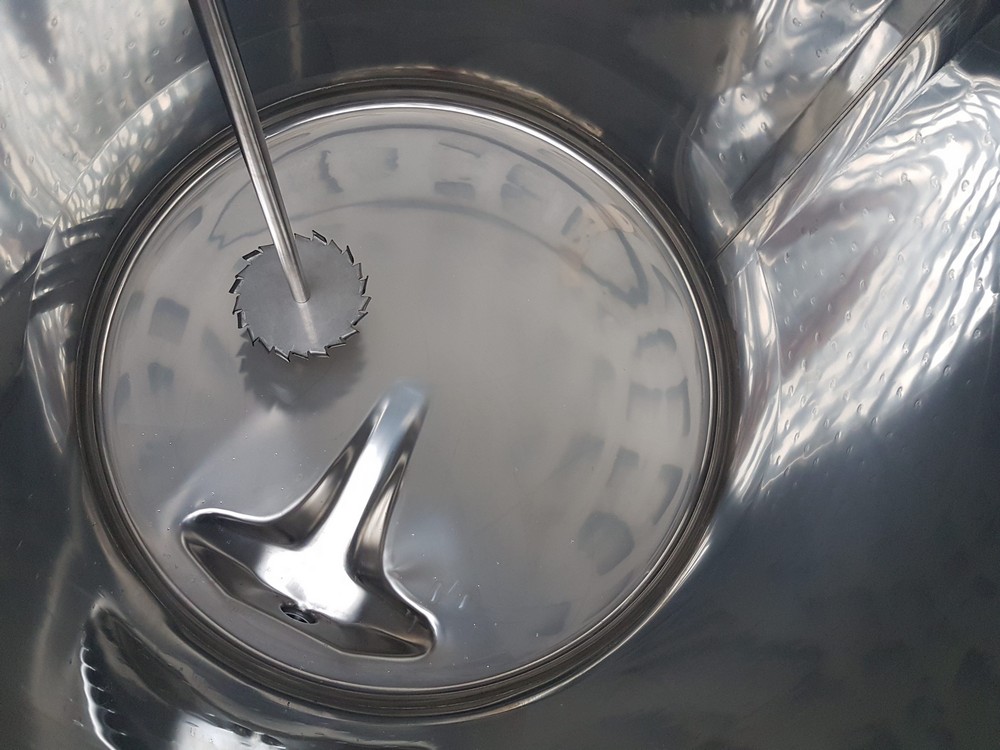

-1 piece dissolverdisc at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM
Shipping by transport company! Freight and packing charges will be offered separately!
