An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/mtlrw/

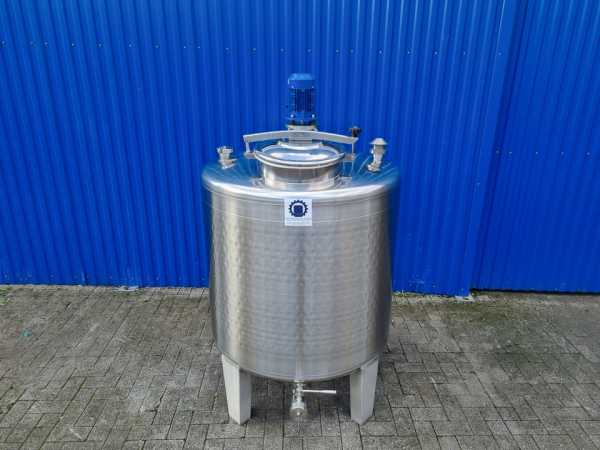

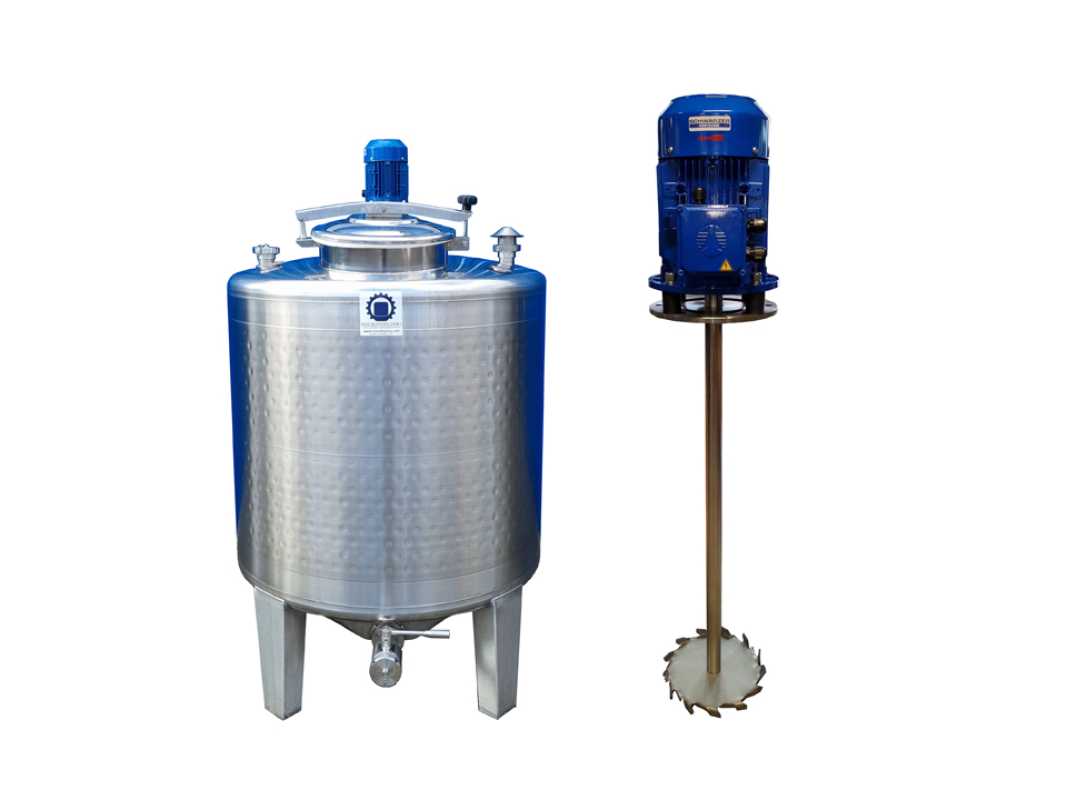

New stainless steel vessel with thermoplate and dissolver
Type: MTL1000TPRWD
Volume: 1000L
Type: Standing on four feet
Wall thickness: thermoplate on cylinder
Material in contact with product: AISI304 stainless steel
Surface: Outside satinated, inside BA
Weldings: Inside pickled, passivated and brushed, outside satinated
Operating pressure tank: ATM
Top: Dished
Bottom: Dished with side-outlet
Dimensions tank:
Diameter: 1080mm
Height: 1570mm (+ agitator)
Height of feet: 430mm
Accessoires:
-Ø 400mm lid on top, sealing EPDM
-thermoplate on cylinder with in-/outlets 3/4" male
-1x DN50 DIN11851 inlet on top
-1x ventilation valve DN50 on top
-1x agitator flange on top
-Outlet 1x Ball valve DN50 DIN11851
-1x nameplate
Agitator:
Dissolver
Type: SRTPD/5,5-1500
Fabricat: Schwarzer Rührtechnik GmbH
Power: 5,5KW
RPM: 1410
Voltage: 3PH 400V
Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity

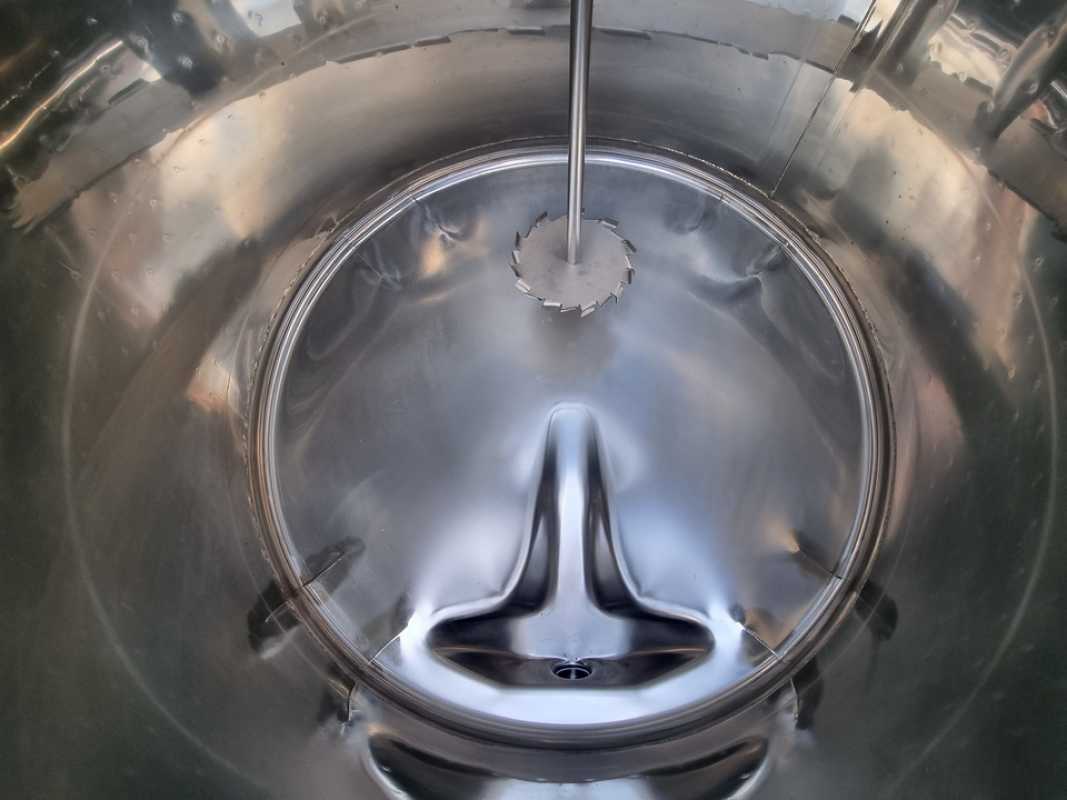

-1 piece dissolverdisc at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM Shipping by transport company! Freight and packing charges will be offered separately!
