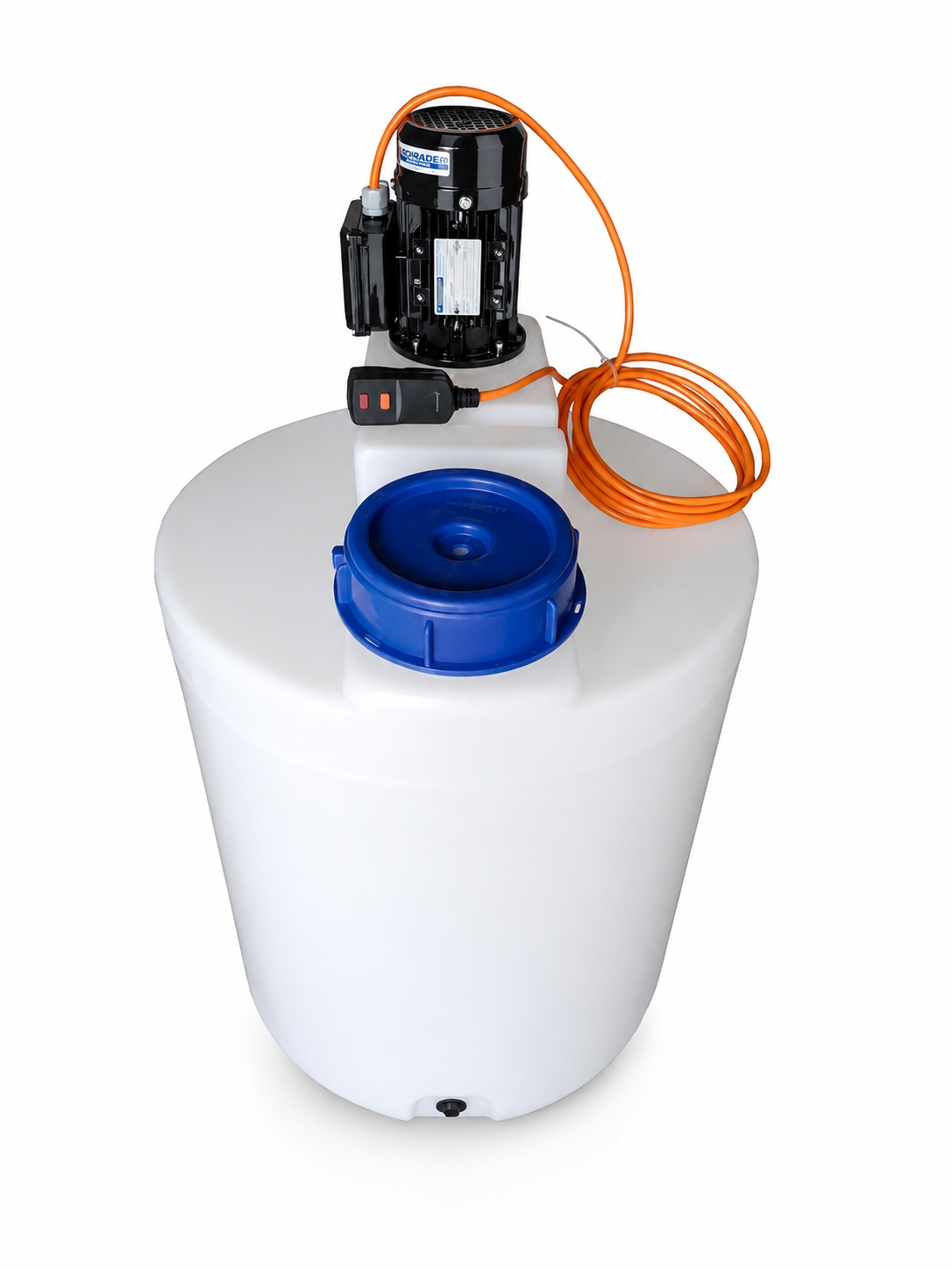

40 litre PE dosing tank Plastic tank with propeller agitator
.jpg "Dosierbehälter 40 Liter PE mit Rührwerk")
.jpg "40 litre PE dosing tank Plastic tank with propeller agitator")
40 liter dosing tank with propeller agitator
For water-like liquids with a viscosity up to 600 m/Pas and a density up to 1.2 kg/litre.
Outer-Ø 420mm x 425mm high (dimensions without agitator)
Cylindrical container with screw cap, UV-stabilised polyethylene
Suitable for food
Seamless manufactured using the rotary melting process
Sintered-in liter scale
Drainage: moulded threaded socket 3/4" with blind plug.
mounting plate for agitator PE with 4 threaded bushes
Colour natural-transparent.
Resistant to maximum 60°C temperature.
High speed mixer / propeller agitator for liquids similar to water
Power: 0,25 KW
Speed: 1400 rpm
Voltage: 1 PH 230V 50 Hz
5m supply cable with FI plug switch, with zero voltage release
Material in contact with product: 1.4404 stainless steel (V4A)
High speed mixer with solid, non-removable agitator shaft
Agitator shaft balanced for concentricity in the speed range
1 piece 3-blade mixing propeller PP Ø=80mm at the end of the agitator shaft
Total agitator weight approx.: 8 Kg
Options Trolley for PE dosing containers.
With 2 swivel castors and 2 fixed castors. The swivel castors have brakes.
Container is fixed by the frame
The drain can be used without any problems as it "protrudes"
Easy movement of the dosing containers within the plant.
Painted steel - Galvanized castors
Stainless steel version Stainless steel castors
Image representation may differ from the original.
Protective flange option:
If aggressive media (vapors) can rise, a protective flange is recommended to protect the motor.
