An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ebbrw/ebbrw-elektrisch-beheizte-ruehrwerksbehaelter-auf-rollen-60-500l/

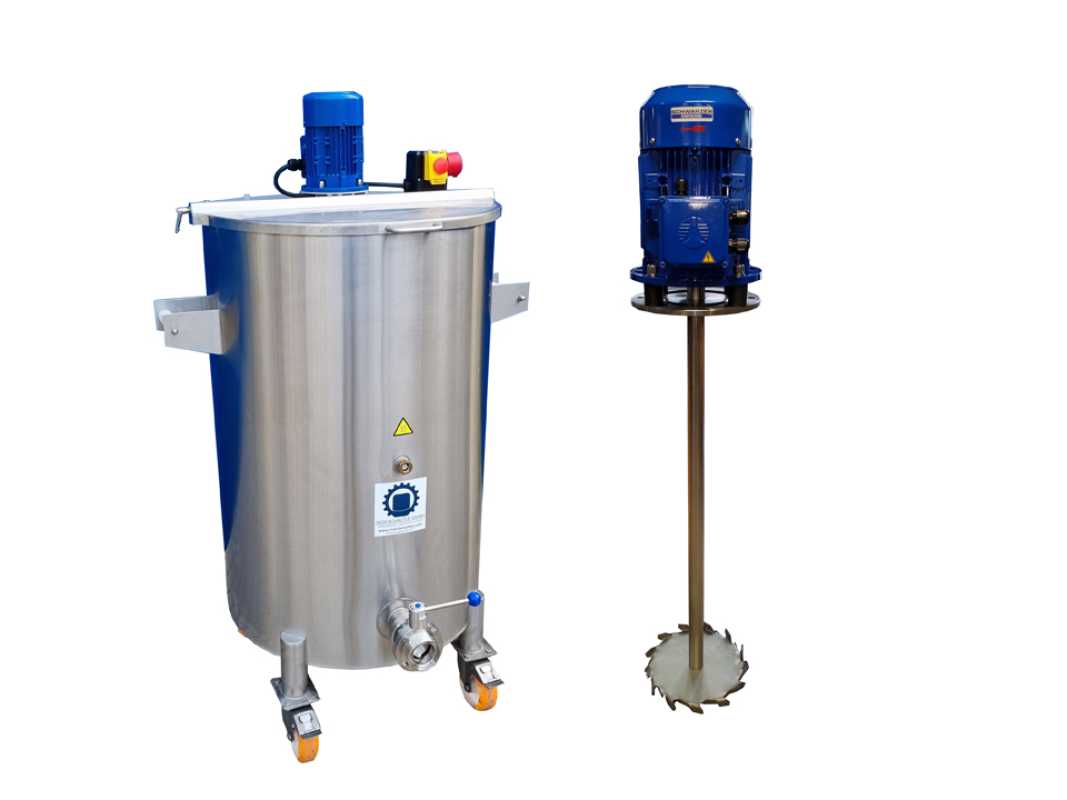

Electrically heated stainless steel vessel with digital control unit
EBB250RWD-M
Volume: Aprox. 250L
Dimensions.: Ø 595mm x cyl. height 900mm
Total height: 1240mm + agitator motor
Surface: IIIc / 2B
Operation temperature max.: 110°C
Operation pressure max.: ATM
Weldings inside flat grinded
-Standing on wheels
-Top: Open with dust cover lid
-Bottom: Flat with side outlet DN50 DIN11851
-Double jacket with glycerine filling
Accessoirs:
1x Nameplate
2x Grip on side
2x electric heater, each 6KW
1x stainless steel cabinet on side, digital control of heater "Mikster"
PT100 on outside of inner cylinder placed at 1/3 liquid level, control of temperature on digital display
1x Outlet DN50 DIN11851 butterfly valve, seals EPDM
Agitator: Dissolver
Type: SRTD/2,2-1500
Fabricat: Schwarzer Rührtechnik GmbH
Power: 2,2KW
RPM: 1410
Voltage: 3PH 400V
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece dissolverdisc at the end of the shaft, seal EPDM
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neoprene rubber-buffers Control unit agitator:
CEE switch/plug on the tank, On-/Off switch, zero voltage release, emergency shut-off
