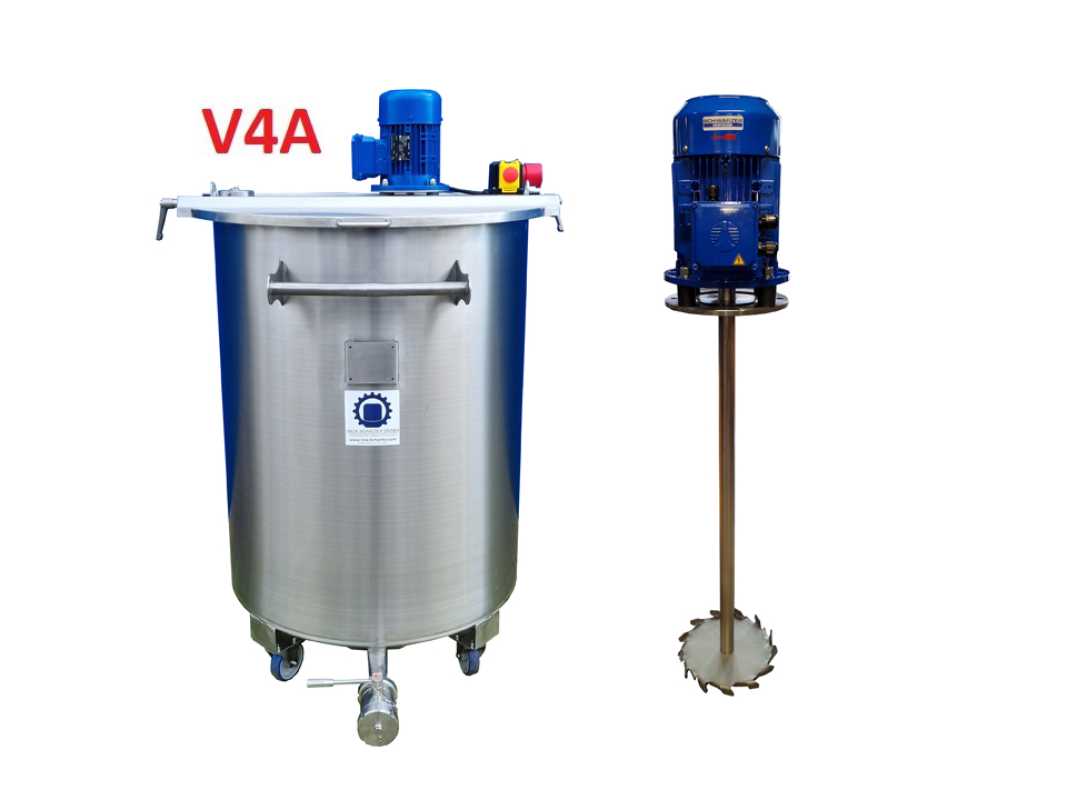

510L stainless steel mixing vessel with dissolver on wheels

An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/standardisierte-behaelter/cor-transport-und-lagerbehaelter-auf-rollen-130-2150l/

New stainless steel mixing vessel on wheels
COR500RWDA4
Volume: 510L
Dimensions aprox.: Ø 790mm x cyl. height 1000mm
Total height: 1300mm (+ agitator motor)
Material: AISI316 stainless steel
Surfaces: Inside IIId, outside SBR
Operating temperature max.: 95°C
Operating pressure: ATM
Weldings inside pickled, passivated and brushed
-Standing on wheels with brakes
-Top: Centric travers with 2pc folding lids
-Bottom: Dished with side outlet

Accessoirs:
1x top as folding lid, stainless steel grids under the lids (can be removed)
1x DN50 DIN11851 male on top with blind cap
1x Outlet DN50 DIN11851 ball valve, seal EPDM/PTFE
2pc plastic grips

Agitator:
Dissolver
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTPD/4-1500
Power: 4,0KW
RPM: 1410
Voltage: 3PH 400V

-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece dissolverdisc at the end of the shaft,
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neopren rubber-buffers

Switch-/Plug:
CEE-switch/plug unit on top of the vessel with on-/off switch, zero voltage release, phase changer and emergency stop butto
