An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp

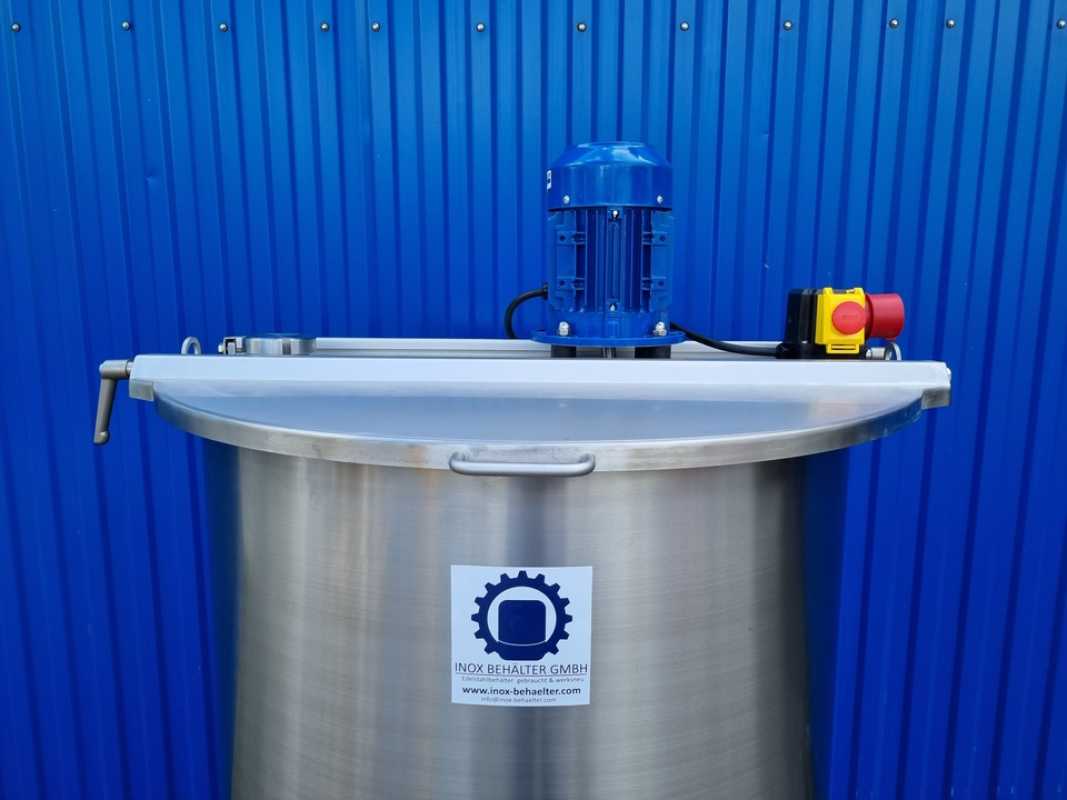

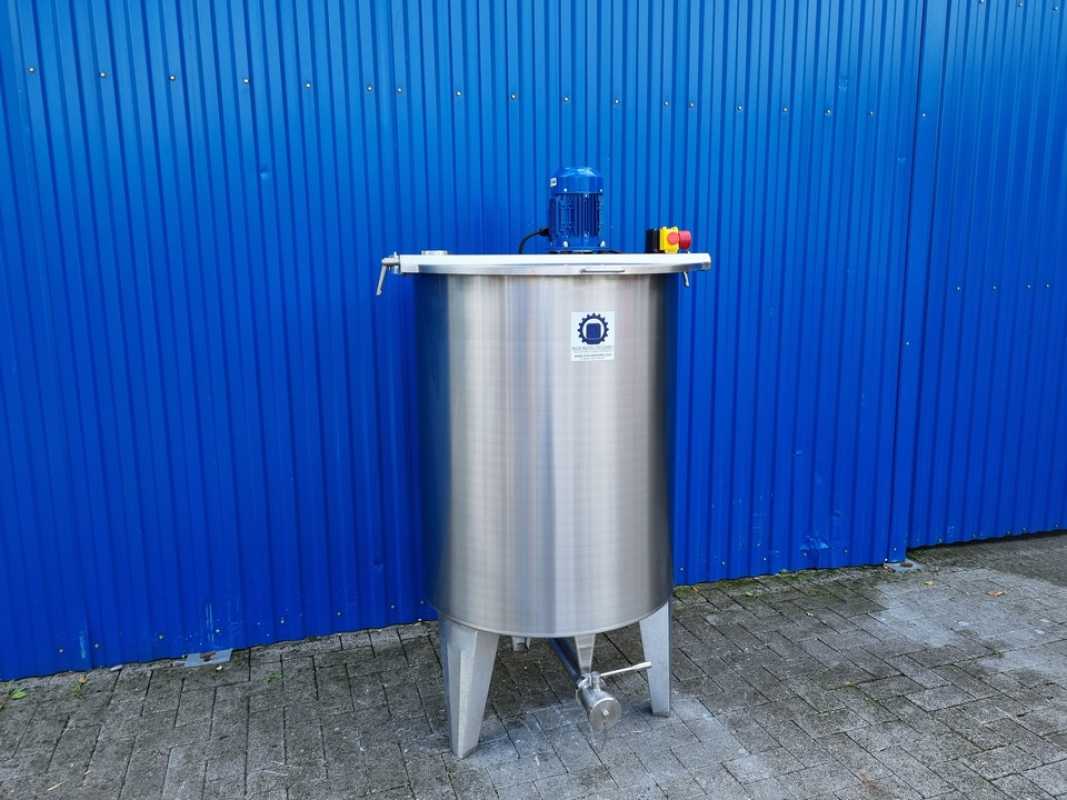

Brand new stainless steel agitator vessel
CILC500RWP Volume: 510L Type: Standing on three feet
Single-wall
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Top: Centric travers with 2pc folding lids
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 790mm
Height: 1400mm (+ agitator motor)
Cyl. height: 1000mm
Accessoires:
-Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
-Outlet 1x Ball valve DN50 DIN11851
-1x nameplate
Agitator:
Propeller agitator for low viscosity media
Type: SRT0-75-1500
Make: Schwarzer Rührtechnik GmbH
Power: 0,75 kw
Speed: 1410 rpm
Voltage: 3PH 400V
-Massive agitator shaft attached to the agitator motor, not removable
-Agitator shaft balanced for concentricity in the speed range

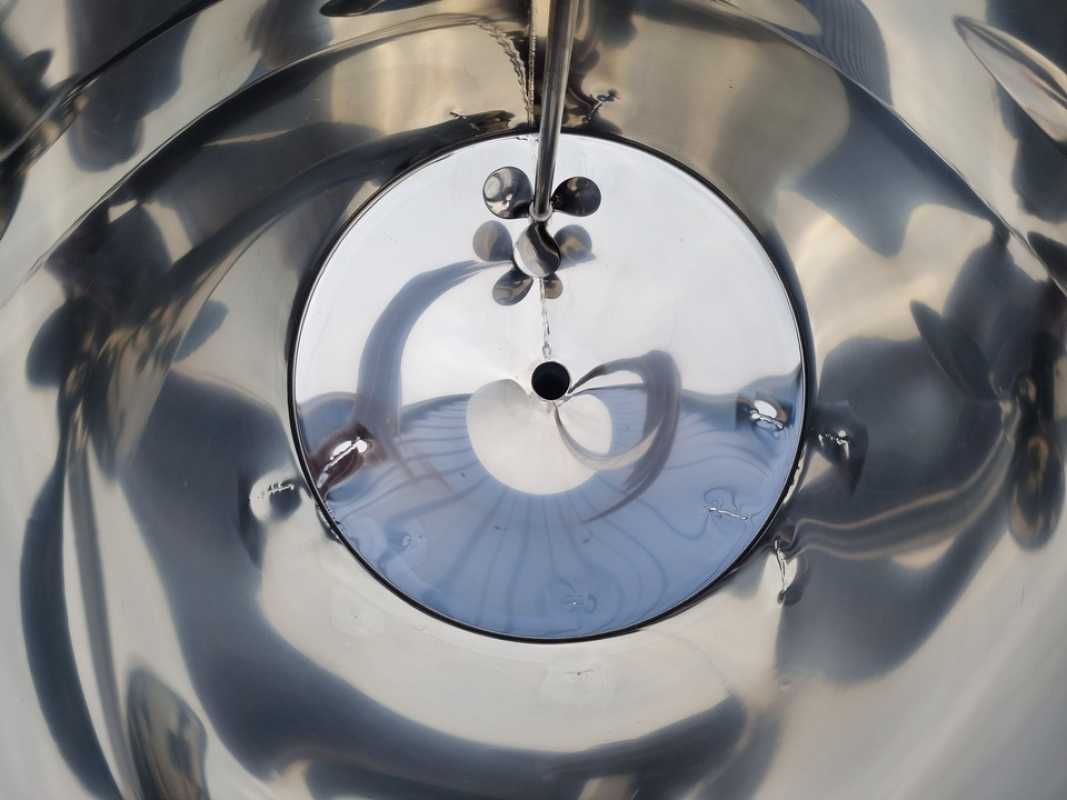

-1 piece 3-blade mixing propeller at the end of the agitator shaft
Mixing propeller made of cast stainless steel, highly polished
-Stainless steel flange, sealing V-ring, EPDM

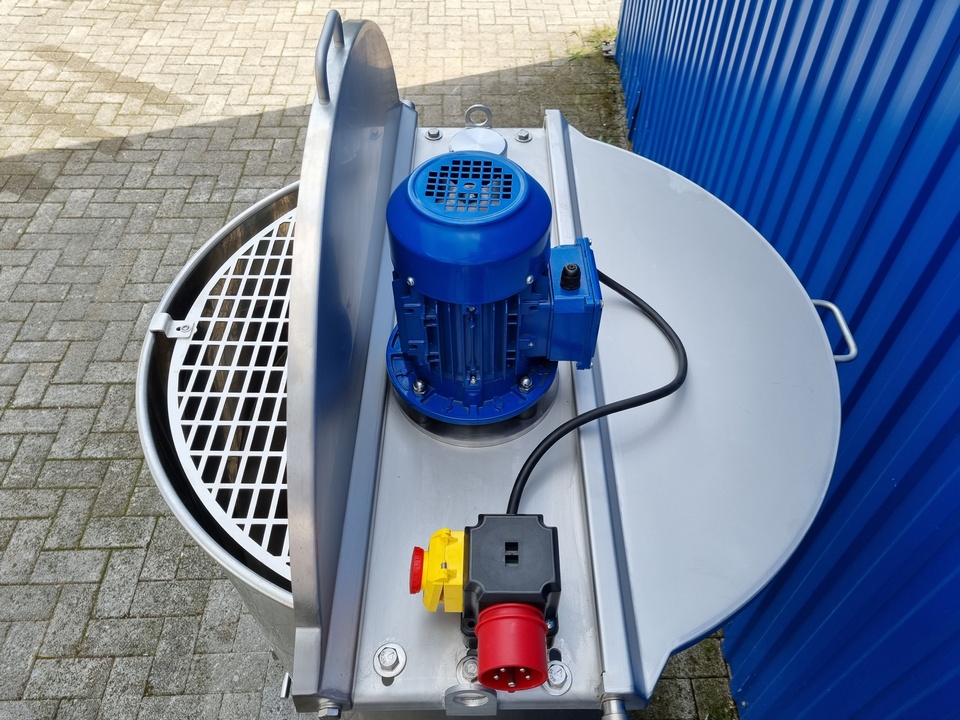

Agitator control:
CEE plug switch on the container with phase inverter, zero voltage release and emergency stop
Option for: Variable speed control by attached frequency converter: +850 EUR
Option for: Material in contact with product 1.4401 / 1.4404 stainless steel V4A: +495 EUR
