An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp/

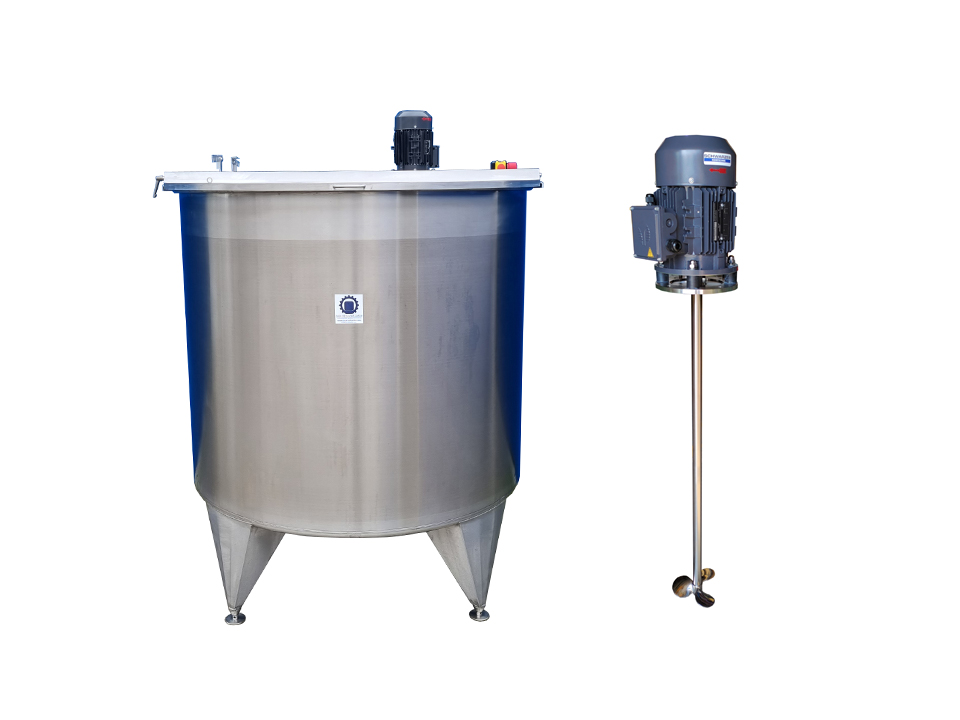

New stainless steel mixing tank with propeller mixer
Type: CILC4000RWP
Volume: 4139L
Type: Standing on three height adjustable feet
Single-wall
Surface: Outside satinated, inside IIId
Weldings: Inside pickled, passivated and brushed
Operating pressure tank: ATM
Top: Centric travers with 2pc folding lids
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 1800mm
Height: 2097mm (+ agitator motor)
Cyl. height: 1500mm
Feet: 500mm
Accessoires:
-Top as centric travers with 2pc folding lids, stainless steel grids under the lids (can be removed)
-1pc DN50 DIN11851 on top with blind cap
-Outlet centric in bottom DN50 DIN11851 male
-1x nameplate
Agitator:
Propellermixer
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTSW/2,2-1500
Power: 2,2KW
RPM: 1410
Voltage: 3PH 400V
Material in contact with product: AISI304 stainless steel
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity

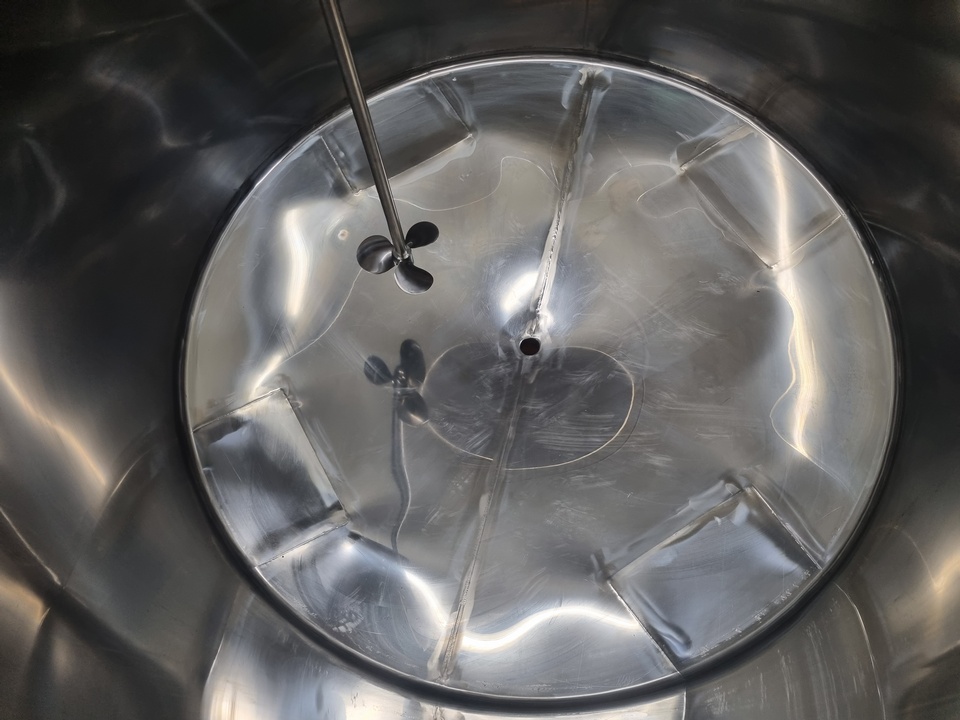

-1 piece 3-blade-mixing propeller at the end of the shaft, surface mirror polished
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neoprene rubber buffers
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
Shipping by transport company! Freight and packing charges will be offered separately!
