Information about this series:

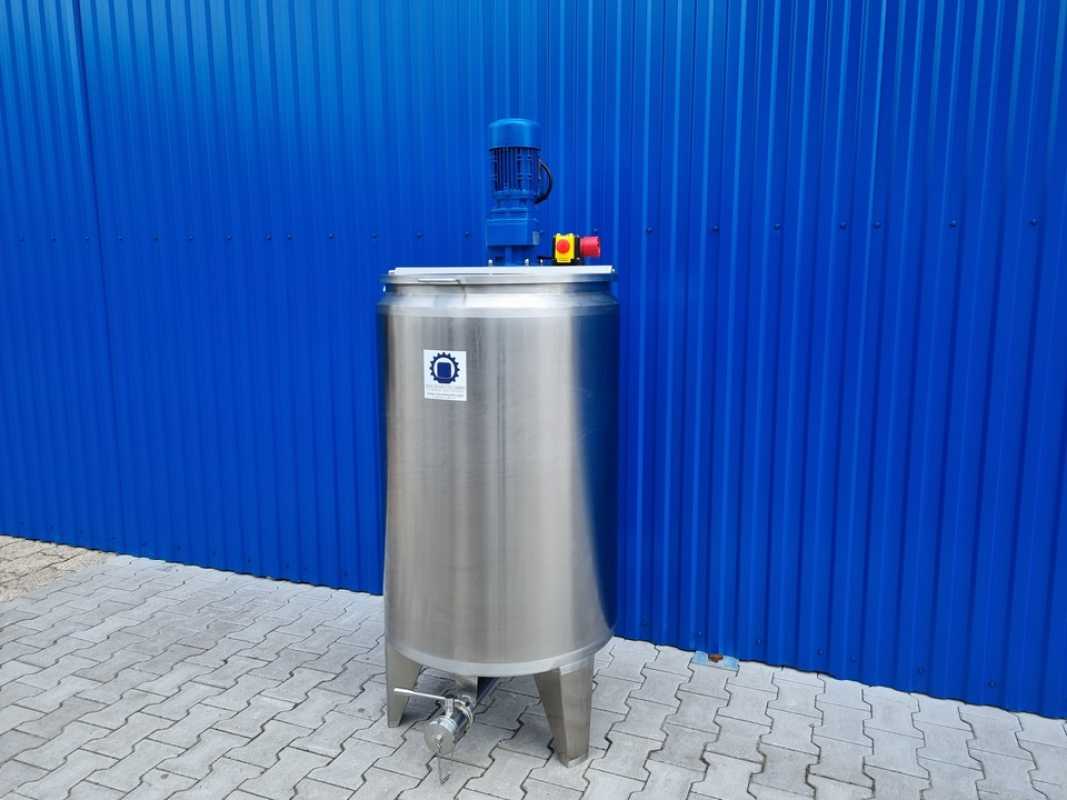

https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp/ New heat-/coolable stainless steel mixing tank with insulation
Type: CILC300TPISORWSA4
Volume: 337L
Type: Standing on three feet
With thermoplate and insulation
Material in contact with product: AISI316 stainless steel
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Hinge lid, 1/2 can be opened, 1/2 fixed
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 652mm
Height: 1381mm (+ agitator motor)
Cyl. height: 1000mm
Height of feet: 330mm
Accessoires:

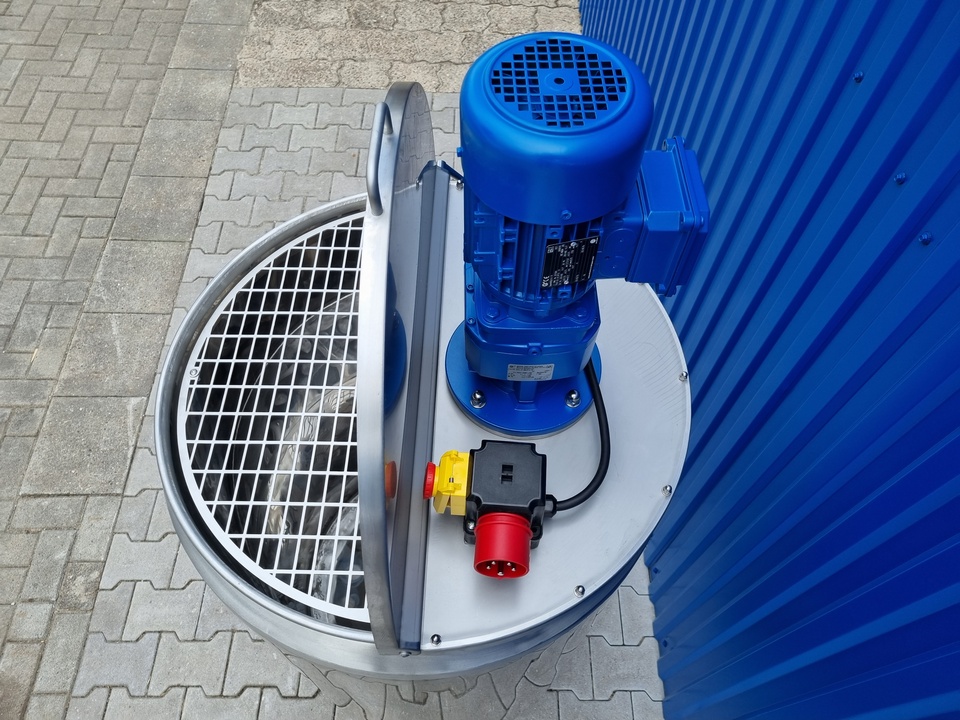

-1/2 hinge lid, 1/2 can be opened, 1/2 screwed to the tank, stainless steel grid under the lid
-1x Thermoplate around the cylinder, in-/outlet 3/4" Female
-1x Thermoplate on bottom, in-/outlet 3/4" female
-Outlet 1x Ball valve DN50 DIN11851, seal EPDM/PTFE
-1x nameplate

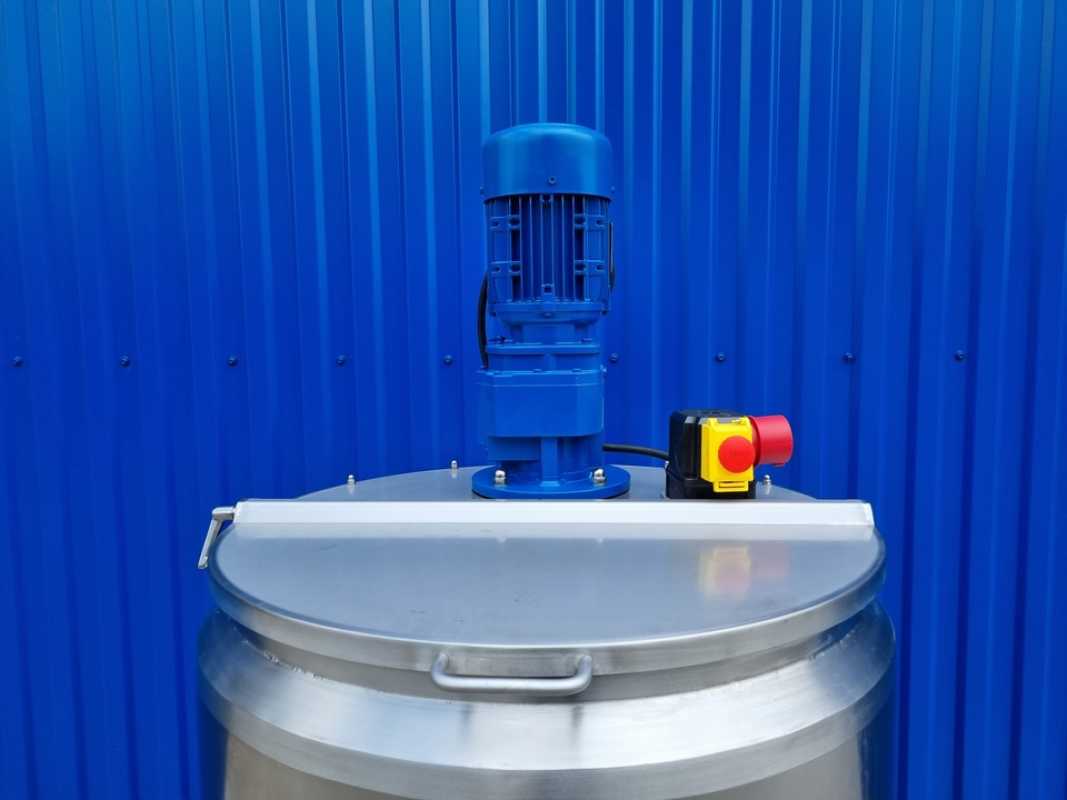

Agitator:
Paddle agitator
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTGSI63/0,75-190
Power: 0,75KW
RPM: 190
Voltage: 3PH 400V
Material in contact with product: AISI316 stainless steel
-Gear fabricated by Getriebebau NORD
-Massive shaft double beared in the gear
-Shaft balanced for concentricity
-2 pieces 2-blade-stirrer height adjustable on the shaft
-Stainless steel flange with V-Ring sealing, EPDM
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
