An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:
https://inox-behaelter.com/cilc-stehende-standgefaesse

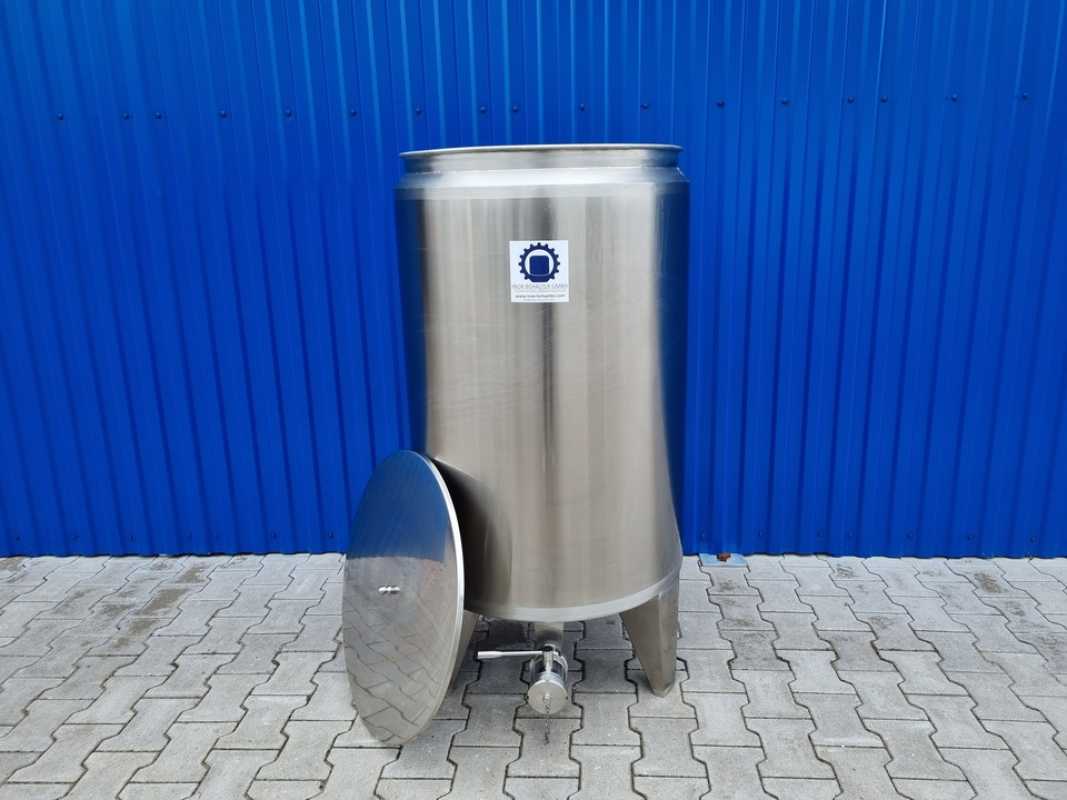

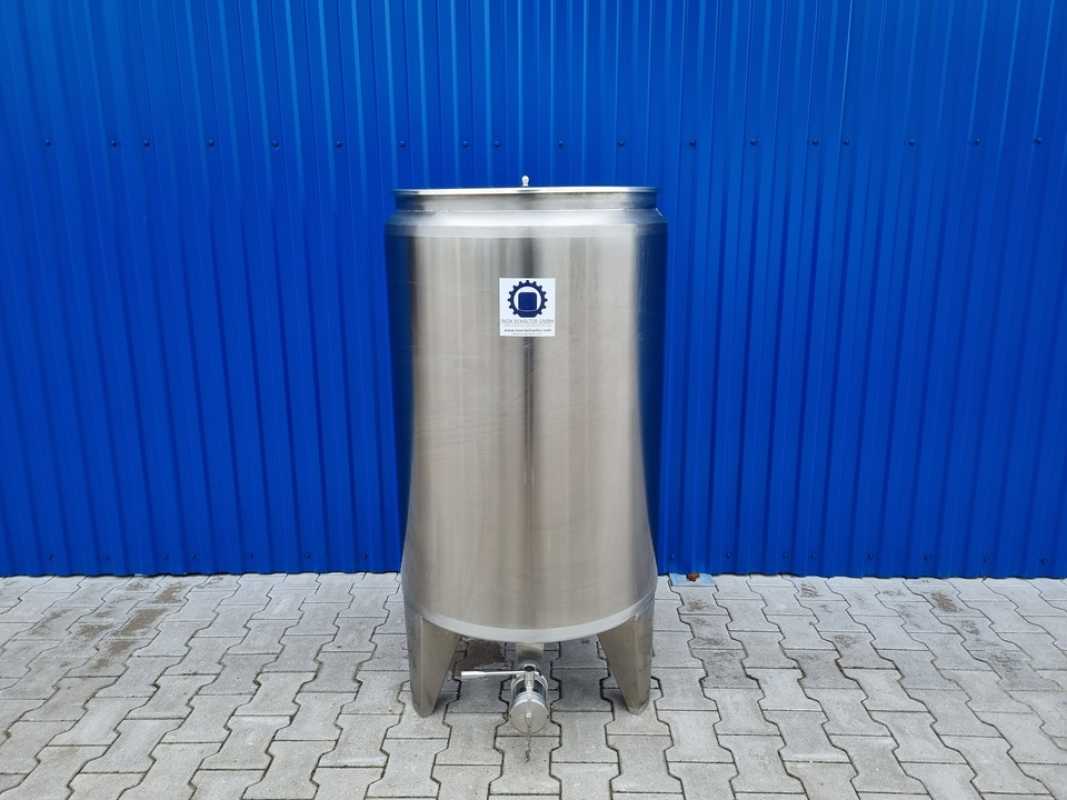

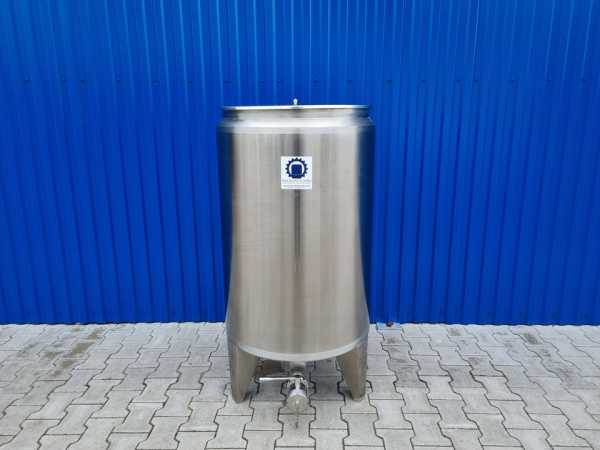

New insulated heat-/coolable stainless steel tank
Type: CILC300TPISOA4
Volume: 337L
Type: Standing on three feet
With thermoplate und insulation
Material in contact with product: AISI316 stainless steel
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Open with reinforced edge
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Inside Diameter: 652mm
Outside diameter: 712mm
Height: 1381mm (+ agitator motor)
Cyl. height: 1000mm
Height of feet: 330mm
Accessoires:
-1x Thermoplate around the cylinder, in-/outlet 3/4" Female
-1x Thermoplate on bottom, in-/outlet 3/4" female
-Outlet 1x Ball valve DN50 DIN11851, seal EPDM/PTFE

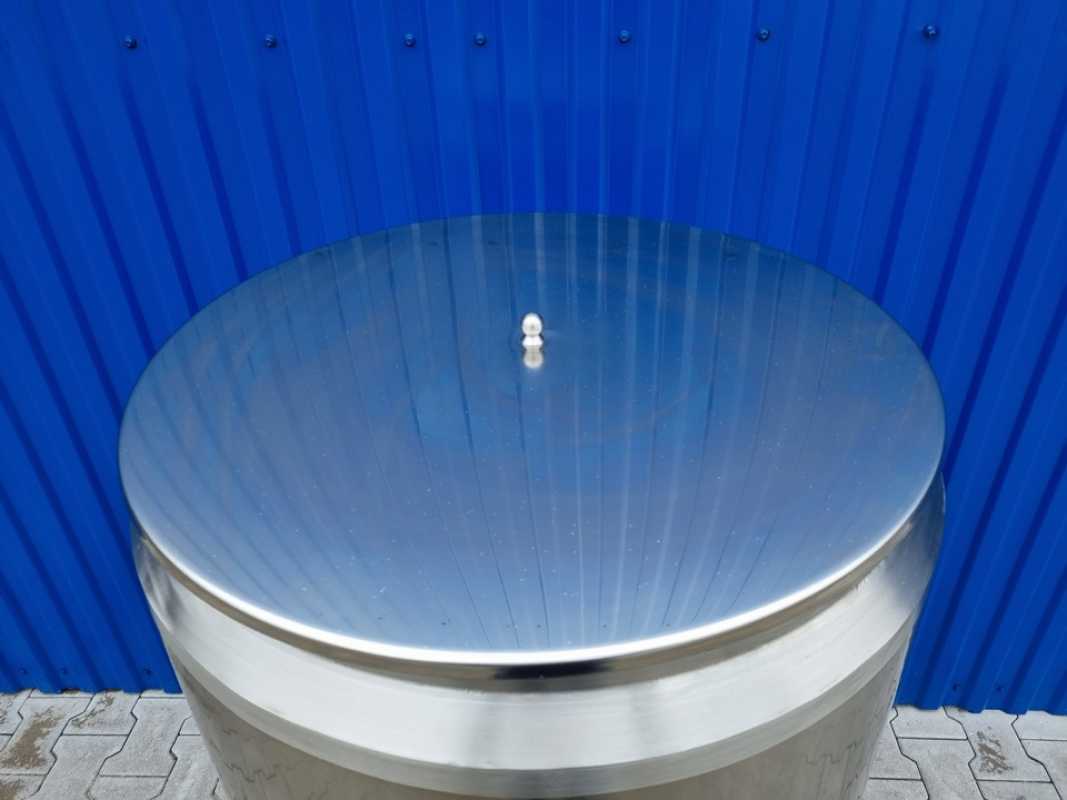

-1x dust cover lid with grip
-1x nameplate
