Information about this series:

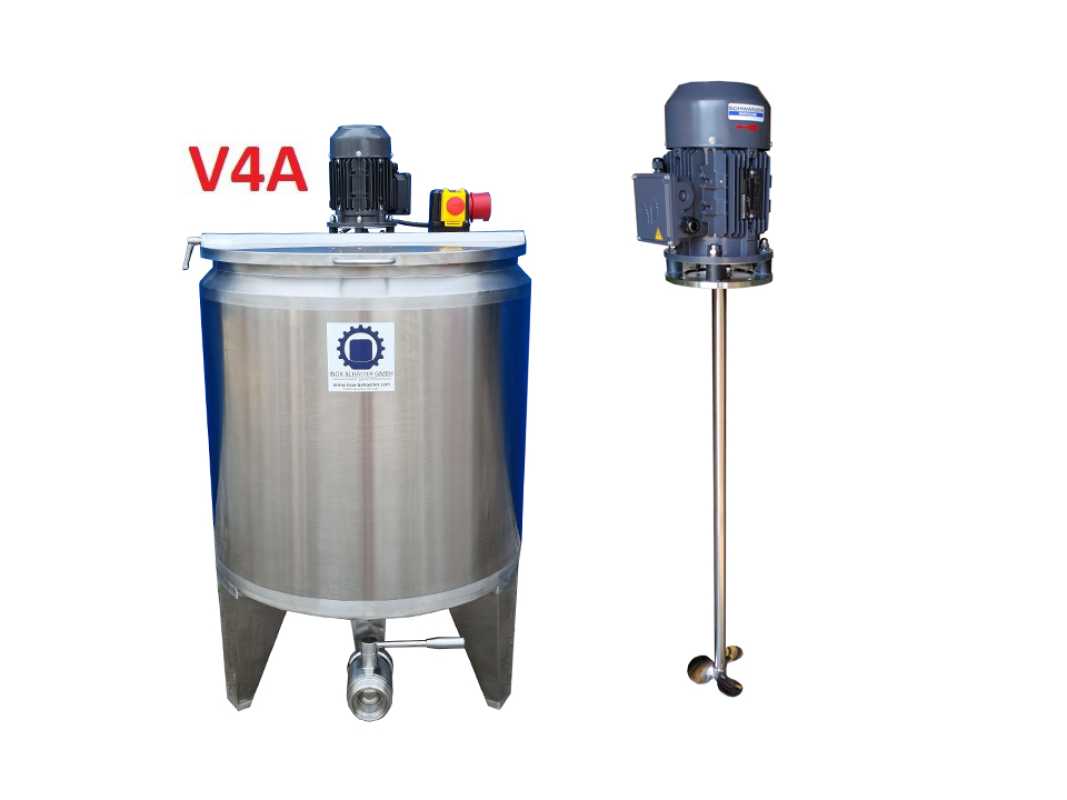

https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp/ New heat-/coolable stainless steel mixing tank with insulation
Type: CILC200BTPISORWPA4
Volume: 221L
Type: Standing on three feet
With thermoplate und insulation
Material in contact with product: AISI316 stainless steel
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Hinge lid, 1/2 can be opened, 1/2 fixed
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Inside Diameter: 650mm
Outside diameter: 710mm
Height: 980mm (+ agitator motor)
Cyl. height: 650mm
Height of feet: 330mm
Accessoires:
-1x Thermoplate around the cylinder, in-/outlet 3/4" Female
-1x Thermoplate on bottom, in-/outlet 3/4" female
-Outlet 1x Ball valve DN50 DIN11851, seal EPDM/PTFE
-1/2 hinge lid, 1/2 can be opened, 1/2 screwed to the tank, stainless steel grid under the lid
-1x nameplate
Agitator:
Propellermixer
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRT4-1000
Power: 0,25KW
RPM: 980
Voltage: 3PH 400V
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece 3-blade-mixing propeller at the end of the shaft, surface mirror polished
-Stainless steel flange with V-Ring sealing, EPDM
-Motor beared on neopren rubber-buffers
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
