An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:

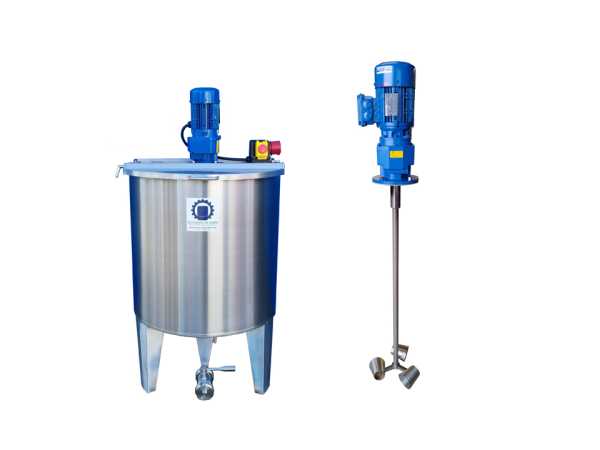

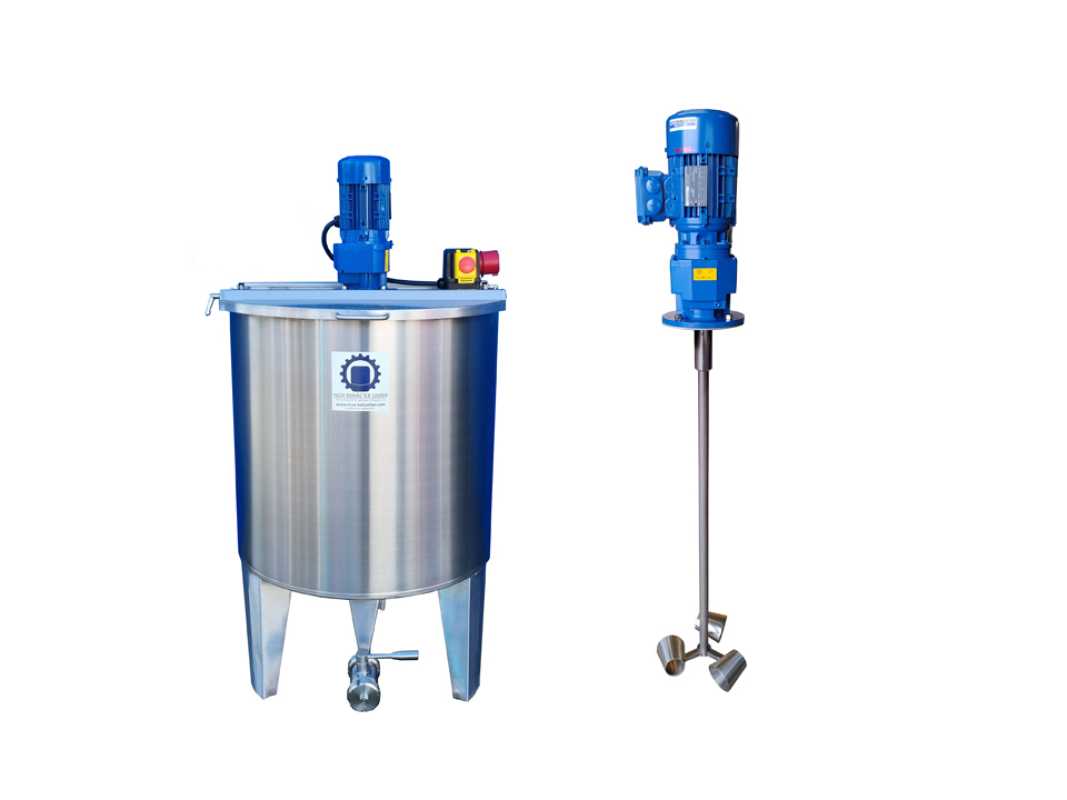

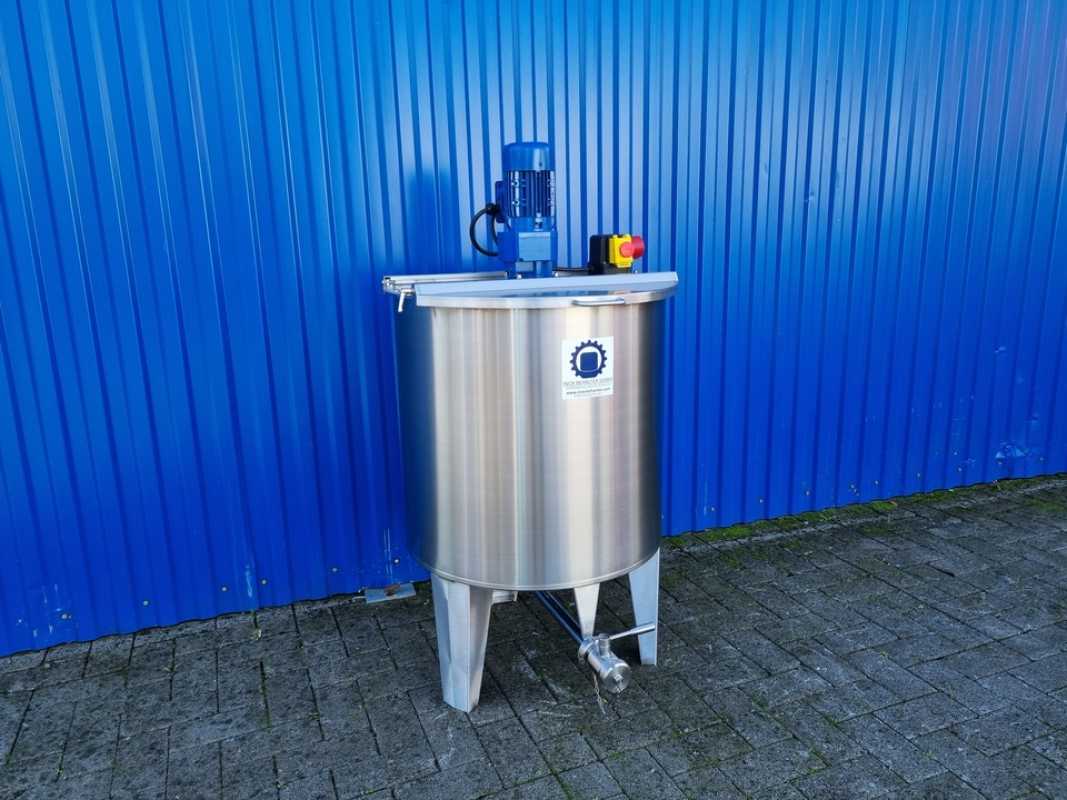

https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp/ New stainless steel mixing tank
Type: CILC200BRWB
Volume: 221L
Type: Standing on three feet
Single-wall
Surface: Outside satinated, inside BA (IIId)
Weldings: Inside pickled, passivated and brushed, outside satinated
Operating pressure tank: ATM
Top: Centric travers with 2pc hinge lid
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 650mm
Height: 1000mm (+ agitator motor)
Cyl. height: 650mm
Height of feet: 330mm
Accessoires:

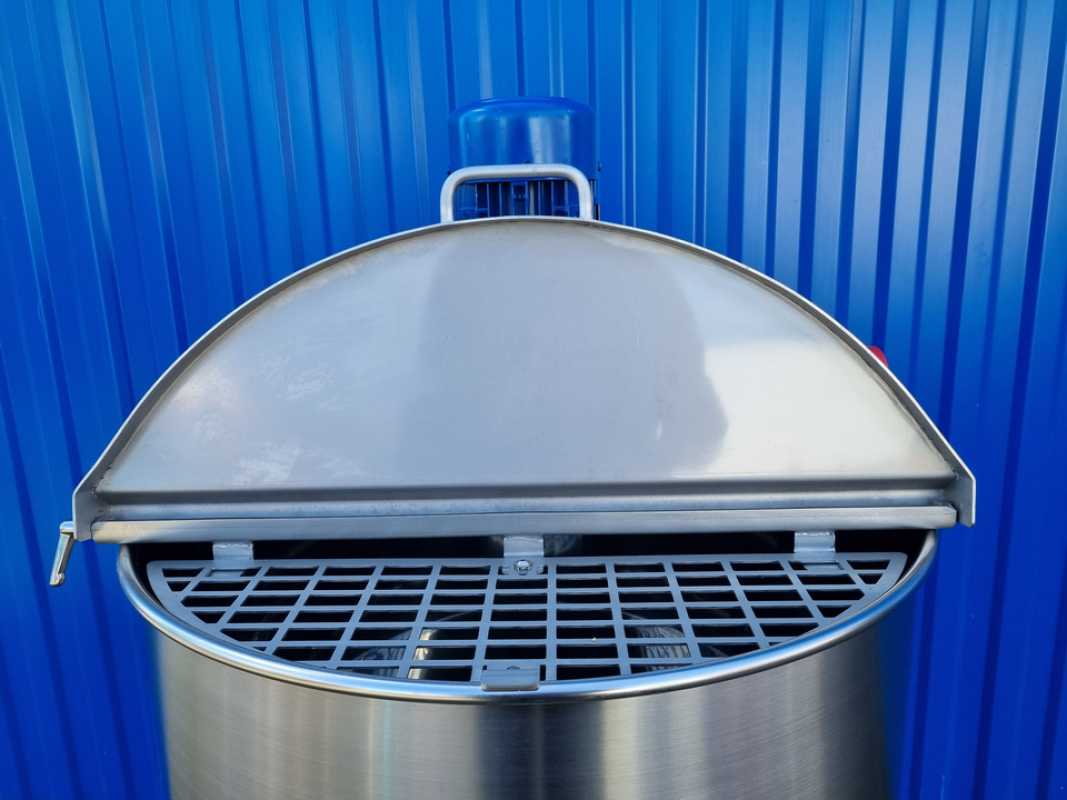

-Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
-Outlet 1x Ball valve DN32 DIN11851
-1x nameplate

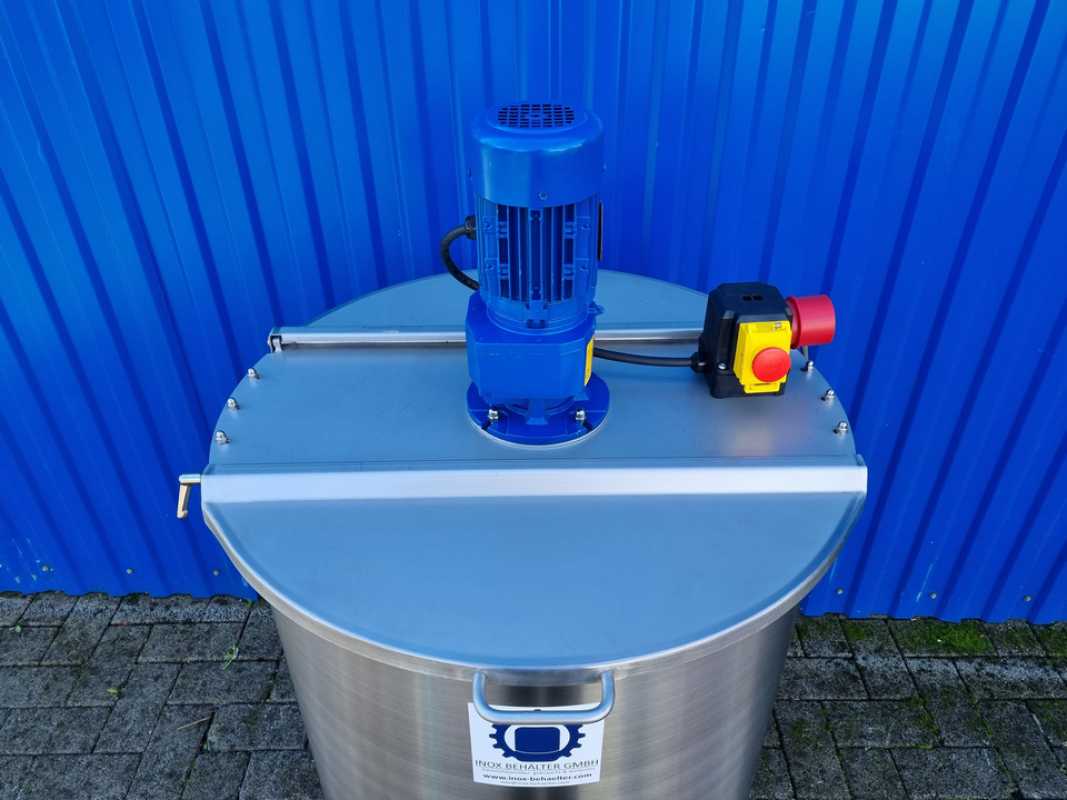

Agitator:

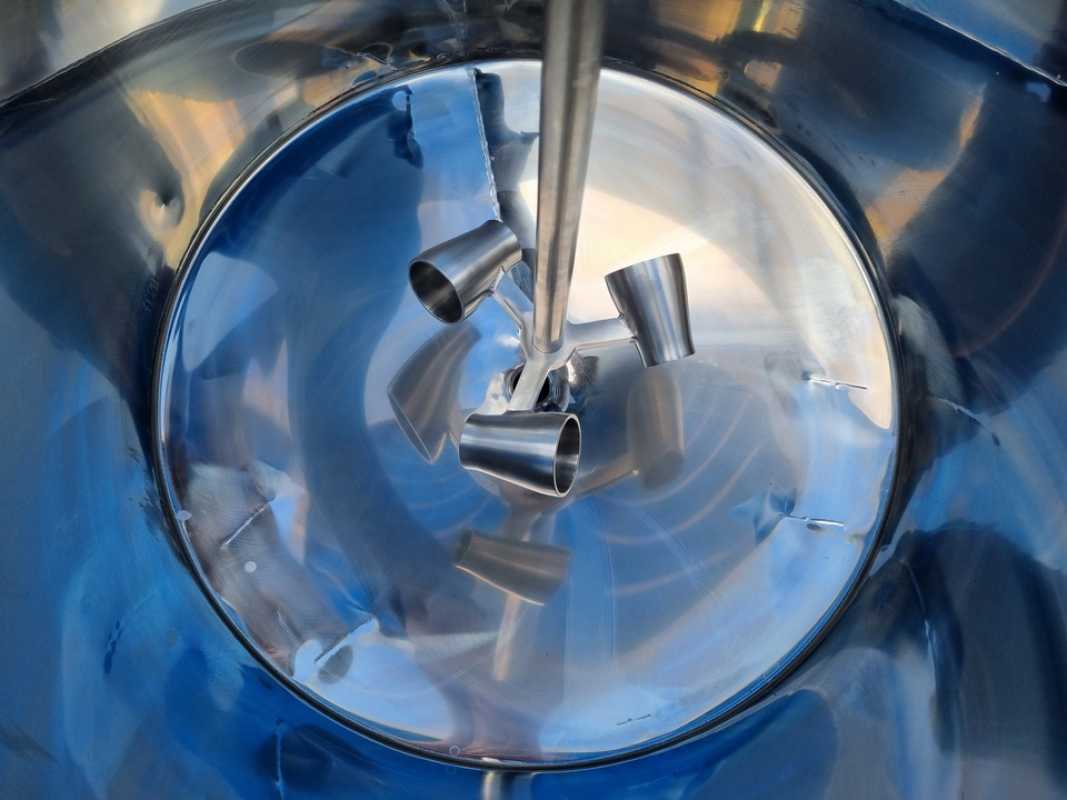

Cup stirrer
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTGMK/0,37-189
Power: 0,37KW
RPM: 189
Voltage: 3PH 400V
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece dissolverdisc at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
