An offer from INOX Behälter GmbH
www.inox-behaelter.com
Information about this series:

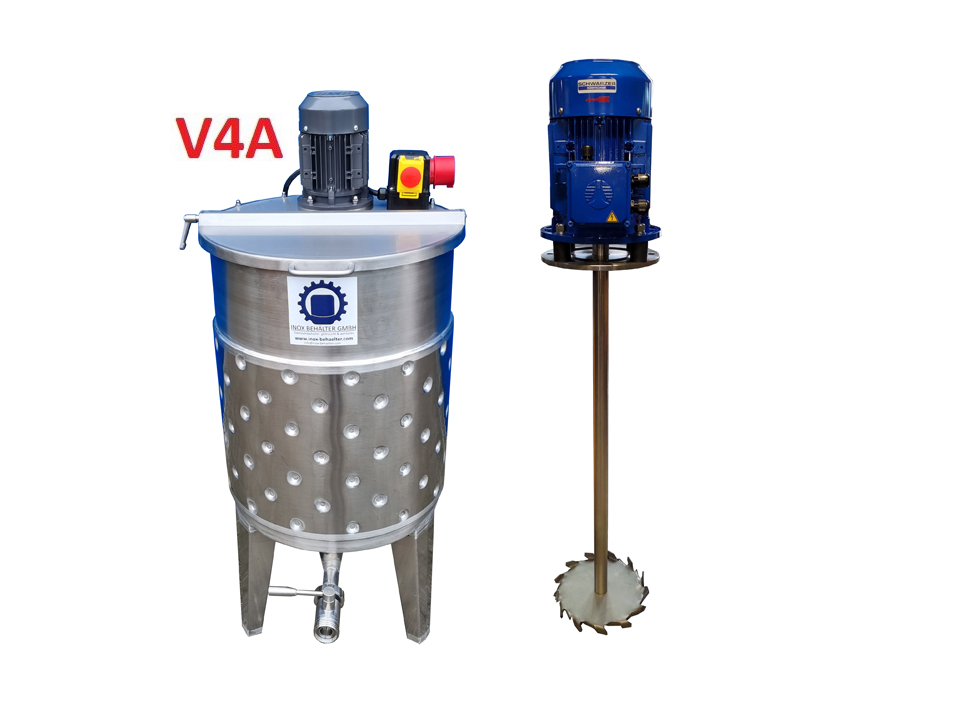

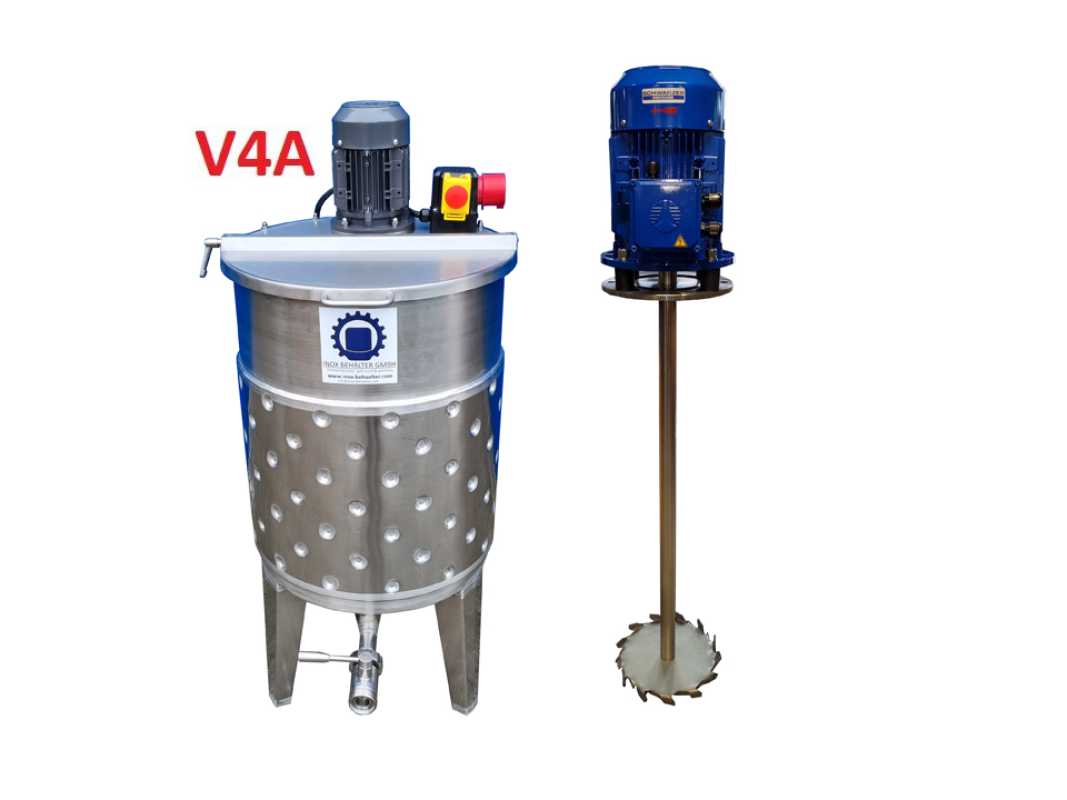

https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp New heat-/coolable stainless steel mixing tank
Type: CILC100BTPRWDA4
Volume: 109L
Type: Standing on three feet
Single-wall with thermoplate
Material in contact with product: AISI316 stainless steel
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Hinge lid, 1/2 can be opened, 1/2 fixed
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 477mm
Height: 930mm (+ agitator motor)
Cyl. height: 600mm
Height of feet: 330mm
Accessoires:
-1x Thermoplate H=400mm around the cylinder, in-/outlet 3/4"
- 1pc thermoplate on bottom, in-/outlet 3/4"
-1/2 hinge lid, 1/2 can be opened, 1/2 screwed to the tank, stainless steel grid under the lid
-Outlet 1x Ball valve DN25 DIN11851
-1x nameplate
Agitator:
Dissolver
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTP7-1500
Power: 0,55KW
RPM: 1410
Voltage: 3PH 400V
-Massive shaft mounted to the motor, can not be dismounted
-Shaft balanced for concentricity
-1 piece dissolverdisc at the end of the shaft
-Stainless steel flange with V-Ring sealing, EPDM
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
