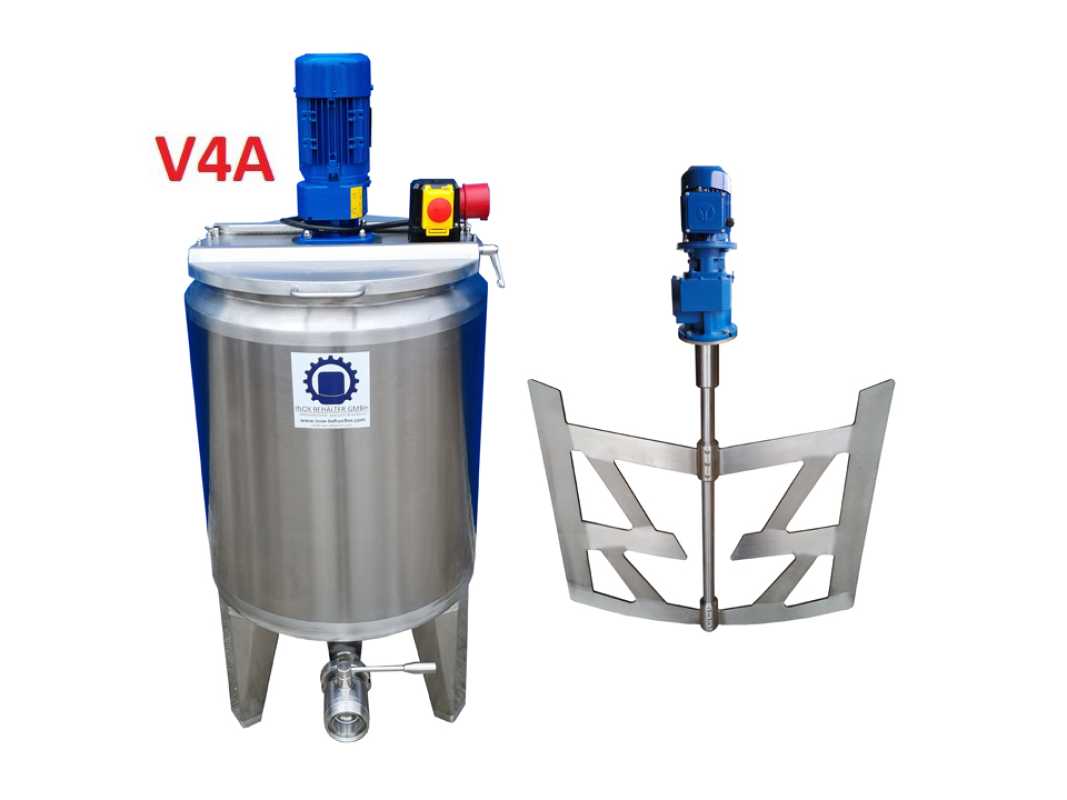

https://inox-behaelter.com/ruehrwerksbehaelter-cilcrwp New heat-/coolable stainless steel mixing tank with insulation
Type: CILC100BTPISORWAA4
Volume: 109L
Type: Standing on three feet
With thermoplate and insulation
Material in contact with product: AISI316L stainless steel
Surface: Outside satinated, inside IIId
Weldings: Flat grinded
Operating pressure tank: ATM
Opeerating pressure thermoplate: Max. +1,8Bar
Top: Centric travers with 2pc folding lid
Bottom: Cone bottom aprox. 15°
Dimensions tank:
Diameter: 477mm
Outside diameter: 537mm
Height: 930mm (+ agitator motor)
Cyl. height: 600mm
Height of feet: 330mm
Accessoires:
-1x Thermoplate around the cylinder, in-/outlet 3/4" female
-1x Thermoplate on bottom, in-/outlet 3/4" female
-Centric travers with 2pc folding lids, stainless steel grid under the lid, can be removed
-Outlet 1x Ball valve DN25 DIN1185, seal EPDM/PTFE
-1x nameplate
Agitator:
Anchor agitator
Fabricate: Schwarzer Rührtechnik GmbH
Type: SRTGMK/0,12-21
Power: 0,12KW
RPM: 21
Voltage: 3PH 400V
-Motor and gear fabricated by Getriebebau NORD
-Massive shaft mounted to the motor with coupling
-Shaft balanced for concentricity
-1 piece anchor stirrer, welded type
-Stainless steel flange with sealing, EPDM
CEE-Switch/plug on the tank
On-/Off switch, emergency stop, zero voltage release
